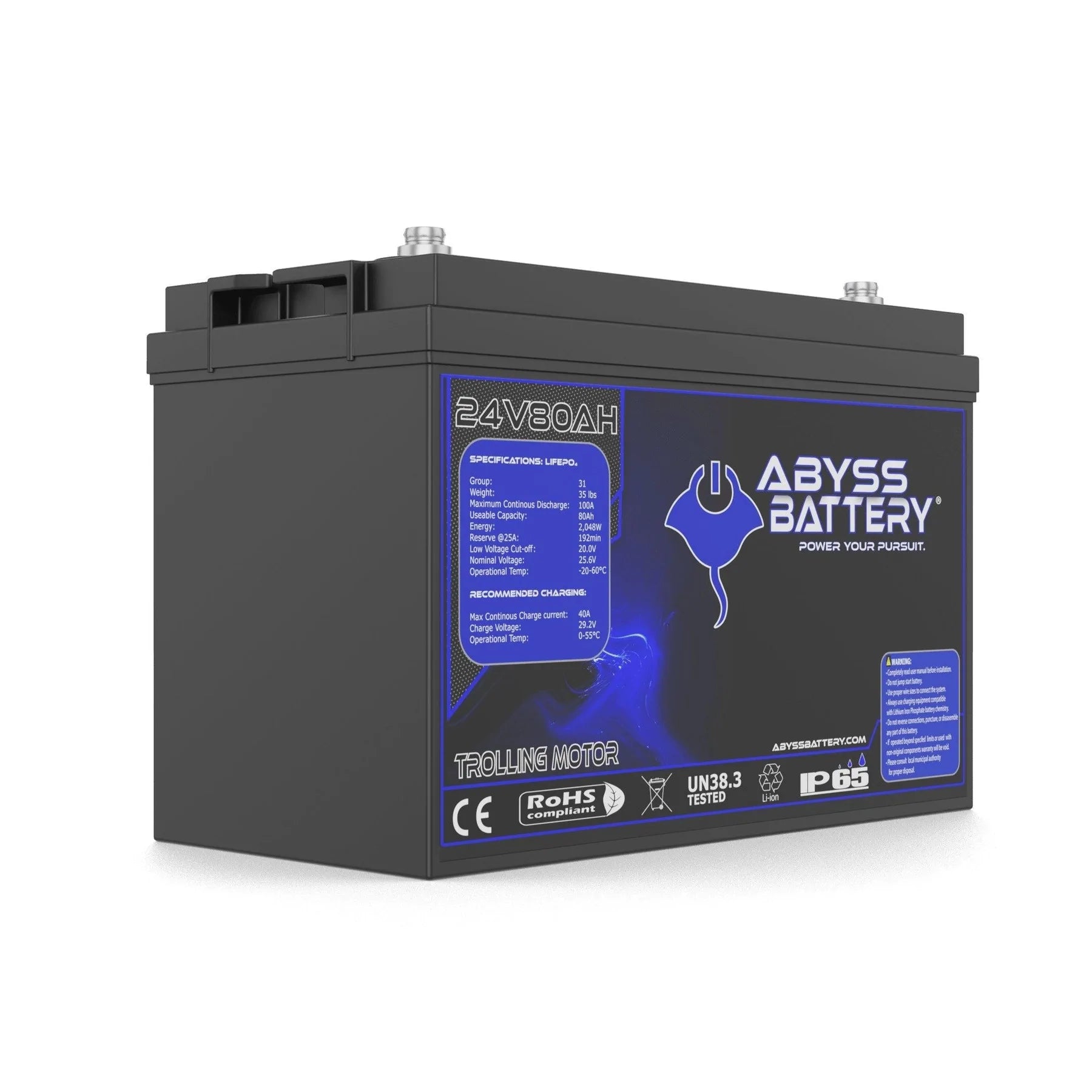

Abyss® | Trolling Motor Battery | Model AB-24V80-BT | Group 31 | Voltage 24V 80Ah | Bluetooth BMS | Built-In Heating | IP65 Waterproof
Abyss® | Trolling Motor Battery | Model AB-24V80-BT | Group 31 | Voltage 24V 80Ah | Bluetooth BMS | Built-In Heating | IP65 Waterproof
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

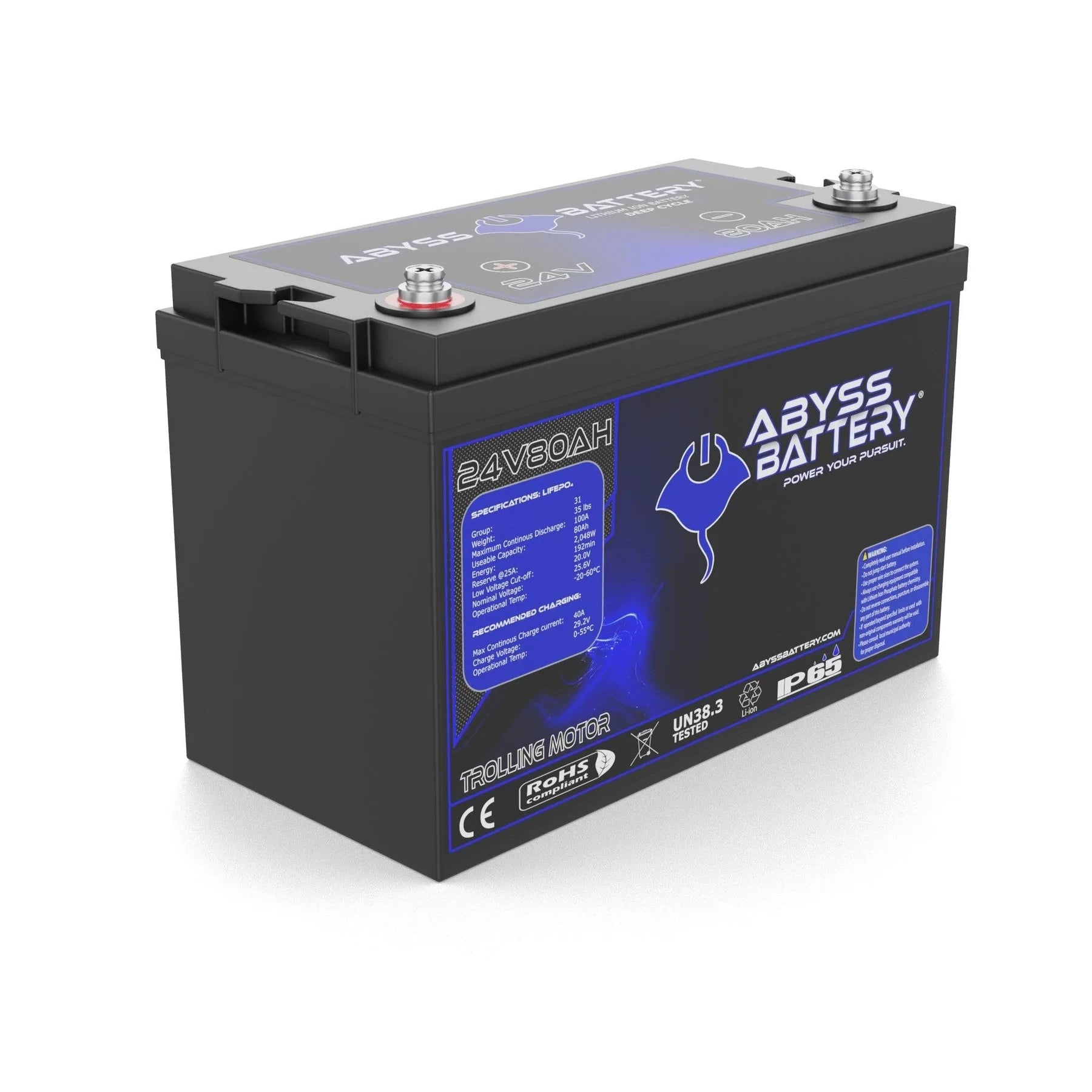

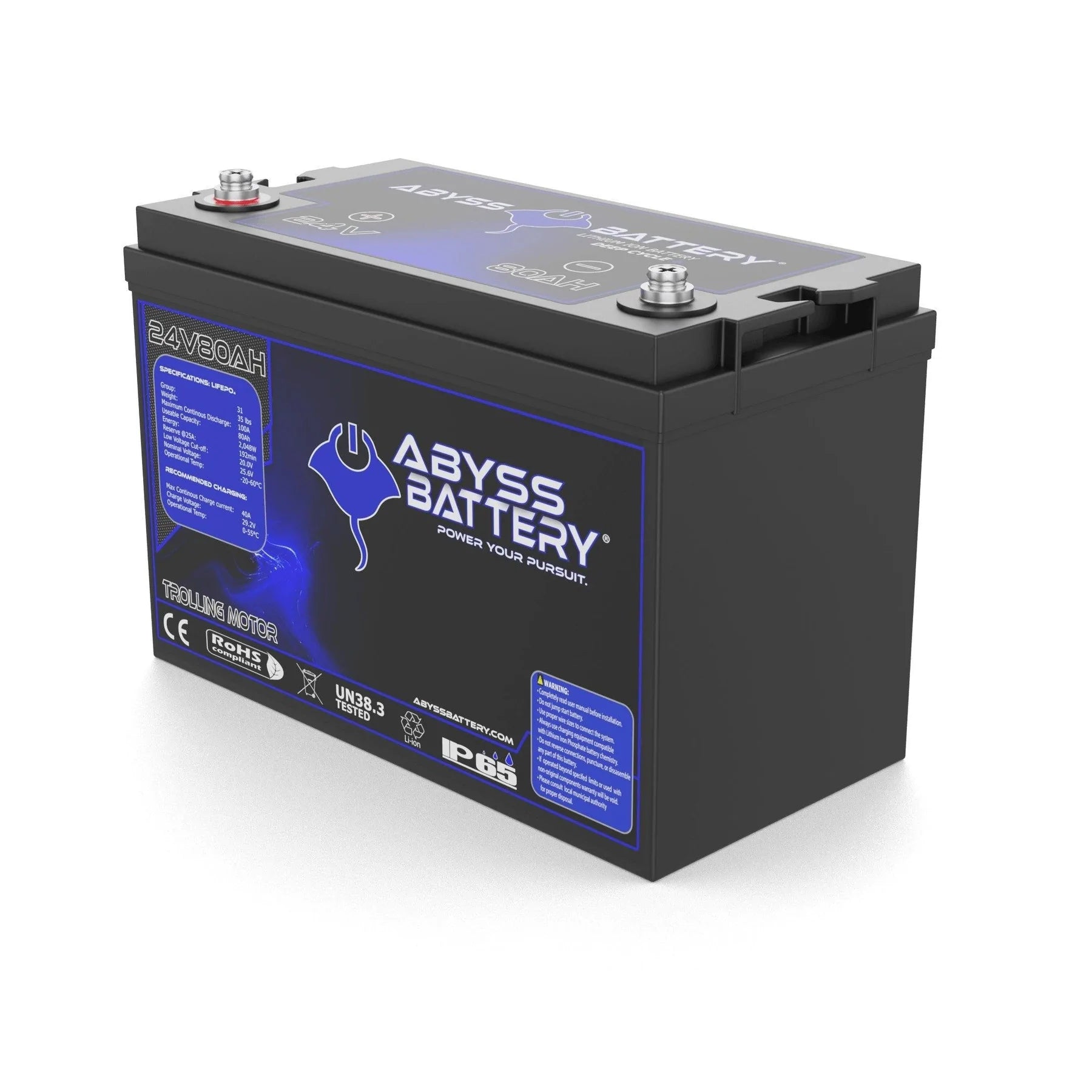

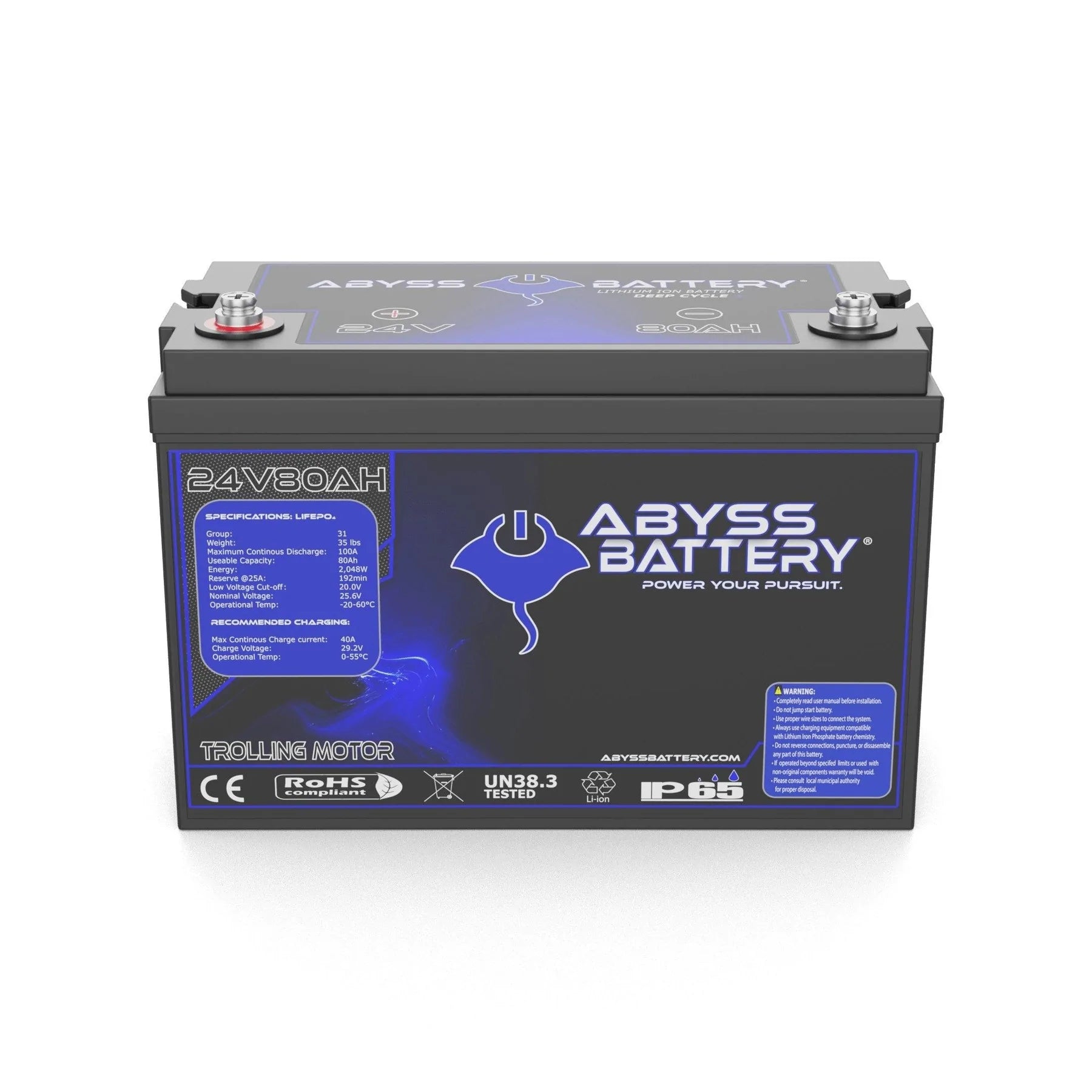

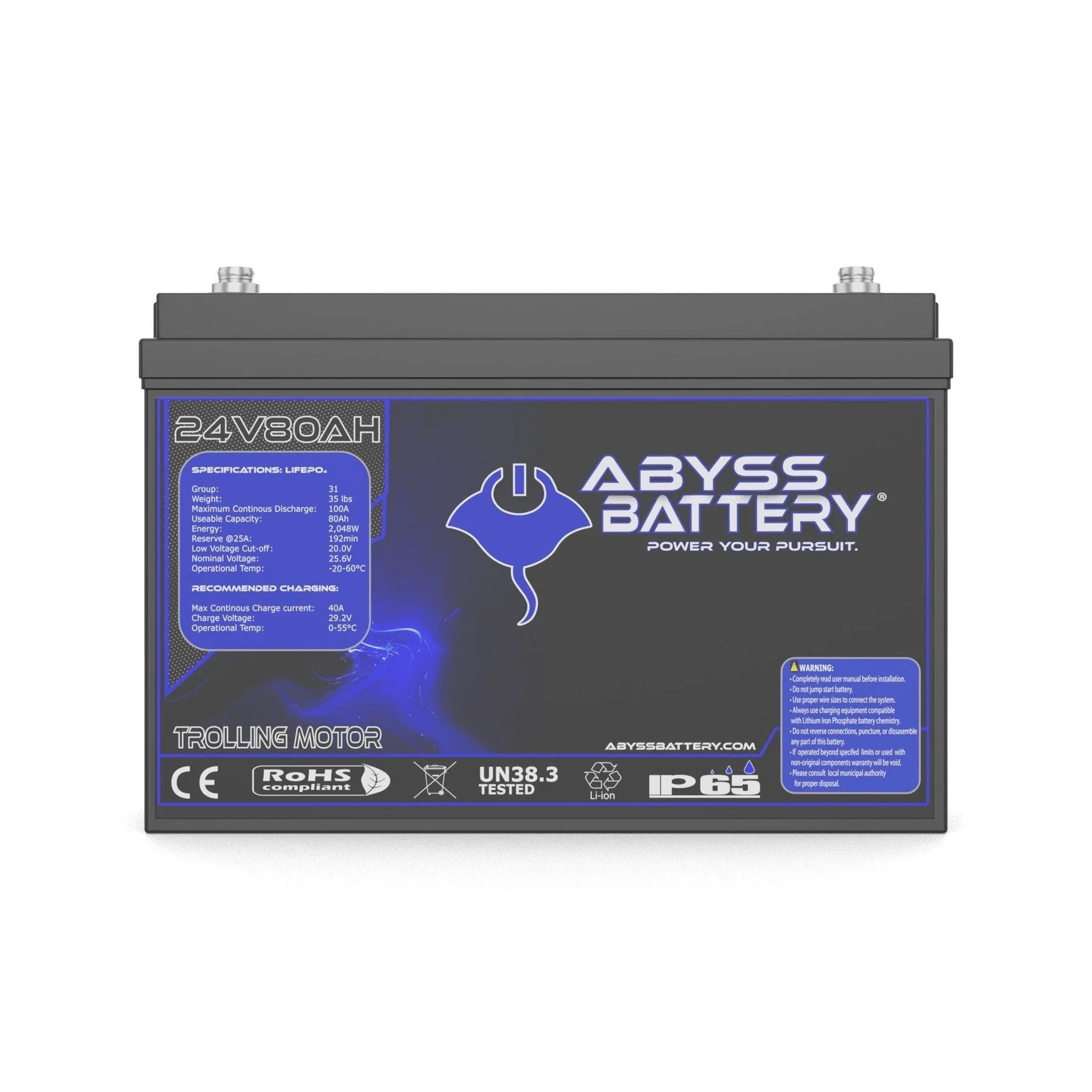

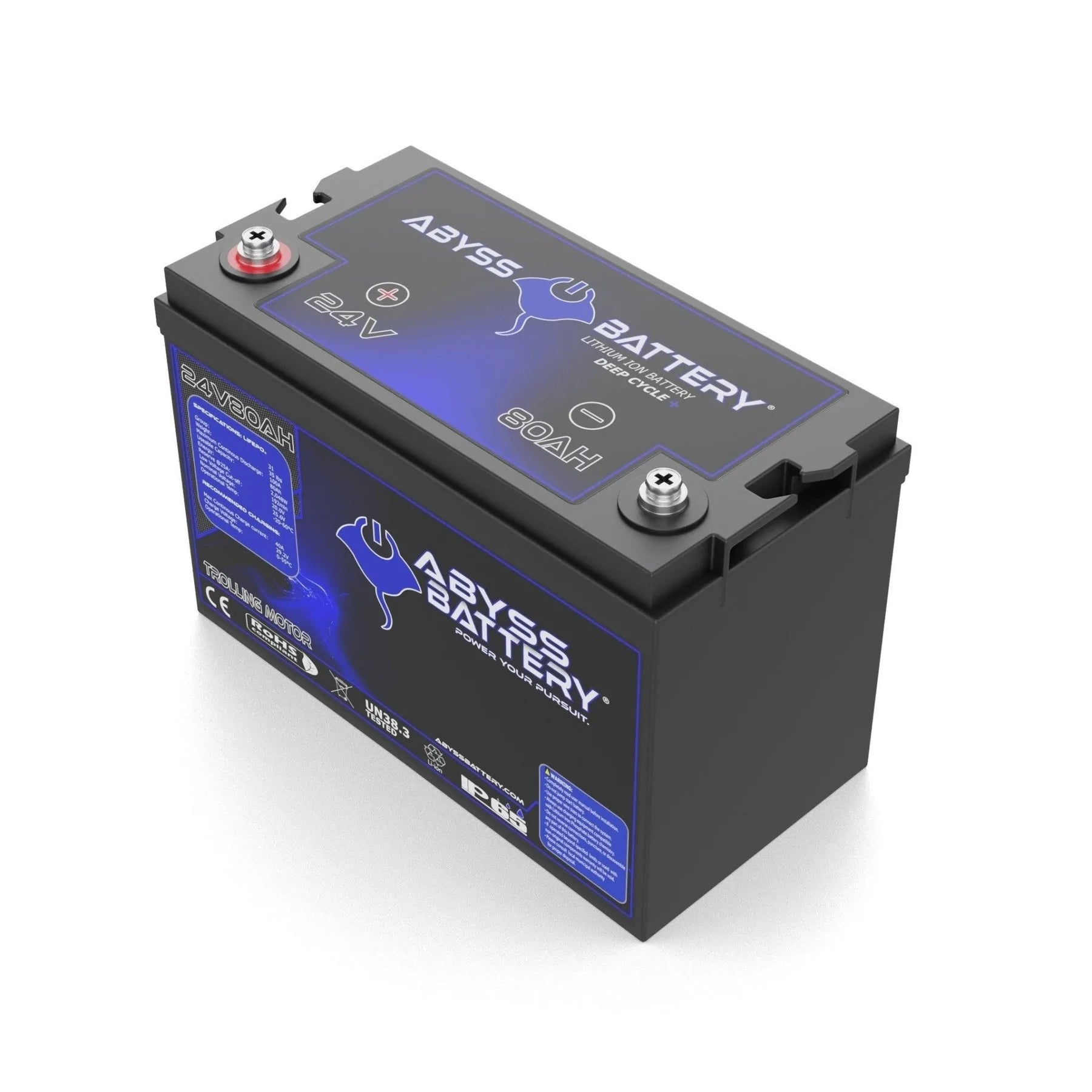

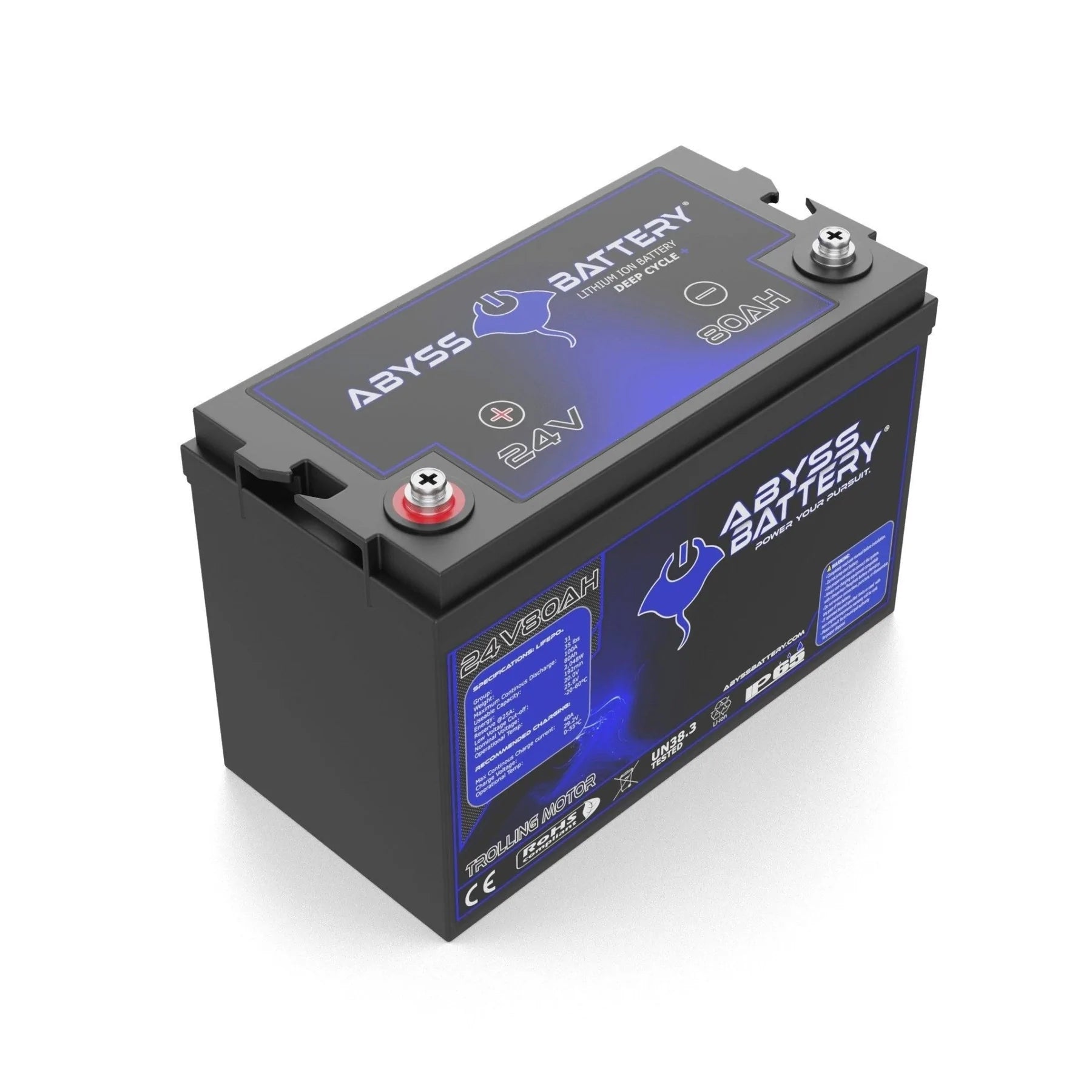

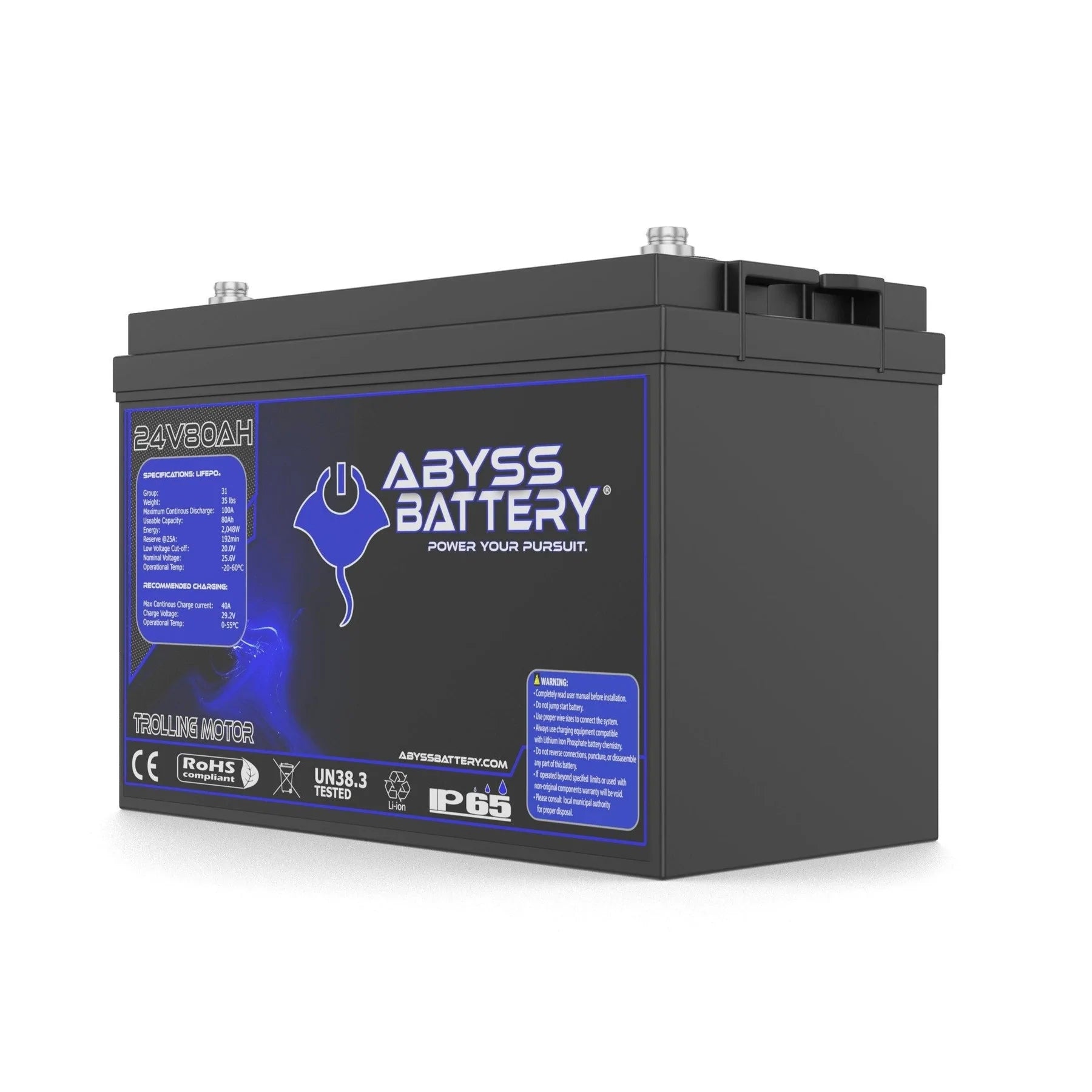

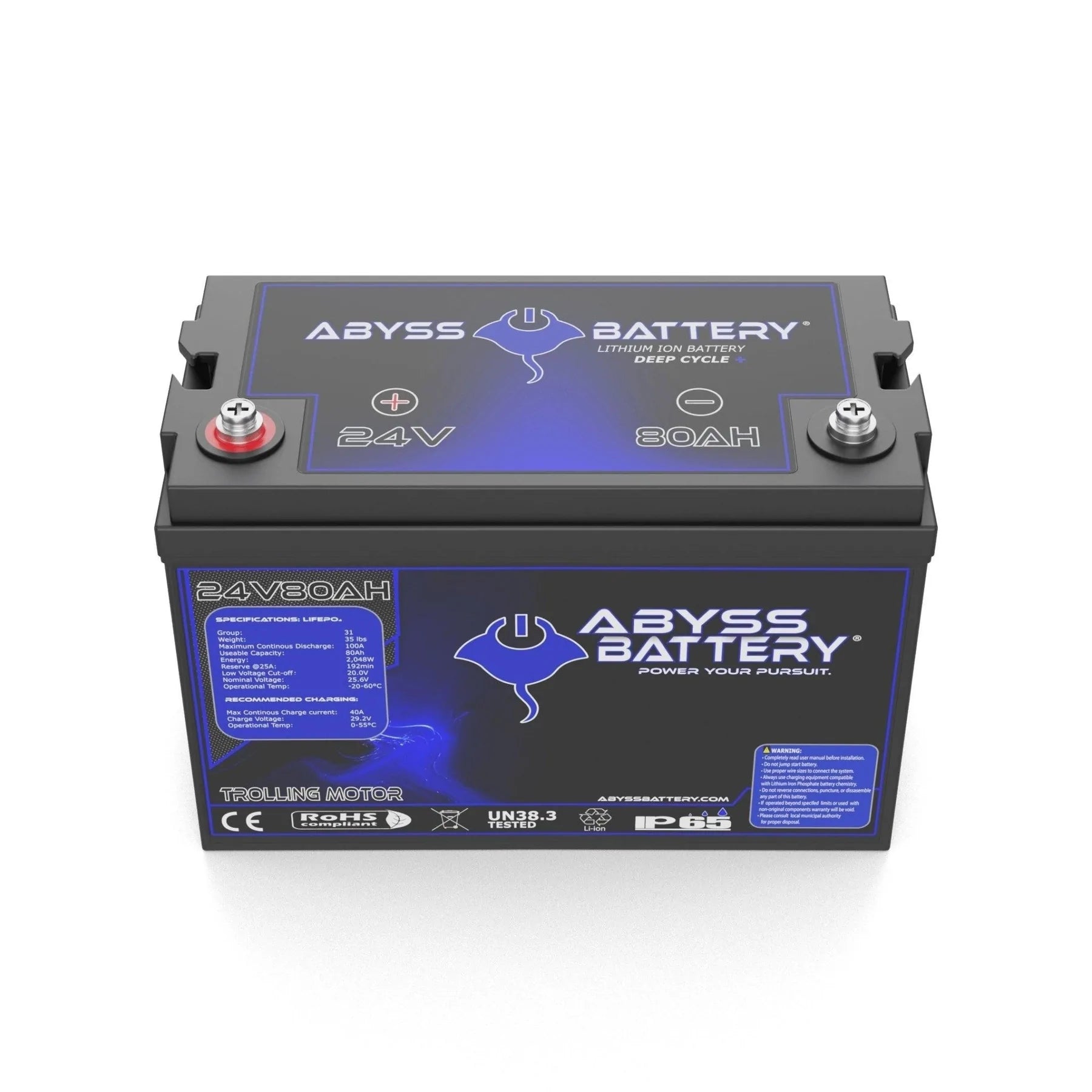

Abyss® | Trolling Motor Battery | Model AB-24V80-BT | Group 31 | Voltage 24V 80Ah | Bluetooth BMS | Built-In Heating | IP65 Waterproof
DESCRIPTION
Say goodbye to the frustration of unreliable trolling motor batteries with the Abyss® 24V 80Ah Lithium Trolling Motor Battery your ultimate fishing companion designed to power your adventures for days on end. This advanced lithium iron phosphate battery replaces bulky and heavy lead-acid setups, consolidating power into a lightweight, compact single Group 31 unit that frees up valuable storage space on your boat.
Whether you’re battling strong winds, cruising calm waters, or embarking on multi-day fishing expeditions, this battery delivers steady, reliable power with exceptional endurance. Built with premium cylindrical cells and certified to the highest marine safety standards, the Abyss® battery offers over 3000 deep discharge cycles, ensuring years of dependable use.
With Bluetooth® connectivity, monitor your battery’s health, charge status, temperature, and cycle life right from your smartphone for peace of mind on every trip. Plus, its built-in internal heating system guarantees flawless performance in cold weather so you can fish all year round without worry.
Experience the freedom of a high-capacity, durable, and maintenance-free lithium battery engineered for the toughest marine environments. Simply charge it, connect it, and get ready to reel in your best catch yet!
Key Features
- High Capacity 80Ah Lithium Battery: Replaces two standard 12V lead-acid batteries, providing a long-lasting power source ideal for trolling motors and other deep cycle marine applications.
- Lightweight & Compact Group 31 Design: Weighs approximately 35 lbs significantly lighter than lead-acid counterparts, freeing up space and reducing boat weight for better fuel efficiency.
- Bluetooth® Battery Monitoring: Real-time tracking of charge, temperature, current, and cycle life via a user-friendly app for both Android and iOS devices.
- Built-in Internal Heating: Proprietary heating technology enables consistent performance in freezing conditions, ensuring uninterrupted power on cold-weather fishing trips.
- UL1642, IEC62133 & ISO Certified: Complies with rigorous marine safety standards for vibration, impact, ignition protection, and salt spray corrosion resistance.
- Long Cycle Life & Reliability: Over 3000 full-depth discharge cycles, plus excellent thermal management and internal cell protection for stable, safe operation.
- Water-Resistant IP65 Case: Durable black ABS plastic housing designed to withstand harsh marine environments and protect internal components from dust and water spray.
Detailed Specifications
| Parameter | Specification |
|---|---|
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 24V |
| Capacity | 80Ah |
| Cycle Life | 3000 cycles @ 100% DOD, 6000 cycles @ 80% DOD |
| Weight | Approx. 35 lbs (16 kg) |
| Dimensions (L x W x H) | 13.0" x 6.8" x 9.4" (330 x 173 x 240 mm) |
| Operating Charge Temp. | 0°C to 55°C (32°F to 131°F) |
| Operating Discharge Temp. | -20°C to 60°C (-4°F to 140°F) |
| Charge Voltage | 28.8 ± 0.4V |
| Max Continuous Discharge Current | 80A |
| Peak Discharge Current | 500A (300 ms) |
| Terminal Type | M8 |
| Case Material | Black Plastic (ABS) |
| Ingress Protection (IP) Rating | IP65 |
| Connectivity | Bluetooth Management System (Android/iOS) |
