Product Description

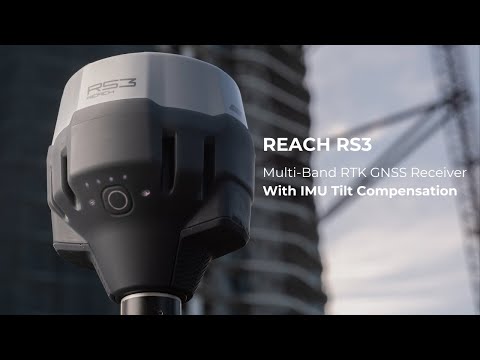

ABZ Innovation L30 Emlid Reach RS3 | Multi-band RTK GNSS Receiver | Battery Li-Ion 5200 mAh
Key Features
- CDA Technology: Controlled Droplet Application system ensures precise droplet size, reducing waste and maximizing resource utilization.
- Emlid RS3 RTK Module: Provides real-time kinematic (RTK) positioning for enhanced navigation and operational precision.
- Advanced Flight Planning: Optimizes routes for maximum efficiency and coverage.
- Optimized Downward Airflow: Improves material distribution for effective coverage.
- High Maneuverability: Easily accesses hard-to-reach areas and intricate architectural features.
- Eco-Friendly Operation: Minimizes waste and reduces environmental impact.
- Cost-Effective Operation: Reduces dependency on costly equipment and specialized labor.
- Versatile Applications: Suitable for agriculture, vineyard, grains, monitoring & surveillance, and more.
- Extended Battery Life: Capable of operating for up to 18 hours with tilt compensation.
- Comprehensive Connectivity: Supports LTE, Wi-Fi, Bluetooth, LoRa, and UHF radios for robust communication and data transfer.
- Durability: Designed to withstand harsh conditions with an ingress protection rating of IP67.
Detailed Specifications
Specification | Details |
---|---|
Model | L30 Emlid RS3 |
Total Weight (W/O Batteries) | 29 kg |
Max. Take-Off Weight | 72 kg |
Dimensions (Propeller and Arms Unfolded) | 2435 x 2541 x 752 mm |
Dimensions (Arms Folded) | 979 x 683 x 752 mm |
Max. Hovering Time | Unloaded: 17.5 min, Loaded: 7.5 min |
GPS | GPS, GLONASS, Galileo |
Hovering Precision | ±10 cm (RTK), ±2m (without RTK) |
Rotor Dimensions | 43 x 14 mm |
Motor Dimensions | 120 x 45 mm |
Motor KV Value | 95 KV |
Battery Capacity | 25000 mAh |
Battery Voltage | 51.8V |
Battery Weight | 9.4 kg |
Spraying System | CDA |
Number of Nozzles | 2 |
Maximum Flow Rate | 16 L/min |
Adjustable Droplet Size | Yes |
Spot Spraying | Yes |
RTK Module | Emlid RS3 |
Tilt Compensation | Yes, with 6DOF IMU |
Autonomy | 18 hrs as RTK rover with tilt, 22 hrs of logging |
Connectivity | LTE, Wi-Fi, Bluetooth, LoRa, UHF |
Data Protocols | NTRIP, RTCM3, NMEA, LLH/XYZ, RINEX, UBX |
Internal Storage | 16 GB |
Ingress Protection | IP67 |
Operating Temperature | -20 to +65 ºC |
Weight | 950 g (Emlid RS3) |
Dimensions (Emlid RS3) | 126 x 126 x 142 mm |
