Product Description

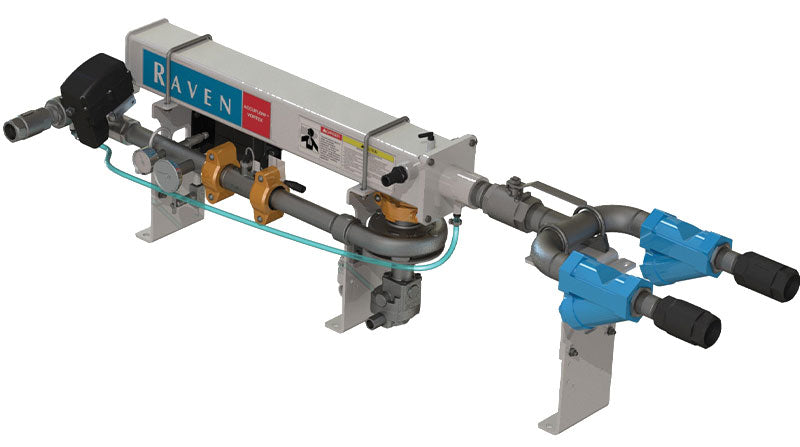

Raven AccuFlow & AccuFlow HP Plus Anhydrous Ammonia Application Systems | Superior Accuracy & Control
DESCRIPTION
Raven's AccuFlow™ system revolutionizes anhydrous ammonia (NH3) application with its advanced cooling technology, converting gas to liquid to keep it cold and fluid during application. With fast cooling, high capacity, and application rates up to 80 gallons per minute, AccuFlow™ allows you to cover more acres per day. This system replaces dual cooler setups, offering superior accuracy, reduced product waste, lower input costs, and faster application speeds, all while minimizing refills and maximizing yields.
Key Features
- Dual Cooler Replacement: Streamlined design reduces fittings from over 50 to fewer than 30.
- Higher Yields & Less Waste: Achieves superior application accuracy, reducing waste and lowering input costs.
- Enhanced Safety: Closed system keeps NH3 safely away from operators.
- Fast Bleed Down: Complete bleed down in 30 minutes or less.
- Two-Stage Valve Control: Ensures precise flow management.
- Built-In Troubleshooting: Integrated notifications for seamless operation.
- Stainless Steel Coolers: Durable construction for long-lasting performance.
AccuFlow™ HP Plus System: The AccuFlow™ HP Plus system offers additional features for enhanced performance:
- Two-Stage Valve Control System: HP pump activation for desired rate when flow demand exceeds valve capacity.
- Dynamic Valve Control: Adjusts valve speed based on flow rate demands.
- Streamlined Design: Replaces dual coolers, reducing fittings from over 50 to fewer than 30.
- Dynamic Valve Control: Ensures precise flow adjustments to meet application demands.
- High Efficiency: Fast bleed-down in under 30 minutes for seamless operation.
- Built-In Safety: Closed system with integrated troubleshooting features.
- Long-Lasting Materials: Stainless steel coolers and durable construction.
Detailed Specifications
AccuFlow Vortex 1-inch Valve and AccuFlow Vortex 1.5-inch Valve
| Feature | AccuFlow Vortex 1-inch Valve | AccuFlow Vortex 1.5-inch Valve |
|---|---|---|
| Capacity Range* | 3-30+ GPM | 3-50 GPM |
| Weight | 190 lbs | 196 lbs |
| Tractor Hydraulic Requirement | -- | -- |
| System Working Pressure | 250 PSI | 250 PSI |
| Cooler Relief Valve Setting | 350 PSI | 350 PSI |
| Temperature Range | -30° to +120° F | -30° to +120° F |
| Strainer Screen | 40 mesh stainless steel | 40 mesh stainless steel |
| Fast Valve Open/Close Time | ≤ 2 seconds | ≤ 2 seconds |
| System Voltage | 12-14.5 VDC | 12-14.5 VDC |
AccuFlow HP Plus with Vortex Cooler
| Feature | AccuFlow HP Plus with Vortex Cooler |
|---|---|
| Capacity Range* | 3-80 GPM |
| Weight | 280 lbs |
| Tractor Hydraulic Requirement | 12 GPM @ 2,000 PSI |
| System Working Pressure | 250 PSI |
| Cooler Relief Valve Setting | 350 PSI |
| Temperature Range | -30° to +120° F |
| Strainer Screen | 40 mesh stainless steel |
| Fast Valve Open/Close Time | ≤ 2 seconds |
| System Voltage | 12-14.5 VDC |
In Package
- AccuFlow Vortex Valve (1-inch or 1.5-inch, based on selection).
- Stainless steel cooler system.
- Integrated troubleshooting notifications.
- Built-in safety features with fast bleed-down capabilities.
- Installation guide, wiring diagrams, and assembly instructions.
