Product Description

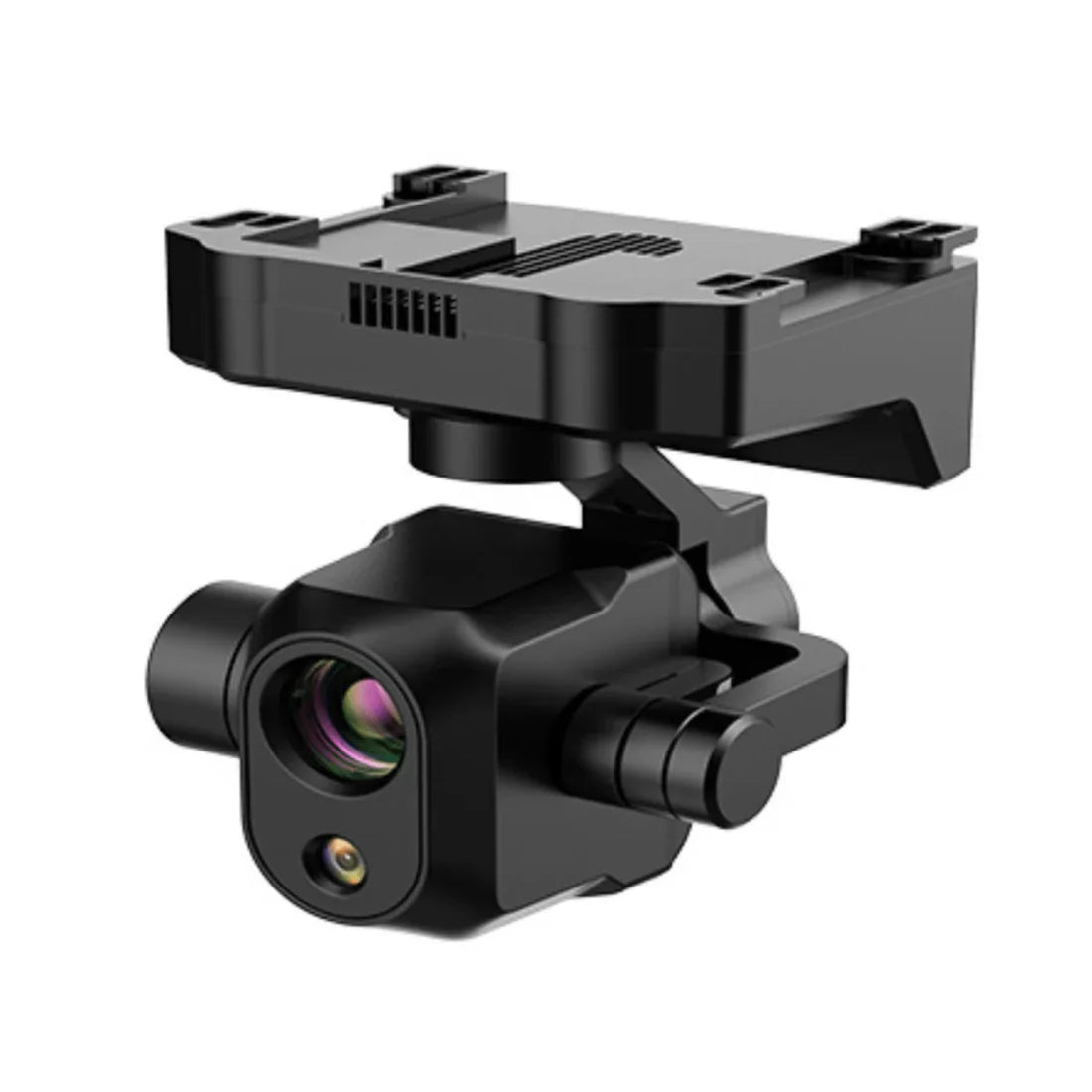

ACSL SOTEN High Resolution Thermal Camera
DESCRIPTION
The ACSL SOTEN High Resolution Thermal Camera is a mission-ready, NDAA-compliant imaging payload designed to deliver precise thermal detection alongside ultra-high-resolution electro-optical imagery. Built around the FLIR Hadron 640R radiometric thermal sensor and a 64MP EO camera, this dual-sensor module empowers inspection teams, responders, and analysts to operate confidently in complex visual environments.
Engineered to mount seamlessly onto ACSL SOTEN drones via the one-touch swappable interface, this payload features a stabilized 3-axis gimbal, IP44 ingress protection when installed, and advanced format support for post-processing. Whether surveying power infrastructure, supporting search-and-rescue, or monitoring environmental heat signatures, this camera offers real-time clarity and actionable data from the air.
Key Features
- Dual Imaging Payload: Combines radiometric thermal and 64MP EO sensors in a single gimbal-mounted unit
- Thermal Sensor: FLIR Hadron 640R with 640 × 512 resolution at 60Hz, fully radiometric
- Optical Sensor: 64MP 1/2" CMOS with 4K video capture at 30Hz
-
Field of View:
- EO: H67°, V53°, D79°
- Thermal: H32°, V26°, D40°
- Stabilization: Integrated 3-axis gimbal with ±90° pan, roll ±45°, tilt -90° to +10°
-
Aperture:
- EO: f/2.3
- Thermal: f/1.0
- Shutter: Electronic shutter mechanism for EO channel
- Media Capture: Supports JPEG, DNG stills and MOV (H.264), MP4 (H.265) video formats
- Storage: microSD slot, up to 512GB capacity
- Payload Design: Quick-swap module compatible with all ACSL SOTEN drone platforms
- Environmental Protection: IP44-rated when installed on aircraft
- Compliance: Fully NDAA-compliant; ISO/IEC 15408 aligned for security
Detailed Specifications
Parameter | Specification |
---|---|
Optical Resolution | 64 MP |
Sensor Size (EO) | 1/2 inch CMOS |
Shutter (EO) | Electronic |
Field of View (EO) | H67°, V53°, D79° |
Focal Length (EO) | 26 mm equivalent |
Aperture (EO) | f/2.3 |
Thermal Resolution | 640 × 512 |
Radiometric Output | Yes |
Field of View (Thermal) | H32°, V26°, D40° |
Focal Length (Thermal) | 55 mm equivalent |
Aperture (Thermal) | f/1.0 |
Still Formats | JPEG, DNG |
Video Codecs | MOV (H.264), MP4 (H.265) |
Pan / Tilt / Roll | Pan ±90°, Tilt -90° to +10°, Roll ±45° |
Ingress Protection | IP44 (mounted on SOTEN aircraft) |
Storage Media | microSD, up to 512GB |
Compliance | NDAA + ISO/IEC 15408 |
