Actisense NMEA2000 to WiFi Gateway [W2K-2]

Actisense NMEA2000 to WiFi Gateway [W2K-2]

Regular price $286.27
Regular price $318.07 Sale price $286.27
Sale Sold out
Customizable
Fast
24/7 Support

NMEA2000 to WiFi Gateway

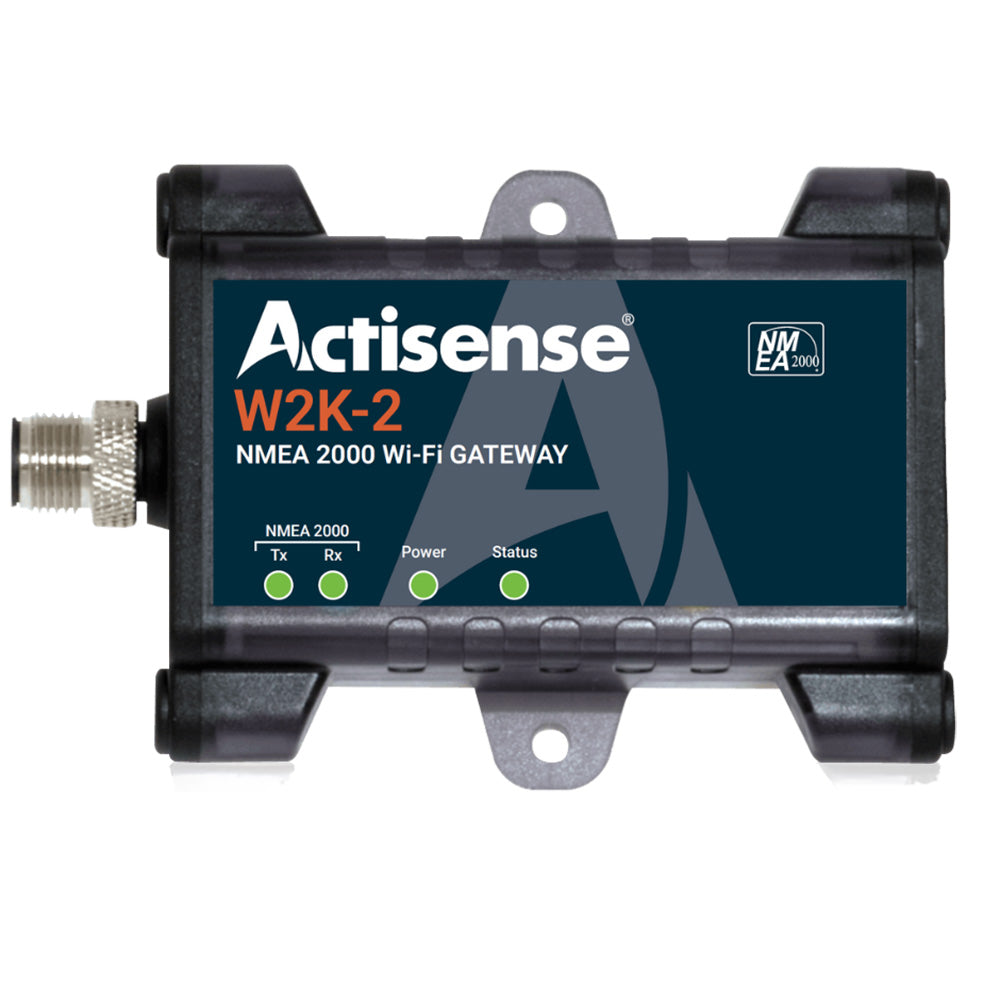

The W2K-2 is a rugged and reliable NMEA 2000 to Wi-Fi Gateway with built-in data logger and Actisense-i diagnostic tools.

Transfer data from an NMEA 2000 backbone to any device (e.g, laptop, tablet, or smartphone) connected to the W2K-2 via Wi-Fi and additionally convert this data to NMEA 0183 using Actisense’s renowned conversion engine. Actisense-i is a suite of diagnostic tools and a health checker for your network.

Fully compatible with the industry’s most popular apps.

The W2K-2 has built-in conversion of NMEA 2000 messages into NMEA 0183 sentences, thus allowing a wide variety of vessel data (e.g., position, speed, course, wind speed, depth, engine data, AIS messages, etc.) to be shared with NMEA 0183 compatible software applications running on connected devices.

All the data received (or a selected subset) can be logged to an internal micro SD card for later downloading to use for analyzing the voyage. This is very useful for analyzing race data, generating logbooks, diagnosing problems, or even sharing your voyage details. Data can be stored on any micro SD card (up to 128GB), giving weeks or more of storage for all onboard NMEA data.

The W2K-2 has adopted the latest WPA3 standards for password protection. Whilst most wireless gateways still use WPA2, WPA3 adds an extra layer of security.

Actisense-i comes included as standard. Benefit from our full suite of diagnostic tools to help check and diagnose potential issues on a boat’s electronics network, including voltage issues, and the working status of all devices attached to the network. Actisense-i has been designed to save installers and boaters time and ultimately, money, by giving them confidence in their electronics onboard.

The W2K-2 has the legendary Actisense “Reliability Built-In” along with useful diagnostic LEDs, an internal antenna, enhanced password security, full certification, and all packaged in an extremely rugged IP67 case.

Features:

  • Converts NMEA 2000 to/from NMEA 0183 (streamed over Wi-Fi)
  • Supports both TCP and UDP, streams data using up to three separate data servers
  • Data protocols are selectable to be compatible with a huge range of navigation software and apps
  • Voyage data recording (install SD card up to 128GB)
  • Diagnostic LEDs for NMEA 2000 bus activity and Wi-Fi Status
  • Works as an access point and a client simultaneously
  • Remote Firmware Upgradability
  • Low power- 2 LEN (100 mA)
  • Supports 802.11 b/g/h (up to 150Mbps)
  • Automatically measures and reports the NMEA 2000 bus voltage
  • User Manual embedded on the device, easily accessible via browser
  • Each device has a unique default SSID and Password for enhanced security
  • Actisense-i diagnostic tools
  • Two-in-one NMEA 2000 to Wi-Fi Gateway and data logger
  • Enables the use of mobile devices and laptops without the hassle of a physical connection
  • Allows compatibility with a wide range of NMEA 2000 & NMEA 0183 applications
  • Ruggedized IP67 casing suitable for wet and harsh environments
  • Works out of the box – just install your choice of SD card for logging data
  • An integrated antenna has less chance of physical damage
  • Quick and easy to install

Technical Specifications:

Power Supply

  • Supply Voltage (NMEA 2000 Port) - 9 to 30V DC
  • Supply Current (NMEA 2000 Port) - 70mA (avg.) @ 12V DC, 100mA (avg.) @ 9V DC
  • Load Equivalent Number (LEN) - 2
  • Supply protection - Continuous reverse polarity protection and transient overvoltage protection to 40V

Wi-Fi Radio

  • Compatibility - IEEE 802.11 b/g/n
  • Speed - 802.11n up to 150Mbps
  • Frequency Band - 2.4GHz 2.5GHz
  • Max Output power - 20 dBm
  • Antenna - Integrated internal antenna
  • Range (Open space) - 30 meters
  • Security - WPA_PSK,  WPA2_PSK,  WPA_WPA2_PSK

Configuration

  • IP support - Supports TCP and UDP broadcast
  • Data servers - Three separate data servers
  • Data protocols - NMEA 0183 & Five proprietary
  • Security - SSID and Password configurable (Unique defaults per device)

Diagnostics

  • Power LED - Blue
  • NMEA 2000 Tx LED - Orange
  • NMEA 2000 Rx LED - Green
  • Status LED - Yellow
  • Micro SD card - Not supplied – customer to install as required.

Mechanical

  • Housing Material (body) - Polycarbonate
  • Housing Material (endcaps) - PBT
  • NMEA 2000 Connector - M12 Male (A polarized) connector molded into the case
  • NMEA 2000 Connector Material - Nickel-plated brass
  • Weight - 80g
  • Dimensions - 106mm (L) x 73mm (W) x 24mm (H)

Environmental

  • Environmental Protection - IP67
  • Operating Temperature - -20°C to +55°C
  • Storage Temperature - -40°C to +85°C
  • Recommended Humidity - 0 – 93% RH

Approvals and Certifications

  • Guarantee - 5 years

Specifications:

  • Cable Length (Feet): N/A
  • Data Interface: NMEA 2000

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
