Product Description

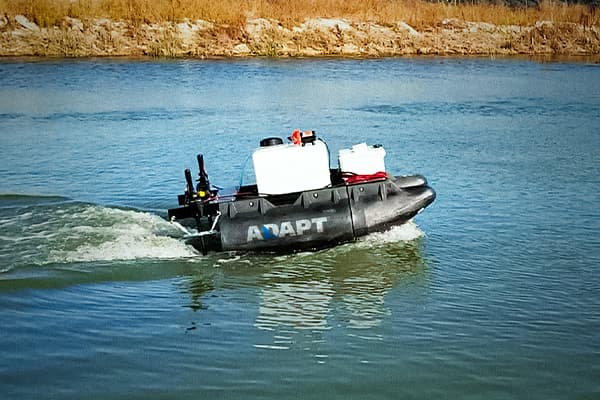

ADAPT Drone Boat - Autonomous Spraying Boat

DESCRIPTION

RMD Systems has developed a small, unmanned pontoon boat that can be outfitted with a variety of different payloads. Currently, RMD supplies the boat with a 16-gallon sprayer system.
The sprayer system uses a collection of valves that allow the operator to fill and drain the tank from the shore using the remote control. The speed of the pump can be controlled, and the pump can be controlled autonomously via the autopilot (using pre programmed GPS flight paths).
The boat features a pair of trolling motors that control not only the speed but also the direction of the boat. The trolling motors are mounted on a moving jackplate that allows the motors to be raised and lowered in the water and on the trailer during travel. A real time high-definition camera mounted on the bow of the boat allows first person video to be transmitted to the controller and the operator on the shore. A miniature, waterproof laser rangefinder provides object detection and avoidance in the front of the boat. The boat runs off a 12v, 100Ah lithium iron phosphate battery. The boat has approximately 4 hours of run time on a single battery when operating in autonomous GPS waypoint mode. The boat also has a ‘loiter’ capability, where the boat will hold position in the water even when disturbed by wind and currents. RMD can customize the boat configuration, payload, and other features to meet the exact needs of the customer. RMD has developed a hybrid powertrain that allows a small gasoline generator to power the boat. RMD has also developed larger boats for specialty industrial tasks in open pit mines and other applications. Please contact RMD Systems directly to discuss your project’s needs.

The boat is capable of GPS waypoint missions, either with manual control of the pump and valves or autopilot (autonomous) control of the pump and valves. The speed of the pump can be varied or turned off entirely at any point in the mission for spot spraying or other applications. There is a small laser rangefinder in the front of the boat that serves as an object detection and object avoidance sensor.

The sample configurations below include ADAPT Station Controller, ADAPT Spray Flow Control, ADAPT lift system. Electric configurations include ADAPT Battery Pack and Hybrid Configuration include ADAPT Hybrid Power System.

Key Features

• Autonomous Operation: GPS waypoint navigation with autopilot control for seamless spraying and loitering capabilities.
• 16-Gallon Sprayer System: Remote-controlled or autonomous spray control with fill and drain functionality.
• Durable and Rugged Design: Built to handle tough conditions with IP54-rated environmental protection.
• Failsafe Features: Automatic return-to-launch on low battery, signal loss, or groundstation failure.
• Customizable Configurations: Hybrid powertrains and tailored payloads to meet diverse project needs.

Detailed Specifications

*Endurance depends on atmospheric conditions and operating speed
**payload includes weight of spray system and liquid.
*** Range limited by 2.4GHz signal. Range dependent on obstacles and atmospheric conditions
****Operating costs based off of 2000 hour maintenace cycle (replace trolling motors and ESCs)

In Package

• ADAPT Drone Boat
• 16-Gallon Sprayer System
• ADAPT Station Controller
• ADAPT Spray Flow Control
• ADAPT Lift System
• ADAPT Battery Pack (Electric Configuration) OR ADAPT Hybrid Power System (Hybrid Configuration)
• Remote Controller with Android OS Integration
• Integrated GPS and Groundstation Telemetry Link
• Laser Rangefinder
