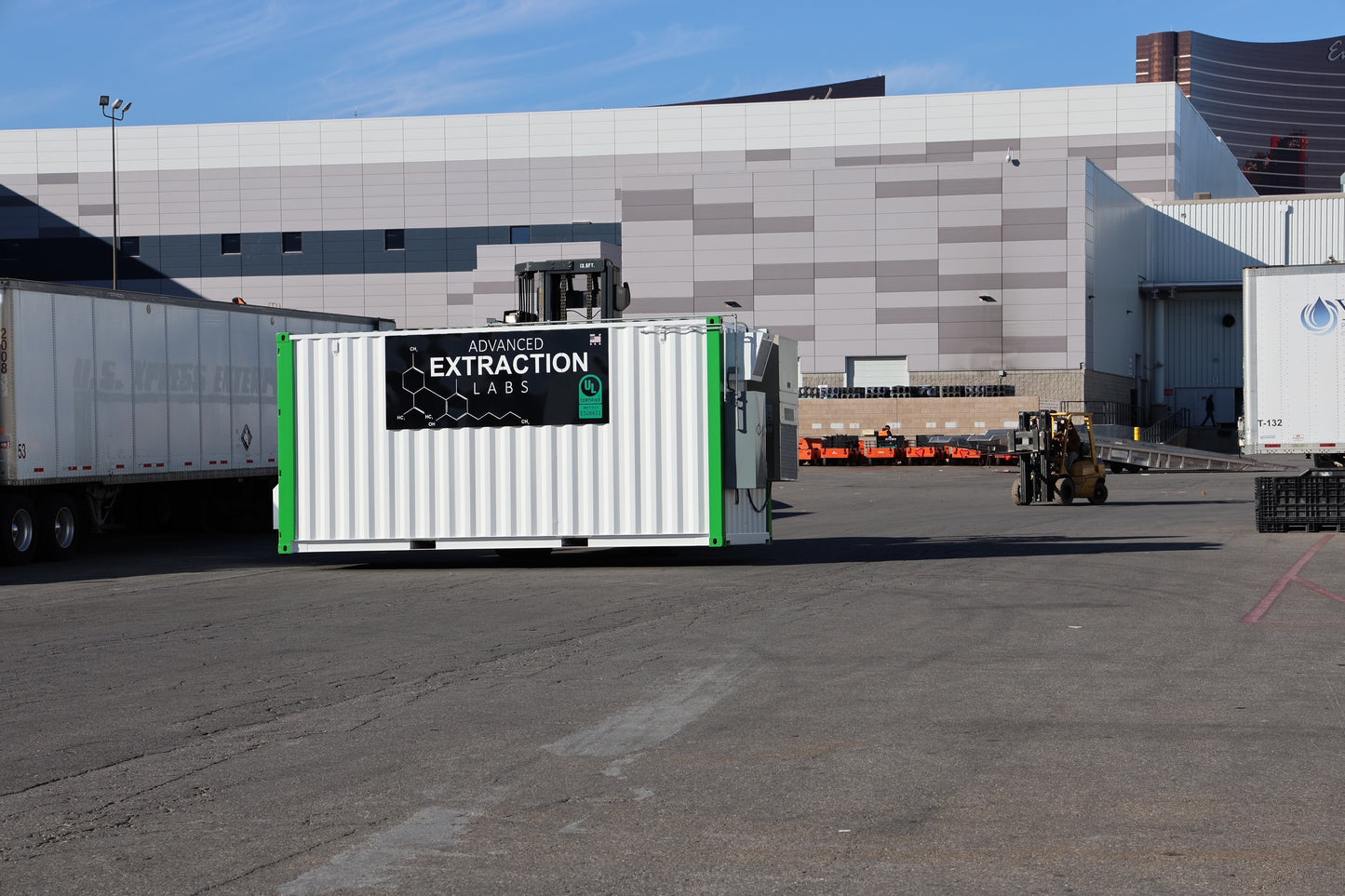

Advanced Extraction Labs Cube Series C1D1/C1D2 Indoor Booth Extraction Booth
Advanced Extraction Labs Cube Series C1D1/C1D2 Indoor Booth Extraction Booth
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Description
The Advanced Extraction Labs Cube Series C1D1/C1D2 Indoor Booth is a versatile, plug-and-play extraction lab designed to meet C1D1 (Class I, Division 1) and C1D2 (Class I, Division 2) safety requirements. This booth is suitable for both indoor and outdoor use, with robust construction and weather-resistant features that allow direct placement outside. Fully assembled and ready for main power, the Cube Series extraction booth can also accommodate multi-zone configurations, including additional C1D1/C1D2 areas, packaging, and clean rooms, making it adaptable to large-scale facilities.
Compatible with a variety of solvents like hydrocarbon, butane, ethanol, and pentane, and accommodating different extractor types (including closed-loop and centrifuge systems), this lab supports custom configurations to match specific processing needs. A modular design allows easy expansion, and a range of standard and optional features ensures safety, efficiency, and compliance with regulatory standards.
Detailed Specifications:
| Category | Specification |
|---|---|
| Gas Detection | LEL Gas Detection System |
| Windows | Tempered Glass Observation Windows |
| Exhaust System | High Velocity Exhaust System |
| Control Panel | Standard Control Panel |
| Alarm System | Audible and Visual Alarms |
| Modularity | Expandable and customizable |
| Filtration | High Efficiency Filtration |
| Exit Hardware | Standard Exit Hardware & Accessories |
| Design | Professionally Peer-Reviewed |
| Structure | Fully insulated and weather-rated for outdoor use |
| Dimensions | Customizable, with various configurations |
In Package:
- Fully Assembled Booth: The Cube Series C1D1/C1D2 booth arrives pre-assembled for quick setup and immediate use.
- Standard Control System: Includes a built-in control panel with standard safety features for ease of operation.
- High-Efficiency Filtration: Filtration system designed for high extraction efficiency and clean air circulation.
- LEL Gas Detection System: Equipped with industry-standard gas detection for safety compliance.
- Tempered Glass Observation Windows: Durable, impact-resistant windows for safe visibility.
- Exhaust System: High-velocity exhaust for effective ventilation.
- Alarm System: Integrated audible and visual alarms for enhanced safety.
- Exit Hardware & Accessories: Includes all necessary hardware for secure access and egress.
- Documentation: Professional, peer-reviewed design documentation.
Available Options:
| Upgrade | Description |
|---|---|
| Fire Suppression System | Integrated fire safety system for compliance |
| Premium Control Panel | Enhanced panel with advanced control options |
| LED Lighting Upgrade | Energy-efficient lighting for optimal visibility |
| Duct Package Extensions | Extended ductwork for increased ventilation |
| Permit Package | Documentation package for regulatory compliance |
| Insulation | Additional thermal insulation for temperature control |
| Gas Detection Calibration | Multi-solvent gas detectors for various solvents |
| Multi-Zone Configurations | Customizable zones for C1D1, C1D2, clean rooms, and packaging areas |
| Custom Sizing | Tailored dimensions to fit specific needs or equipment sizes |
Compatible Solvents:
- Hydrocarbon
- Butane
- Ethanol
- Pentane
Extractor Compatibility:
- Suitable for closed-loop and centrifuge extraction systems. Custom configurations are available for specific extractor sizes and types.
Installation Options:
- Outdoor Use: Weather-rated for direct outdoor installation on ground or concrete slab
- Indoor Use: Can be placed indoors and ducted through a roof for ventilation
Advanced Extraction Labs Cube Series C1D1/C1D2 Indoor Booth Extraction Booth
Description
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Cubes Series labs are the only choice for a true plug and play C1D1 lab. These C1D1 and C1D2 booths arrive fully assembled and ready for main power! We build all controls in house to meet your specifications. Our Cubes series labs can also be placed indoors based on your requirements. These C1D1 labs are fully outdoor rated and can be placed directly outside without the need to be covered! Multi zone configurations are also available including C1D1/C1D2, C1D1/ packaging room, C1D1/Kitchen, and much more! Need a larger setup? Multiple containers can be fused together to create a full facility including cultivation, curing, C1D1 rooms, C1D2 rooms, clean rooms, and more! Give us a call to design your next facility today.
Cube Series Lab Package Includes:
C1D1 Labs come with these standard high quality components
- LEL Gas Detection System
- Tempered Glass Observation Windows
- High Velocity Exhaust System
- Standard Control Panel
- Audible and Visual Alarm System
- Modular so that it can expand
- High Efficiency Filtration
- Exit Hardware & Accessories
- Professional Peer Reviewed Design
Upgrades available:
- Optional Upgrades
- Fire Suppression System
- Premium Control Panel
- LED Lighting Upgrade
- Duct Package Extensions
- Permit Package
- Insulation
How To Get An Options Quote:
Option 1:
“Contact Us to make sure you are getting the best upgrades & options possible. These containers are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Click on the Chat button box that is in the bottom right of your screen
Step 3. Please tell us which Upgraded options you are looking for and any info you thinks relevant
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
What solvent types can i use in this C1D1 booth?
Our Cubes Series C1D1 extraction booths are compatible with any solvent type including hydrocarbon, butane, ethanol, and pentane! For those using multiple solvent types, we can install 2 or more gas detectors calibrated to different solvent types! For most C1D1 labs, we can configure the booth to have two independent zones. This can include a C1D1 section, C1D2 area, clean room, packaging room, and more! Call us for more information on our custom capabilities.
What extractor types can i use in this C1D1 lab?
You can use any extractor type in this C1D1 booth! Closed loop extractors and centrifuge extraction systems are both compatible with your new C1D1 booth! Have an uncommon size extractor? Give us a call to design a C1D1 booth that will fit any size extractor that you have!
Is this an indoor C1D1 lab or outdoor C1D1 lab?
Our Cubes series C1D1 booth is made to be an outdoor booth! This unit is weather rated and can be placed directly outside directly onto the ground or a concrete slab! This C1D1 booth can also be placed indoors and ducted out through your roof! Check out our modular style indoor labs for more options!
Need a custom size?
If you need a size that is not listed, please give us a call for more information on our custom sized C1D1/C1D2 booths. We are a direct manufacturer and can design any size that you need! Full facility buildouts including, C1D1, C1D2, packaging, clean rooms.
