AK Ziraat | TIREMIX DD10 | 10m³ | Feed Mixer Wagon | HorsePower 75 HP | For Tractor

AK Ziraat | TIREMIX DD10 | 10m³ | Feed Mixer Wagon | HorsePower 75 HP | For Tractor

Regular price $32,835.00
Regular price Sale price $32,835.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • HorsePower 75 HP For Tractor
  • Large Capacity: 10 cubic meter (13.07 cubic yard) volume for efficient feed processing.
  • Double Vertical Auger System: Ensures homogeneous mixing with 66 star knives and 34 oval knives for precise cutting and blending.
  • Durable Construction: Built with 12mm thick ST 52 bottom, 15mm auger scroll thickness, and 17mm auger pipe thickness for exceptional durability.
  • Reliable Power System: Operates with a 75 HP tractor at 540rpm PTO speed, driven by a sturdy planetary gearbox system.
View full details

Product Description

AK Ziraat| TIREMIX DD10 | 10m³ | Feed Mixer Wagon | HorsePower 75 HP | For Tractor

Ripping It is Partnered with United Biosolutions inc. to provide the best pricing and service for Brand AK ZIRAAT.

DESCRIPTION

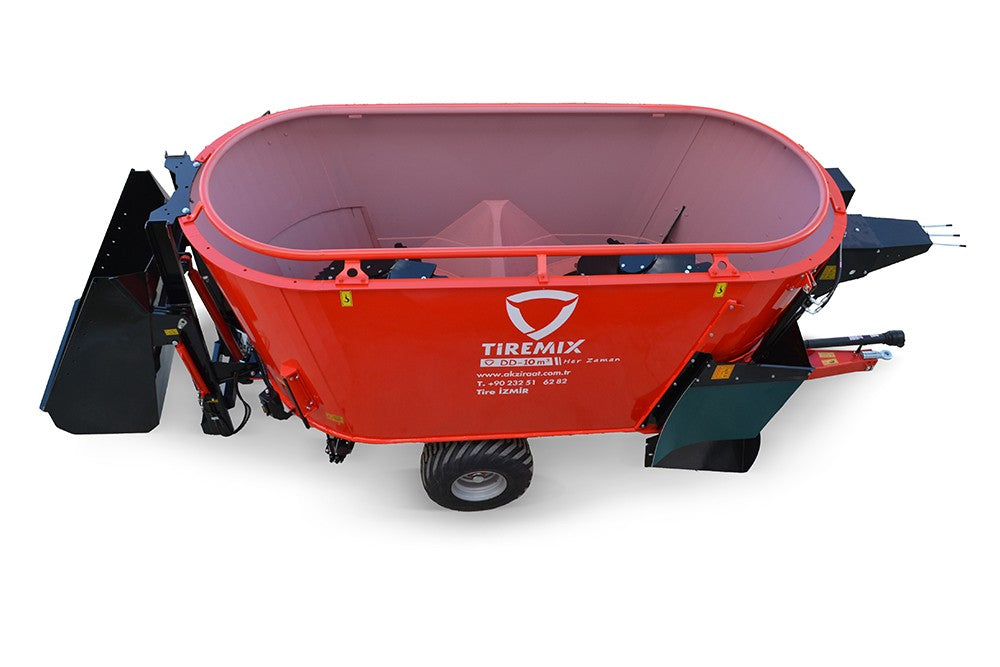

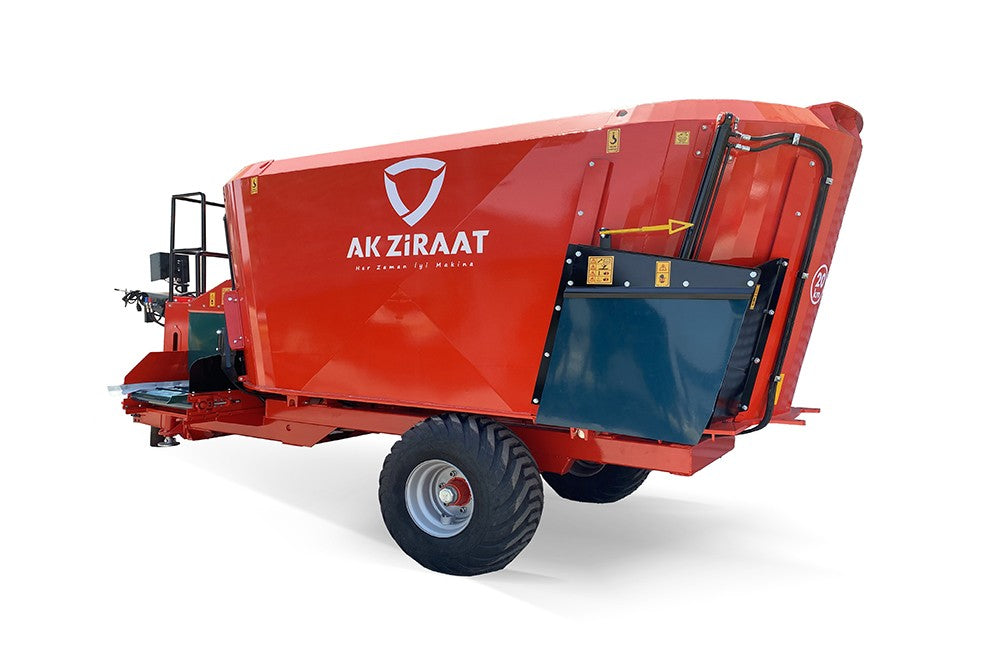

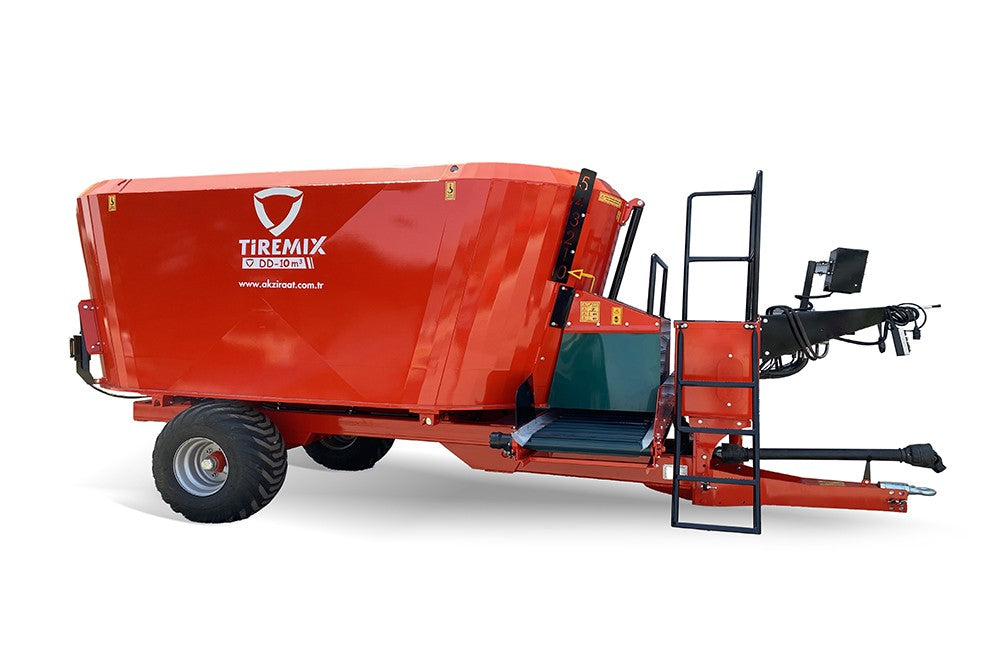

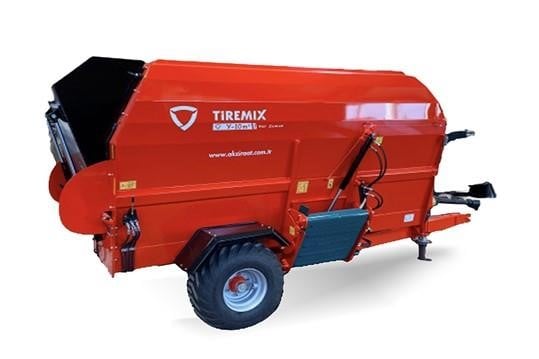

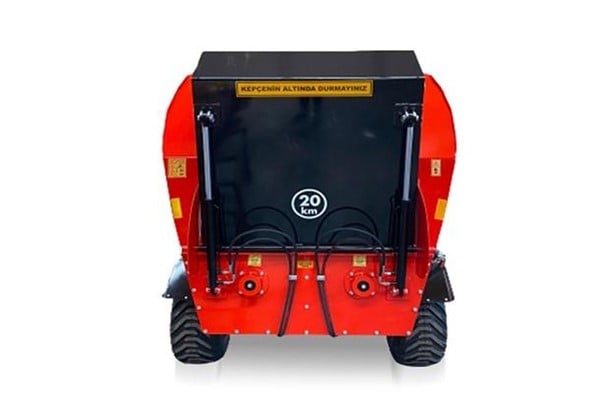

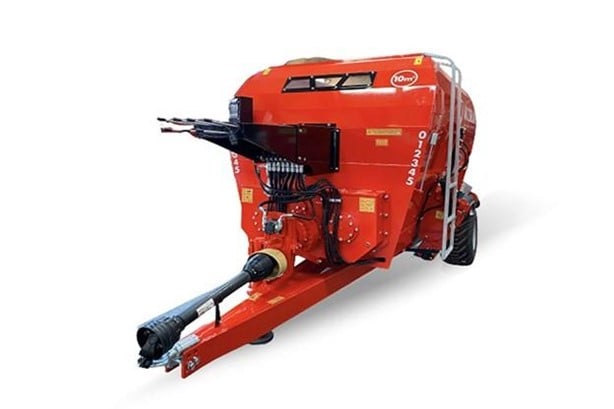

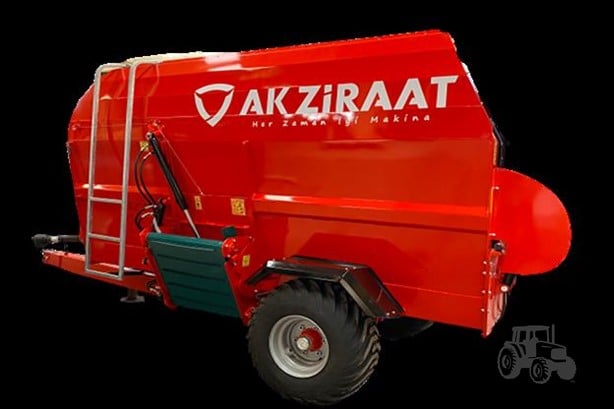

The AK ZIRAAT TIREMIX DD10 Feed/Mixer Wagon is a high-capacity, precision-engineered solution for modern livestock feed preparation. Designed for medium-scale farming operations, this machine features a 10 cubic meter (13.07 cubic yard) volume, providing efficient mixing and cutting of feed materials. Its double vertical auger system, paired with durable star and oval knives, ensures a homogeneous mixture and optimal particle size for superior feed quality.

Built with durability and reliability in mind, the TIREMIX DD10 is constructed with a 12mm thick ST 52 bottom, 15mm auger scroll thickness, and 17mm auger pipe thickness to withstand the rigors of agricultural tasks. Optional accessories such as a weighing scale, loading bucket, and discharge conveyor belt provide flexibility and ease of operation to meet diverse farming requirements.

Powered by a 75 HP tractor and operating at 540rpm PTO speed, this mixer wagon uses a robust planetary gearbox drive system for consistent and smooth performance. A hydraulic system with a 24-liter oil tank ensures seamless operation, while integrated magnets safeguard feed quality by preventing contamination from foreign materials. Compact yet powerful, the TIREMIX DD10 is designed to save time, reduce waste, and enhance productivity for your farming operations.

Key Features

  • Large Capacity: 10 cubic meter (13.07 cubic yard) volume for efficient feed processing.

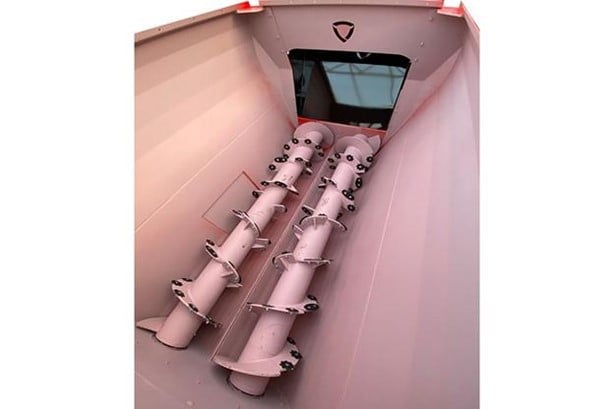

  • Double Vertical Auger System: Ensures homogeneous mixing with 66 star knives and 34 oval knives for precise cutting and blending.
  • Durable Construction: Built with 12mm thick ST 52 bottom, 15mm auger scroll thickness, and 17mm auger pipe thickness for exceptional durability.
  • Flexible Options: Includes optional weighing scale, loading bucket, and discharge conveyor belt to suit different needs.
  • Hydraulic Efficiency: Features a 24-liter oil tank, supporting smooth hydraulic functionality.
  • Enhanced Feed Quality: Integrated magnets prevent metal fragments and foreign objects from contaminating the feed.
  • Reliable Power System: Operates with a 75 HP tractor at 540rpm PTO speed, driven by a sturdy planetary gearbox system.
  • Compact and Maneuverable: Dimensions of 2200mm width, 2450mm height, and 2600mm length make it easy to manage.
  • Time-Saving Efficiency: Streamlines feed preparation, delivering consistent results in less time.

Detailed Specifications

Feature Specification
Volume 10 cubic meter (13.07 cubic yard)
Required Power 75 HP
Hydraulic System Oil Pump; 24-liter tank (6.3 US gallons)
Knives 66 Star Knives, 34 Oval Knives
Bottom Thickness 12mm (0.47”)
Auger Scroll Thickness 15mm (0.6”)
Auger Pipe Thickness 17mm (0.66”)
Tire Dimensions 400/60/15.5
Dimensions (W x H x L) 2200mm x 2450mm x 2600mm (86.6” x 96.45” x 102.36”)
PTO Speed 540rpm
Drive System Planetary Gearbox
Optional Features Weighing Scale, Loading Bucket, Discharge Conveyor Belt
