Product Description
AK Ziraat| TIREMIX DD12 | 12m³ | Feed Mixer Wagon | HorsePower 75 HP | For Tractor
Ripping It is Partnered with United Biosolutions inc. to provide the best pricing and service for Brand AK ZIRAAT.
DESCRIPTION

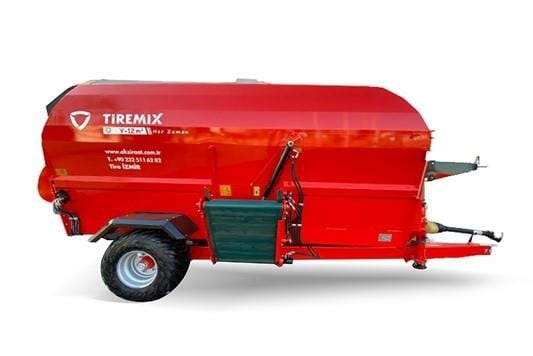

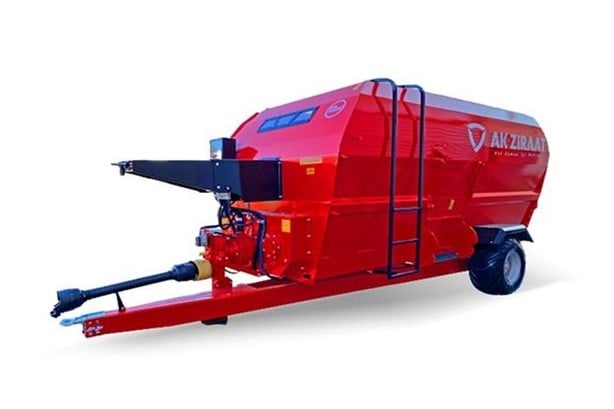

The AK ZIRAAT TIREMIX DD12 Feed/Mixer Wagon a masterfully engineered solution designed to revolutionize the way you prepare livestock feed. This state-of-the-art mixer boasts an impressive 12 cubic meter (15.69 cubic yard) capacity, making it ideal for medium- to large-scale operations where efficiency and consistency are paramount.
Built with meticulous attention to detail, the TIREMIX DD12 features a robust mixing mechanism powered by a 75 HP engine. Its advanced design includes a sophisticated cutting system with 46 star knives and 50 oval knives that work harmoniously to ensure your feed is blended into a perfectly homogeneous mixture, optimizing feed quality and enhancing animal nutrition.

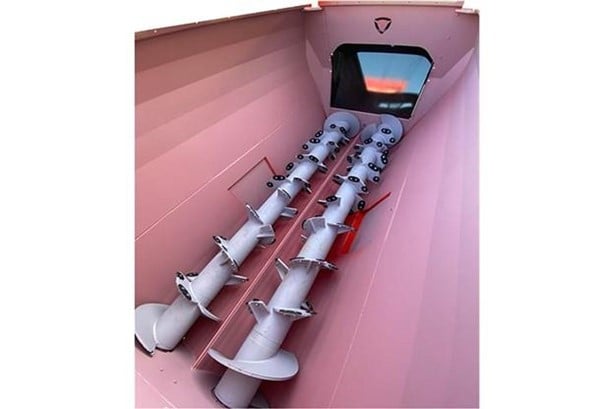

Constructed from heavy-duty materials, this mixer wagon is engineered to last. The sturdy ST 52 bottom, measuring 12mm in thickness, and the 17mm auger pipe provide outstanding durability even under the toughest operating conditions. The dual horizontal augers, paired with a 15mm auger scroll thickness, deliver precise and consistent mixing every time.
Enhanced by a powerful hydraulic system featuring a 24-liter oil tank, the TIREMIX DD12 guarantees seamless operation, while optional features such as a built-in weighing scale, a loading bucket, and a belt conveyor for the second side offer extra versatility to tailor the wagon to your unique needs. With a reliable planetary gearbox drive system and operation at 540rpm PTO, this feed mixer is your key to achieving high-efficiency feed preparation with ease.
Key Features
- High Capacity: 12 cubic meter (15.69 cubic yard) volume for handling large batches of feed efficiently.
- Advanced Mixing System: Equipped with 46 star knives and 50 oval knives to create a perfectly homogeneous feed mix.
- Durable Construction: Built with a 12mm thick ST 52 bottom and a 17mm auger pipe, ensuring long-lasting performance even in harsh conditions.
- Robust Power: Operates with a 75 HP requirement and a reliable planetary gearbox drive system at 540rpm PTO.
- Hydraulic Efficiency: Features a built-in oil pump with a 24-liter tank to maintain smooth, continuous operation.
- Versatile Optional Features: Customizable with an optional weighing scale, loading bucket, and belt conveyor for comprehensive feed handling.
- Optimized Design: Compact dimensions (2200mm width x 2450mm height x 2600mm length) offer balanced capacity and maneuverability.
Detailed Specifications
| Feature | Specification |
|---|---|
| Volume | 12 cubic meter (15.69 cubic yard) |
| Required Power | 75 HP |
| Hydraulic System | Oil Pump; 24-liter tank (6.3 US gallons) |
| Star Knives | 46 knives |
| Oval Knives | 50 knives |
| Bottom Thickness | 12mm (0.47”) (ST 52) |
| Auger Pipe Thickness | 17mm (0.66”) |
| Auger Scroll Thickness | 15mm (0.6”) |
| Tire Dimensions | 400/60/15.5 |
| Augers Configuration | 2 x Horizontal |
| Dimensions (W x H x L) | 2200mm x 2450mm x 2600mm (86.6” x 96.45” x 102.36”) |
| PTO Speed | 540rpm |
| Drive System | Planetary Gearbox |
| Optional Features | Weighing Scale, Loading Bucket, Belt Conveyor (for the second side) |
