AK Ziraat

AK Ziraat | TIREMIX DD12 | 12m³ | Feed Mixer Wagon | HorsePower 85 HP | For Tractor

AK Ziraat | TIREMIX DD12 | 12m³ | Feed Mixer Wagon | HorsePower 85 HP | For Tractor

Regular price $42,411.60
Regular price Sale price $42,411.60
Sale Sold out
Customizable
Fast
24/7 Support
  • Generous Capacity: 12 cubic meter (15.7 cubic yard) volume for efficient preparation of large feed batches.
  • Double Vertical Auger System: Provides homogeneous mixing with 14 durable knives for precise cutting and blending.
  • Durable Construction: Includes an 18mm thick ST 52 bottom, 15mm thick augers, and an 8mm body thickness for exceptional durability and reliability.
  • Hydraulic Efficiency: A 24-liter oil tank supports seamless operation for extended use.
  • Reliable Power System: Operates with an 85 HP tractor at 540rpm PTO, using a planetary gearbox drive system for smooth and consistent performance.
View full details

Product Description

AK Ziraat| TIREMIX DD12 | 12m³ | Feed Mixer Wagon | HorsePower 85 HP | For Tractor

Ripping It is Partnered with United Biosolutions inc. to provide the best pricing and service for Brand AK ZIRAAT.

DESCRIPTION

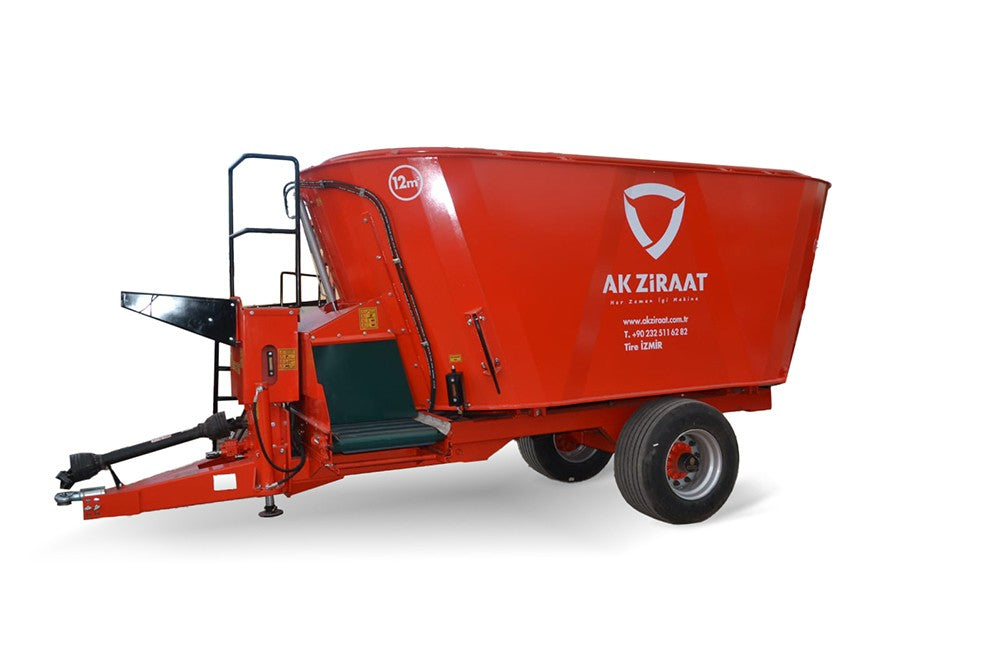

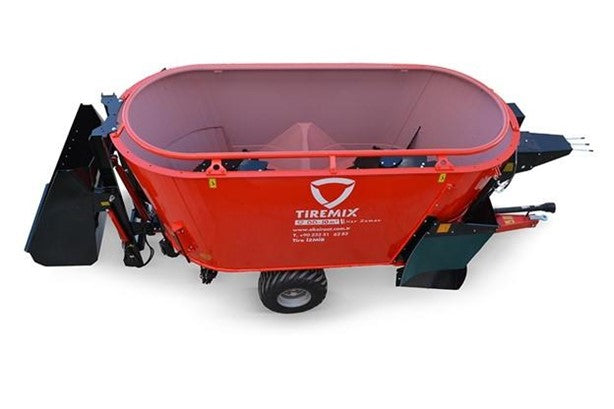

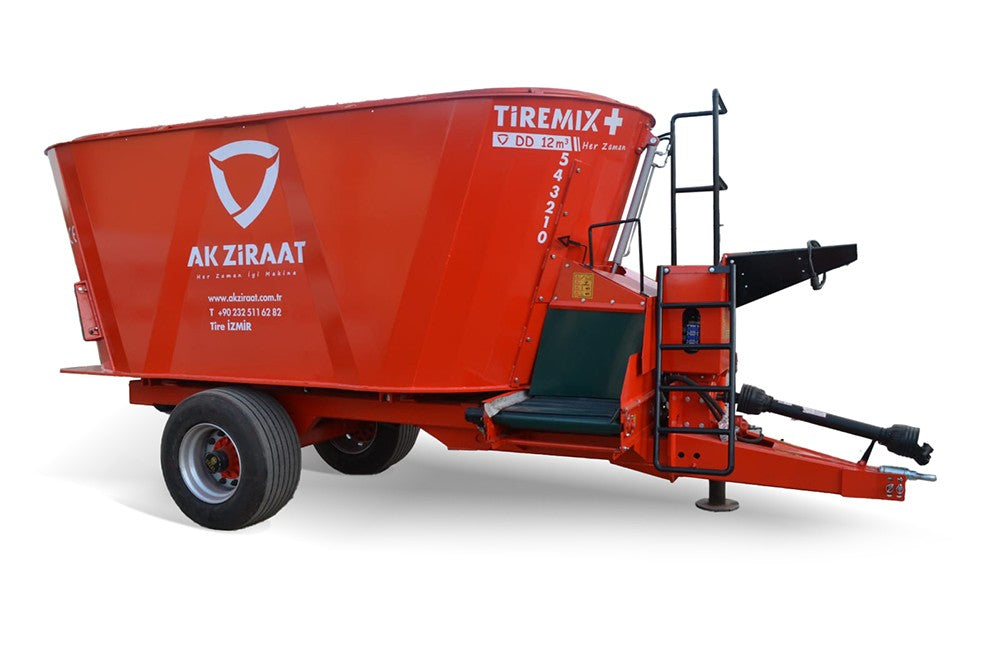

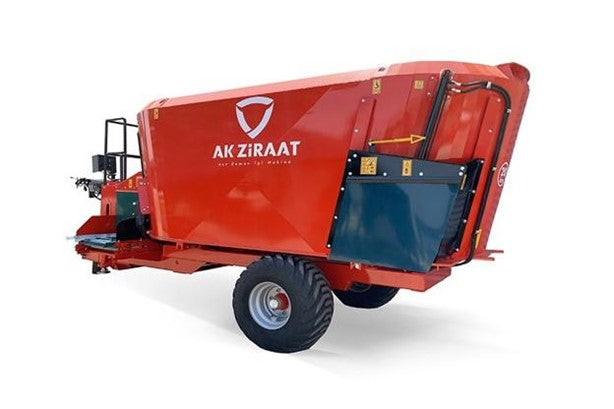

The AK ZIRAAT TIREMIX DD12 Feed/Mixer Wagon is a high-capacity, double vertical auger mixer designed for precision and efficiency in livestock feed preparation. Perfect for medium to large-scale farming operations, this feed mixer offers a 12 cubic meter (15.7 cubic yard) capacity, ensuring the production of healthy, homogeneous feed mixes that save both time and resources. Crafted with durability, reliability, and functionality in mind, the TIREMIX DD12 is an essential asset for modern agricultural practices.

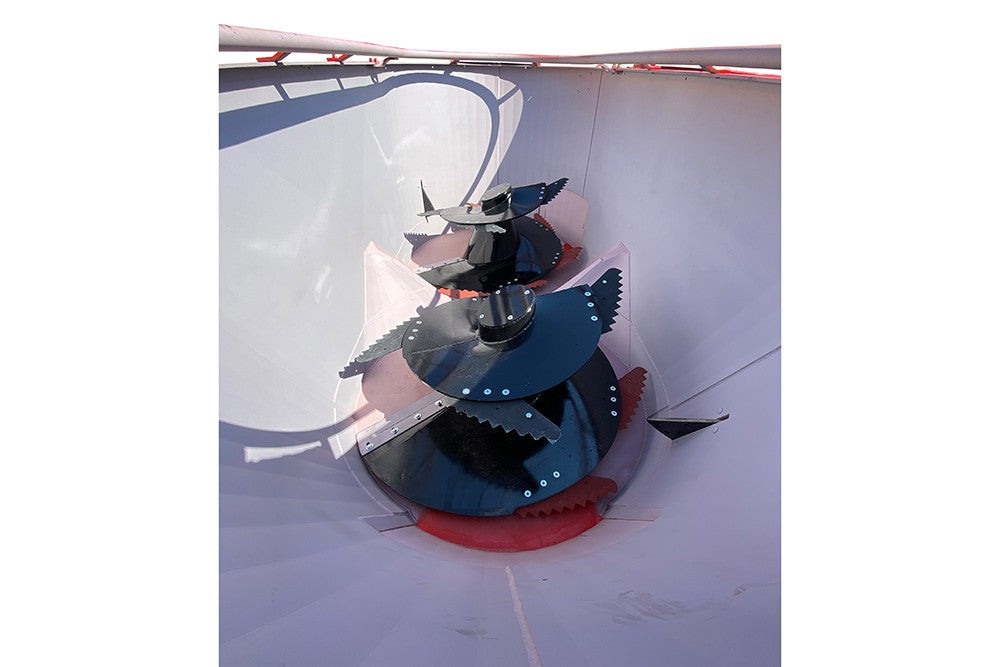

The mixer features a double vertical auger system, enhanced with 14 durable knives, which guarantees consistent mixing and cutting for optimal particle sizes. Its ST 52 bottom (18mm thick) and 15mm auger thickness provide exceptional durability and longevity, while the optional Hardox coating adds additional protection against body abrasion. Optional features, including a discharge conveyor belt, built-in weighing system, and magnetic neodymium magnet, increase versatility and ease of operation.

Powered by an 85 HP tractor operating at 540rpm PTO speed, the TIREMIX DD12 utilizes a robust planetary gearbox drive system for smooth and efficient operation. Its hydraulic system, with a 24-liter oil tank, guarantees reliable functionality across demanding tasks. Compact yet capable, this mixer wagon is equipped to streamline feed preparation and boost productivity while safeguarding feed quality through innovative features.

Key Features

  • Generous Capacity: 12 cubic meter (15.7 cubic yard) volume for efficient preparation of large feed batches.
  • Double Vertical Auger System: Provides homogeneous mixing with 14 durable knives for precise cutting and blending.
  • Durable Construction: Includes an 18mm thick ST 52 bottom, 15mm thick augers, and an 8mm body thickness for exceptional durability and reliability.
  • Optional Hardox Coating: Provides enhanced protection against wear and tear from abrasive materials.
  • Advanced Accessories: Optional features include discharge conveyor belt, built-in weighing system, and magnetic neodymium magnet for contaminant protection.
  • Hydraulic Efficiency: A 24-liter oil tank supports seamless operation for extended use.
  • Reliable Power System: Operates with an 85 HP tractor at 540rpm PTO, using a planetary gearbox drive system for smooth and consistent performance.
  • Compact Design: Dimensions of 200cm width, 630cm height, and 265cm length, balancing large capacity with easy maneuverability.
  • Enhanced Feed Quality: Designed to produce healthy, homogeneous mixes for improved livestock nutrition.

Detailed Specifications

Feature Specification
Volume 12 cubic meter (15.7 cubic yard)
Required Power 85 HP
Hydraulic System Oil Pump; 24-liter tank (6.3 US gallons)
Knives 14 Durable Knives
Bottom Thickness 18mm (0.7”)
Auger Thickness 15mm (0.6”)
Body Thickness 8mm (0.3”)
Tire Dimensions 400/60/15.5
Dimensions (W x H x L) 200cm x 630cm x 265cm (78.7” x 248.03” x 104.33”)
PTO Speed 540rpm
Drive System Planetary Gearbox
Optional Features Discharge Conveyor Belt, Weighing System, Magnetic Neodymium
