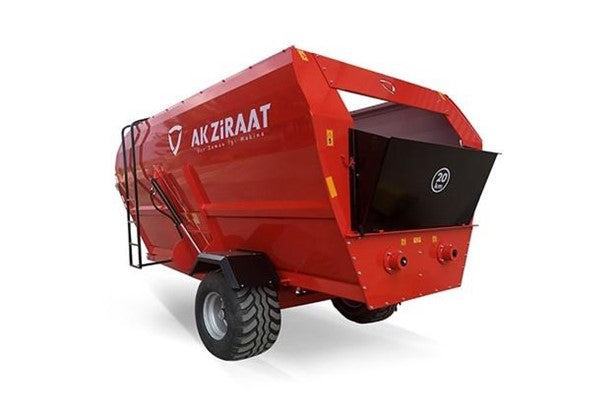

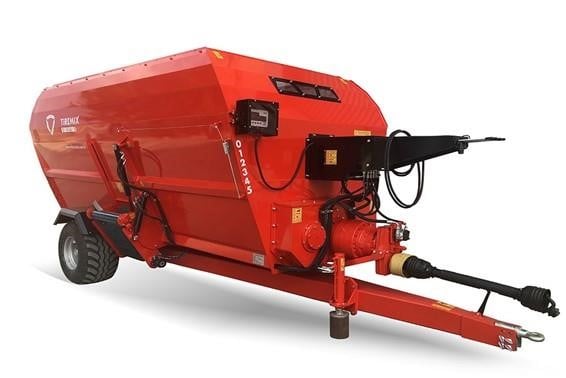

AK Ziraat | TIREMIX Y14M3 | 14m³ | Feed/Mixer Wagon | HorsePower 100 HP | For Tractor

AK Ziraat | TIREMIX Y14M3 | 14m³ | Feed/Mixer Wagon | HorsePower 100 HP | For Tractor

Regular price $44,220.00
Regular price Sale price $44,220.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Exceptional Capacity: 16 cubic meter (20.9 cubic yard) volume for handling large feed batches.
  • Double Horizontal Auger System: Features 56 star knives and 60 oval knives for thorough mixing and cutting.
  • Durable Construction: Built with 12mm thick ST 52 bottom and 17mm thick auger pipes for reliable, long-lasting use.
  • Powerful Performance: Requires a 100 HP tractor and operates at 540rpm PTO with a planetary gearbox drive system.
View full details

Product Description

AK Ziraat| TIREMIX Y14M3 | 14m³ | Feed/Mixer Wagon | HorsePower 100 HP | For Tractor

Ripping It is Partnered with United Biosolutions inc. to provide the best pricing and service for Brand AK ZIRAAT.

DESCRIPTION

The AK ZIRAAT TIREMIX Y14M3 Feed/Mixer Wagon is the ultimate solution for large-scale feed preparation, designed to enhance efficiency and precision for modern farming operations. With a 16 cubic meter (20.9 cubic yard) capacity, this high-performance feed mixer can handle substantial loads while delivering perfectly blended, homogeneous rations for livestock. Engineered to meet the demands of intensive agricultural tasks, the TIREMIX Y14M3 integrates robust construction with advanced technology for reliable, long-lasting performance.

Equipped with a double horizontal auger system, featuring 56 star knives and 60 oval knives, this mixer ensures precise cutting and uniform blending of feed materials. Built with durability in mind, the machine includes a 12mm thick ST 52 bottom, 17mm auger pipe thickness, and an 18mm auger scroll thickness, making it a dependable choice for challenging conditions. Optional features like a weighing scale, loading bucket, and belt conveyor provide customization to suit specific farming needs.

Powered by a minimum 100 HP tractor and operating at 540rpm PTO, the TIREMIX Y14M3 utilizes a planetary gearbox drive system for smooth and efficient operation. The hydraulic system, supported by a 24-liter oil tank, ensures optimal functionality, while the incorporation of magnets prevents contamination by foreign materials, safeguarding feed quality. Compact dimensions of 2400mm width, 2500mm height, and 2800mm length balance capacity with maneuverability, making it a versatile solution for large farms.

Key Features

  • Exceptional Capacity: 16 cubic meter (20.9 cubic yard) volume for handling large feed batches.
  • Double Horizontal Auger System: Features 56 star knives and 60 oval knives for thorough mixing and cutting.
  • Durable Construction: Built with 12mm thick ST 52 bottom and 17mm thick auger pipes for reliable, long-lasting use.
  • Hydraulic Efficiency: Includes a 24-liter oil tank for smooth and efficient hydraulic operations.
  • Customizable Options: Offers optional features like weighing scale, loading bucket, and discharge conveyor belt for added versatility.
  • Contaminant Protection: Integrated magnets prevent metal fragments and foreign objects from contaminating the feed.
  • Powerful Performance: Requires a 100 HP tractor and operates at 540rpm PTO with a planetary gearbox drive system.
  • Optimized Dimensions: Compact yet spacious with dimensions of 2400mm width, 2500mm height, and 2800mm length.
  • Time-Saving Efficiency: Streamlines feed preparation, saving time while ensuring precision and homogeneity.

Detailed Specifications

Feature Specification
Volume 16 cubic meter (20.9 cubic yard)
Required Power 100 HP
Hydraulic System Oil Pump; 24-liter tank (6.3 US gallons)
Knives 56 Star Knives, 60 Oval Knives
Bottom Thickness 12mm (0.47”)
Auger Thickness 18mm (0.7”)
Auger Pipe Thickness 17mm (0.66”)
Body Thickness 6mm (0.24”)
Augers 2 x Horizontal
Tire Dimensions 500/50/17
Dimensions (W x H x L) 2400mm x 2500mm x 2800mm (94.5” x 98.4” x 110.23”)
PTO Speed 540rpm
Drive System Planetary Gearbox
Optional Features Weighing Scale, Loading Bucket, Discharge Conveyor Belt
