AK Ziraat | TIREMIX Y14M3 | 14m³ | Feed/Mixer Wagon | HorsePower 90 HP | For Tractor

AK Ziraat | TIREMIX Y14M3 | 14m³ | Feed/Mixer Wagon | HorsePower 90 HP | For Tractor

Regular price $41,778.00
Regular price Sale price $41,778.00
Sale Sold out
Customizable
Fast
24/7 Support
  • High-Capacity Design: 14 cubic meter (18.3 cubic yard) volume for large-scale feed preparation.
  • Advanced Mixing System: Includes a double horizontal auger system with 52 star knives and 56 oval knives for precise blending and cutting.
  • Heavy-Duty Construction: Built with a 12mm thick ST 52 bottom and 18mm auger thickness, ensuring durability and reliable performance.
  • Powerful Performance: Operates with a minimum 90 HP tractor and a 540rpm PTO, driven by a robust planetary gearbox.
View full details

Product Description

AK Ziraat | TIREMIX Y14M3 | 14m³ | Feed/Mixer Wagon | HorsePower 90 HP | For Tractor

Ripping It is Partnered with United Biosolutions inc. to provide the best pricing and service for Brand AK ZIRAAT.

DESCRIPTION

The AK ZIRAAT TIREMIX Y14M3 Feed/Mixer Wagon is a premium solution for high-capacity and precise feed preparation, tailored to meet the rigorous demands of large-scale farming operations. With a 14 cubic meter (18.3 cubic yard) capacity, this mixer wagon streamlines feed preparation, delivering perfectly blended and homogeneous rations for your livestock. Its innovative design and robust construction place it at the forefront of efficiency and performance in its category.

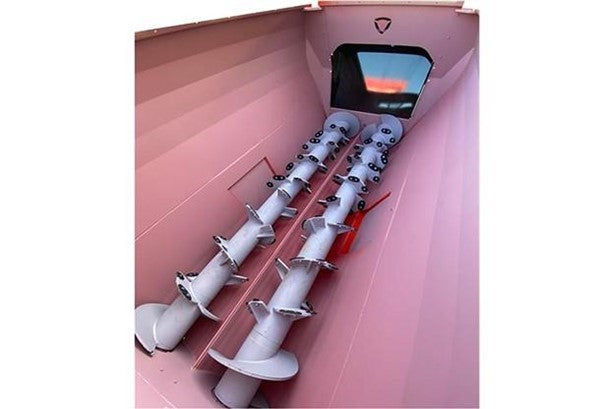

This feed/mixer wagon is equipped with a double horizontal auger system, featuring 52 star knives and 56 oval knives that ensure thorough mixing and precise cutting of feed materials. The ST 52 bottom (12mm thick) and 17mm auger pipe thickness contribute to its durability and long-lasting performance. Optional features, such as a weighing scale, loading bucket, and discharge conveyor belt, enhance its flexibility to suit a variety of operational requirements.

Powered by a 90 HP tractor with a planetary gearbox drive system and operating at 540rpm PTO, the TIREMIX Y14M3 ensures reliable and smooth performance in the field. Its hydraulic system, supported by a 24-liter oil tank, provides seamless operation, while its magnets safeguard against contamination from metal fragments in the feed.

Key Features

  • High-Capacity Design: 14 cubic meter (18.3 cubic yard) volume for large-scale feed preparation.
  • Advanced Mixing System: Includes a double horizontal auger system with 52 star knives and 56 oval knives for precise blending and cutting.
  • Heavy-Duty Construction: Built with a 12mm thick ST 52 bottom and 18mm auger thickness, ensuring durability and reliable performance.
  • Hydraulic Efficiency: Features a 24-liter oil tank for efficient operation.
  • Customizable Options: Optional features include a weighing scale, loading bucket, and discharge conveyor belt for added flexibility.
  • Enhanced Safety: Integrated magnets prevent metal fragments and other contaminants from entering the feed.
  • Powerful Performance: Operates with a minimum 90 HP tractor and a 540rpm PTO, driven by a robust planetary gearbox.
  • Optimized Dimensions: Measures 2400mm width, 2500mm height, and 2600mm length, balancing capacity and maneuverability.
  • Time-Saving Efficiency: Increases feed preparation speed while ensuring homogeneity for healthier livestock nutrition.

Detailed Specifications

Feature Specification
Volume 14 cubic meter (18.3 cubic yard)
Required Power 90 HP
Hydraulic System Oil Pump; 24-liter tank (6.3 US gallons)
Knives 52 Star Knives, 56 Oval Knives
Bottom Thickness 12mm (0.47”)
Auger Thickness 18mm (0.7”)
Auger Pipe Thickness 17mm (0.66”)
Body Thickness 6mm (0.24”)
Augers 2 x Horizontal
Tire Dimensions 500/50/17
Dimensions (W x H x L) 2400mm x 2500mm x 2600mm (94.5” x 98.4” x 106.29”)
PTO Speed 540rpm
Drive System Planetary Gearbox
Optional Features Weighing Scale, Loading Bucket, Discharge Conveyor Belt
