AK Ziraat | TIREMIX Y4M3 | 4m³ | Feed/Mixer Wagon | HorsePower 45 HP | For Tractor

AK Ziraat | TIREMIX Y4M3 | 4m³ | Feed/Mixer Wagon | HorsePower 45 HP | For Tractor

Regular price $19,360.00
Regular price Sale price $19,360.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • HorsePower 65 HP For Tractor
  • Durable Build: Features an 8mm ST 52 bottom and 15mm thick augers for long-term reliability.
  • Customizable Options: Includes optional features like weighing scale, loading bucket, and discharge conveyor belt for added functionality.
  • Powerful Drive System: Powered by a 45 HP tractor with a planetary gearbox and 540rpm PTO speed for smooth operation.
  • Compact Design: Measuring 1290mm width, 2110mm height, and 2110mm length, it is suitable for small and irregularly shaped spaces.
View full details

Product Description

AK Ziraat | TIREMIX Y4M3 | 4m³ | Feed/Mixer Wagon | HorsePower 45 HP | For Tractor

Ripping It is Partnered with United Biosolutions inc. to provide the best pricing and service for Brand AK ZIRAAT.

DESCRIPTION

The AK ZIRAAT TIREMIX Y4M3 Feed/Mixer Wagon is a compact, high-performance solution for modern feed preparation, ideal for small to medium-scale farming operations. Engineered with precision and efficiency in mind, this feed mixer delivers a 4 cubic meter (5.23 cubic yard) capacity, ensuring a homogeneous mix of feed and precise particle size for your livestock.

The double horizontal auger system, equipped with 88 durable star knives, provides thorough chopping and blending of feed materials. Designed for durability, the TIREMIX Y4M3 features a sturdy ST 52 bottom with an 8mm thickness and a robust 15mm auger thickness, making it a long-lasting investment for farmers. The optional weighing scale, loading bucket, and discharge conveyor belt offer enhanced flexibility and ease of operation, while the innovative use of magnets prevents foreign objects (e.g., metal) from contaminating the feed.

Powered by a minimum 45 HP tractor and running on a 540rpm PTO, this feed/mixer wagon integrates seamlessly into your farming setup. Its planetary gearbox drive system ensures smooth, reliable performance, while its compact design measuring just 1290 mm wide (50.8”) makes it perfect for maneuvering in tight spaces. Whether you're preparing rations or mixing feed, the TIREMIX Y4M3 is built to deliver superior results while saving time and resources.

Key Features

  • Compact Capacity: 4 cubic meter (5.23 cubic yard) volume for precise and efficient feed preparation.
  • Double Horizontal Auger System: Equipped with 88 star knives for thorough blending and cutting.
  • Durable Build: Features an 8mm ST 52 bottom and 15mm thick augers for long-term reliability.
  • Customizable Options: Includes optional features like weighing scale, loading bucket, and discharge conveyor belt for added functionality.
  • Powerful Drive System: Powered by a 45 HP tractor with a planetary gearbox and 540rpm PTO speed for smooth operation.
  • Compact Design: Measuring 1290mm width, 2110mm height, and 2110mm length, it is suitable for small and irregularly shaped spaces.
  • Hydraulic System: 24-liter oil tank for seamless hydraulic operations.
  • Safe and Clean Feeding: Integrated magnets prevent foreign materials from contaminating the feed.
  • Versatile Use: Ideal for feed preparation, blending, and rationing across a variety of livestock needs.

Detailed Specifications

Feature Specification
Volume 4 cubic meter (5.23 cubic yard)
Required Power 45 HP
Hydraulic System Oil Pump; 24-liter tank (6.3 US gallons)
Knives 88 Star Knives
Bottom Thickness 8mm (0.3”)
Auger Thickness 15mm (0.6”)
Auger Pipe Thickness 14mm (0.5”)
Body Thickness 4mm (0.15”)
Augers 2 x Horizontal
Tire Dimensions 10/80/12
Dimensions (W x H x L) 1290mm x 2110mm x 2110mm (50.8” x 83.0” x 83.0”)
PTO Speed 540rpm
Drive System Planetary Gearbox
Optional Features Weighing Scale, Loading Bucket, Discharge Conveyor Belt



Manuals & Documents

 General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

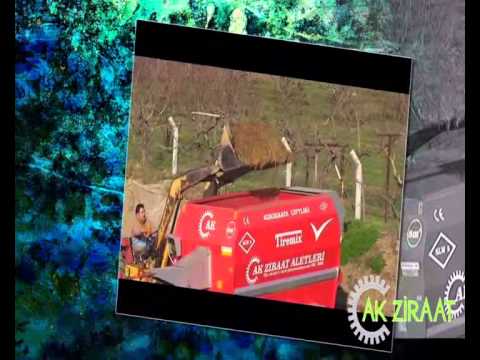

Videos
