Product Description

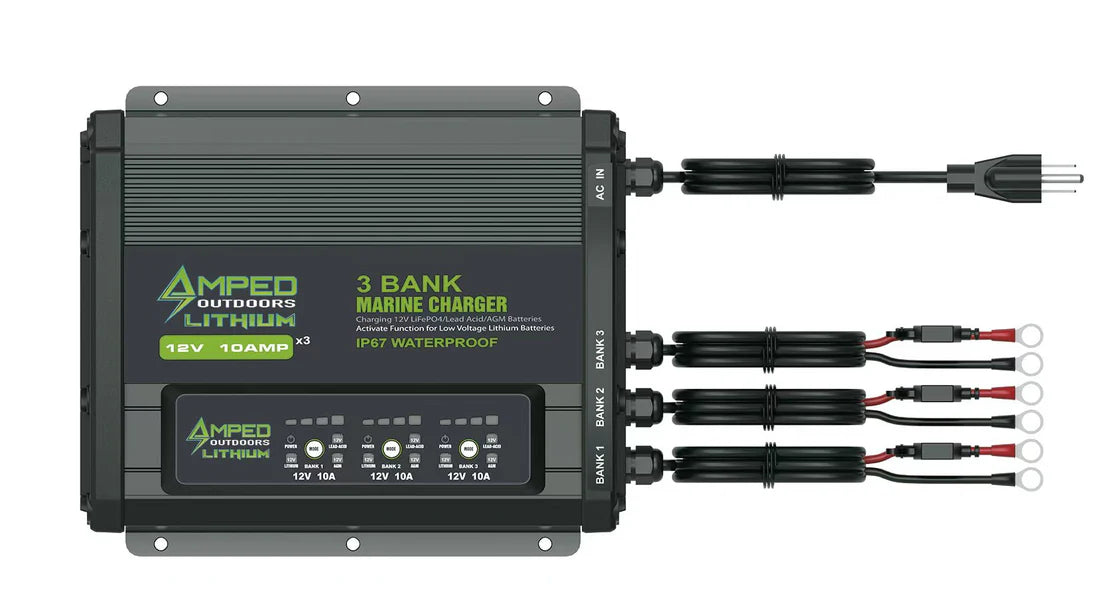

Amped Outdoors 3-Bank Marine Charger with M8 Ring | Model AO-0331M | Input 105-125V AC
Description
The Amped Outdoors 3 Bank 12V On-Board Battery Charger will allow you to charge 3 12V batteries. The 12V charging banks have a selectable Lead Acid, AGM and Lithium battery charging mode.
Key Features
- Multi-Bank Charging: Charges three 12V batteries simultaneously.
- Selectable Charging Modes: Compatible with LiFePO4, Wet, and AGM batteries.
- High Output: Each bank is rated for 10A max output.
- Wake Up Function: For low voltage lithium batteries (press mode button on bank panel for 3-5 seconds to activate).
- LED Indicators: Power, battery type, and charging status indicators.
- Cooling System: Aluminum stretched plate and waterproof cooling fan for enhanced heat dissipation.
- Ingress Protection: Filled with pure epoxy resin for high waterproof level IP67.
- Circuit Protection: Includes short-circuit, reverse connection, overcharge, and over-temperature protection.
- Wide Working Temperature Range: Operates between -10°C to 40°C.
- Nominal Working Temperature: 25°C.
- Relative Humidity: Operates in 5% to 95% humidity.
Detailed Specifications
| Specification | Details |
|---|---|
| Product Name | 3-Bank Marine Charger with M8 Ring |
| Model | AO-0331M |
| Input | 105-125V AC, 60Hz |
| Output | 3*12V/10A |
| Product Size | 25024599mm / 9.8"x9.6"x3.9" |
| Charging Battery Type | 12V LiFePO4/Wet/AGM |
| LED Indicators | Power & Battery Type & Charging Status LED Indicators |
| Activate Function | Wake Up Function for Low Voltage of Lithium Battery (Press mode button for 3-5 seconds) |
| Full Cut-off Voltage | 14.1V-14.4V for 12V Lead Acid Battery & 14.4V-14.7V for 12V AGM / LiFePO4 Lithium Battery |
| Cooling Type | Aluminium stretched plate and waterproof cooling fan |
| Ingress Protection | Filled with pure epoxy resin for high waterproof level IP67 |
| Circuit Protection | Short-circuit Protection, Reverse Connection Protection, Overcharge Protection, Overtemp Protection |
| Working Temperature Range | -10°C~40°C |
| Nominal Working Temperature | 25°C |
| Relative Humidity | 5%~95% |
