Amulet Hydraulic Diverter Kit | Model DSP-12-R-TK Series | 24 GPM Flow | Machine Size 1-8 Tons | For Backhoes & Excavators

Product Description

Amulet Hydraulic Diverter Kit | Model DSP-12-R-TK Series | 24 GPM Flow | Machine Size 1-8 Tons | For Backhoes & Excavators

DESCRIPTION

Maximize the efficiency and versatility of your compact equipment with the Amulet Hydraulic Diverter Kit DSP-12-R-TK Series, designed specifically for excavators and backhoes in the 1–8 ton class. This advanced system enables operators to add a two-way auxiliary hydraulic circuit without costly machine modifications, unlocking the full potential of hydraulic attachments like thumbs.

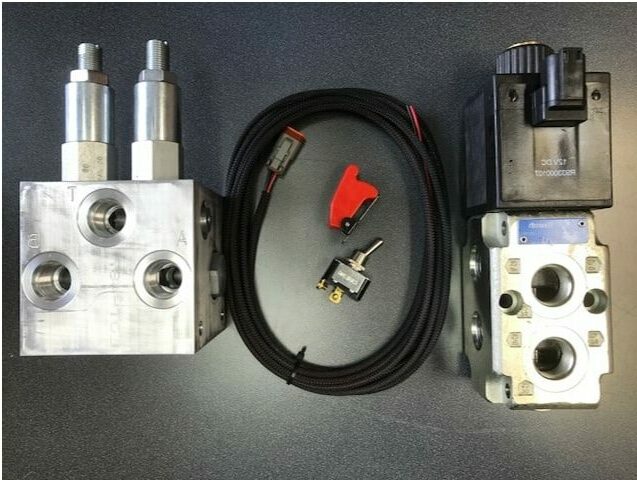

Each kit features an electric-operated VS285 valve and in-cab rocker switch, allowing seamless switching between existing hydraulic functions such as stabilizers or booms and auxiliary attachments. The integrated cylinder protection manifold with adjustable relief valve ensures precise pressure control, protecting both your machine and attachments from overload.

Built for durability and ease of installation, this series supports multiple machine sizes while maintaining consistent 24 GPM hydraulic flow performance. Whether you're upgrading a 1–3 ton mini excavator or a 6–8 ton unit, this kit delivers reliable hydraulic control, improved productivity, and enhanced operational flexibility on every job site.

Key Features

• Multi-Model Excavator Compatibility Range Designed to support 1–8 ton machines, this diverter kit series ensures precise fitment and performance across multiple excavator classes, making it ideal for fleet owners and contractors managing diverse equipment sizes.
• Advanced Auxiliary Hydraulic Conversion Easily transform an existing hydraulic circuit into a fully functional two-way auxiliary system, enabling seamless operation of hydraulic thumbs and attachments without additional plumbing or costly upgrades.
• Electric Control with Rocker Switch Includes a responsive in-cab rocker switch that allows operators to instantly redirect hydraulic flow, improving efficiency, minimizing downtime, and enhancing operator convenience during demanding tasks.
• High-Performance 24 GPM Flow Output Maintains consistent hydraulic flow across all models, ensuring smooth and reliable attachment operation even under heavy workloads and varying job site conditions.

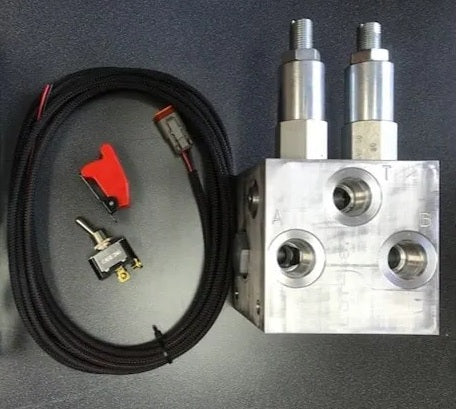

• Integrated Cylinder Protection System Equipped with an adjustable relief valve manifold to regulate pressure, preventing attachment damage while ensuring optimal force balance between bucket and hydraulic thumb operations.
• Precision Pressure Control Adjustment Allows fine-tuning of hydraulic pressure to 80–85% of bucket curl force, ensuring controlled gripping power and protecting components from excessive stress or failure.

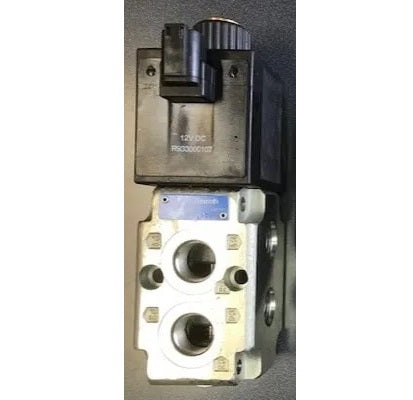

• Heavy-Duty VS285 Valve Technology Features a robust VS285 valve capable of handling high-pressure environments, delivering dependable performance and long-term durability in construction and excavation applications.
• Flexible Installation for Operators Designed for straightforward installation by owner-operators, reducing setup time and eliminating the need for specialized tools or professional installation services.
• Dual Function Flow Diversion Capability Efficiently redirects hydraulic flow from stabilizers, offset booms, or extendable sticks, maximizing machine functionality without requiring additional hydraulic circuits.
• Comprehensive Electrical Integration Kit Includes wiring harness and control handle for seamless electrical connectivity, ensuring reliable operation and responsive control from within the cab.
• Wide Attachment Compatibility Works seamlessly with Amulet hydraulic thumbs and other attachments with similar hydraulic requirements, offering versatility across various job site applications.
• High Pressure Performance Ratings Supports up to 3625 PSI (internal) and 4350 PSI (external), ensuring reliable operation under heavy-duty conditions and demanding workloads.
• Compact and Space-Efficient Design Engineered to integrate easily into tight machine spaces without compromising performance or maneuverability, making it ideal for compact excavators.
