Anderson Log Loader | Model M-115 | Grapple Opening 36" inches | Horsepower 50-75 HP | For Tractors
Anderson Log Loader | Model M-115 | Grapple Opening 36" inches | Horsepower 50-75 HP | For Tractors
Regular price
$27,700.00
Regular price
Sale price
$27,700.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

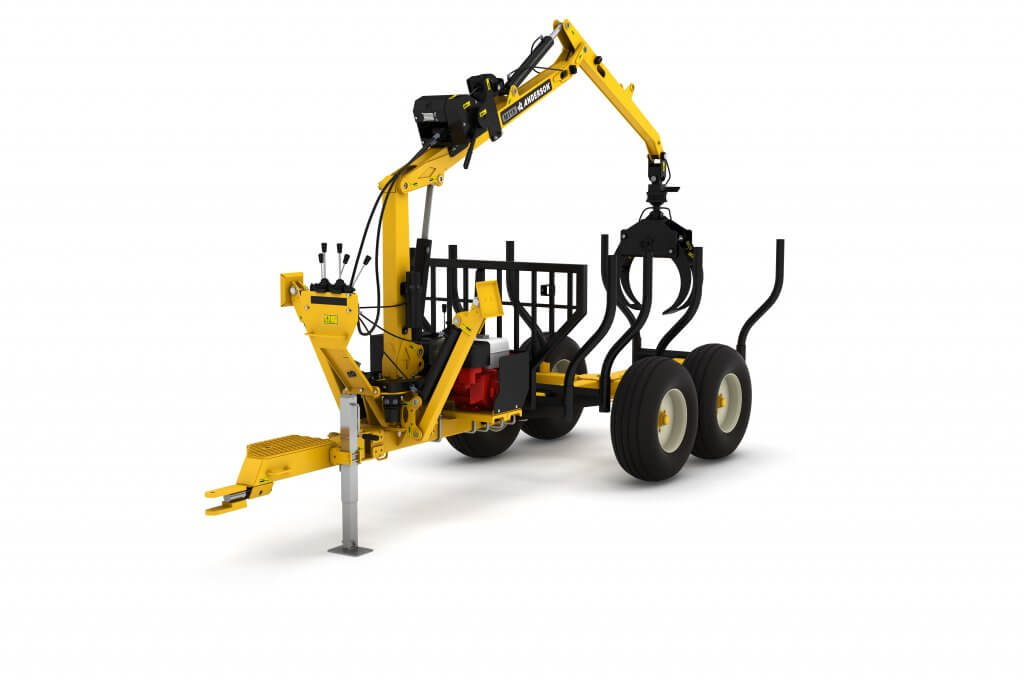

Anderson Log Loader | Model M-115 | Grapple Opening 36" inches | Horsepower 50-75 HP | For Tractors
DESCRIPTION
The M115 Log Loader combines versatility and power to elevate logging operations to the next level. With its 36" grapple for larger logs, continuous grapple rotation, and hydraulic winches, the M115 ensures efficient and fast handling of heavy loads. Designed for maneuverability in tight areas, this loader is a reliable choice for demanding forestry tasks, offering robust capabilities and numerous optional features.
Key Features
- Powerful Hydraulic Winch Options: Equipped with a #750 winch (150' × 3/8" cable, load capacity 6500 lbs) or #400 winch (85' × 1/4" cable, load capacity 2000/4000 lbs).
- 360° Grapple Rotation: Enables precise handling of large logs from any angle, ensuring smooth operation.
- 13 HP Honda Power Unit (Optional): Provides reliable and consistent performance for independent operation.
- Articulated Drawbar: Enhances maneuverability in tight spaces, perfect for challenging terrains.
- Large Grapple Opening: Features a 36" (91.4 cm) maximum opening for efficient handling of larger logs.
-
Hydraulic Controls with Joysticks: Offers precision and ease of operation, optimizing control during loading and unloading tasks.
Detailed Specifications
| Feature | M115 Specifications |
|---|---|
| Maximum Arm Extension | 11'6" (3.5 m) |
| Swing Angle | 360° |
| Grapple Rotation | Continuous |
| Maximum Rotator Torque | 445 lb.pi (600 N.m) @ 2450 PSI |
| Maximum Grapple Opening | 36" (91.4 cm) |
| Closed Grapple Diameter | 4" (10.2 cm) |
| Empty Weight (Loader Only) | 1003 lbs (455 kg) |
| Empty Weight (Trailer Only) | 1422 lbs (654 kg) |
| Total Empty Weight | 2925 lbs (1100 kg) |
| Hydraulic Winch Options | W400: 2000/4000 lbs (907/1814 kg); W750: 6500 lbs (2948 kg) |
| Steel Cable | 85' (26 m), ¼" dia. or 150' (45.7 m), 3/8" dia. |
| Hydraulic Dumping Box | Optional (1.2 m³ capacity, raises to 45°) |
| Bucket Options | 12" (30 cm) with teeth or 20" (51 cm) for ditches |
| Auger Options | Optional 6" (15.2 cm) or 9" (22.9 cm) |
| Telescopic Stabilizer Legs | Optional |
| Power Unit (5.5 HP) | N/A |
| Power Unit (13 HP) | Optional |
| Hydraulic Articulated Drawbar | Standard |
| Total Load Capacity | 20,000 lbs (9072 kg) |
| Boom Lifting Capacity (Full Extension) | 1106 lbs (499 kg) |
| Boom Lifting Capacity (Mid-Span) | 2400 lbs (1090 kg) |
| Tires | 12.5L15 (12 PLY) Highway |
