Anderson Log Loader | Model M-140 | Grapple Opening 48" inches | Horsepower 40-75 HP | For Tractors

Anderson Log Loader | Model M-140 | Grapple Opening 48" inches | Horsepower 40-75 HP | For Tractors

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Maximum Arm Extension: Reaches up to 14 feet (4.2 meters), offering exceptional reach for handling logs and materials in various positions.
  • 360-Degree Swing Angle: Provides full rotational flexibility, making it easy to maneuver logs from any direction without repositioning the loader.
  • Continuous Grapple Rotation: Ensures efficient and precise grasping, lifting, and placing of logs, enhancing overall productivity.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Anderson Log Loader | Model M-140 | Grapple Opening 48" inches | Horsepower 40-75 HP | For Tractors

DESCRIPTION

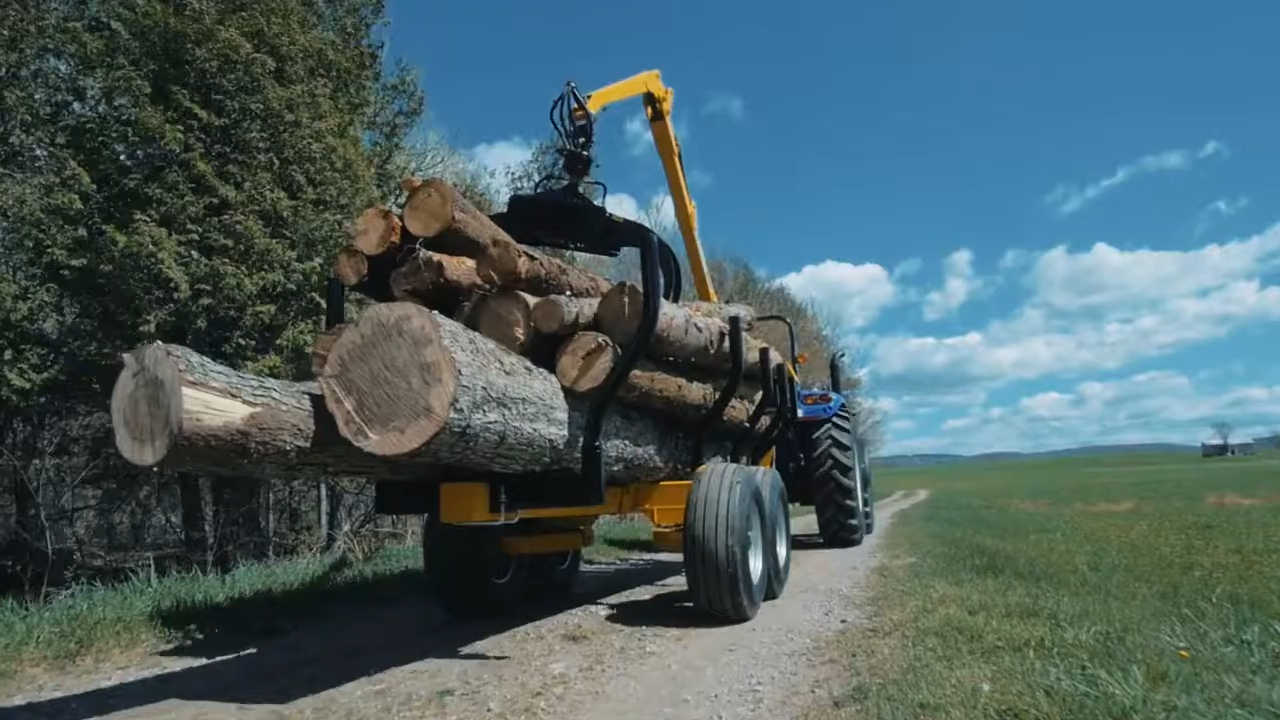

The Anderson M140 Log Loader is a heavy-duty, versatile machine purpose-built for demanding forestry and logging operations. With its impressive 14-foot arm extension and 360° swing angle, this log loader excels in handling, loading, and transporting large logs with precision and efficiency. Its design incorporates advanced features, including a continuous grapple rotation and customizable options like hydraulic winches and augers, making it suitable for a wide range of forestry tasks.

Key Features

  • Maximum Arm Extension: Reaches up to 14 feet (4.2 meters), offering exceptional reach for handling logs and materials in various positions.
  • 360-Degree Swing Angle: Provides full rotational flexibility, making it easy to maneuver logs from any direction without repositioning the loader.
  • Continuous Grapple Rotation: Ensures efficient and precise grasping, lifting, and placing of logs, enhancing overall productivity.
  • Hydraulic Dumping Box with Bucket: Features a robust hydraulic mechanism for effortless and smooth dumping, ideal for heavy-duty material handling.
  • Hydraulic Winch with 85-Foot Cable: Delivers exceptional pulling strength, enabling the movement of heavy logs across significant distances with ease.
  • Honda Power Unit (5.5 HP): Equipped with a reliable Honda engine for consistent performance, ensuring durability and smooth operation during intensive tasks.
  • Advanced Joystick Controls: Offers intuitive circuit controls with joysticks for precise handling and simplified operations.
  • 48-Inch Grapple Opening: Accommodates large logs effectively, enhancing efficiency in lifting and loading tasks.
  • Optional Auger Attachments: Available in 6-inch and 9-inch sizes, perfect for rapid and efficient hole drilling in forestry or agriculture.
  • Telescopic Stabilizer Legs (Optional): Provides additional stability during operations, particularly on uneven or challenging terrains.
  • Boom Lifting Capacity: Lifts up to 1300 pounds (589 kg) at full extension and 2950 pounds (1338 kg) at mid-span, making it suitable for heavy-duty work.
  • 20,000-Pound Load Capacity RF-512: Handles substantial loads with ease, catering to large-scale forestry and logging operations.
  • Highway Tires (12-Ply): Ensures smooth transportation and reliable performance across various terrains and road conditions.

Detailed Specifications

Specification Details
Maximum arm extension 14' (4.2 m)
Swing angle 360°
Grapple rotation Continuous
Maximum rotator torque @ 2450 PSI (170 bar) 445 lb.pi (600 N.m)
Maximum grapple opening 48" (121.9 cm)
Closed grapple diameter 4" (10.2 cm)
Empty weight of the loader only 1500 lb (680 kg)
Empty weight of the trailer only 1785 lb (810 kg)
Total empty weight 3285 lb (1490 kg)
2-speed boom-mounted hydraulic winch Optional − W750; Load capacity of 6500 lb (2948 kg)
Steel cable 150' (45.7 m); 3/8" (0.9 cm) diameter
Hydraulic dumping box N/A
Bucket N/A
Auger Optional – 6 in (15.2 cm) or 9 in (22.9 cm)
Telescopic stabilizer legs Optional
5.5 HP power unit N/A
13 HP power unit Optional
Hydraulic articulated drawbar STD
Total load capacity RF-512 20,000 lb (9072 kg)
Boom lifting capacity at full extension 1300 lb (589 kg)
Boom lift capacity at mid-span 2950 lb (1338 kg)
Tires 12.5L15 (12 PLY) Highway
