Anderson Log Loader | Model M-160 | Grapple Opening 48" inches | Horsepower 75+ HP | For Tractors

Anderson Log Loader | Model M-160 | Grapple Opening 48" inches | Horsepower 75+ HP | For Tractors

Regular price $38,000.00
Regular price Sale price $38,000.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Tractor Compatibility: Built for 75+ HP tractors with hydraulic support for demanding log handling
  • Grapple Specs: 360° rotating grapple with 48" opening for secure grip on large-diameter logs
  • Boom Reach: 15'8" (4.8 m) knuckle boom for extended reach and efficient loading from multiple angles
  • Winch System: Hydraulic winch rated at 6500 lbs with 150' steel cable for remote log retrieval
View full details

Product Description

Anderson Log Loader | Model M-160 | Grapple Opening 48"  inches | Horsepower 75+ HP | For Tractors

DESCRIPTION

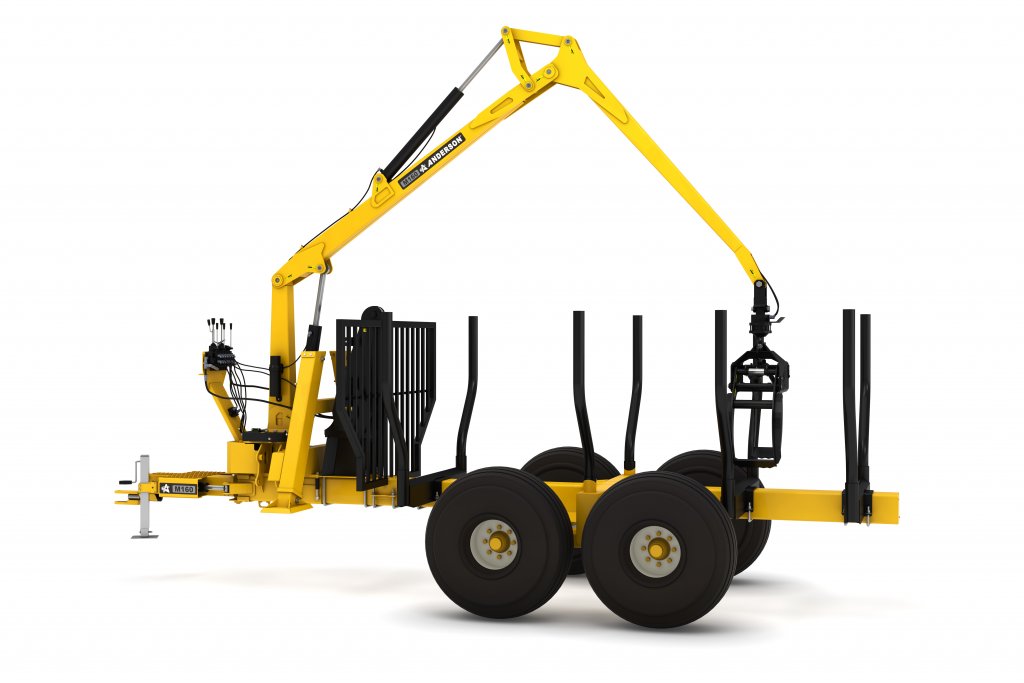

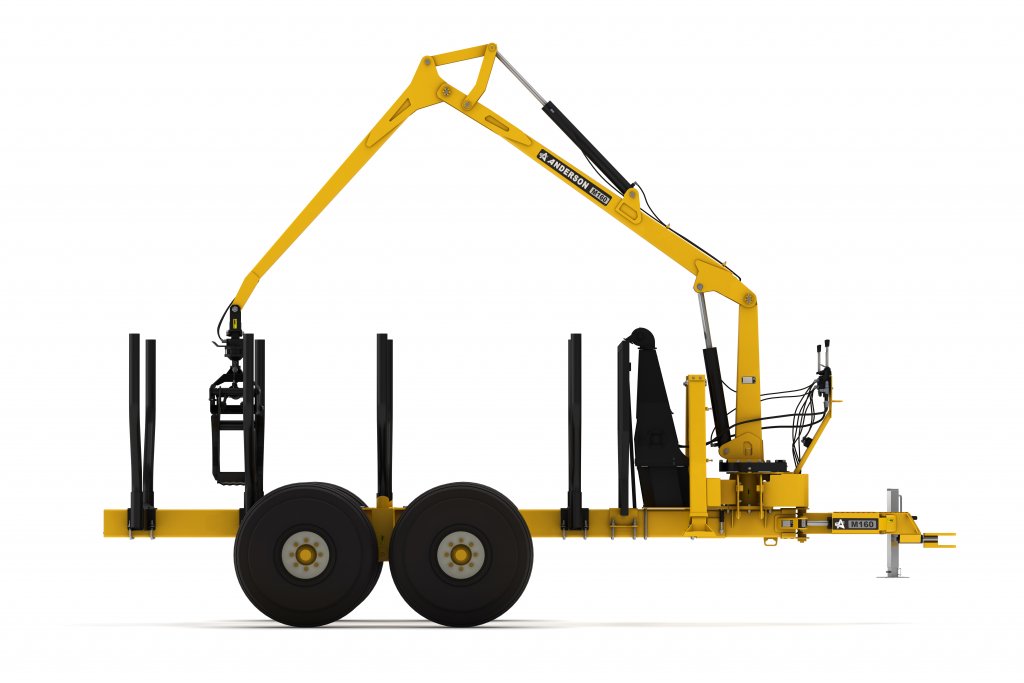

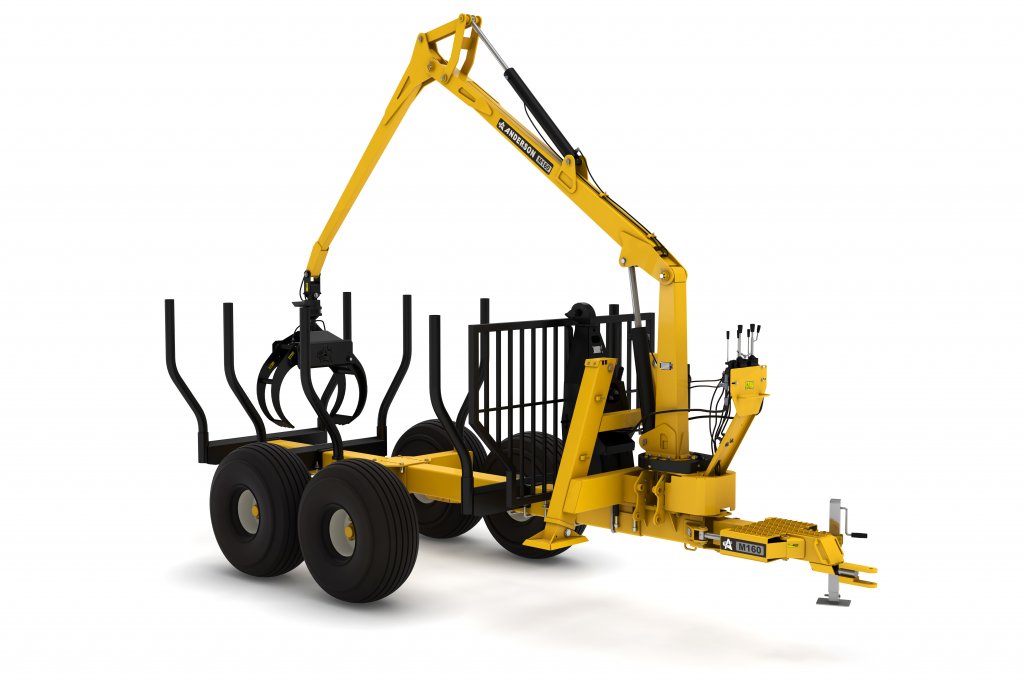

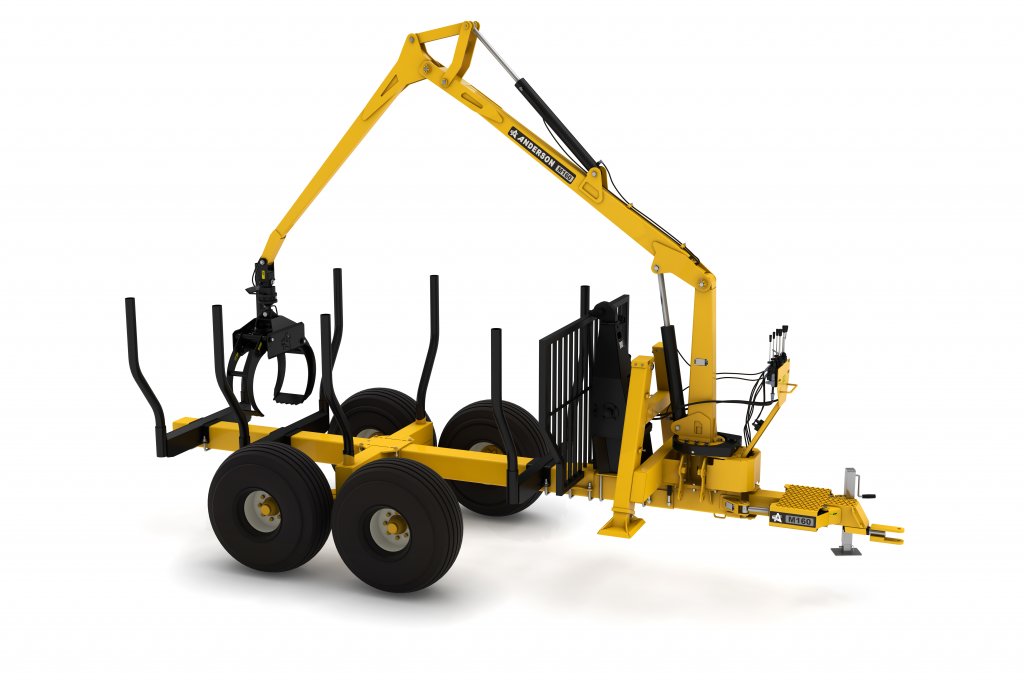

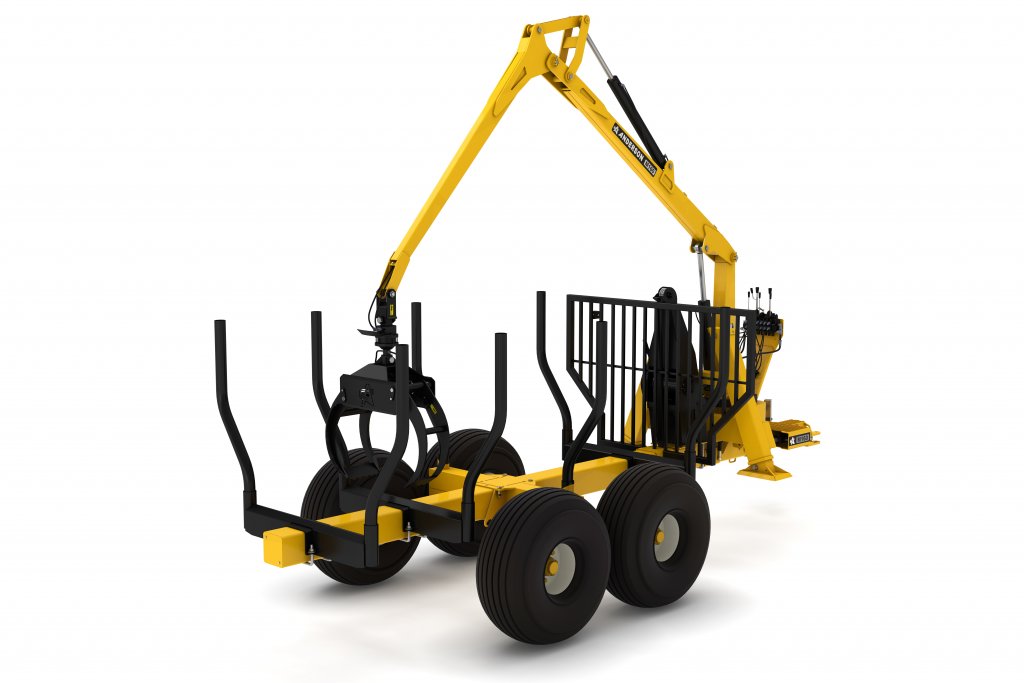

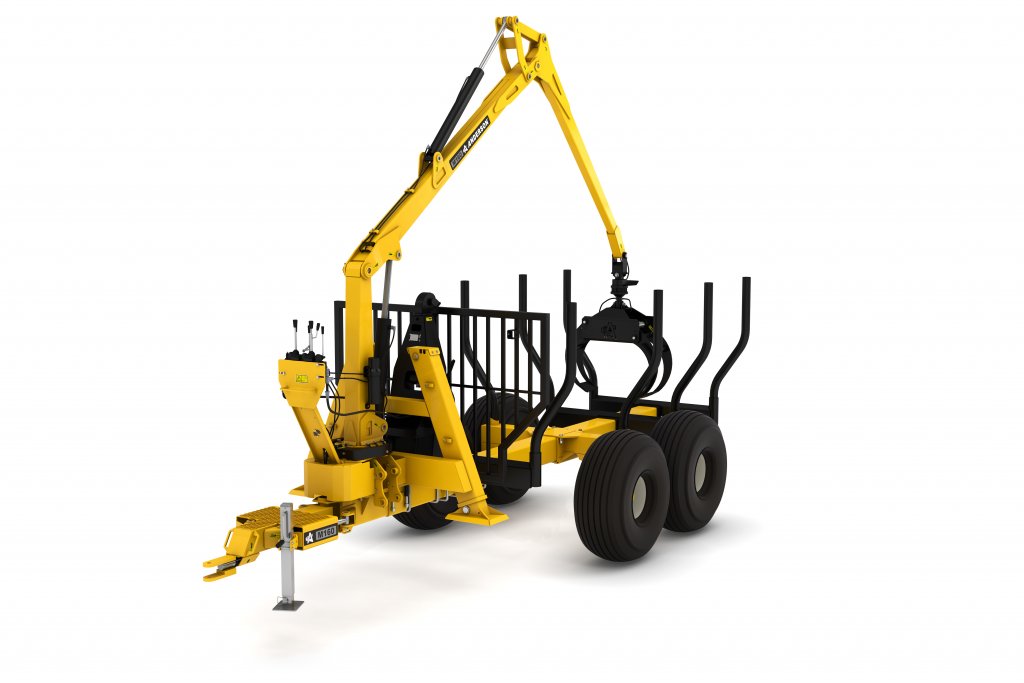

The Anderson M-160 Log Loader is designed for producers, professional forest contractors, and demanding users who require industrial-grade capabilities in their log loader. With its impressive 16-foot (4.8 m) maximum arm extension and 360-degree swing angle, the M-160 offers unmatched performance and efficiency. This loader is equipped with advanced standard features that make it ideal for heavy-duty logging and forestry operations, ensuring uncompromising power and versatility.

Key Features

    • Maximum Arm Extension: Extends up to 16 feet (4.8 meters), delivering exceptional reach and efficiency for handling large logs.
    • 360-Degree Swing Angle: Full rotation capability enhances flexibility and maneuverability, even in confined spaces.

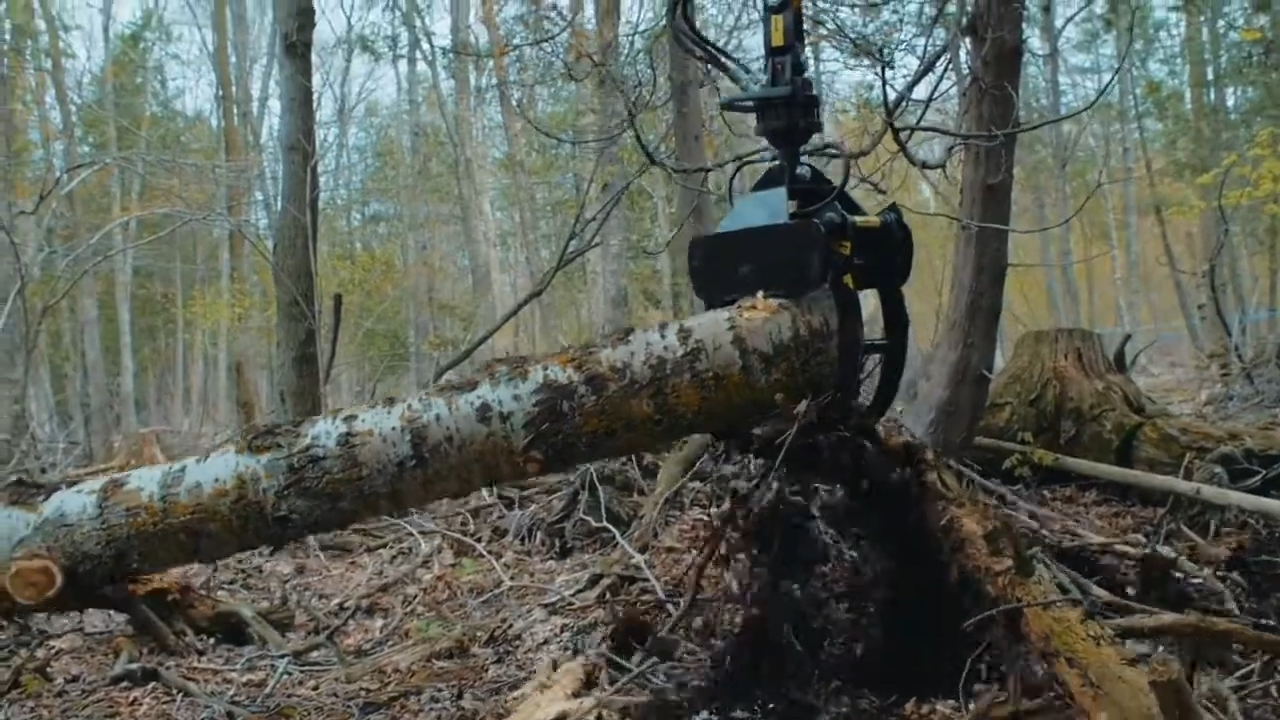

    • Continuous Grapple Rotation: Ensures precise and smooth handling of logs, increasing productivity during operations.
    • Hydraulic Winch: Includes a standard #750 1-speed hydraulic winch with a load capacity of 6500 pounds and 150 feet (45.7 m) of 3/8-inch steel cable.

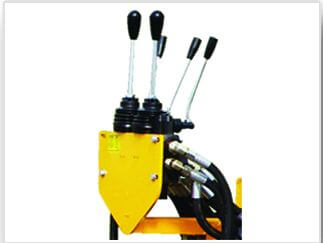

    • Circuit Control with Joysticks: Intuitive joystick controls provide accurate and effortless operation, even for intricate tasks.

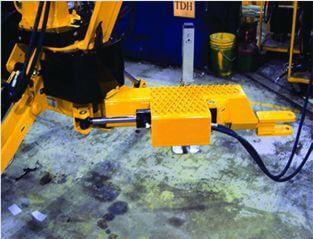

    • Articulated Drawbar: Improves maneuverability in tight areas, enhancing usability in challenging terrains.
    • 48-Inch Grapple Opening: Efficiently handles large logs, with a closed grapple diameter of 4 inches (10.2 cm).
    • Boom Lifting Capacity: Capable of lifting 1150 pounds (521 kg) at full extension and 2600 pounds (1180 kg) at mid-span.
    • Total Load Capacity: Supports heavy-duty operations with a total load capacity of up to 28,440 pounds (12,900 kg) on the RF-612HD trailer.
    • Telescopic Stabilizer Legs: Optional stabilizer legs offer additional stability for demanding operations.
    • Tire Specifications: Fitted with durable 16.5L16.1 (14 PLY) tires for reliable performance on various terrains.
    • Optional Auger Attachments: Compatible with 6-inch (15.2 cm) and 9-inch (22.9 cm) augers for additional versatility.

    Detailed Specifications

    Feature M-160 Specifications
    Maximum Arm Extension 16' (4.8 m)
    Swing Angle 360°
    Grapple Rotation Continuous
    Maximum Rotator Torque 445 lb.pi (600 N.m) @ 2450 PSI
    Maximum Grapple Opening 48" (121.9 cm)
    Closed Grapple Diameter 4" (10.2 cm)
    Empty Weight (Loader Only) 1620 lbs (735 kg)
    Empty Weight (Trailer Only) RF-612: 2612 lbs (1185 kg); RF-612HD: 2866 lbs (1300 kg)
    Total Empty Weight RF-612: 4232 lbs (1920 kg); RF-612HD: 4486 lbs (2035 kg)
    Hydraulic Winch (Standard) #750: 6500 lbs (2948 kg)
    Steel Cable 150' (45.7 m), 3/8" (0.9 cm) dia.
    Hydraulic Dumping Box N/A
    Bucket Options N/A
    Auger Options 6" (15.2 cm) or 9" (22.9 cm)
    Telescopic Stabilizer Legs Optional
    13 HP Power Unit Optional
    Hydraulic Articulated Drawbar Standard
    Total Load Capacity RF-612: 20,000 lbs (9072 kg); RF-612HD: 28,440 lbs (12,900 kg)
    Boom Lifting Capacity (Full Extension) 1150 lbs (521 kg)
    Boom Lifting Capacity (Mid-Span) 2600 lbs (1180 kg)
    Tires 16.5L16.1 (14 PLY)
