Anderson Log Loader | Model M-90 | Grapple Opening 30" inches | Horsepower 40-50 HP | For Tractors, ATV, and Trucks
Anderson Log Loader | Model M-90 | Grapple Opening 30" inches | Horsepower 40-50 HP | For Tractors, ATV, and Trucks
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Anderson Log Loader | Model M-90 | Grapple Opening 30" inches | Horsepower 40-50 HP | For Tractors, ATV, and Trucks
DESCRIPTION

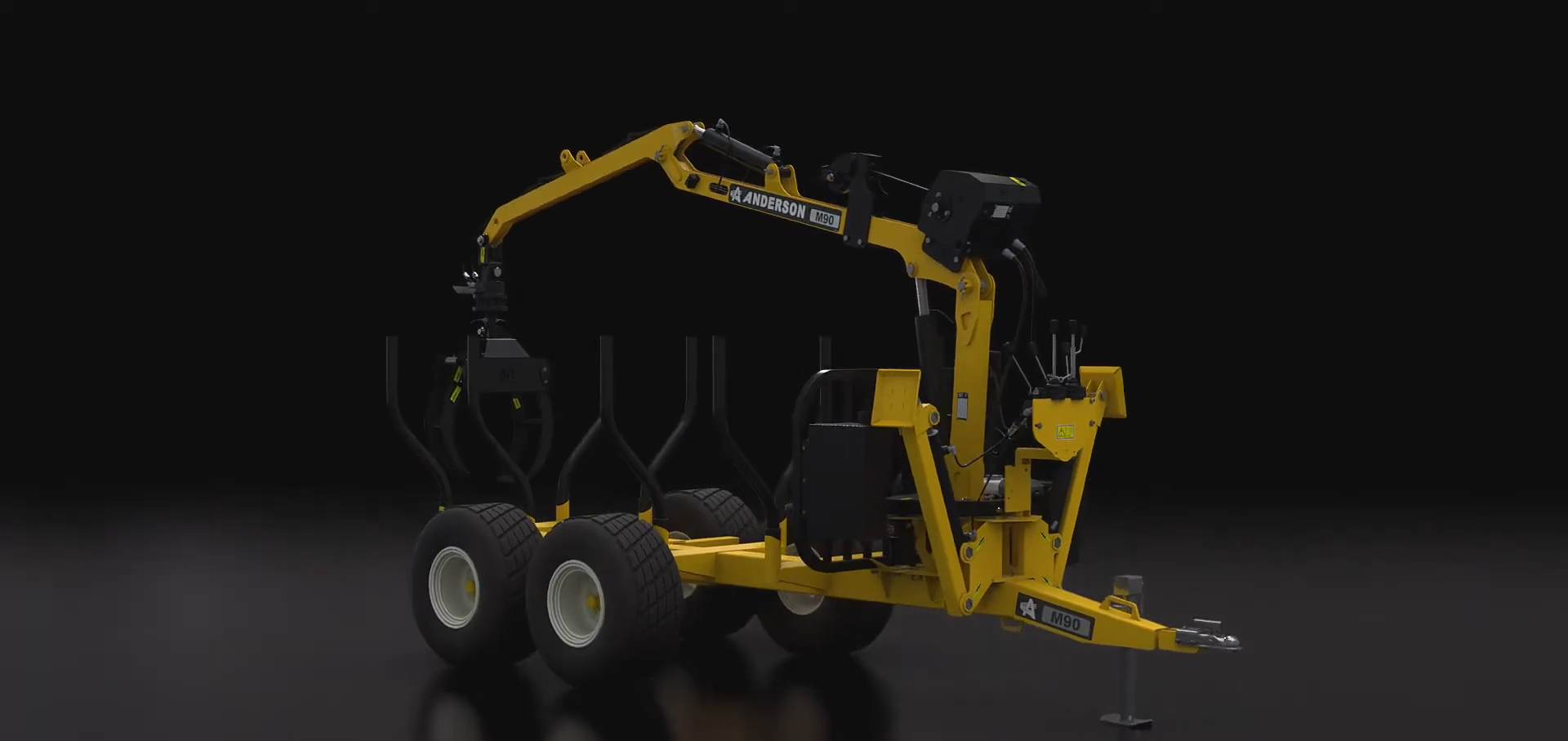

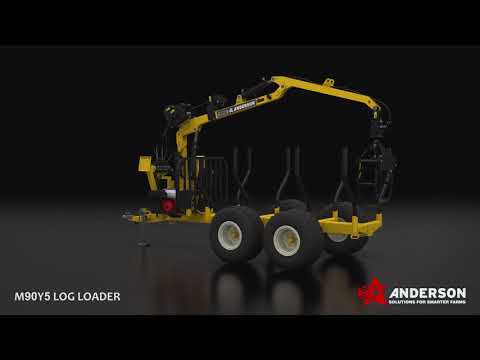

The Anderson M-90 Log Loader delivers powerful performance in a compact and maneuverable design. With a maximum arm extension of 9'6" (2.9 m) and a 360° swing angle, it excels in lifting and transporting logs even in rough terrain. Equipped with a hydraulic adjustable tandem axle, the M-90 ensures balanced loads and maximized capacity. This versatile loader is ideal for use with ATVs, trucks, or tractors and offers optional features like a hydraulic winch and auger for enhanced functionality.
Key Features
- Maximum Arm Extension: Extends up to 9'6" (2.9 m), enabling efficient handling and placement of logs.
- 360-Degree Swing Angle: Allows full rotation for enhanced flexibility and easier maneuvering.
- Continuous Grapple Rotation: Ensures precise log gripping, lifting, and positioning during operations.
- Hydraulic Dumping Box: Optional feature with a 26 ft³ capacity that raises to a 45° angle for easy unloading of materials.
- Hydraulic Winch with Steel Cable: Optional W400 winch has a load capacity of 2000/4000 lbs (907/1814 kg) and comes with an 85' (26 m), ¼" (0.6 cm) steel cable.
- Power Unit Options: Equipped with an optional 5.5 HP Honda engine for independent operation.
- Circuit Control with Joysticks: Features intuitive joystick controls for precise and effortless operation.
- 30-Inch Grapple Opening: Designed to handle a variety of log sizes efficiently, with a closed grapple diameter of 3" (7.6 cm).
- Auger Compatibility: Supports a 6-inch (15.2 cm) auger as an optional attachment for digging tasks.
- Robust Load Capacity: Total load capacity is 9900 lbs (4490 kg), making it suitable for heavy-duty operations.
- Boom Lifting Capacity: Lifts up to 700 lbs (318 kg) at full extension and 1600 lbs (725 kg) at mid-span.
- Tires: Equipped with durable 26 × 12 × 12 (8 PLY) tires for stability and smooth performance on various terrains.
Detailed Specifications
| Feature | M90 |
|---|---|
| Maximum Arm Extension | 9'6" (2.9 m) |
| Swing Angle | 360° |
| Grapple Rotation | Continuous |
| Maximum Rotator Torque @ 2450 PSI | 445 lb.pi (600 N.m) |
| Maximum Grapple Opening | 30" (76.2 cm) |
| Closed Grapple Diameter | 3" (7.6 cm) |
| Empty Weight (Loader Only) | 705 lb (320 kg) |
| Empty Weight (Trailer Only) | 815 lb (370 kg) |
| Total Empty Weight | 1520 lb (690 kg) |
| Optional Hydraulic Winch | W400: 2000/4000 lb (907/1814 kg) |
| Steel Cable | 85' (26 m), ¼" (0.6 cm) dia. |
| Hydraulic Dumping Box | Optional (26 ft³, raises to 45°) |
| Bucket Options | 12" (30 cm) with teeth |
| Auger Options | 6" (15.2 cm) |
| Telescopic Stabilizer Legs | N/A |
| Power Unit (5.5 HP) | Optional |
| Power Unit (13 HP) | N/A |
| Hydraulic Articulated Drawbar | N/A |
| Total Load Capacity | RF-380: 9900 lb (4490 kg) |
| Boom Lifting Capacity (Full Extension) | 700 lb (318 kg) |
| Boom Lifting Capacity (Mid-Span) | 1600 lb (725 kg) |
| Tires | 26 × 12 × 12 (8 PLY) |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
