Product Description

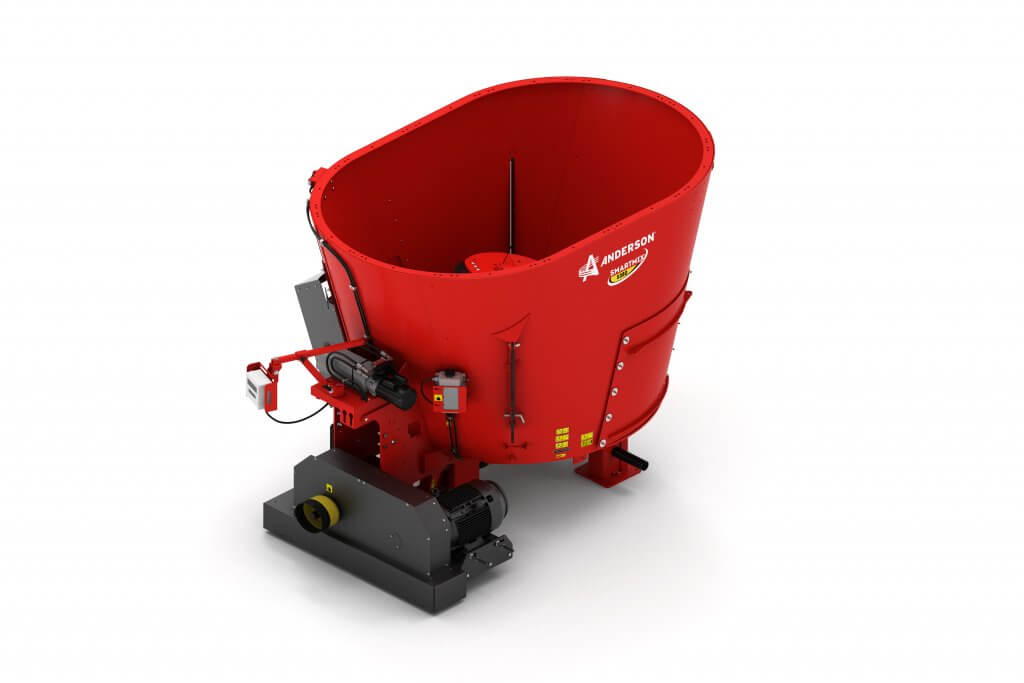

Anderson Vertical Mixer Single Auger | Models A280ST, S280ST & A450ST | Width 90" To 112" inches | Horsepower 50-75 HP | For Tractors
DESCRIPTION
The A280ST, S280ST, A380ST, and A450ST are compact and efficient machines designed for agricultural and industrial needs. These models offer versatility, durability, and precision in handling, making them ideal for various tasks. Each model comes with options for capacity extensions, robust augers, and advanced features, ensuring reliable performance for diverse requirements.
Key Features
- Capacity Extensions: All models offer options for 6", 12", and 18" extensions to suit varying needs.
- Efficient Auger System: Equipped with a single auger for optimized performance.
- Compact Design: Varying dimensions ensure compatibility with different working spaces.
- Hydraulic Efficiency: Low hydraulic flow and pressure requirements for better energy efficiency.
- PTO Shaft Options: Standard 540 RPM with optional 1000 RPM specifications.
- Customizable Height: Adjustable heights with extensions and optional hay retention rings.
- High Utility Load Capacity: Handles up to 13,050 lbs (A450ST), ensuring suitability for heavy-duty tasks.
- Scale System: Standard DG500 scale system for accurate load management.
- Durable Construction: Floor and sidewall thickness designed for durability and heavy use.
- Standard Knives: Optional knife configurations for enhanced functionality.
Detailed Specifications
| Category | A280ST | S280ST | A450ST |
|---|---|---|---|
| Capacity (no extension) | 280 ft³ (7.9 m³) | 280 ft³ (7.9 m³) | 450 ft³ (12.8 m³) |
| Capacity (6" extension) | 316 ft³ (9 m³) | 316 ft³ (9 m³) | 500 ft³ (14.2 m³) |
| Capacity (12" extension) | 352 ft³ (10 m³) | 352 ft³ (10 m³) | 550 ft³ (15.6 m³) |
| Capacity (18" extension) | 388 ft³ (11 m³) | 388 ft³ (11 m³) | 600 ft³ (17 m³) |
| Number of Augers | 1 | 1 | 1 |
| Dimensions: Length (A) | 176 in (4.46 m) | 140 in (3.56 m) | 190 in (4.84 m) |
| Dimensions: Height (B) | 98 in (2.49 m) | 97 in (2.46 m) | 112 in (2.84 m) |
| Width (C) | 90 in (2.29 m) | 90 in (2.29 m) | 112 in (2.84 m) |
| Incline Conveyor Operating Angle | 26–39° | 26–39° | 26–39° |
| Outside Width (Wheels) | 86 in (2.18 m) | — | 86 in (2.18 m) |
| Discharge Height (E) | 32–36 in at 26°/41–41 in at 40° | — | 36–40 in at 26°/46–46 in at 40° |
| PTO Shaft (Standard) | 540 RPM, 1" 3/8 Z6 | 540 RPM, 1" 3/8 Z6 | 540 RPM, 1" 3/8 Z6 |
| Minimum PTO HP Requirement | Low Speed: — | Low Speed: — | Low Speed: 60 |
| Hydraulic Flow Requirement | 10–15 gal/min, 37–56 L/min | — | 10–15 gal/min, 37–56 L/min |
| Utility Load Capacity | 8,120 lb (3683 kg) | 8,120 lb (3683 kg) | 13,050 lb (5900 kg) |
