Product Description

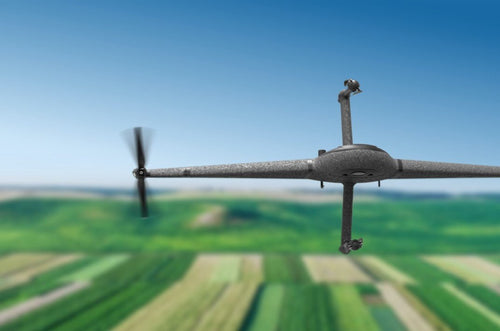

Atmos Marlyn VTOL Drone
DESCRIPTION
The Atmos Marlyn VTOL Fixed-Wing Drone revolutionizes aerial surveying by offering a hybrid design that allows it to take off like a helicopter and cruise like an airplane. Designed with precision and efficiency in mind, Marlyn delivers high-resolution, cm-accurate data while operating in the toughest wind conditions of up to 45km/h during takeoff and 55km/h during flight.
Equipped with Sony RX1RII and Topcon PPK modules, Marlyn ensures absolute accuracy without the need for ground control points. Its compact design requires only a 2x2m flat area for operation, making it ideal for remote or challenging terrains. The EPP foam body with carbon fiber frame enhances durability while remaining lightweight and portable, with an included backpack for easy transport.
The smart battery system provides redundancy for safe operation, while quick-swap payloads let you switch between RGB and multispectral cameras in just minutes. With Marlyn's Navigator and GeoTagger software, data capture, and processing are seamless and efficient. Whether it's construction, environmental monitoring, or precision agriculture, Marlyn delivers the performance and reliability professionals need.
Key Features
- Hybrid VTOL Design: Take off vertically and switch to fixed-wing flight for greater speed and coverage.
- Compact Operation: Operates from a minimal 2x2m area, perfect for remote locations.
- High Wind Resistance: Survey confidently in challenging conditions with wind resistance up to 55km/h.
- Superior Accuracy: Integrated Sony RX1RII camera and Topcon PPK deliver accuracy as low as 1cm.
- Efficient Surveying: Cover up to 150Ha per flight, achieving data capture 10-30x faster than traditional methods.
- Versatile Payloads: Modular camera system supports RGB and multispectral sensors.
- Durable and Lightweight: Built from EPP foam and carbon fiber for rugged, lightweight operation.
- User-Friendly Software: Navigator for flight planning, GeoTagger for geo-referencing, and compatibility with popular photogrammetry software like Pix4D.
Detailed Specifications
Operational Features
| Feature | Specification |
|---|---|
| Take-off & Landing Area | 2 x 2 m (7 x 7 ft) required |
| Set-Up Time | 5 minutes |
| Autonomous Flight | Yes |
| Take-off & Landing | Automatic |
| Emergency Procedures | Automatic (configurable) |
| Cruise Speed | 65 km/h (40 mph) |
| Wind Resistance | Take-off: 45 km/h (28 mph); Cruise: 55 km/h (34 mph); Landing: 45 km/h (28 mph) |
| Maximum Flight Time | 50 minutes |
| Pre-Flight Checklist | Integrated intelligent checklist in Atmos Navigator |
| Temperature Range | -10°C to +40°C (14°F to 104°F) (Above 35°C operating restrictions apply) |
| GCPs | Not required with optional PPK module |
Hardware
| Feature | Specification |
|---|---|
| Drone Type | Hybrid (VTOL & Fixed-Wing) |
| Weight Without Payload | 5.7 kg (including batteries) |
| Maximum Payload Weight | Up to 1 kg |
| Wingspan | 1.6 m (detachable wings) |
| Built-In Safety Lights | 2 Navigation lights, 2 Anti-collision lights (1 km visibility) |
| Motors | 4 electric motors |
| Ingress Protection | IP54 (Not recommended for use in fog, rain, or snow) |
| Telemetry Range | Default 7 km LOS |
| Camera Options | RGB (Sony RX1RII, A7C), Multispectral (Micasense RedEdge-MX, Altum) |
| Materials | Durable structural EPP foam with carbon fiber frame |
| Included Accessories | Backpack, 2x battery sets, charger, remote control, Navigator modem, maintenance kit |
Software
| Feature | Specification |
|---|---|
| Atmos Navigator | Marlyn's flight planning and telemetry software |
| Atmos GeoTagger | Marlyn's geo-referencing software |
| Marlyn Update Center | Firmware update software |
| Operating System | Windows |
| Photogrammetry Software | Compatible with Pix4D, Metashape, SimActive, and more |
| Supported Input Files | .KML, .KMZ, .GeoTIFF, .MBTiles, .WMTS |
| Updates | Free |
In the Box
| Item | Description |
|---|---|
| Aircraft | Atmos Marlyn VTOL Drone |
| Radio Connections | Marlyn Radio Module & RC |
| Battery Charger | ISDT Double Charger (60 minutes per pair) |
| Batteries | 2 Sets (each below 100Wh) |
| Portability | Backpack & Accessories Case |
| Software | Navigator & GeoTagger (with free updates) |
In Package
- Construction & Infrastructure: Delivering operational efficiency and safety, with PPK accuracy down to 1cm.
- Surveying & GIS: Generate cm-accurate point clouds over large areas for comprehensive data coverage.
- Mining & Aggregates: Improve safety by minimizing surveyor presence in pits while capturing large, accurate datasets.
- Environmental Protection: Monitor plant health, animal behavior, and environmental conditions with advanced sensors.
- Precision Agriculture: Leverage multispectral cameras to analyze crop health and identify plant stress.
