Product Description
Auger Torque | Auger Range | Models PA Series | 22" To 60" Diameter | 4.33" Square Shaft | Machine Size 17 To 45 Tons | For Excavators
DESCRIPTION

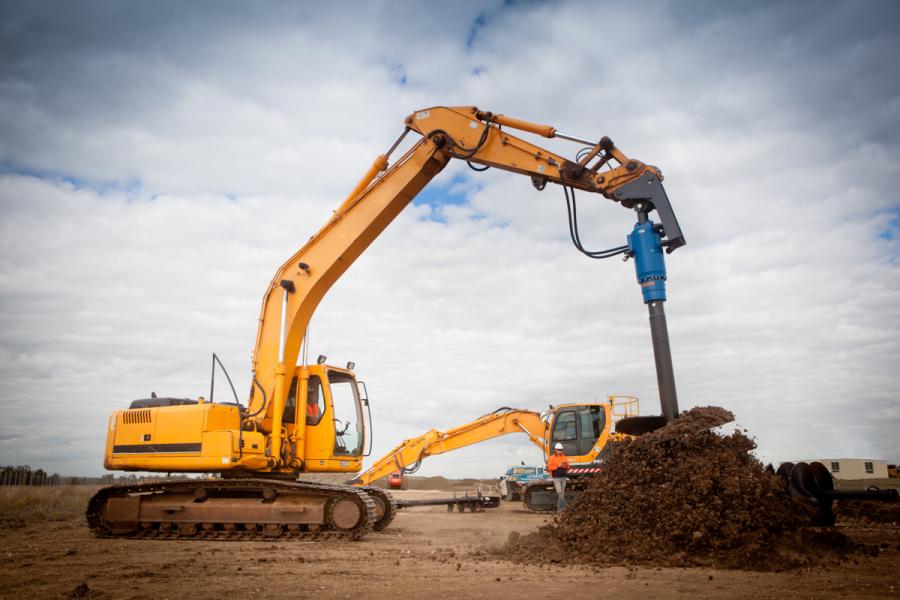

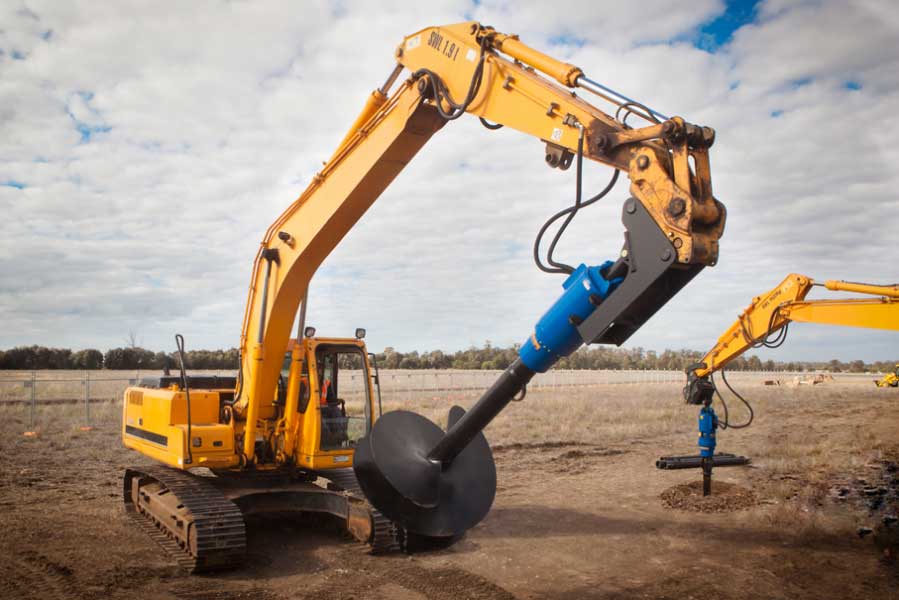

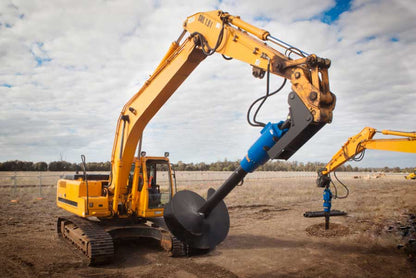

Built to conquer the toughest drilling jobs, the Auger Torque PA Range delivers unmatched performance for excavators between 17 and 45 tons. Whether you’re working in soft soils, dense clay, rocky ground, or even permafrost, these augers are engineered to power through with ease.

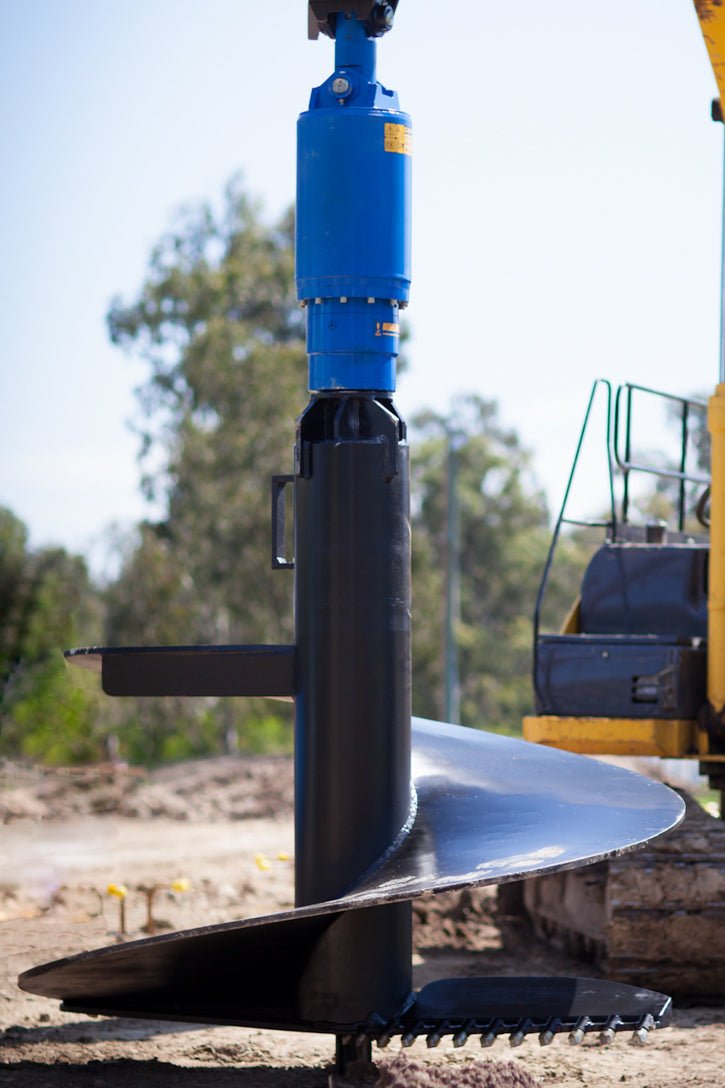

Crafted from high-grade steel and designed with the needs of real-world operators in mind, the PA Range combines strength, efficiency, and innovation. The shallow pitch flight design helps keep spoil on the auger during removal, saving you time on cleanup and boosting productivity. A constant spiral cut ensures every tooth cuts fresh ground with each rotation, making for faster, cleaner holes.
What truly sets the PA Range apart is Auger Torque’s Shock Lock™ Tooth Locking System a patented feature that locks teeth in place, prevents breakage, and makes replacement quick and tool-free. These augers also come with multiple pilot and tooth options to suit different ground conditions, and offer broad compatibility through various hub sizes, fixed or telescopic extensions, and optional hard-facing for added durability.
If you're looking for a heavy-duty auger attachment for your excavator that’s built to last and easy to maintain, the PA Range is the clear choice.
Key Features
- Diameter Range: 22" To 60" for varied drilling applications.
- Shaft Size: 4.33" Square (110mm) for high-torque compatibility.
- For Excavators: 17 To 45 Tons ideal for large-scale earthmoving.
- Flight Type: Shallow pitch design retains spoil and reduces cleanup.
- Tooth System: Shock Lock™ prevents breakage and enables quick replacement.
- Tooth & Pilot Options: Earth, Rock, and Combo for all ground types.
- Flight Thickness: ½" and 13/16" for strength and wear resistance.
- Hub Type: 110mm square standard, with other options available.
- Overall Length: 7 ft 10 in for deep, stable drilling.
- Extension Ready: Compatible with fixed and telescopic auger extensions.
- Optional Hard-Facing: Protects against wear in abrasive conditions.
- Built for Efficiency: Constant spiral cut ensures clean, continuous boring.
- Operator-Informed Design: Developed with input from field professionals.
- Applications: Foundation work, utility installation, piling, infrastructure.
- Heavy-Duty Construction: High-grade steel for long-term durability.
Detailed Specifications
PA 22" and PA 32"
| Attribute | PA 22" | PA 32" |
|---|---|---|
| Diameter | 22 in | 32 in |
| Shaft Size | 4.33 in Square (110mm) | 4.33 in Square (110mm) |
| Tooth Type | Earth | Rock |
| Pilot Type | Earth | Rock |
| Flight Thickness | ½" and 13/16" | ½" and 13/16" |
| Flight Type | Shallow Pitch | Shallow Pitch |
| Tooth System | Shock Lock™ | Shock Lock™ |
| Length (Overall) | 7 ft 10 in | 7 ft 10 in |
| Hub Type (Standard) | 110mm Square | 110mm Square |
| Machine Compatibility | 17–45 Ton Excavators | 17–45 Ton Excavators |
PA 36" and PA 40"
| Attribute | PA 36" | PA 40" |
|---|---|---|
| Diameter | 36 in | 40 in |
| Shaft Size | 4.33 in Square (110mm) | 4.33 in Square (110mm) |
| Tooth Type | Rock | Rock |
| Pilot Type | Rock | Rock |
| Flight Thickness | ½" and 13/16" | ½" and 13/16" |
| Flight Type | Shallow Pitch | Shallow Pitch |
| Tooth System | Shock Lock™ | Shock Lock™ |
| Length (Overall) | 7 ft 10 in | 7 ft 10 in |
| Hub Type (Standard) | 110mm Square | 110mm Square |
| Machine Compatibility | 17–45 Ton Excavators | 17–45 Ton Excavators |
PA 48" (Earth) and PA 48" (Rock)
| Attribute | PA 48" (Earth Teeth) | PA 48" (Rock Teeth) |
|---|---|---|
| Diameter | 48 in | 48 in |
| Shaft Size | 4.33 in Square (110mm) | 4.33 in Square (110mm) |
| Tooth Type | Earth | Rock |
| Pilot Type | Earth | Earth |
| Flight Thickness | ½" and 13/16" | ½" and 13/16" |
| Flight Type | Shallow Pitch | Shallow Pitch |
| Tooth System | Shock Lock™ | Shock Lock™ |
| Length (Overall) | 7 ft 10 in | 7 ft 10 in |
| Hub Type (Standard) | 110mm Square | 110mm Square |
| Machine Compatibility | 17–45 Ton Excavators | 17–45 Ton Excavators |
PA 60" (Earth) and PA 60" (Rock)
| Attribute | PA 60" (Earth Teeth) | PA 60" (Rock Teeth) |
|---|---|---|
| Diameter | 60 in | 60 in |
| Shaft Size | 4.33 in Square (110mm) | 4.33 in Square (110mm) |
| Tooth Type | Earth | Rock |
| Pilot Type | Earth | Earth |
| Flight Thickness | ½" and 13/16" | ½" and 13/16" |
| Flight Type | Shallow Pitch | Shallow Pitch |
| Tooth System | Shock Lock™ | Shock Lock™ |
| Length (Overall) | 7 ft 10 in | 7 ft 10 in |
| Hub Type (Standard) | 110mm Square | 110mm Square |
| Machine Compatibility | 17–45 Ton Excavators | 17–45 Ton Excavators |
Manuals & Documents
Augers and Extensions Product Information Sheet
Augers and Extensions Features & Benefits Information Sheet
