Product Description
Auger Torque | Earth Drill | Model 48000-80 | Unit Height 61.26 Inches | Unit Diameter 15.98 Inches | Machine Size 21 To 45 Ton | For Excavators
DESCRIPTION

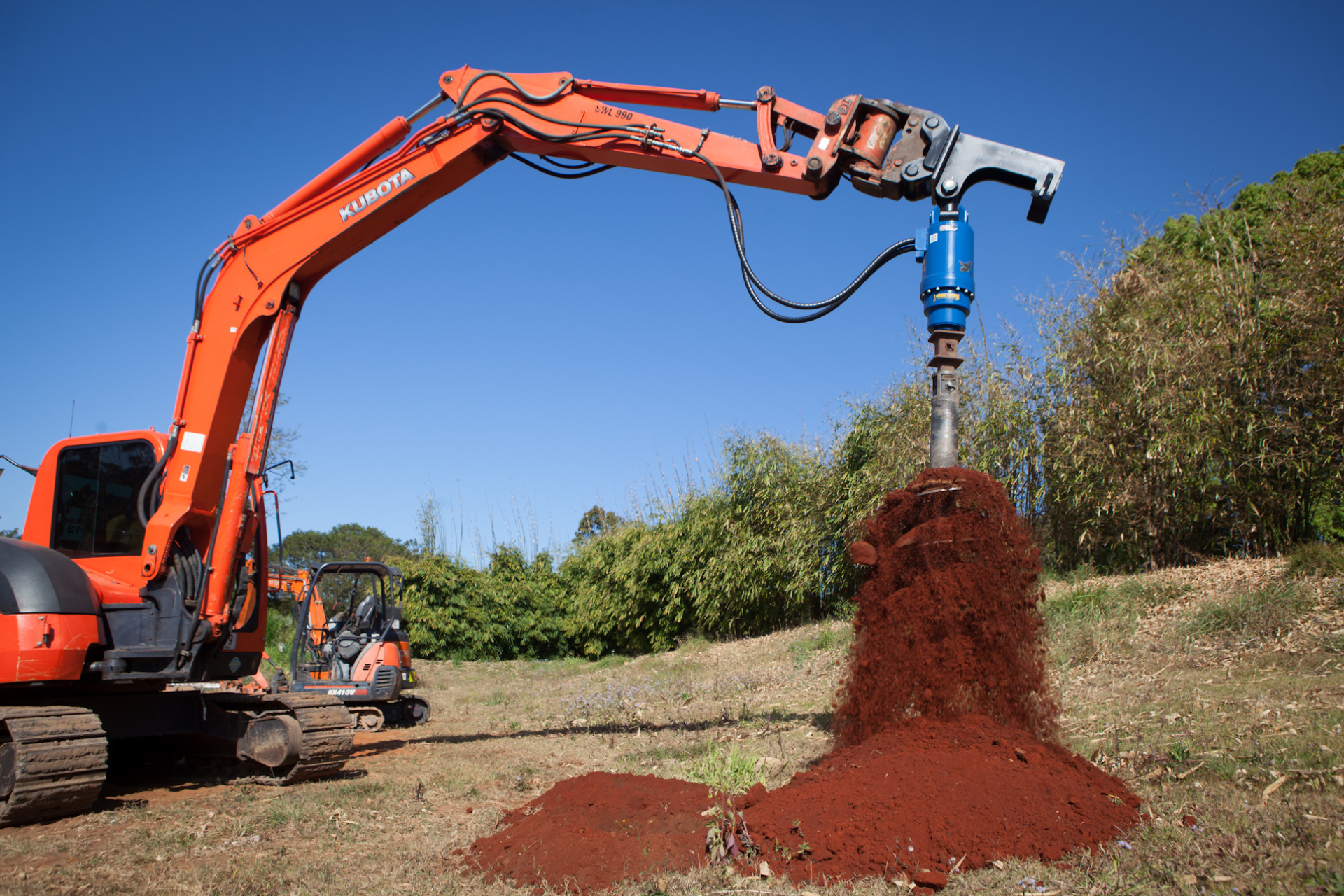

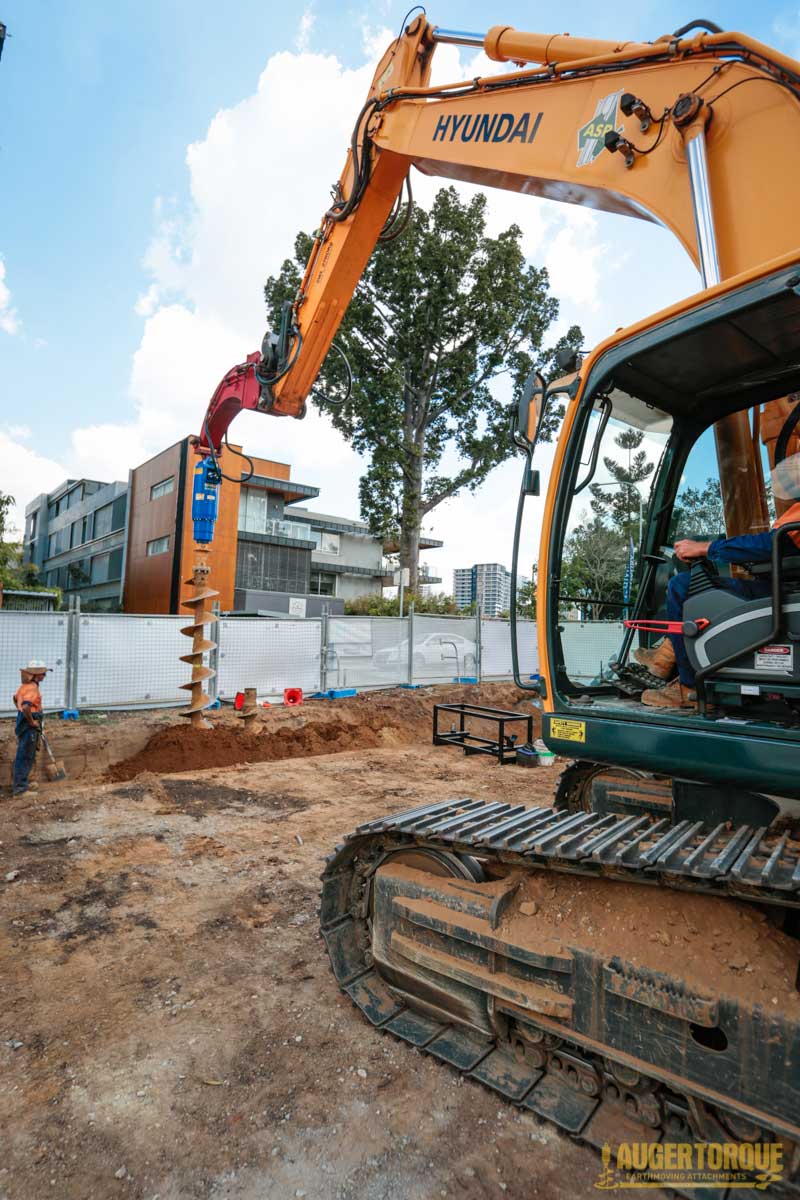

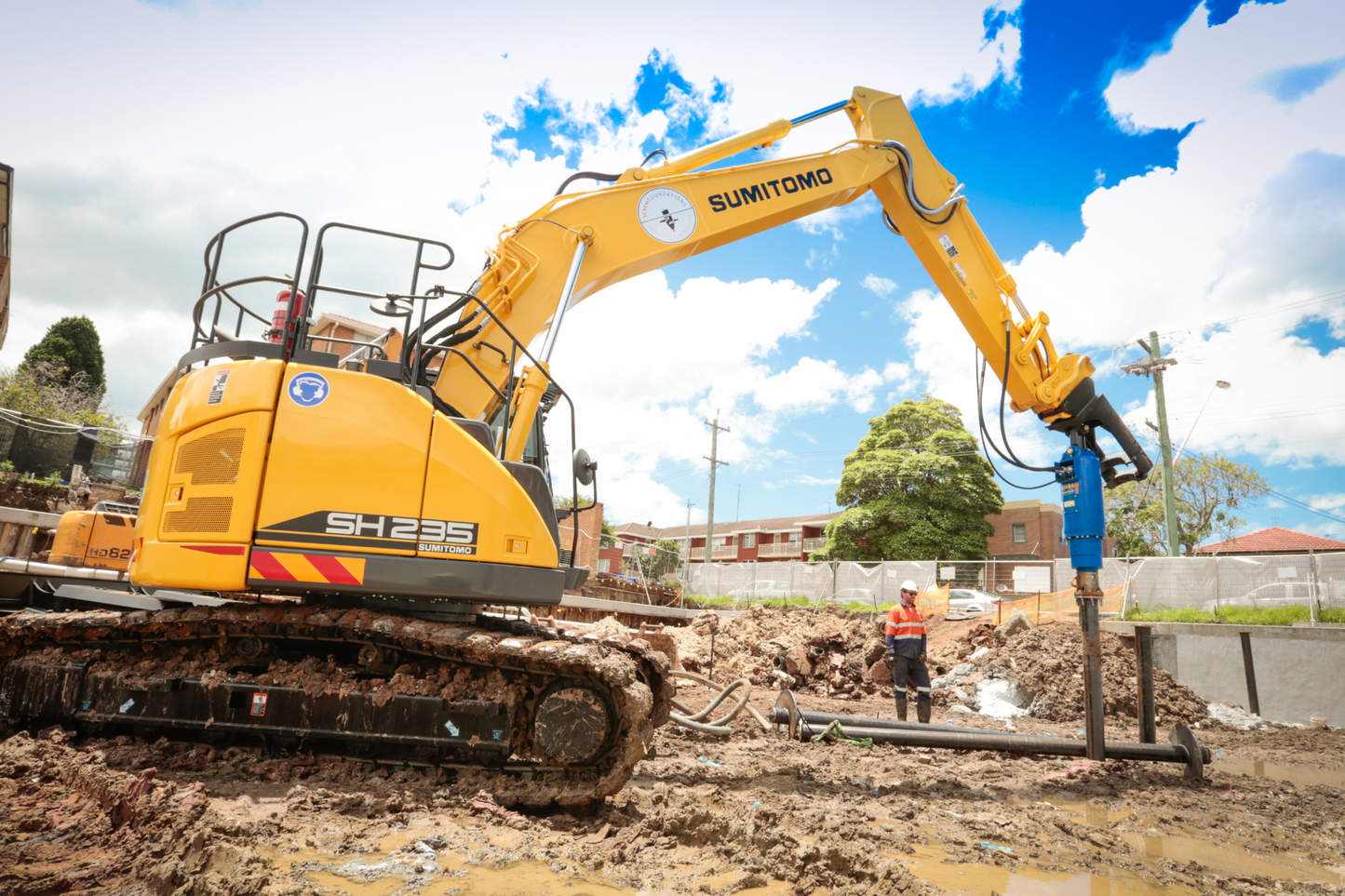

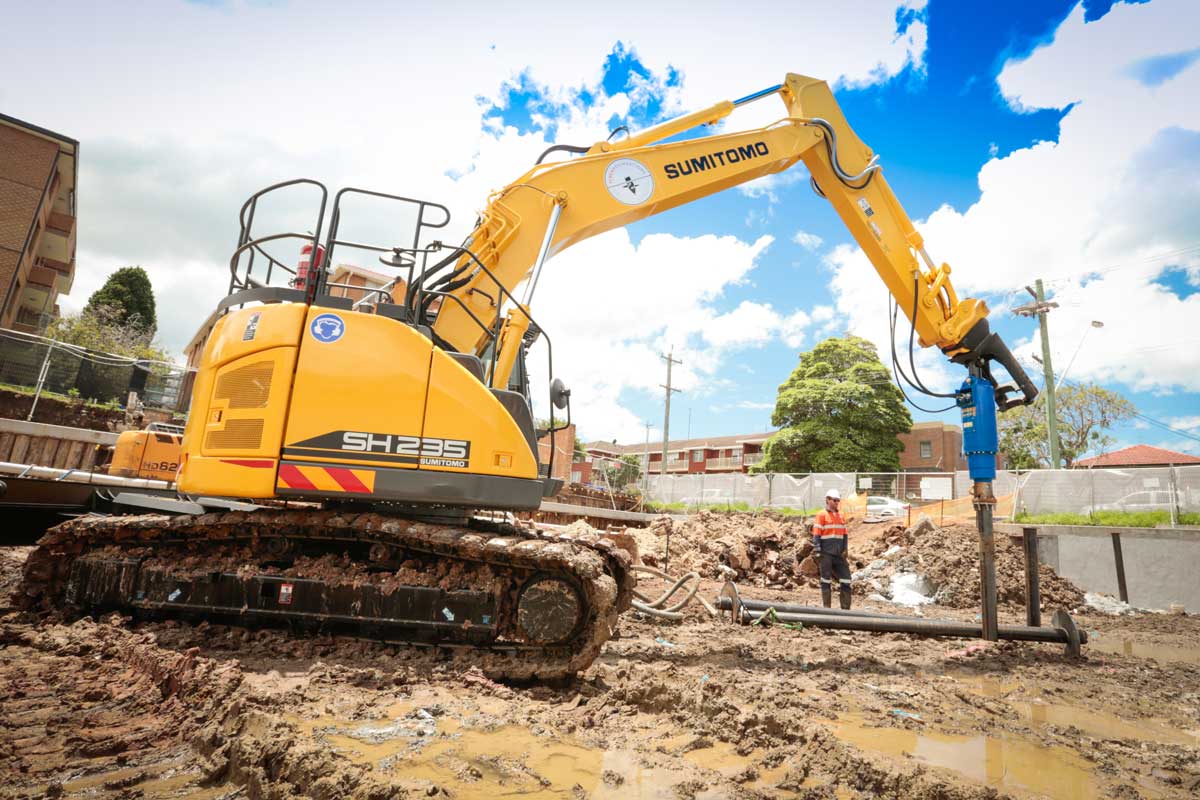

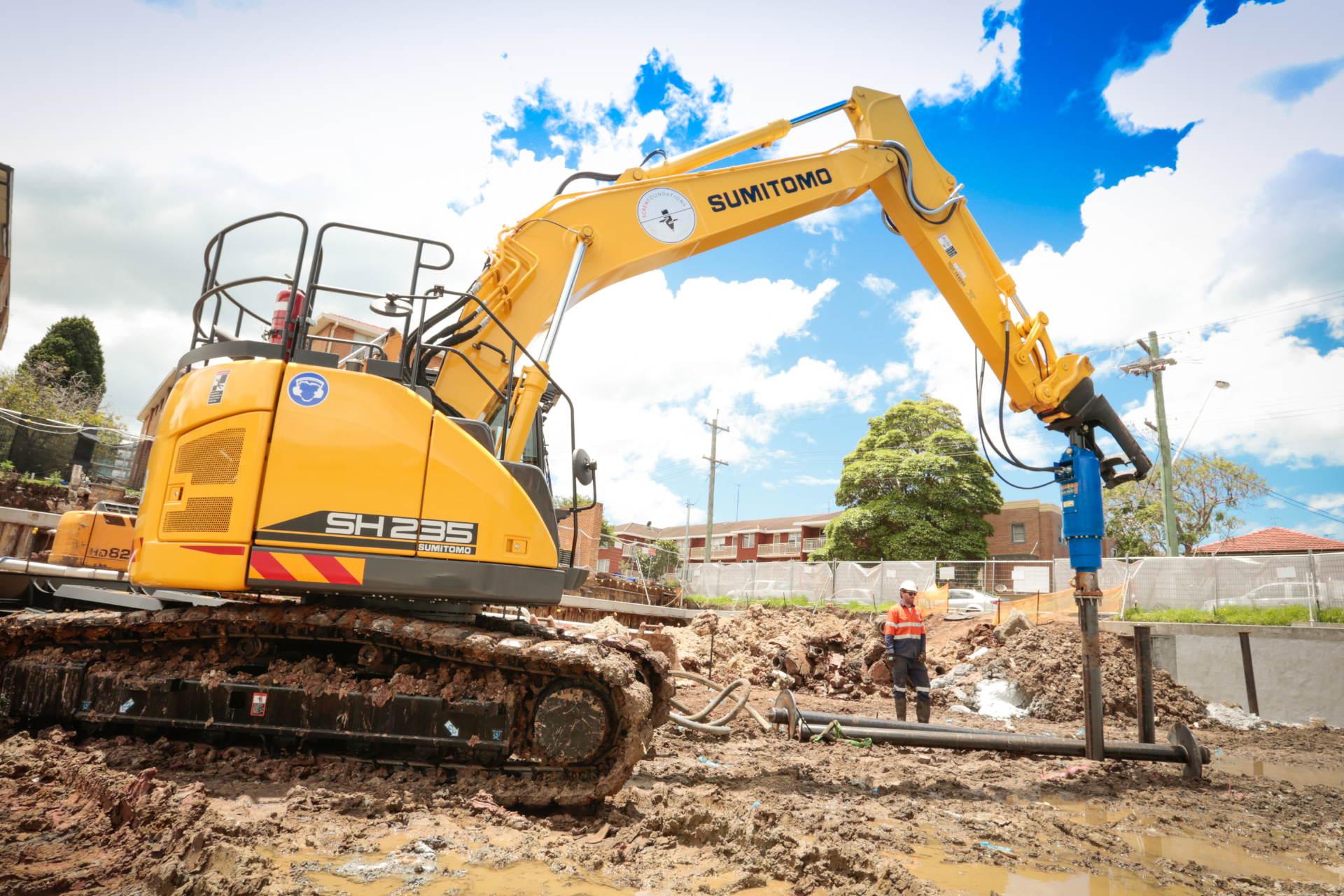

When you're drilling in the most demanding environments, you need equipment that doesn't flinch under pressure. The Auger Torque 48000-80 Earth Drill is purpose-built for excavators between 21 and 45 tons, delivering massive torque, precision control, and unmatched durability for the toughest earthmoving jobs.
Equipped with a high-efficiency epicyclic gearbox and a 4.33" square output shaft, the 48000-80 turns raw hydraulic power into relentless drilling performance. It's designed to pair seamlessly with PA augers up to 96 inches in diameter, offering deep-hole drilling capabilities for applications like foundation piling, screw pile installation, utility pole placement, and well boring.
With oversized shaft bearings, forged hood ears, and the industry-exclusive Non-Dislodgement Shaft, this unit prioritizes both power and safety. Its optional 2-Way Valve and Pressure Relief Valve give operators enhanced control, while the included high-quality hoses ensure reliable, leak-free hydraulic performance.
If you're running a crew that tackles real-world earthwork—fast, deep, and done right—this is your tool.
Key Features
- Torque Range: 24,557 To 49,114 ft-lb for high-demand drilling.
- Hydraulic Flow: 26.4 To 74.0 GPM for optimal performance.
- Excavator Compatibility: 21 To 45 Ton machines.
- Auger Diameter: 12 To 96" for versatile hole sizes.
- Drilling Depth: Up to 39 ft depending on ground conditions.
- Non-Dislodgement Shaft: Prevents shaft separation for enhanced safety.
- Planetary Gearbox: Multiplies torque with high mechanical efficiency.
- Forged Hood Ears: Reinforced for high-strain applications.
- Heavy-Duty Steel Construction: Built to withstand rugged job sites.
- Output Shaft: 4.33" square (adaptors available).
- Hitch Options: Single Pin, Double Pin Cradle.
- Optional 2-Way Valve: Converts single-acting hammer circuits to 2-way flow.
- Optional Pressure Relief Valve: Protects motor from backpressure spikes.
- Supplied with High-Quality Hydraulic Hoses.
- Ideal For: Foundation piles, mast installations, screw piles, rail work, deep hole boring, well drilling.
- Covered by Auger Torque’s industry-leading warranty.
Detailed Specifications
Earth Drill Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 48000-80 |
| Excavator Size Range | 21 – 45 Tons |
| Hydraulic Flow | 26.4 – 74.0 GPM (100 – 280 LPM) |
| Hydraulic Pressure | 2,321 – 4,641 PSI (160 – 320 Bar) |
| Torque Range | 24,557 – 49,114 ft-lb (33,295 – 66,589 Nm) |
| Speed Range | 8 – 21 RPM |
| Output Shaft | 4.33" Square (Adaptors Available) |
| Unit Height | 61.26 in (1,556 mm) |
| Unit Diameter | 15.98 in (406 mm) |
| Unit Weight | 1,058 lbs (480 kg) |
Compatibility & Options
| Category | Options |
|---|---|
| Hitch Types | Single Pin Hitch, Double Pin Cradle Hitch |
| Valve Options | 2-Way Valve, High-Side Detent, Pressure Relief |
| Hoses | High-quality hydraulic hoses (QRCs not included) |
| Hub Compatibility | 4.33" Square Standard, 3.94" & 5.125" Optional |
| Auger Sizes Supported | 12"–96" Diameter (PA Series Augers) |
| Standard Auger Lengths | 7 ft. 6 in. and 11 ft. (Fully Flighted Available) |
Manuals & Documents
Earth Drill Series 5 Product Information Sheet
Why Choose Auger Torque Earth Drills
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

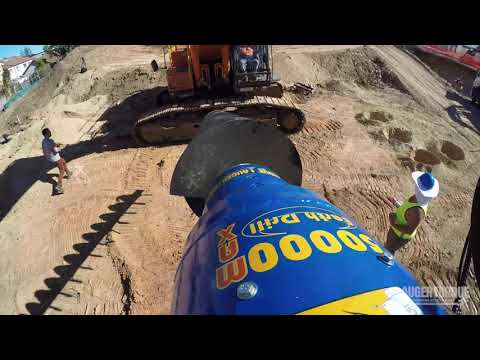

Videos
