BANDIT

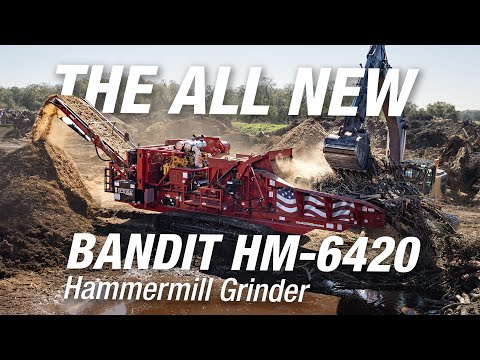

Bandit Horizontal Grinder | 2025 Model HM-6420 | Width 11' 3" inches | Engine Horsepower 1,200 HP | Standard Impact Detection System

Bandit Horizontal Grinder | 2025 Model HM-6420 | Width 11' 3" inches | Engine Horsepower 1,200 HP | Standard Impact Detection System

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Mill Opening: 40" tall x 64" wide, providing a large entry point for materials.
  • Hammermill: 50" diameter x 66" wide for efficient grinding and shredding.
  • Width 11' 3" inches
  • Engine Horsepower 1,200 HP
  • Impact Detection System: Standard system to detect and respond to impacts, ensuring safety.
View full details

How To Get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Bandit Horizontal Grinder | 2025 Model HM-6420 | Width 11' 3" inches | Engine Horsepower 1,200 HP | Standard Impact Detection System

Ripping It has partnered with Quality Equipment to provide you the best pricing and service on all your Bandit’s needs!

DESCRIPTION

The heart of the HM6420 is a 50” diameter x 66” wide hammermill. The heavy-duty mill features a 1.75” drum skin custom formed from rolled plate. The mill is supported by a 7” main shaft constructed of alloy steel that has been ultrasonic tested. Each pocket within the mill is manufactured from high strength A-514 steel. These combinations create a structural sound mill for added durability and integrity. The mill is equipped with 20 carbide infused hammer inserts built to withstand the toughest material fed into the machine. Each holder is securely attached to the mill via a patent-pending quick change pocket system. Each holder recesses into the mill pocket, increasing durability. A top plate covers the pocket and holds in place by six hex bolts. The hammer insert is attached to each holder utilizing two bolts. With this set-up, the mill hardware is easier and quicker to replace.

A heavy-duty slat-style infeed conveyor is directly driven generating over 18,000 pounds of pulling power. The large diameter feed wheel is also directly driven and provides an additional 17,000 pounds of pulling power and 8,650 to 17,300 pounds of down force when hydraulic pressure is applied. These combinations allow the HM6420 to grind massive quantities of material efficiently and effectively at one time.
A proportional feed system is standard and regulates the feed system from 82 – 132 feet per minute.

The HM6420 has one of the fastest feed rates on the market allowing it to quickly process material. The proportional feed system allows operators to adjust the feed based on material being processed ensuring maximum output and grinder efficiency, all while achieving a higher quality end-product.

Three screens are located on the top side of the HM6420 mill. A variety of screen sizes are available up to 7” to produce various end-product sizes. The top feed wheel moves upward, and a removable screen cradle allows for quick screen set-up changes. All work for screen changing is performed outside of the machine.

An impact detection system is standard and designed to limit damage if a contaminant is struck inside the grinding chamber. Once an impact event is detected, the grinder will idle down, open the gate, disengage the clutch, and reverse the feed.

Key Features

  • Mill Opening: 40" tall x 64" wide, providing a large entry point for materials.
  • Hammermill: 50" diameter x 66" wide for efficient grinding and shredding.
  • Impact Detection System: Standard system to detect and respond to impacts, ensuring safety.
  • Dual Discharge System: Allows materials to be stacked up to a height of 16' 7", optimizing storage space.
  • Direct Drive Infeed Conveyor: 16' long x 64" wide with a double slat design, track-type steel construction, and adjustable speed (82 - 132 FPM), ensuring smooth material feeding.
  • Floating Feed Wheel: 38.5" diameter x 64.75" wide, designed to handle varying material loads.
  • Radio Remote Control: Comes with a tether back-up for reliable and flexible operation.
  • Undercarriage: Caterpillar Model 325EL steel track undercarriage with heavy-duty drive for robust and stable mobility.
  • Air Compressor: Standard feature to provide necessary air power for various operations.

Detailed Specifications

Specification Details
Type Track
Opening 40" x 64"
Width 11' 3"
Height 12'
Length 44' 4"
Weight 102,000 pounds
Fuel Tank 500 gallons
Hydraulic Tank 120 gallons
Power Caterpillar C32, 1,200 horsepower
Capacity 40" Capacity
Hammermill 50" diameter x 66" wide
Hammer Tips 20
Feed Wheel (1) 38.5" diameter x 64.75" wide
Engine Fan Reversing
Engine Clutch Type HPTO15 PT Tech fluid
Infeed Conveyor Slat-style infeed conveyor, featuring adjustable speed settings with maximum drive speed of 110 ft/min. Conveyor is 15' 6" long x 64" wide.
Discharge Conveyor 26' 4" long x 56” wide with a 16' 7" stacking height
