Product Description
Barko Knuckleboom Loader | 2025 Model 595B | Width 8' 5" Ft | Horsepower 173 HP | For Heavy-Duty Operations
Ripping It has partnered with Quality Equipment to provide you the best pricing and service on all your Barko's needs!
DESCRIPTION

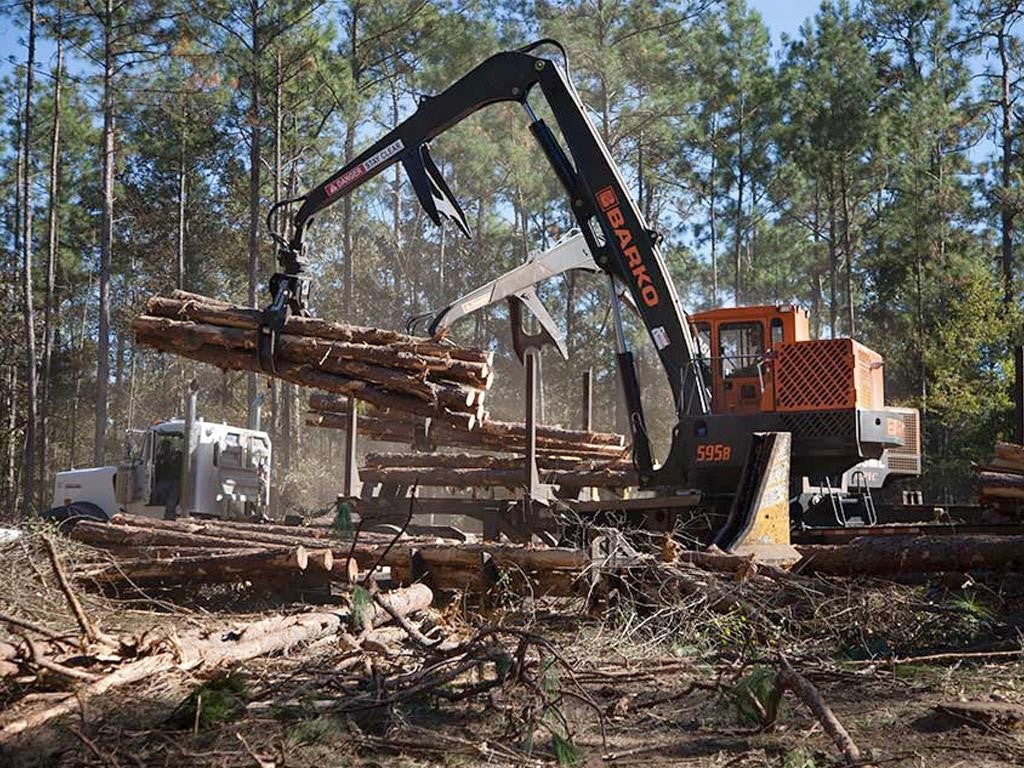

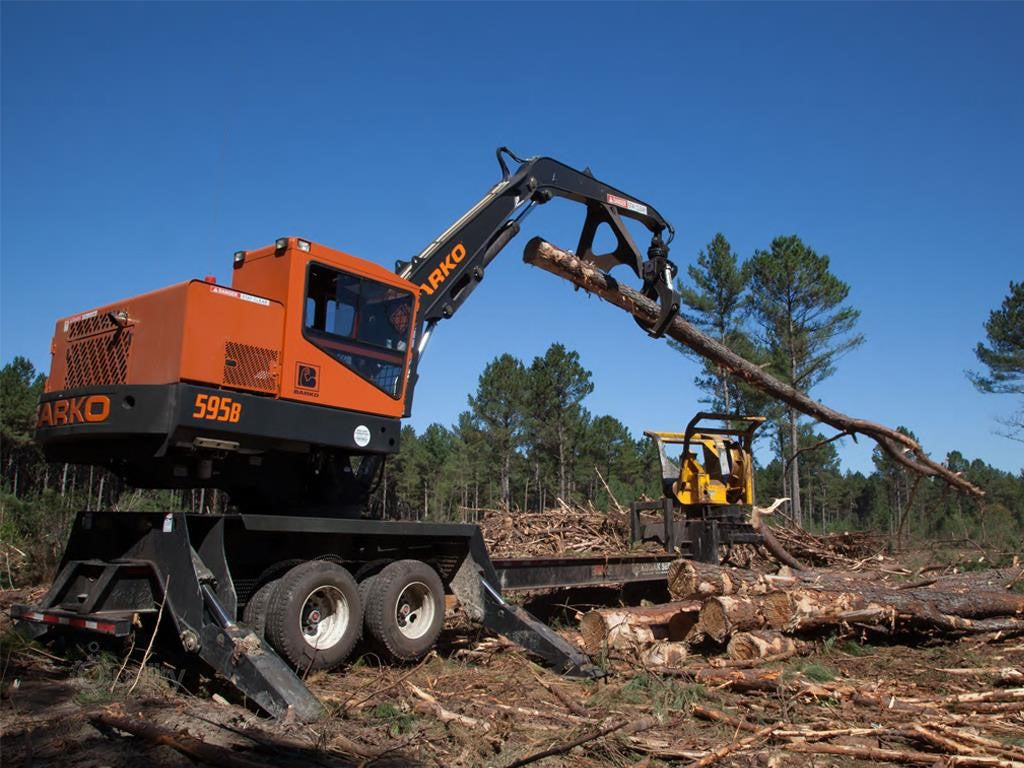

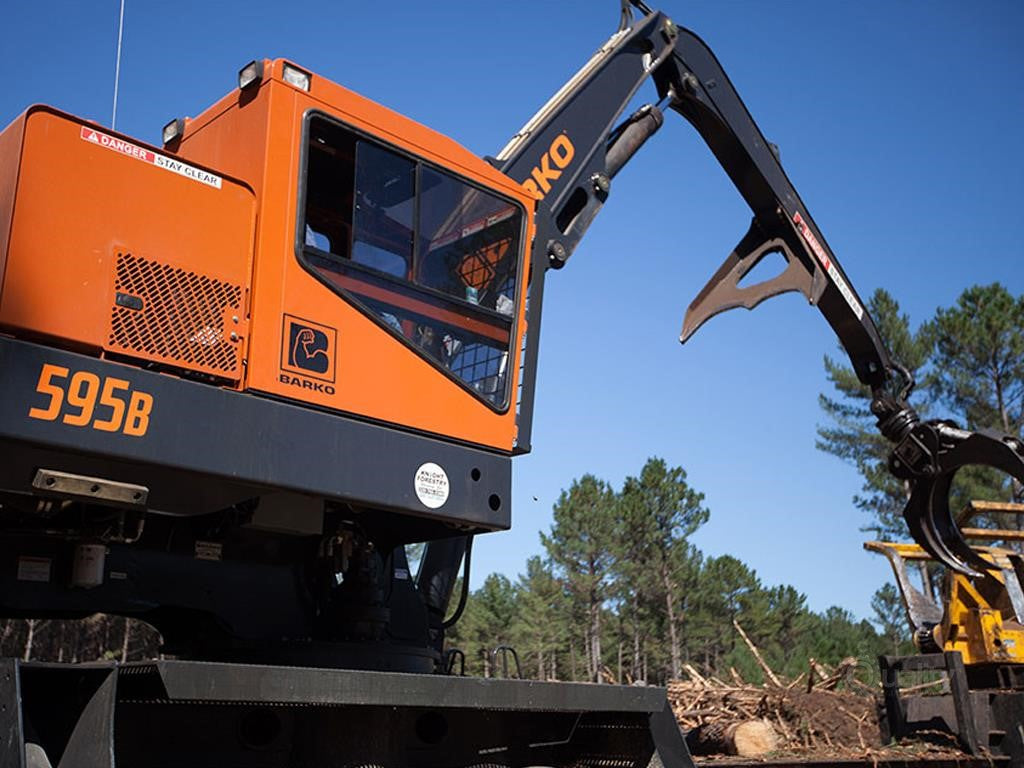

The Barko 595B Knuckleboom Loader is the largest and most powerful loader in the Barko lineup. Designed for unmatched dependability and productivity, it features a robust 173 HP Cummins QSB6.7 Tier 4 diesel engine for maximum efficiency. Built with a wider, all-welded boom, load-sensing hydraulics, and 360-degree continuous boom rotation, this machine excels in heavy-duty operations like forestry and loading applications. Enhanced operator comfort, simplified maintenance, and exceptional hydraulic control set the 595B apart as the ultimate choice for maximizing performance and reliability in demanding environments.
Key Features
- Engine: Powered by a 173-HP Cummins QSB6.7 Tier 4 diesel engine for reliable performance.
- Hydraulic Control System: Pilot-operated with IQAN electronic controls for precise operation and simplified maintenance.
- Load Sensing Hydraulics: Efficient system minimizes fuel consumption by delivering power as required, reducing operator fatigue.
- Joystick Controls: Ergonomic dual joystick setup enhances comfort and productivity.
- Boom Construction: All-welded, box-type design with engineered curves for durability and strength.
- 360-Degree Rotation: Continuous boom rotation for seamless maneuverability.
- Swing Torque: Dual motors and planetary gearboxes provide 55,000 ft-lbf of torque for optimal balance.
- Counterweight: Includes a standard 3,000-pound cast steel counterweight for enhanced stability.
- Zinc Plated Pins: Extra-large zinc plated pins and bolts ensure durability under high-stress conditions.
- Centralized Valves: Easily accessible hydraulic control valves outside the cab door for convenience.
- Service: Simplified maintenance with a centralized turntable greasing system and removable service panels.

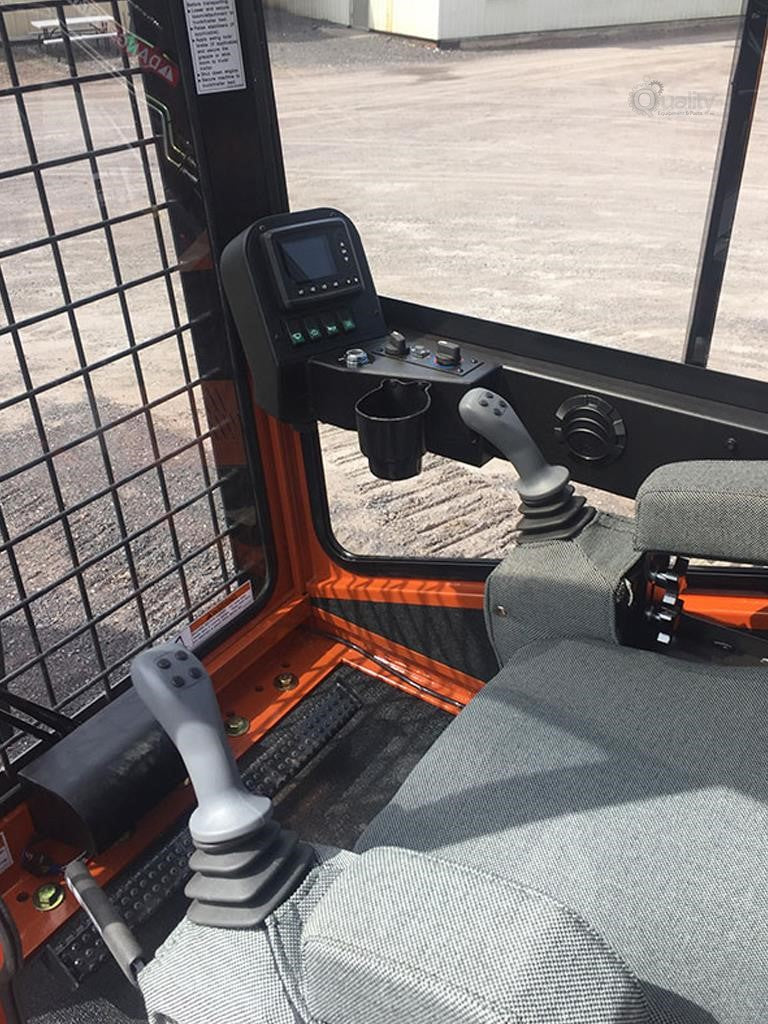

- Operator Cab: Vibration-isolated, climate-controlled cab with a suspension seat, armrests, and halogen lights for operator comfort.

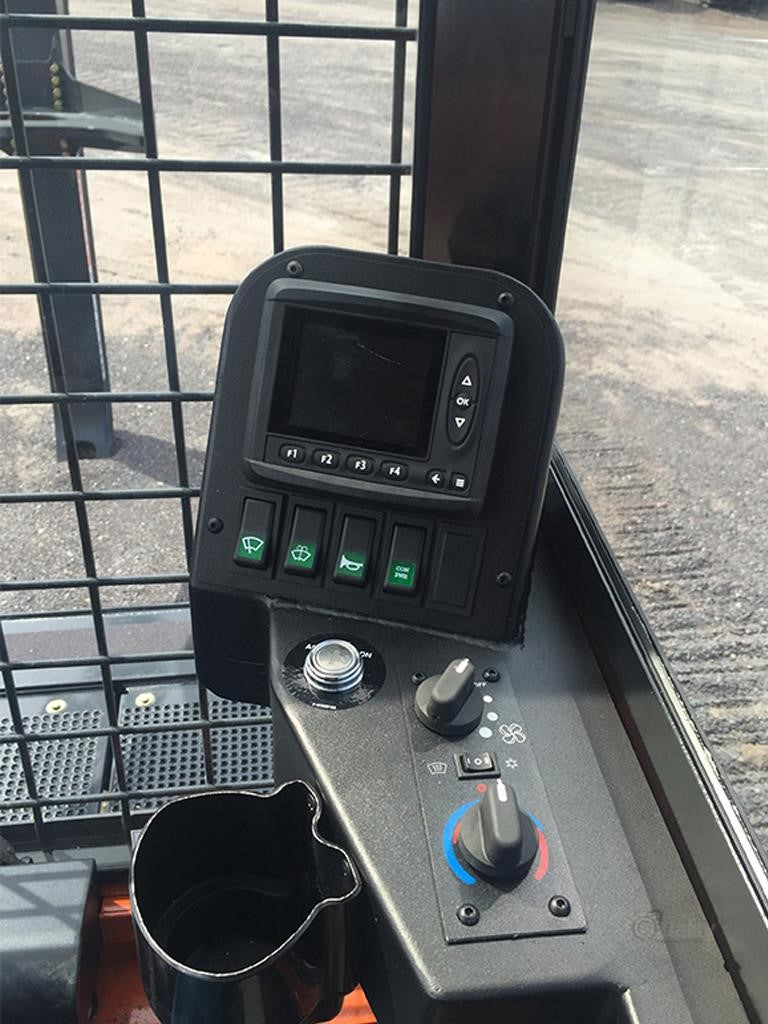

- Instrument Panel: Digital display monitors all machine functions for enhanced operational oversight.
- Windows: Tinted for excellent visibility, including roof and sliding side windows for safer operation.
- Fuel Tank: 120-gallon capacity allows for extended operational intervals.
- Stabilizers: Two sets of foldaway stabilizers ensure steady loads during operation.
Detailed Specifications
| Category | Details |
|---|---|
| Overall Height | 13' 8" (417 cm) |
| Overall Length | 40' 9" (1,242 cm) with boom extended |
| Overall Width | 8' 5" (257 cm) |
| Stabilizer Width | 16' 5" (500 cm) |
| Tail Swing | 8' 10" (269 cm) with 3,000 lbs counterweight, 9' 3" (282 cm) with 7,000 lbs counterweight |
| Operating Weight | 32,000 lbs (14,515 kg) without attachment |
| Model/Power | 173 HP (129 kW) Cummins QSB6.7 Tier 4 with SCR aftertreatment |
| DEF Tank | 10 gal. (38 L) |
| Fuel Tank | 120 gal. (454 L) |
| Tank | 112 gal. (424 L) with return line filter and shut-off valve on suction line |
| Pump Flow Rate | 119 GPM (450 LPM), variable displacement piston |
| Operating Pressure | 3,600 psi (248 bar) |
| Horizontal Reach | 32' (975 cm) |
| Vertical Reach | 38' 4" (1,168 cm) |
| Maximum Lift Capacity | 38,820 lbs (17,608 kg) |
| Swing Torque | 55,000 ft-lbf (74,570 Nm) |
| Rotation Speed | 9 RPM |
| Operator Comfort | Climate-controlled, insulated, and equipped with tinted windows |
| Instrument Panel | Digital display for enhanced operational monitoring |
| Service Accessibility | Centralized valves and turntable greasing for easy maintenance |
