Product Description
Barko Rough Terrain Loader | Model 595B RTC | Width 9' 11" Ft | Horsepower 173 HP | For Heavy-Duty Operations
Ripping It has partnered with Quality Equipment to provide you the best pricing and service on all your Barko’s needs!
DESCRIPTION

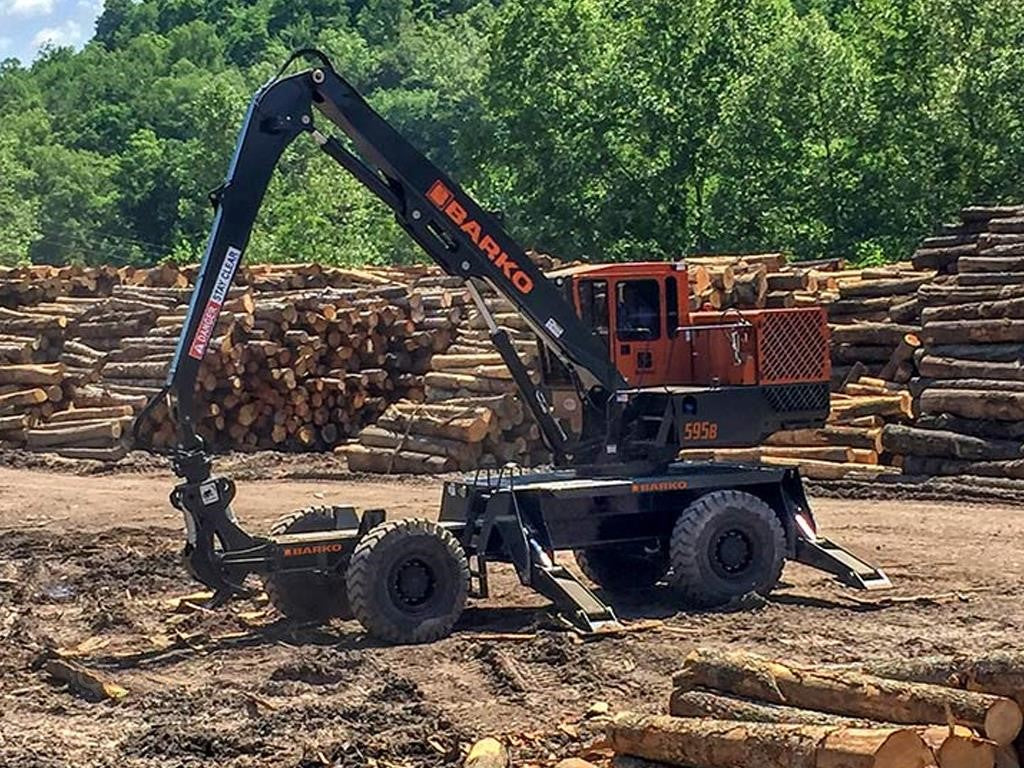

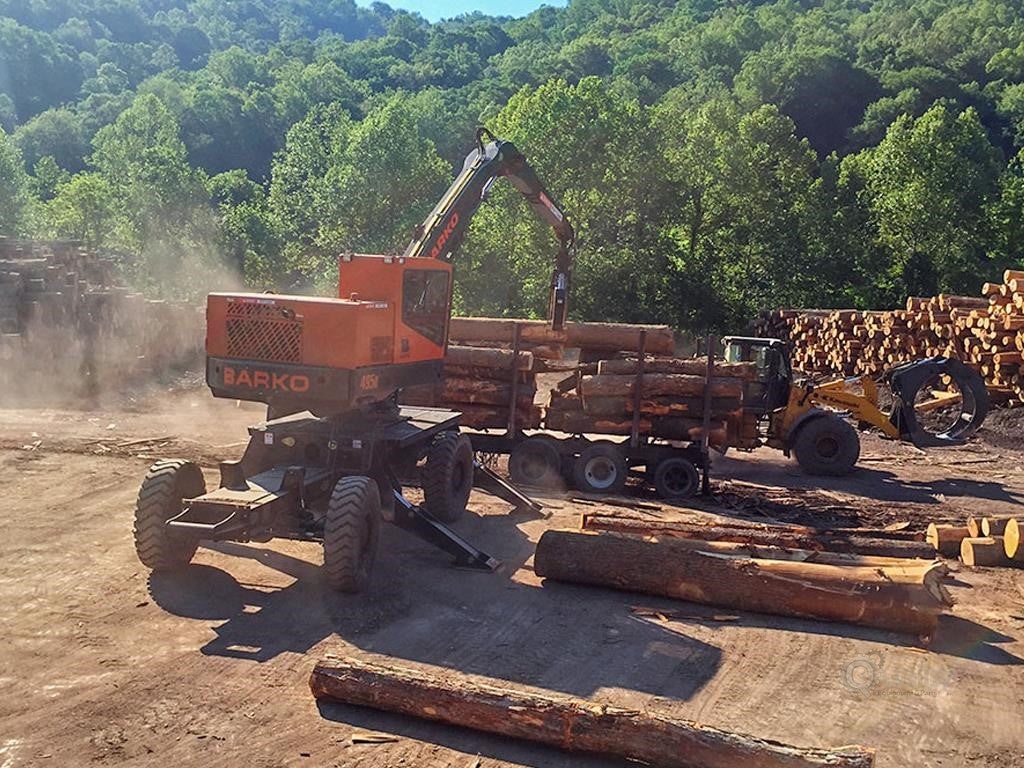

The 2025 Barko 595B RTC Rough Terrain Carrier Loader represents top-tier engineering for demanding environments such as log yards and sawmills. With its rigid carrier frame and advanced features, this machine excels in stability, maneuverability, and efficiency. Powered by a 173 HP Cummins QSB6.7 Tier 4 diesel engine, the 595B RTC combines performance with operator comfort and safety, ensuring productivity in even the toughest conditions. Its 360-degree boom rotation, ergonomic joystick controls, and load-sensing hydraulics enhance operational precision, while the robust construction and centralized maintenance design simplify upkeep.
Key Features

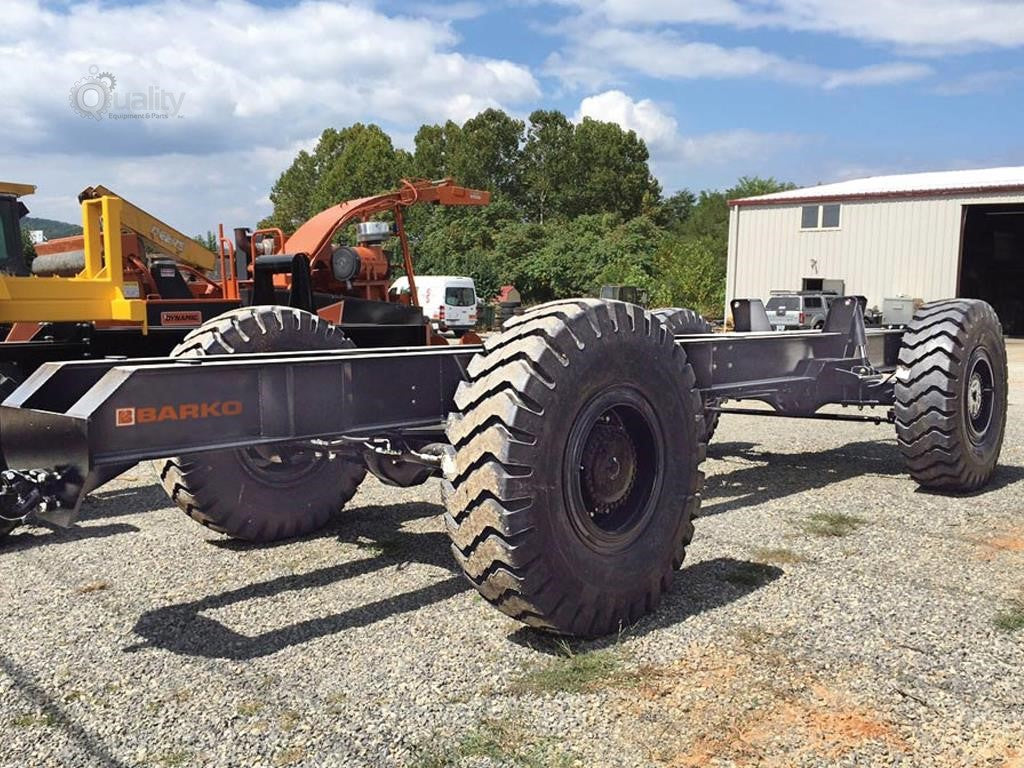

- Rough Terrain Carrier Frame: Offers superior stability with its rigid design, ensuring safe operation even in tight spaces.
- Drawbar Pull: Handles up to 21,000 lbs, enabling movement through mud, steep grades, or towing small trailers effortlessly.
- Steering Versatility: Features 4-wheel, 2-wheel, and crab steering for sharp turning and effective navigation across piles.
- Speed and Efficiency: Travels up to 12 mph in high gear, boosting productivity during yard movements.
- Boom Performance: 360-degree rotation with dual motors and planetary gearboxes, providing 55,000 ft-lbf swing torque for precise loading.

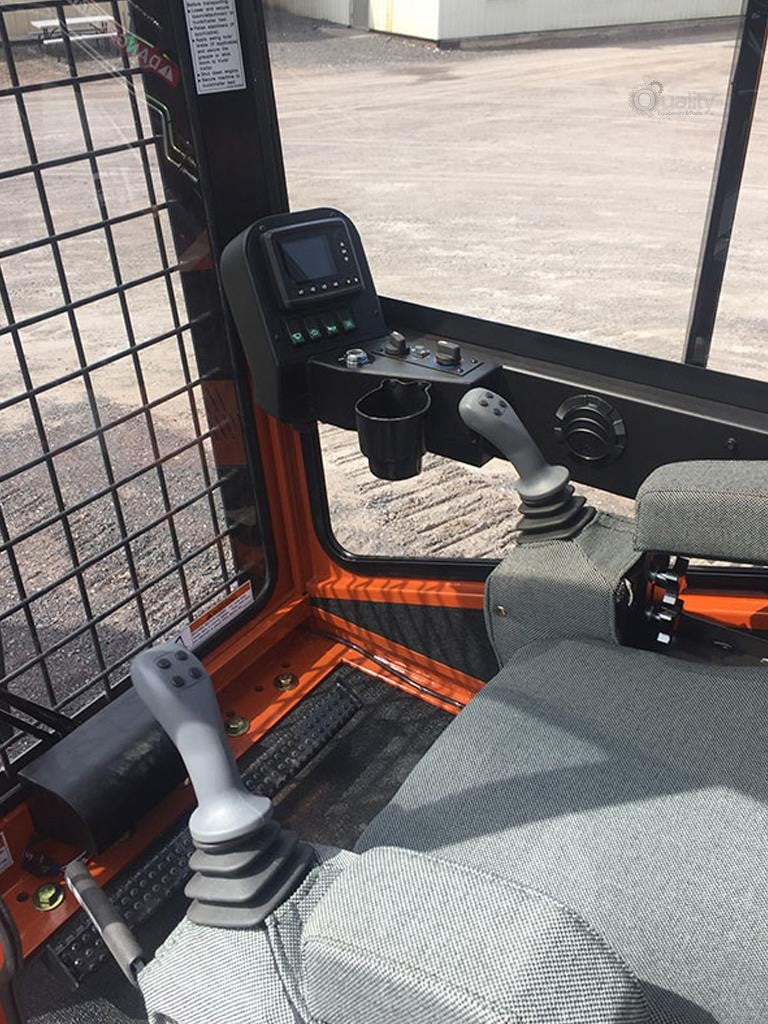

- Operator Comfort: Vibration-isolated floating cab with climate control, ergonomic seating, and 360-degree visibility for safer operation.
- Hydraulic System: Load-sensing hydraulics provide efficient power usage, reducing fuel wastage and operator fatigue.
- Maintenance-Friendly Design: Centralized greasing systems, removable service panels, and bolt-on cylinder glands simplify upkeep and extend product life.
Detailed Specifications
| Category | Details |
|---|---|
| Overall Height | 14' 2" (432 cm) |
| Overall Length | 45' 4" (1,260 cm) with 36’ boom extended & 7,000 lbs counterweight |
| Ground Clearance | 19" (48 cm) |
| Overall Width | 9' 11" (302 cm) |
| Stabilizer Width | 15' 11" (485 cm) |
| Stabilizer Spread | 14' 1" (429 cm) |
| Tail Swing | 9' 3" (282 cm) |
| Wheel Base | 14' 2" (432 cm) |
| Track Width | 8' 4" (254 cm) |
| Operating Weight | 50,000 lbs (22,680 kg) without attachment |
| Maximum Speed | 12 mph (19.3 km/h) high gear, 3.4 mph (5.5 km/h) low gear |
| Tractive Effort | 25,000 lbf (111.2 kN) low gear, 6,100 lbf (27.1 kN) high gear |
| Gradeability | 45% |
| Swing Torque | 55,000 ft-lbf (74,570 Nm) |
| Model/Power | 173 HP Cummins QSB6.7 Tier 4 with SCR aftertreatment |
| DEF Tank Capacity | 10 gal. (38 L) |
| Fuel Tank Capacity | 120 gal. (454 L) |
| Pump Flow Rate | 119 GPM (450 LPM) |
| Operating Pressure | 3,600 psi (248 bar) |
| Tank Capacity | 112 gal. (424 L) |
| Horizontal Reach | 32' (975 cm) |
| Vertical Reach | 38' 4" (1,168 cm) |
| Maximum Lift Capacity | 38,820 lbs (17,608 kg) |
| Rotation Speed | 9 RPM |
| Construction | All-welded box-type fabricated boom with grease grooves |
| Visibility | Tinted windows with 360-degree views |
| Climate Control | Weather-sealed, insulated cab |
| Instrument Panel | Digital display for full operational monitoring |
