Baumalight Fixed Tooth Mulcher | Model MX330 | Path Width 38" | Machine Size 3 To 10 Tons | For Excavators
Baumalight Fixed Tooth Mulcher | Model MX330 | Path Width 38" | Machine Size 3 To 10 Tons | For Excavators
Regular price
$6,577.00
Regular price
Sale price
$6,577.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Baumalight Fixed Tooth Mulcher | Model MX330 | Path Width 38" | Machine Size 3 To 10 Tons | For Excavatorss
DESCRIPTION

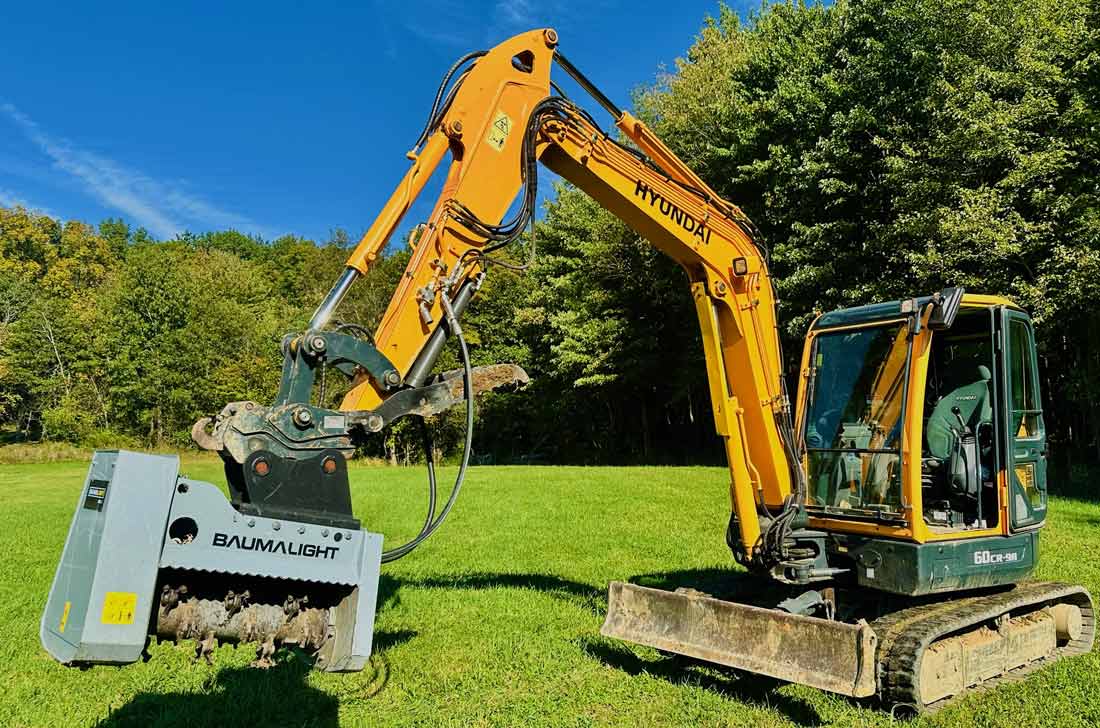

The Baumalight MX330 Fixed Tooth Mulcher is a premium excavator-mounted forestry mulcher engineered for professionals and landowners alike. Designed for 3–10 ton excavators, this rugged, compact brush cutter attachment turns your excavator into a vegetation-clearing powerhouse perfect for construction sites, roadside clearing, right-of-way maintenance, and forestry work.
Featuring high-speed rotating carbide teeth, a reinforced belt drive, and integrated skid shoes, the MX330 delivers aggressive mulching action while floating effortlessly over terrain. Whether you’re working on steep embankments, around obstacles, or overhead, the mulcher’s exceptional control and torque management ensure smooth, efficient operation.
Built with a durable powder-coated finish, factory-lubricated bearings, and a robust rotor design, the MX330 is made to thrive in harsh environments from wild brush to tight access job sites. With 36 replaceable, rotatable carbide teeth, this excavator brush mulcher chews through thick vegetation and small trees, keeping downtime low and productivity high.
Key Features
- Heavy-Duty Forestry Mulcher for Excavators Built for 3–10 ton machines; ideal for clearing trails, fence lines, and overgrowth.
- 38” Cutting Path Width Wide enough to cover serious ground, compact enough for tight workspaces.
- High-Speed Rotating Teeth 36 replaceable carbide tips with a 3-in-1 rotatable design for longer life and aggressive cutting action.
- Concave Carbide Tooth Design Chips brush bit-by-bit for clean, efficient mulching.
- Spiral Tooth Pattern Reduces vibration and engages one tooth at a time for smoother operation.
- Fixed Tooth Design Enhanced durability for tackling woody material, saplings, and brush.
- Overtorque Relief Valve Protects your hydraulic system by releasing pressure when needed.
- Integrated Skid Shoes Maintain consistent height and float smoothly over uneven terrain.
- Reinforced Belt Drive System Transfers gearbox torque efficiently while absorbing impact loads.
- Wire Protection Kit Shields components from fence wire and debris damage.
- 750 lb Rugged Frame Construction Built for long-term abuse in forestry, construction, and ag use.
- Powder-Coated Finish Long-lasting protection from corrosion and wear.
- 6 Free Replacement Teeth Included Extra value right out of the box.
- Factory-Lubricated Bearings Maintenance-friendly with lithium complex grease.
- Fits Standard Excavator Mounts (A02 Connection Code) Compatible with a wide range of mini and compact excavators.
Detailed Specifications
| Feature | Details |
|---|---|
| Model | Baumalight MX330 |
| Cutting Path Width | 38 inches |
| Rotor Width | 30 inches |
| Tooth Type | High-Speed Rotating Carbide Teeth (H3000) |
| Number of Teeth | 36 |
| Tooth Rotation Capability | 3 Cutting Edges per Tooth |
| Tooth Pattern | Spiral |
| Holder Style | Fixed |
| Rotor Shaft Size | 2 inches |
| Rotor Diameter (with Teeth) | 15 inches |
| Rotor Weight (with Tools) | 175 lbs |
| Unit Weight | 750 lbs |
| Minimum Excavator Size (Tracked) | 3 tons |
| Maximum Excavator Size (Tracked) | 8 tons |
| Minimum Excavator Size (Wheeled) | 5 tons |
| Maximum Excavator Size (Wheeled) | 10 tons |
| Hydraulic System Protection | Built-In Relief Valve |
| Skid Shoes | Integrated for Float and Terrain Control |
| Drive Type | Reinforced Belt Drive |
| Mount Compatibility | A02 Excavator Quick Attach System |
| Finish | Industrial Powder Coating |
| Case Drain Requirement | Required |
| Free Teeth Included | 6 |
| Machine Compatibility | Excavators from 3 to 10 tons |
| Industry Use | Forestry, Land Clearing, Construction |
Comparison Chart
| Feature | MX230 | MX330 |
|---|---|---|
| Connection Code | A02 | A02 |
| Path Width | 38" | 38" |
| Rotor Width | 30" | 30" |
| Min Tracked Excavator Size | 2 Ton | 3 Ton |
| Min Wheeled Excavator Size | 4 Ton | 5 Ton |
| Max Tracked Excavator Size | 6 Ton | 8 Ton |
| Max Wheeled Excavator Size | 8 Ton | 10 Ton |
| Cutting Depth | Level | Level |
| Holder Style | Swing | Fixed |
| Cutting Style | Flail | High Speed Teeth |
| Tooth Part # | F2000 | H3000 |
| Number of Cutters | 22 | 36 |
| Rotor Shaft Size | 1.5" | 2" |
| Rotor Diameter (Tool Tips) | 17.25" | 15" |
| Rotor Weight (with Tools) | 125 lbs | 175 lbs |
| No. of Motors | 1 | 1 |
| Case Drain | Not Important | Not Important |
| Unit Weight | 500 lbs | 750 lbs |
| Feature | MX530 | MX530R |
|---|---|---|
| Connection Code | A02 | A02 |
| Path Width | 40" | 40" |
| Rotor Width | 30" | 30" |
| Min Tracked Excavator Size | 4 Ton | 4 Ton |
| Min Wheeled Excavator Size | 6 Ton | 6 Ton |
| Max Tracked Excavator Size | 12 Ton | 12 Ton |
| Max Wheeled Excavator Size | 14 Ton | 14 Ton |
| Cutting Depth | 1.5" Above to 1" Below | 1.5" Above to 1" Below |
| Holder Style | Fixed | Fixed |
| Cutting Style | Carbide Tipped Bolt In | Carbide Tipped Bolt In |
| Tooth Part # | P5000 | P5000 |
| Number of Cutters | 44 | 44 |
| Rotor Shaft Size | 2" | 2" |
| Rotor Diameter (Tool Tips) | 15" | 15" |
| Rotor Weight (with Tools) | 300 lbs | 300 lbs |
| No. of Motors | 1 | 1 |
| Case Drain | See Motor Options | See Motor Options |
| Unit Weight | 1036 lbs | 1166 lbs |
| Feature | MX548R | MX948R |
|---|---|---|
| Connection Code | A03 | A03 |
| Path Width | 62" | 70" |
| Rotor Width | 48" | 48" |
| Min Tracked Excavator Size | 7 Ton | 12 Ton |
| Min Wheeled Excavator Size | 9 Ton | 15 Ton |
| Max Tracked Excavator Size | 20 Ton | 30 Ton |
| Max Wheeled Excavator Size | 22 Ton | 33 Ton |
| Cutting Depth | 1.5" Above to 1" Below | Level |
| Holder Style | Fixed | Fixed |
| Cutting Style | Carbide Tipped Bolt In | Double Tipped Carbide |
| Tooth Part # | P5000 | R9000 |
| Number of Cutters | 72 | 27 |
| Rotor Shaft Size | 2" | 2" |
| Rotor Diameter (Tool Tips) | 15" | 18.5" |
| Rotor Weight (with Tools) | 408 lbs | 617 lbs |
| No. of Motors | 1 | 1 |
| Case Drain | Critical | Critical |
| Unit Weight | 2167 lbs | 2838 lbs |
| Feature | MX960R | MX1160R |
|---|---|---|
| Connection Code | A03 | A03 |
| Path Width | 90" | 90" |
| Rotor Width | 60" | 60" |
| Min Tracked Excavator Size | 18 Ton | 18 Ton |
| Min Wheeled Excavator Size | 21 Ton | 21 Ton |
| Max Tracked Excavator Size | 33 Ton | 33 Ton |
| Max Wheeled Excavator Size | 36 Ton | 36 Ton |
| Cutting Depth | Level | Level |
| Holder Style | Fixed | Fixed |
| Cutting Style | Double Tipped Carbide | Sharpenable Planer Teeth |
| Tooth Part # | R9000 | P11000 |
| Number of Cutters | 38 | 31 |
| Rotor Shaft Size | 2" | 2" |
| Rotor Diameter (Tool Tips) | 18.5" | 18.5" |
| Rotor Weight (with Tools) | 860 lbs | 872 lbs |
| No. of Motors | 1 | 1 |
| Case Drain | Critical | Critical |
| Unit Weight | 2910 lbs | 2925 lbs |
