Baumalight Fixed Tooth Mulcher | Model MX548R | Rotor Width 48" | Machine Size 7 To 22 Tons | For Excavators
Baumalight Fixed Tooth Mulcher | Model MX548R | Rotor Width 48" | Machine Size 7 To 22 Tons | For Excavators
Regular price
$18,920.00
Regular price
Sale price
$18,920.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

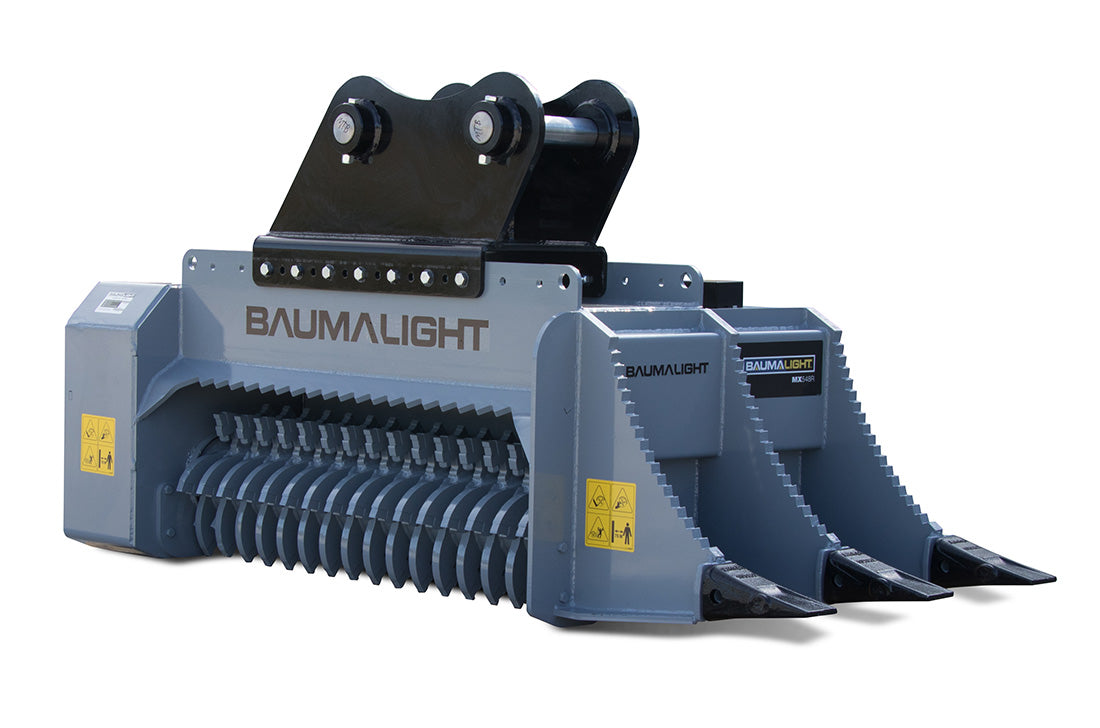

Baumalight Fixed Tooth Mulcher | Model MX548R | Rotor Width 48" | Machine Size 7 To 22 Tons | For Excavators
DESCRIPTION
When your job site throws down a challenge, the Baumalight MX548R Fixed Tooth Mulcher answers with brute strength and precise performance. Built for excavators ranging from 7 to 22 tons, this forestry mulcher doesn’t just cut it conquers thick brush, tangled fence lines, embedded rocks, and stubborn tree roots.
Engineered with a 48-inch rotor width and a heavy-duty AR400 steel body, the MX548R delivers durability without added weight. Its integrated root rake ripper teeth tear through debris and uproot obstacles, saving time and passes. Choose between planer or ripper-style carbide teeth for optimal performance across varying terrains and brush densities.
Ideal for entry-level land clearing contractors, utility workers, forestry professionals, and excavator owners, this mulcher offers a true plug-and-play solution purpose-built for below-grade mulching, fence line clearing, and tough terrain reclamation.
Backed by advanced hydraulic protection, spiral tooth patterns for smoother operation, and locally available service parts, the MX548R makes mulching faster, smarter, and more cost-effective.
Key Features
- Heavy-Duty Root Rake Teeth: Built into the frame to clear logs, rocks, and roots with ease.
- AR400 Steel Body: Stronger than mild steel without adding unnecessary weight.
- 48" Rotor Width: Covers wide paths quickly while maintaining high torque cutting power.
- Fixed Tooth Rotor with Carbide Teeth: Shreds dense brush efficiently with options for Planer or Ripper styles.
- Designed for 7–22 Ton Excavators: Perfect for medium to heavy-duty clearing applications.
- Integrated Relief Valve: Protects the motor from hydraulic pressure spikes for long-lasting performance.
- Spiral Tooth Pattern: Engages one tooth at a time for smooth and controlled cutting.
- 6 Free Replacement Teeth: Stored in a convenient, weather-resistant tube on the frame.
- Wire Protection Kit: Shields hydraulic lines and motors from damaging fencing wire.
- Reinforced Belt Drive: Absorbs rotor shock and transfers torque reliably to the cutter head.
- Powder-Coated Finish: Provides long-lasting rust protection and durability in harsh environments.
- Overhung Load Adapter: Increases bearing life with tapered roller bearings for stability under stress.
- Integrated Skid Shoes: Allows the unit to glide evenly over the terrain for consistent cut height.
- Heavy-Duty Tooth Holders: V-notch design resists bending and ensures cutting accuracy under impact.
- Root Clearing Capability: Built-in rake lets operators push fallen logs and rocks with minimal effort.
Detailed Specifications
| Feature | Details |
|---|---|
| Model | MX548R |
| Brand | Baumalight |
| Compatibility | Excavators (7–22 tons) |
| Rotor Width | 48 inches |
| Cutting Depth | 1.5" Above Grade to 1" Below Grade |
| Holder Style | Fixed |
| Cutting Style | Carbide Tipped Bolt-In Teeth (Planer or Ripper) |
| Tooth Part Number | P5000 |
| Number of Cutters | 72 |
| Rotor Shaft Size | 2 inches |
| Rotor Diameter (Tool Tips) | 15 inches |
| Rotor Weight (with Tools) | 408 lbs |
| Unit Weight | 2,167 lbs |
| Case Drain Requirement | Critical |
| Motor Type | Bent Axis Piston Motor |
| Drive System | Reinforced Belt Drive |
| Material Build | AR400 Steel Frame |
| Protective Features | Relief Valve, Wire Kit, Chain Curtain |
| Additional Included | 6 Free Replacement Teeth, Skid Shoes, Tool Storage |
| Recommended Applications | Fence Line Clearing, Below-Grade Mulching, Land Management |
| Paint Finish | Powder-Coated for Corrosion Resistance |
Comparison Chart
| Feature | MX230 | MX330 |
|---|---|---|
| Connection Code | A02 | A02 |
| Path Width | 38" | 38" |
| Rotor Width | 30" | 30" |
| Min Tracked Excavator Size | 2 Ton | 3 Ton |
| Min Wheeled Excavator Size | 4 Ton | 5 Ton |
| Max Tracked Excavator Size | 6 Ton | 8 Ton |
| Max Wheeled Excavator Size | 8 Ton | 10 Ton |
| Cutting Depth | Level | Level |
| Holder Style | Swing | Fixed |
| Cutting Style | Flail | High Speed Teeth |
| Tooth Part # | F2000 | H3000 |
| Number of Cutters | 22 | 36 |
| Rotor Shaft Size | 1.5" | 2" |
| Rotor Diameter (Tool Tips) | 17.25" | 15" |
| Rotor Weight (with Tools) | 125 lbs | 175 lbs |
| No. of Motors | 1 | 1 |
| Case Drain | Not Important | Not Important |
| Unit Weight | 500 lbs | 750 lbs |
| Feature | MX530 | MX530R |
|---|---|---|
| Connection Code | A02 | A02 |
| Path Width | 40" | 40" |
| Rotor Width | 30" | 30" |
| Min Tracked Excavator Size | 4 Ton | 4 Ton |
| Min Wheeled Excavator Size | 6 Ton | 6 Ton |
| Max Tracked Excavator Size | 12 Ton | 12 Ton |
| Max Wheeled Excavator Size | 14 Ton | 14 Ton |
| Cutting Depth | 1.5" Above to 1" Below | 1.5" Above to 1" Below |
| Holder Style | Fixed | Fixed |
| Cutting Style | Carbide Tipped Bolt In | Carbide Tipped Bolt In |
| Tooth Part # | P5000 | P5000 |
| Number of Cutters | 44 | 44 |
| Rotor Shaft Size | 2" | 2" |
| Rotor Diameter (Tool Tips) | 15" | 15" |
| Rotor Weight (with Tools) | 300 lbs | 300 lbs |
| No. of Motors | 1 | 1 |
| Case Drain | See Motor Options | See Motor Options |
| Unit Weight | 1036 lbs | 1166 lbs |
| Feature | MX548R | MX948R |
|---|---|---|
| Connection Code | A03 | A03 |
| Path Width | 62" | 70" |
| Rotor Width | 48" | 48" |
| Min Tracked Excavator Size | 7 Ton | 12 Ton |
| Min Wheeled Excavator Size | 9 Ton | 15 Ton |
| Max Tracked Excavator Size | 20 Ton | 30 Ton |
| Max Wheeled Excavator Size | 22 Ton | 33 Ton |
| Cutting Depth | 1.5" Above to 1" Below | Level |
| Holder Style | Fixed | Fixed |
| Cutting Style | Carbide Tipped Bolt In | Double Tipped Carbide |
| Tooth Part # | P5000 | R9000 |
| Number of Cutters | 72 | 27 |
| Rotor Shaft Size | 2" | 2" |
| Rotor Diameter (Tool Tips) | 15" | 18.5" |
| Rotor Weight (with Tools) | 408 lbs | 617 lbs |
| No. of Motors | 1 | 1 |
| Case Drain | Critical | Critical |
| Unit Weight | 2167 lbs | 2838 lbs |
| Feature | MX960R | MX1160R |
|---|---|---|
| Connection Code | A03 | A03 |
| Path Width | 90" | 90" |
| Rotor Width | 60" | 60" |
| Min Tracked Excavator Size | 18 Ton | 18 Ton |
| Min Wheeled Excavator Size | 21 Ton | 21 Ton |
| Max Tracked Excavator Size | 33 Ton | 33 Ton |
| Max Wheeled Excavator Size | 36 Ton | 36 Ton |
| Cutting Depth | Level | Level |
| Holder Style | Fixed | Fixed |
| Cutting Style | Double Tipped Carbide | Sharpenable Planer Teeth |
| Tooth Part # | R9000 | P11000 |
| Number of Cutters | 38 | 31 |
| Rotor Shaft Size | 2" | 2" |
| Rotor Diameter (Tool Tips) | 18.5" | 18.5" |
| Rotor Weight (with Tools) | 860 lbs | 872 lbs |
| No. of Motors | 1 | 1 |
| Case Drain | Critical | Critical |
| Unit Weight | 2910 lbs | 2925 lbs |
Manuals & Documents
The Product Manual
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

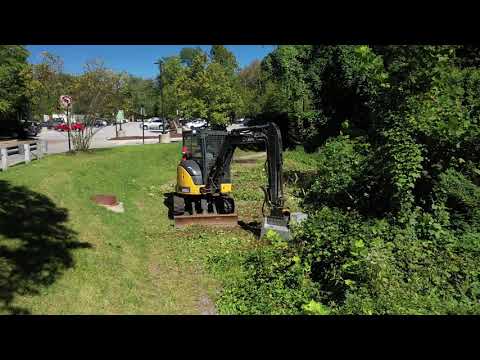

Videos
