Baumalight Flail Mower | Model MX230 | Cutting Width 30" | Machine Size 2 To 8 Tons | For Excavators
Baumalight Flail Mower | Model MX230 | Cutting Width 30" | Machine Size 2 To 8 Tons | For Excavators
Regular price
$8,013.00
Regular price
Sale price
$8,013.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Baumalight Flail Mower | Model MX230 | Cutting Width 30" | Machine Size 2 To 8 Tons | For Excavators
DESCRIPTION

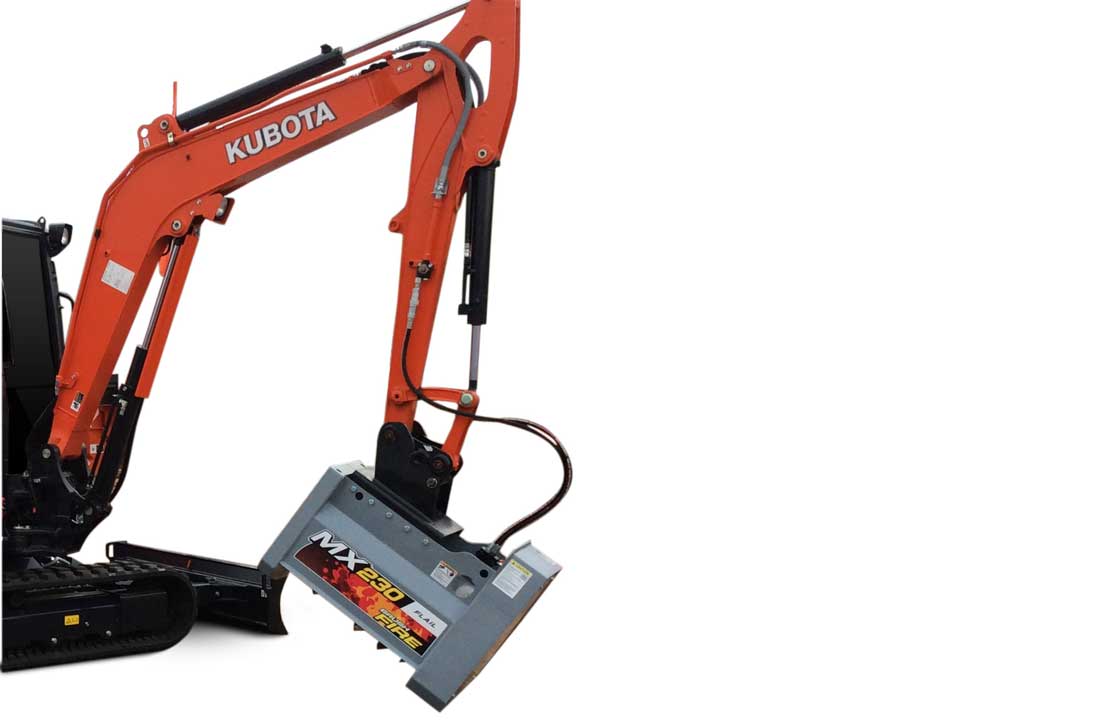

Tame overgrown land with confidence using the Baumalight MX230 Flail Mower, engineered for mini and mid-size excavators from 2 to 8 tons. Whether you're cutting back thick grass, tackling light brush, or maintaining ditches and roadside banks, the MX230 delivers powerful, clean results without compromising precision.
Equipped with 22 bolt-on flail teeth and designed for hydraulic flows between 20–50 GPM, this compact yet rugged forestry mulcher is ideal for landscaping contractors, utility crews, farmers, and landowners. Its spiral tooth pattern ensures a smooth cut by engaging only one tooth at a time, reducing vibration and improving efficiency. Plus, its integrated skid shoes, reinforced belt drive, and powder-coated steel frame make it a durable and user-friendly addition to your excavator's attachment lineup.
Whether you're working in tight urban spaces or out in remote woodland, the MX230 is purpose-built to provide the control and performance professional operators demand while staying light enough for smaller excavators to handle with ease.
Key Features
- 30" Cutting Width Covers more ground efficiently, ideal for land clearing and roadside maintenance.
- Fits 2–8 Ton Excavators Optimized for mini and mid-size tracked or wheeled excavators.
- 20–50 GPM Hydraulic Flow Compatible with a wide range of excavators for optimal cutting power.

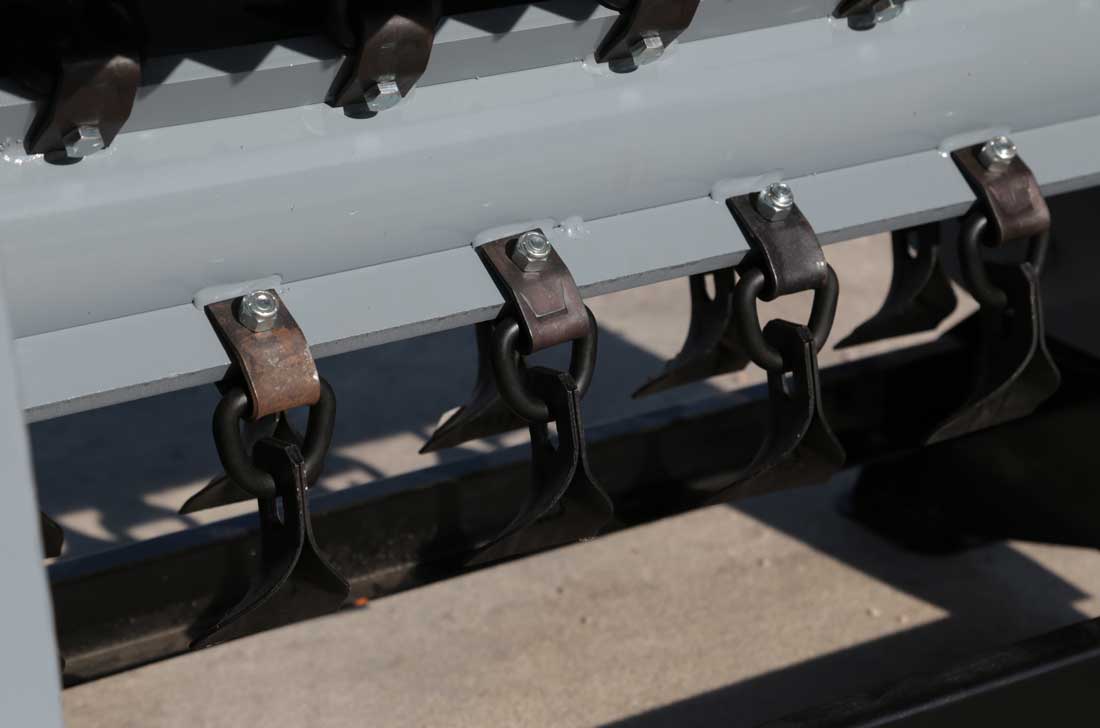

- 22 Bolt-On Flail Teeth Swing-back design reduces impact damage when encountering rocks or debris.
- Spiral Tooth Pattern Allows one tooth to engage at a time for smoother mulching and reduced vibration.
- Heavy-Duty Blade Upgrade Available Optional 6mm thick blades double your mulching capacity.
- Integrated Relief Valve Protects your hydraulic system from pressure spikes and overtorque damage.
- Built-In Skid Shoes Floats easily over terrain, maintaining consistent cutting depth and angle.
- Reinforced Belt Drive Transfers hydraulic power to the rotor reliably, reducing shock-related wear.
- Powder-Coated Steel Frame Weather-resistant finish ensures long-lasting durability in rugged conditions.
- Easy Excavator Attachment Quick hookup system for minimal downtime and maximum productivity.
- Low Maintenance Design Includes sharpenable teeth and easy-access parts for field servicing.
- Free Spare Teeth Included Comes with 6 extra cutting teeth stored onboard for convenience.
- Compatible with Various Excavator Brands Versatile fitment for common mini-excavator models.
- Made for Forestry & Vegetation Control Perfect for light land clearing, utility right-of-way, and municipal use.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | MX230-F3000 |
| Cutting Width | 30 inches |
| Path Width | 38 inches |
| Excavator Size Compatibility | 2–6 Ton (Tracked) / 4–8 Ton (Wheeled) |
| Hydraulic Flow Range | 20 – 50 GPM |
| Number of Cutters | 22 F3000 Flail Teeth (6mm thick upgrade) |
| Rotor Shaft Size | 1.5 inches |
| Rotor Diameter (Tip-to-Tip) | 17.25 inches |
| Rotor Weight (with Tools) | 125 lbs |
| Unit Weight | 500 lbs |
| Frame Material | Welded Steel, Powder-Coated Finish |
| Holder Style | Swing-Back |
| Cutting Style | Flail |
| Relief Valve | Integrated Overtorque Hydraulic Protection |
| Drive System | Heavy-Duty Reinforced Belt Drive |
| Mount Options | Universal / D004414-A02 for Bobcat E35–E60 |
| Included Accessories | 6 Free Replacement Teeth (Stored Onboard) |
| Hydraulic Hoses & Couplers | Not Included – Must Specify Mount & Order Separately |
| Product Category | Excavator Attachments → Flail Mower for Mini/Mid Excavators |

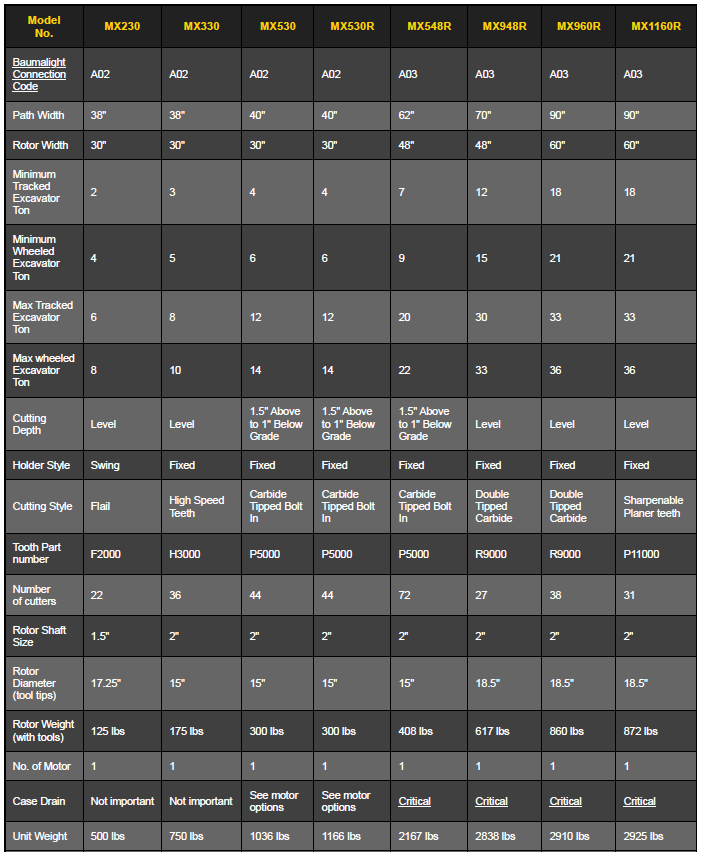

Comparison Chart
| Feature | MX230 | MX330 |
|---|---|---|
| Baumalight Connection Code | A02 | A02 |
| Path Width | 38" | 38" |
| Rotor Width | 30" | 30" |
| Min. Tracked Excavator Ton | 2 | 3 |
| Min. Wheeled Excavator Ton | 4 | 5 |
| Max Tracked Excavator Ton | 6 | 8 |
| Max Wheeled Excavator Ton | 8 | 10 |
| Cutting Depth | Level | Level |
| Holder Style | Swing | Fixed |
| Cutting Style | Flail | High Speed Teeth |
| Tooth Part Number | F2000 | H3000 |
| Number of Cutters | 22 | 36 |
| Rotor Shaft Size | 1.5" | 2" |
| Rotor Diameter (Tool Tips) | 17.25" | 15" |
| Rotor Weight (with Tools) | 125 lbs | 175 lbs |
| Number of Motors | 1 | 1 |
| Case Drain | Not important | Not important |
| Unit Weight | 500 lbs | 750 lbs |
| Feature | MX530 | MX530R |
|---|---|---|
| Baumalight Connection Code | A02 | A02 |
| Path Width | 40" | 40" |
| Rotor Width | 30" | 30" |
| Min. Tracked Excavator Ton | 4 | 4 |
| Min. Wheeled Excavator Ton | 6 | 6 |
| Max Tracked Excavator Ton | 12 | 12 |
| Max Wheeled Excavator Ton | 14 | 14 |
| Cutting Depth | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade |
| Holder Style | Fixed | Fixed |
| Cutting Style | Carbide Tipped Bolt In | Carbide Tipped Bolt In |
| Tooth Part Number | P5000 | P5000 |
| Number of Cutters | 44 | 44 |
| Rotor Shaft Size | 2" | 2" |
| Rotor Diameter (Tool Tips) | 15" | 15" |
| Rotor Weight (with Tools) | 300 lbs | 300 lbs |
| Number of Motors | 1 | 1 |
| Case Drain | See motor options | See motor options |
| Unit Weight | 1036 lbs | 1166 lbs |
| Feature | MX548R | MX948R |
|---|---|---|
| Baumalight Connection Code | A03 | A03 |
| Path Width | 62" | 70" |
| Rotor Width | 48" | 48" |
| Min. Tracked Excavator Ton | 8.5 | 12 |
| Min. Wheeled Excavator Ton | 10 | 15 |
| Max Tracked Excavator Ton | 20 | 30 |
| Max Wheeled Excavator Ton | 22 | 33 |
| Cutting Depth | 1.5" Above to 1" Below Grade | Level |
| Holder Style | Fixed | Fixed |
| Cutting Style | Carbide Tipped Bolt In | Double Tipped Carbide |
| Tooth Part Number | P5000 | R9000 |
| Number of Cutters | 72 | 27 |
| Rotor Shaft Size | 2" | 2" |
| Rotor Diameter (Tool Tips) | 15" | 18.5" |
| Rotor Weight (with Tools) | 408 lbs | 617 lbs |
| Number of Motors | 1 | 1 |
| Case Drain | Critical | Critical |
| Unit Weight | 2167 lbs | 2838 lbs |
| Feature | MX960R | MX1160R |
|---|---|---|
| Baumalight Connection Code | A03 | A03 |
| Path Width | 90" | 90" |
| Rotor Width | 60" | 60" |
| Min. Tracked Excavator Ton | 18 | 18 |
| Min. Wheeled Excavator Ton | 21 | 21 |
| Max Tracked Excavator Ton | 33 | 33 |
| Max Wheeled Excavator Ton | 36 | 36 |
| Cutting Depth | Level | Level |
| Holder Style | Fixed | Fixed |
| Cutting Style | Double Tipped Carbide | Sharpenable Planer Teeth |
| Tooth Part Number | R9000 | P11000 |
| Number of Cutters | 38 | 31 |
| Rotor Shaft Size | 2" | 2" |
| Rotor Diameter (Tool Tips) | 18.5" | 18.5" |
| Rotor Weight (with Tools) | 860 lbs | 872 lbs |
| Number of Motors | 1 | 1 |
| Case Drain | Critical | Critical |
| Unit Weight | 2910 lbs | 2925 lbs |
Manuals & Documents
The Product Manual
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
