Baumalight HD Fixed Tooth Mulcher | Model MX960R & MX1160R | Rotor Width 60" | Machine Size 8 To 20 Tons | For Excavators
DESCRIPTION

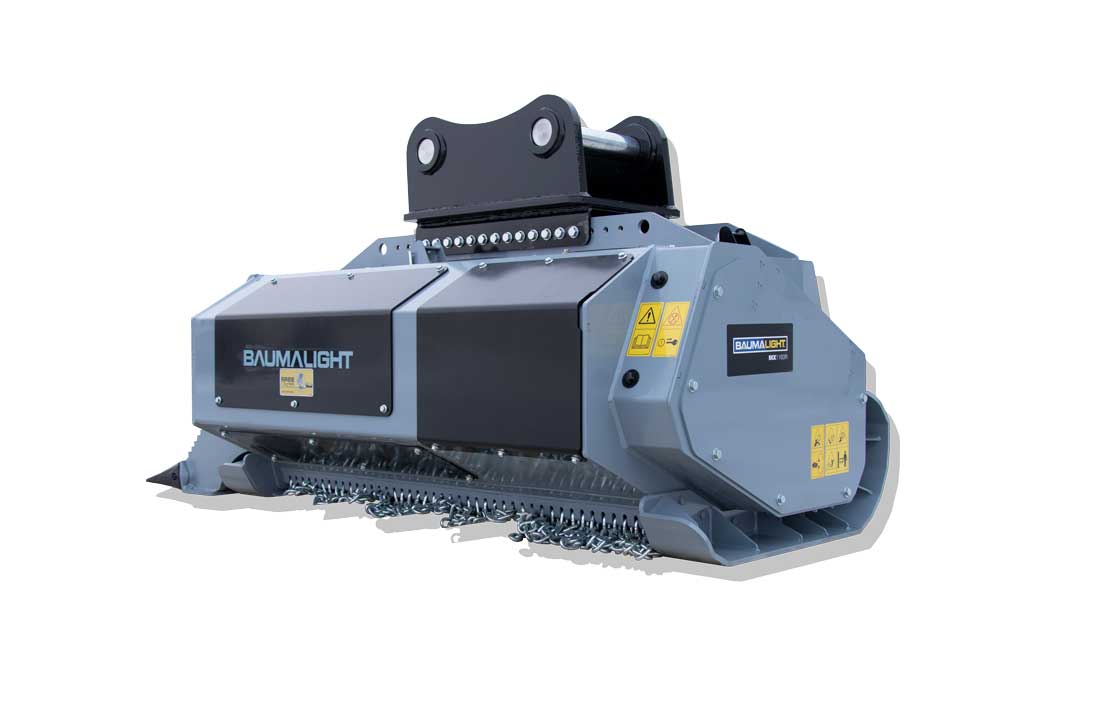

Take your land clearing to the next level with the Baumalight MX960R and MX1160R Fixed Tooth Mulchers, engineered for professional-grade mulching performance on excavators ranging from 18 to 36 tons. Whether you're tackling dense brush, uprooting rocks, or grinding down stubborn stumps, these mulchers deliver unmatched power, precision, and durability.

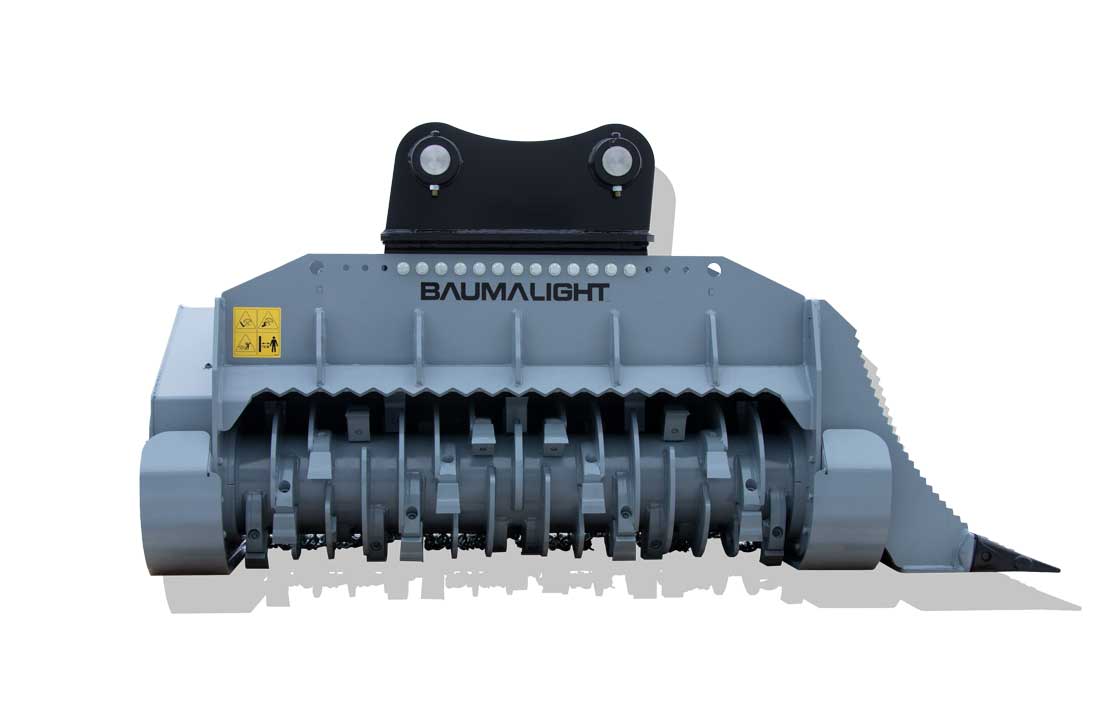

Built with AR400 high-strength steel, these brush mulchers feature a 60” heavy-duty rotor, aggressive root rake ripper teeth, and industry-leading bent-axis piston motors. The MX960R uses 38 double-tipped carbide teeth (R9000) for efficient ground-level cutting and stone resilience. Meanwhile, the MX1160R upgrades to 31 sharpenable planer teeth (P11000) with bite-limiting mulcher rings, optimizing efficiency and reducing wear on tooth holders during high-impact jobs.
These units are ideal for contractors, landowners, forestry professionals, and municipalities demanding reliable vegetation management equipment for heavy excavators.
Key Features
- For Excavators 18–36 Tons: Designed for tracked (18–33 ton) and wheeled (21–36 ton) excavators.
- 60” Rotor Width: Wide cutting width for fast brush clearing and efficient ground coverage.
- Durable AR400 Steel Frame: Lightweight but ultra-tough with replaceable wear plates for long-term reliability.

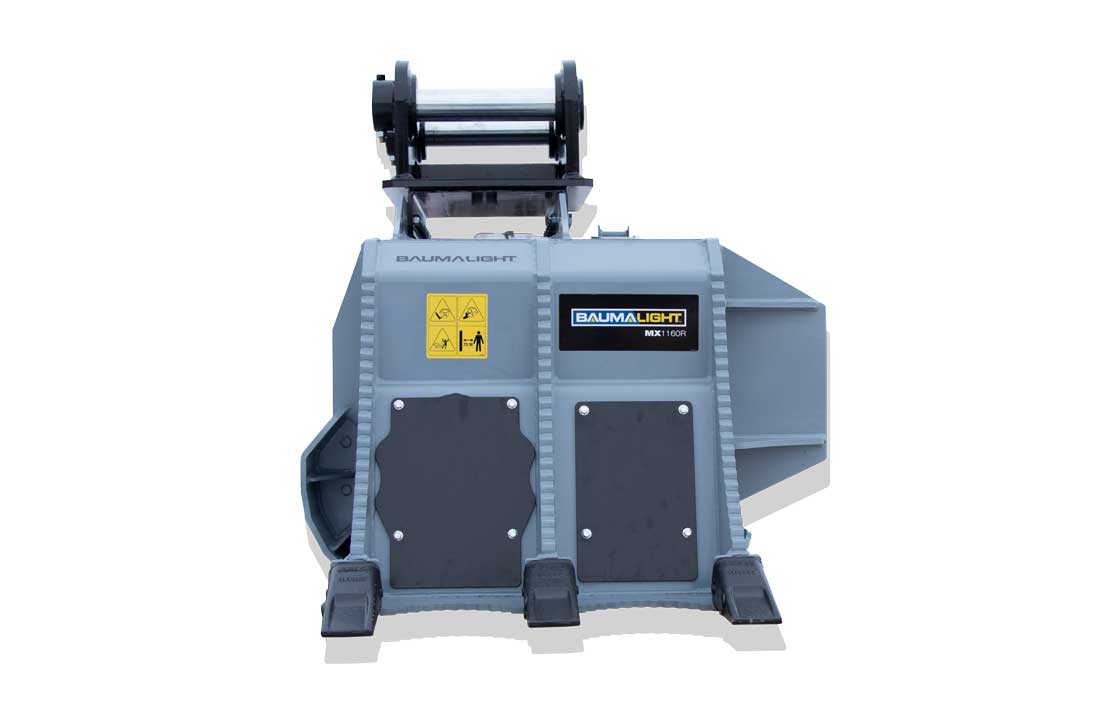

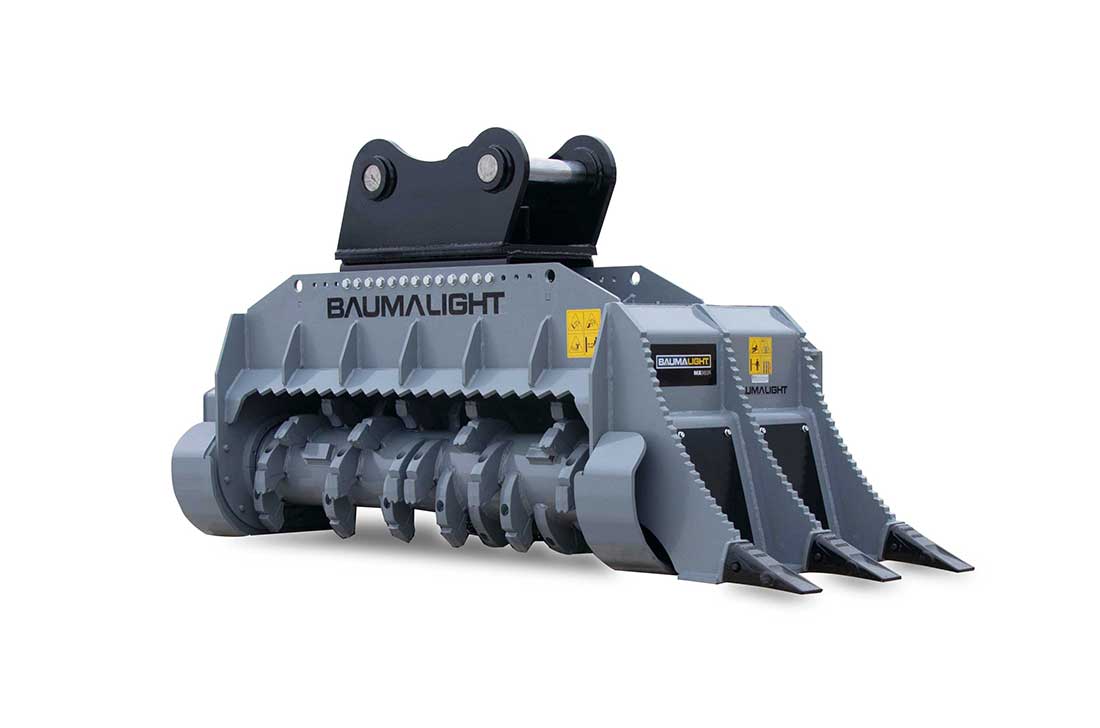

- Root Rake Ripper Teeth: Integrated scrapers push and manage logs, rocks, and debris while mulching.
-
Advanced Tooth Systems:
- MX960R: 38 Double-Tipped Carbide Teeth (R9000) – Ideal for stony terrain and hard impacts.
- MX1160R: 31 Sharpenable Planer Teeth (P11000) – Handles larger material with smoother cutting.

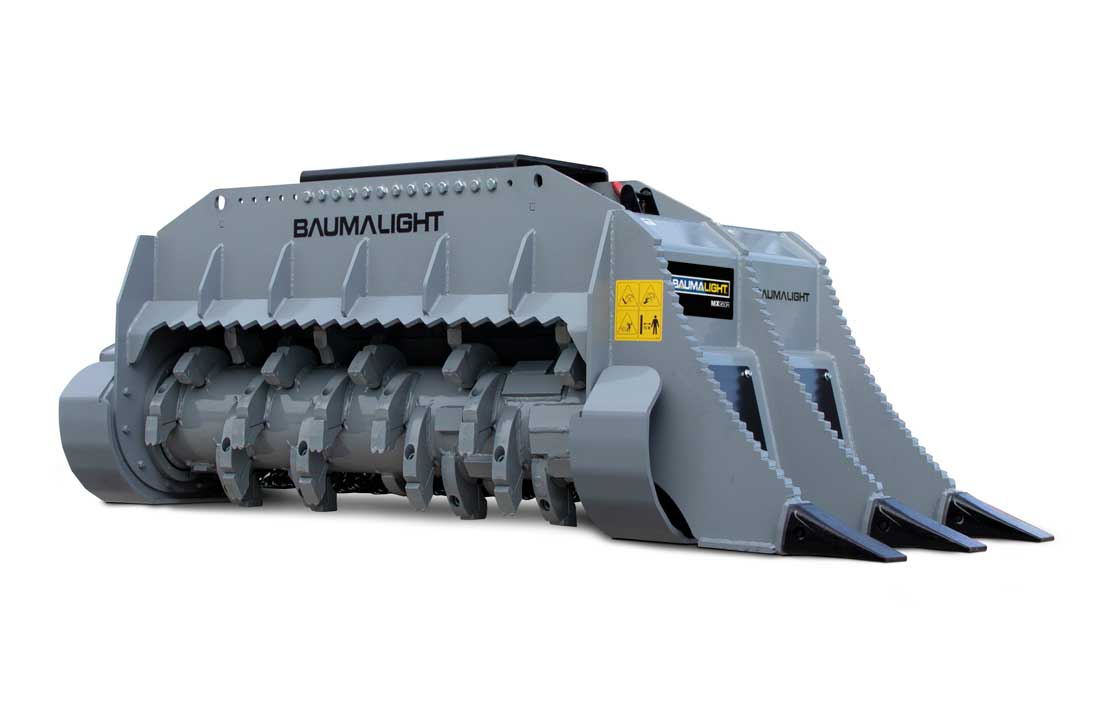

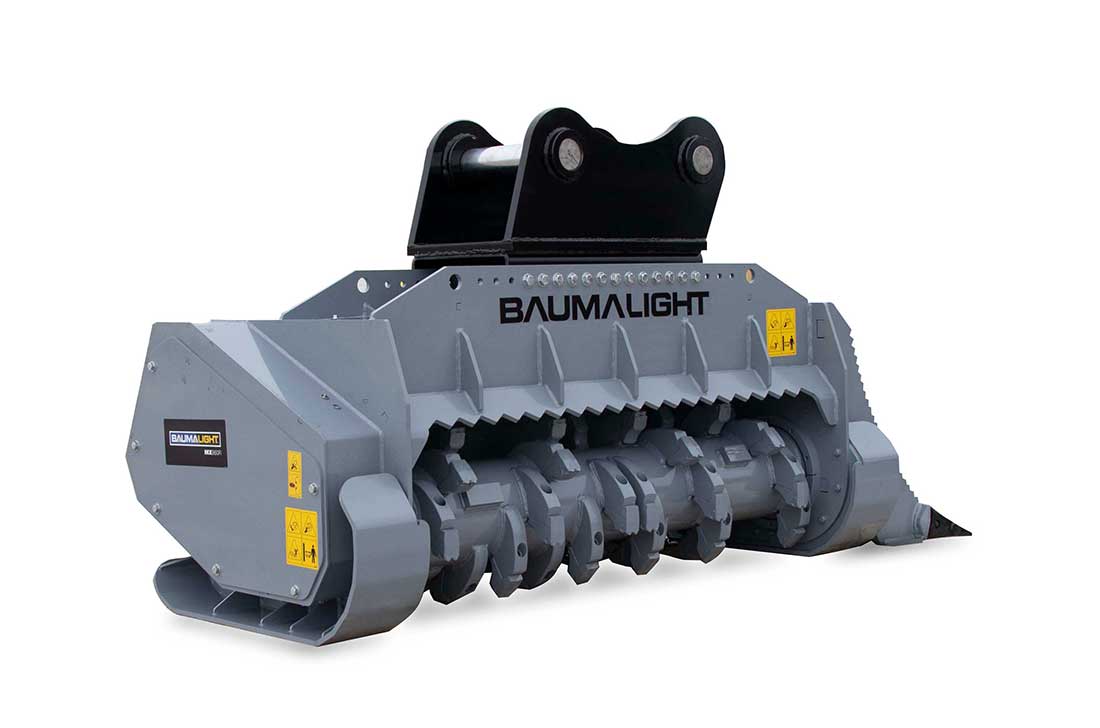

- Bite Limiting Rotor (MX1160R): Depth control rings and helical tooth layout improve infeed and reduce stalling.
- Mulcher Rings (MX1160R): Increase speed and prevent tooth holder breakage.
- Replaceable Bolt-In Liner: Quick maintenance without rotor removal.
- Adjustable Belt Tensioner: Easy access system—no idler wheel required.
- Bent Axis Piston Motor: Maximizes hydraulic power and efficiency under load.
- Wire Protection Kit: Shields bearings from wire entanglement damage.

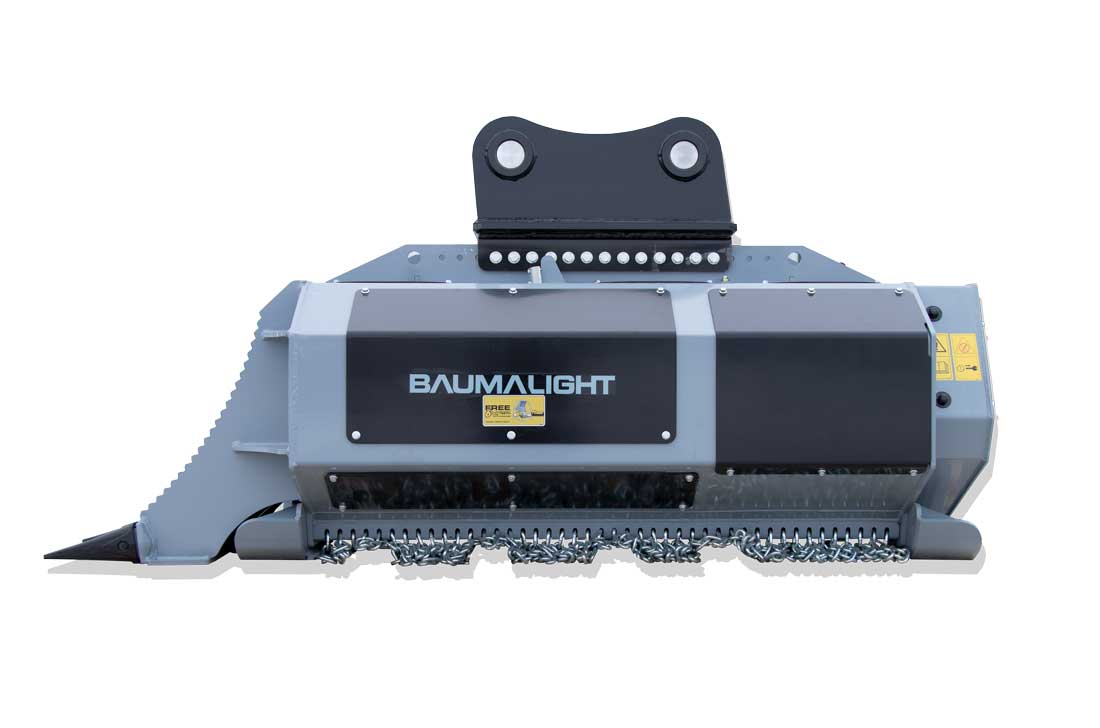

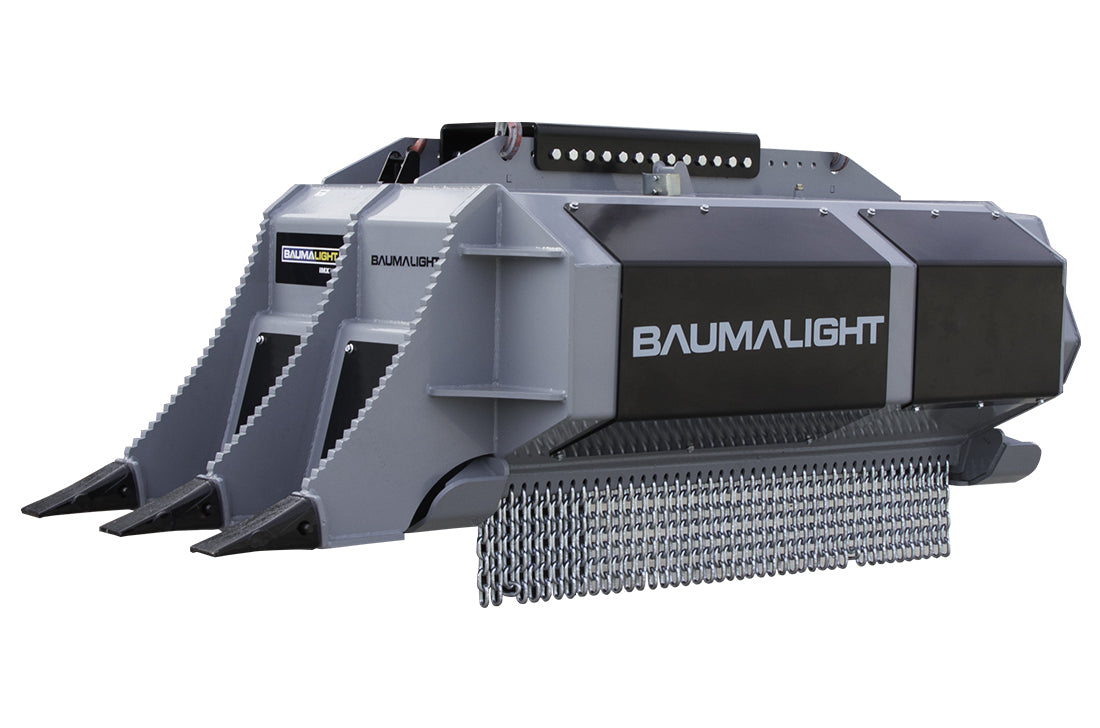

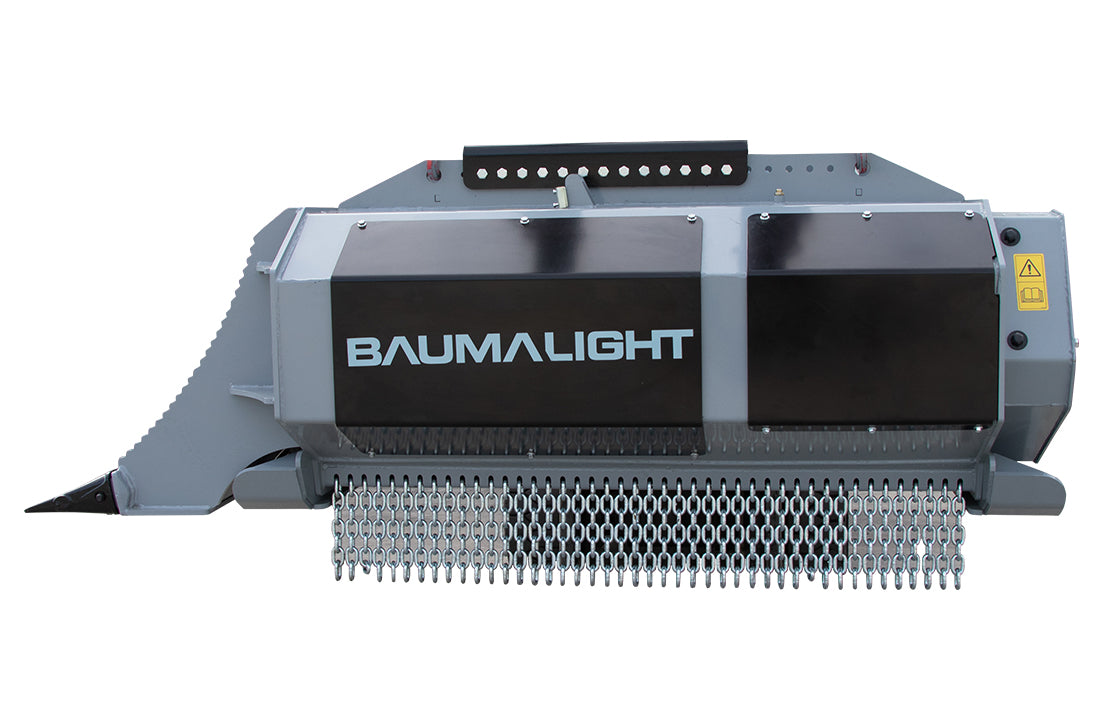

- 3/8” Rear Chain Curtain: Controls brush intake and debris discharge safely.
- Overtorque Relief Valve: Protects hydraulic system from pressure spikes.
- Heavy-Duty Reinforced Belt: Withstands shock loads for tough mulching tasks.
- Optional Two-Speed Motor: Enhances versatility across various mulching conditions.
- Easy Access Grease Fittings: No tools required for routine maintenance.

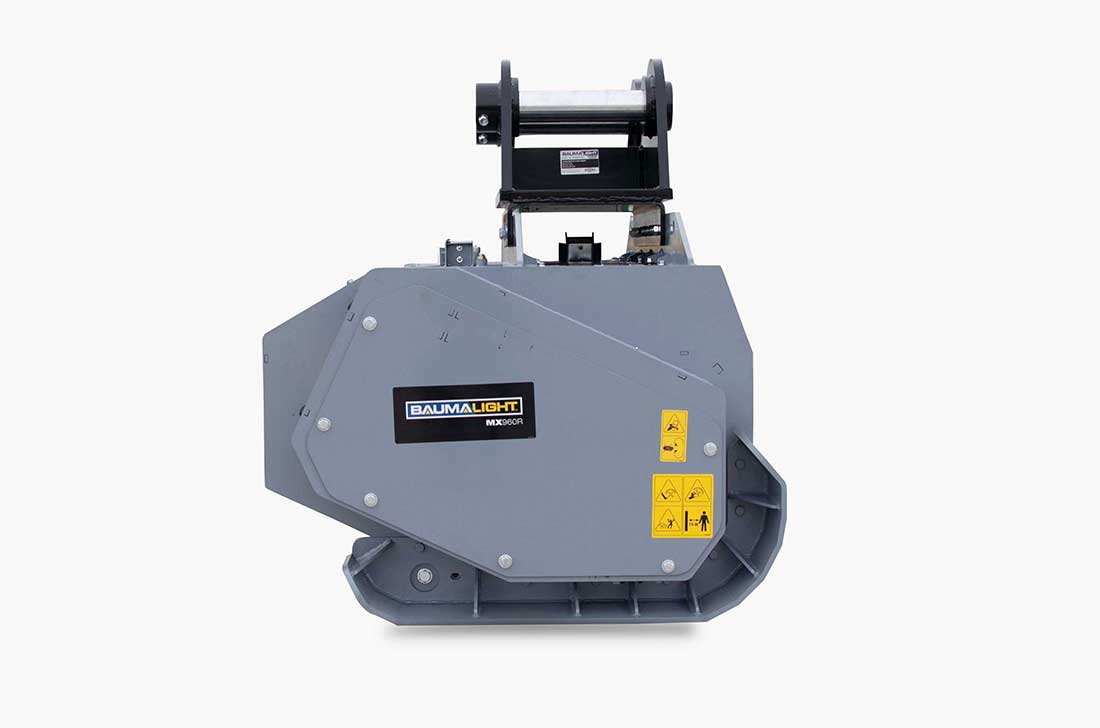

- Adjustable Excavator Mount: Multiple mount holes for flexible setup.
- Movable Hose Clamp Cover: Simplifies routing based on excavator port layout.
Detailed Specifications
| Feature | MX960R |
|---|---|
| Rotor Width | 60" |
| Path Width | 90" |
| Machine Compatibility | 18–33 Ton Tracked / 21–36 Ton Wheeled |
| Tooth Style | Double-Tipped Carbide (R9000) |
| No. of Cutters | 38 |
| Rotor Diameter (w/ Teeth) | 18.5" |
| Rotor Weight (with Teeth) | 860 lbs |
| Motor Type | Bent Axis Piston |
| Number of Motors | 1 |
| Body Material | AR400 High-Strength Steel |
| Mulcher Rings | No |
| Bite Limiting Rotor | No |
| Relief Valve Protection | Yes |
| Case Drain Required | Yes |
| Replaceable Wear Plates | Yes |
| Unit Weight | 2,910 lbs |
| Grease Fittings | External, tool-free |
| Root Rake Teeth | Yes (Replaceable) |
| Chain Curtain | 3/8" Rear Chain |
| Hose Management | Clamp + Movable Cover |
| Feature | MX1160R |
|---|---|
| Rotor Width | 60" |
| Path Width | 90" |
| Machine Compatibility | 18–33 Ton Tracked / 21–36 Ton Wheeled |
| Tooth Style | Sharpenable Planer (P11000) |
| No. of Cutters | 31 |
| Rotor Diameter (w/ Teeth) | 18.5" |
| Rotor Weight (with Teeth) | 872 lbs |
| Motor Type | Bent Axis Piston |
| Number of Motors | 1 |
| Body Material | AR400 High-Strength Steel |
| Mulcher Rings | Yes |
| Bite Limiting Rotor | Yes |
| Relief Valve Protection | Yes |
| Case Drain Required | Yes (with vent-to-atmosphere) |
| Replaceable Wear Plates | Yes |
| Unit Weight | 2,925 lbs |
| Grease Fittings | External, tool-free |
| Root Rake Teeth | Yes (Replaceable) |
| Chain Curtain | 3/8" Rear Chain |
| Hose Management | Clamp + Movable Cover |
Comparison Chart
| Feature | MX230 | MX330 |
|---|---|---|
| Baumalight Connection Code | A02 | A02 |
| Path Width | 38" | 38" |
| Rotor Width | 30" | 30" |
| Min Tracked Excavator Ton | 2 | 3 |
| Min Wheeled Excavator Ton | 4 | 5 |
| Max Tracked Excavator Ton | 6 | 8 |
| Max Wheeled Excavator Ton | 8 | 10 |
| Cutting Depth | Level | Level |
| Holder Style | Swing | Fixed |
| Cutting Style | Flail | High Speed Teeth |
| Tooth Part Number | F2000 | H3000 |
| Number of Cutters | 22 | 36 |
| Rotor Shaft Size | 1.5" | 2" |
| Rotor Diameter (Tool Tips) | 17.25" | 15" |
| Rotor Weight (with Tools) | 125 lbs | 175 lbs |
| No. of Motors | 1 | 1 |
| Case Drain | Not Important | Not Important |
| Unit Weight | 500 lbs | 750 lbs |
| Feature | MX530 | MX530R |
|---|---|---|
| Baumalight Connection Code | A02 | A02 |
| Path Width | 40" | 40" |
| Rotor Width | 30" | 30" |
| Min Tracked Excavator Ton | 4 | 4 |
| Min Wheeled Excavator Ton | 6 | 6 |
| Max Tracked Excavator Ton | 12 | 12 |
| Max Wheeled Excavator Ton | 14 | 14 |
| Cutting Depth | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade |
| Holder Style | Fixed | Fixed |
| Cutting Style | Carbide Tipped Bolt In | Carbide Tipped Bolt In |
| Tooth Part Number | P5000 | P5000 |
| Number of Cutters | 44 | 44 |
| Rotor Shaft Size | 2" | 2" |
| Rotor Diameter (Tool Tips) | 15" | 15" |
| Rotor Weight (with Tools) | 300 lbs | 300 lbs |
| No. of Motors | 1 | 1 |
| Case Drain | See Motor Options | See Motor Options |
| Unit Weight | 1036 lbs | 1166 lbs |
| Feature | MX548R | MX948R |
|---|---|---|
| Baumalight Connection Code | A03 | A03 |
| Path Width | 62" | 70" |
| Rotor Width | 48" | 48" |
| Min Tracked Excavator Ton | 8.5 | 12 |
| Min Wheeled Excavator Ton | 10 | 15 |
| Max Tracked Excavator Ton | 20 | 30 |
| Max Wheeled Excavator Ton | 22 | 33 |
| Cutting Depth | 1.5" Above to 1" Below Grade | Level |
| Holder Style | Fixed | Fixed |
| Cutting Style | Carbide Tipped Bolt In | Double Tipped Carbide |
| Tooth Part Number | P5000 | R9000 |
| Number of Cutters | 72 | 27 |
| Rotor Shaft Size | 2" | 2" |
| Rotor Diameter (Tool Tips) | 15" | 18.5" |
| Rotor Weight (with Tools) | 408 lbs | 617 lbs |
| No. of Motors | 1 | 1 |
| Case Drain | Critical | Critical |
| Unit Weight | 2167 lbs | 2838 lbs |
| Feature | MX960R | MX1160R |
|---|---|---|
| Baumalight Connection Code | A03 | A03 |
| Path Width | 90" | 90" |
| Rotor Width | 60" | 60" |
| Min Tracked Excavator Ton | 18 | 18 |
| Min Wheeled Excavator Ton | 21 | 21 |
| Max Tracked Excavator Ton | 33 | 33 |
| Max Wheeled Excavator Ton | 36 | 36 |
| Cutting Depth | Level | Level |
| Holder Style | Fixed | Fixed |
| Cutting Style | Double Tipped Carbide | Sharpenable Planer Teeth |
| Tooth Part Number | R9000 | P11000 |
| Number of Cutters | 38 | 31 |
| Rotor Shaft Size | 2" | 2" |
| Rotor Diameter (Tool Tips) | 18.5" | 18.5" |
| Rotor Weight (with Tools) | 860 lbs | 872 lbs |
| No. of Motors | 1 | 1 |
| Case Drain | Critical | Critical |
| Unit Weight | 2910 lbs | 2925 lbs |
