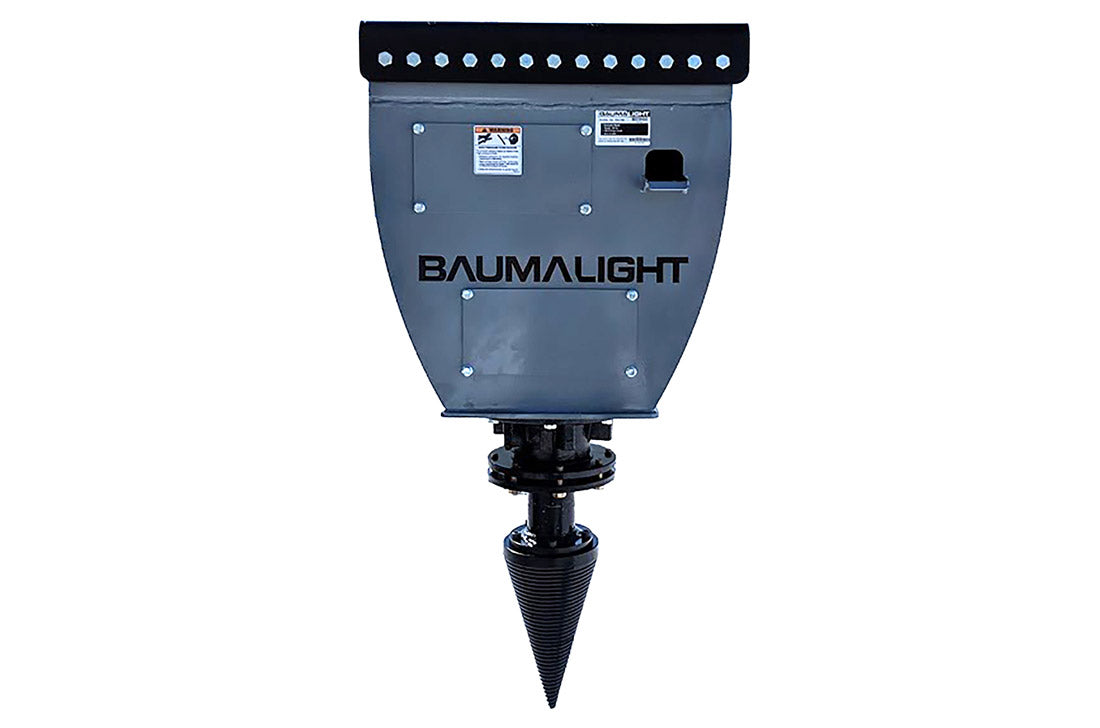

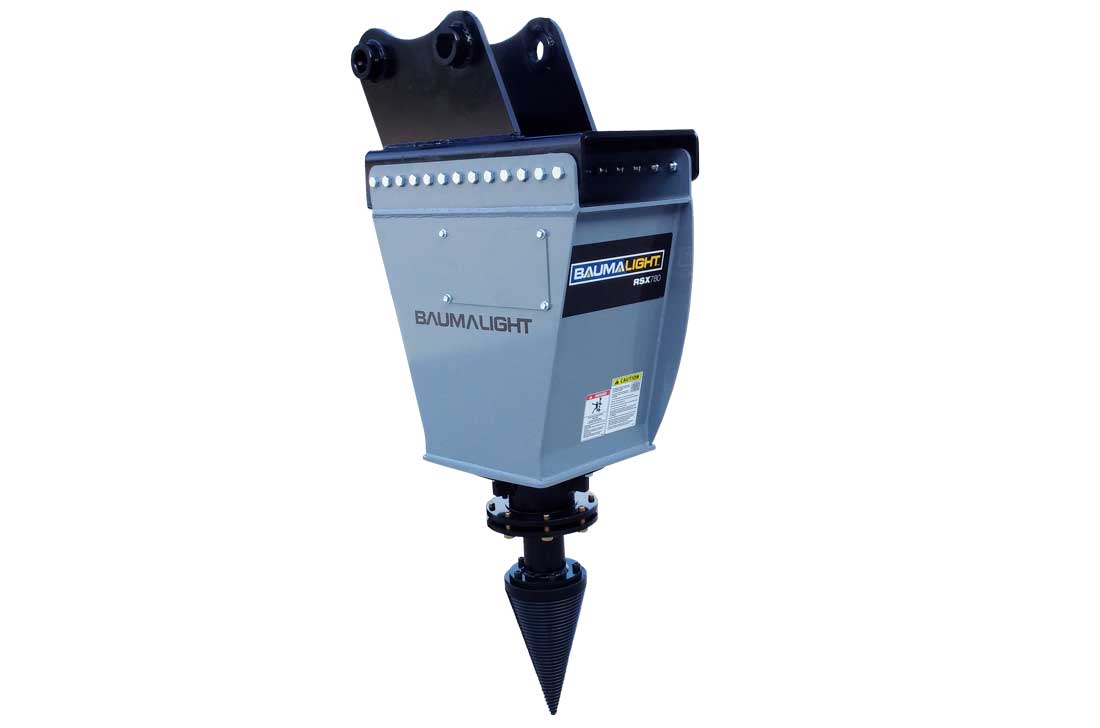

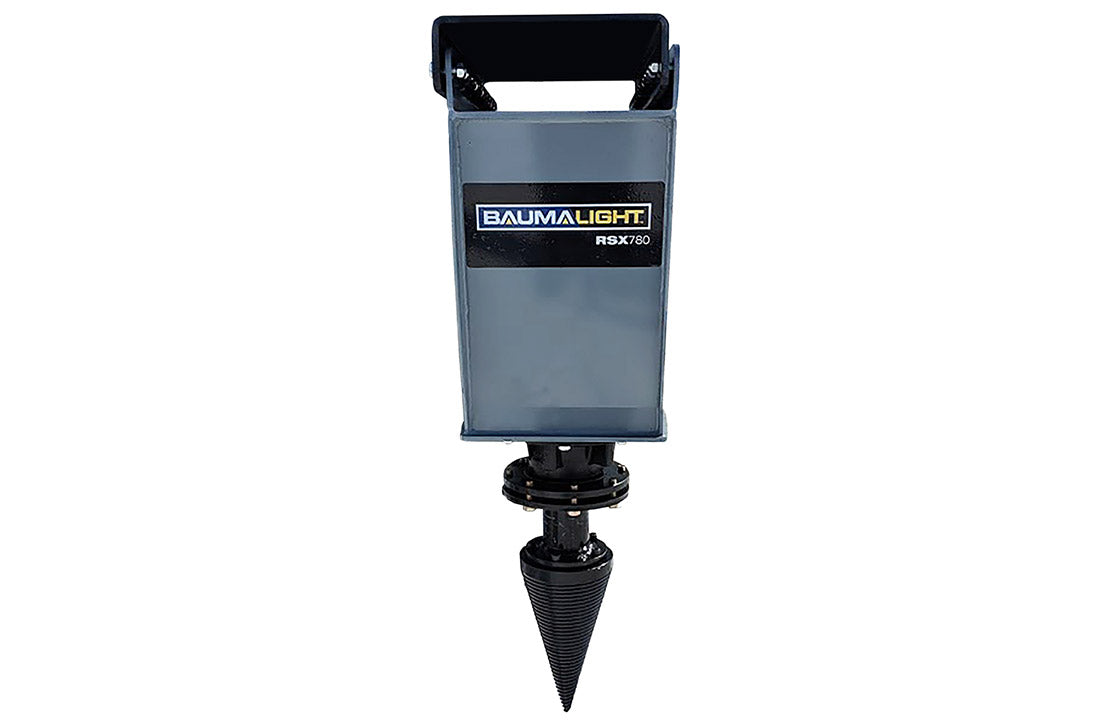

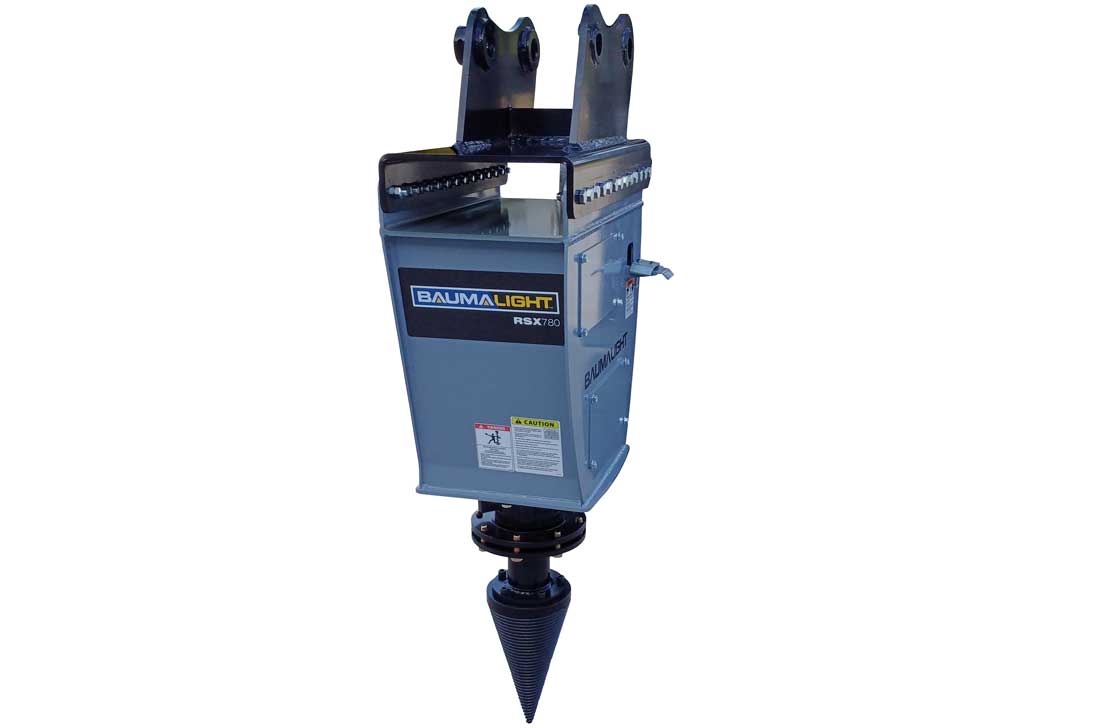

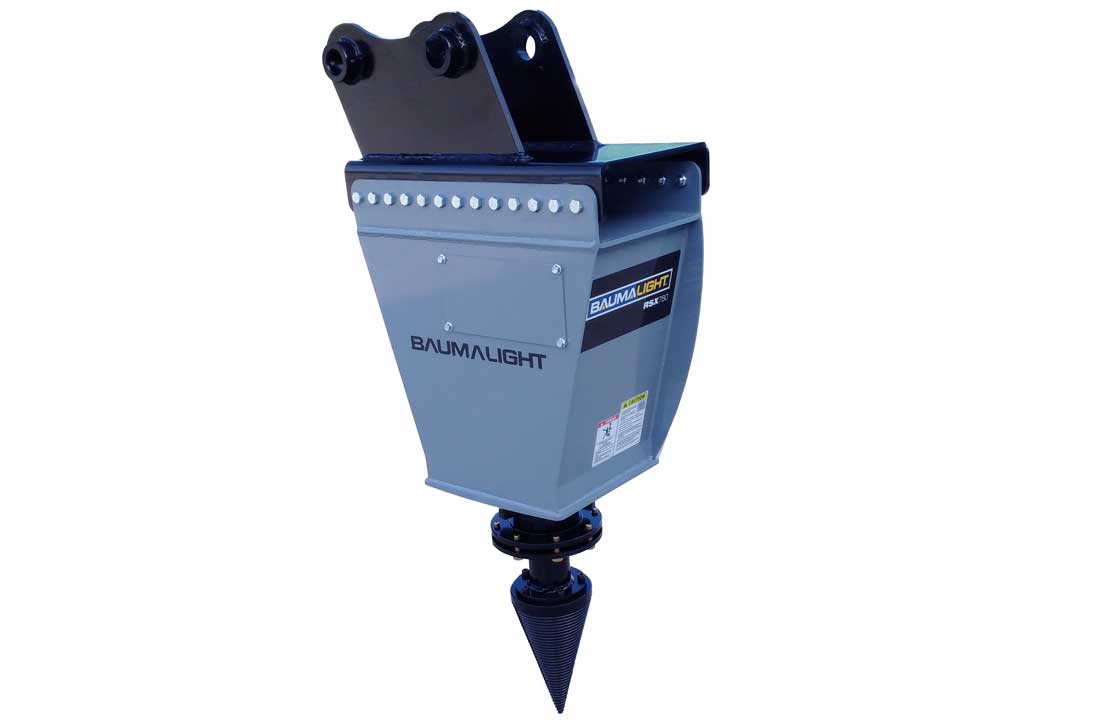

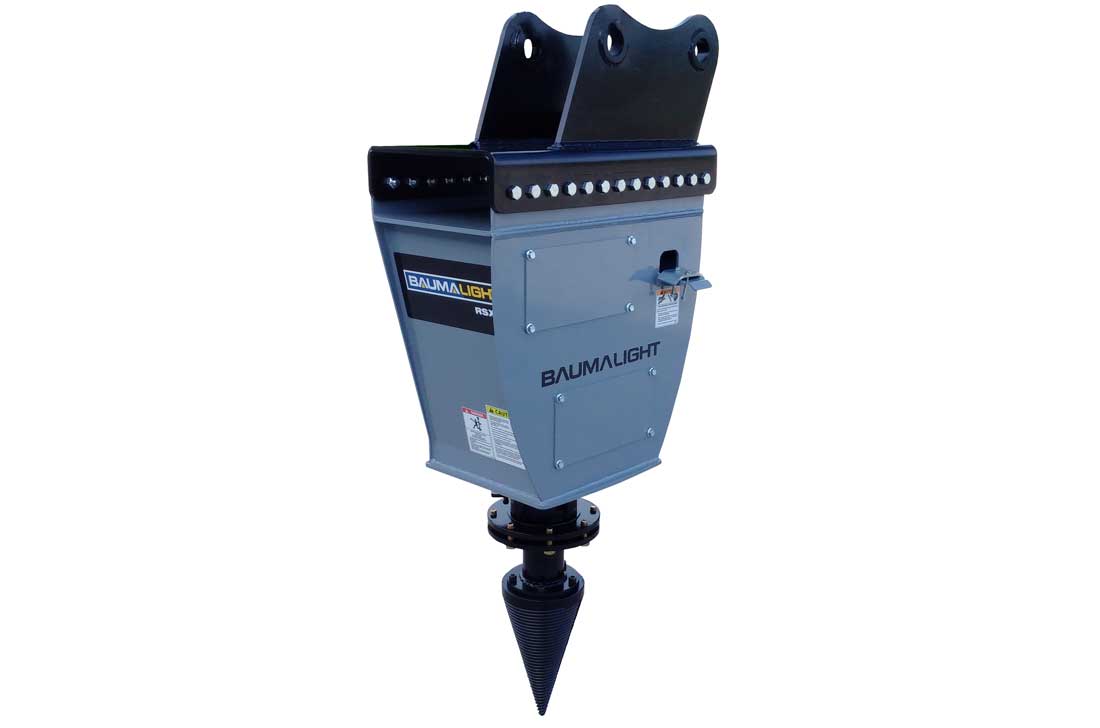

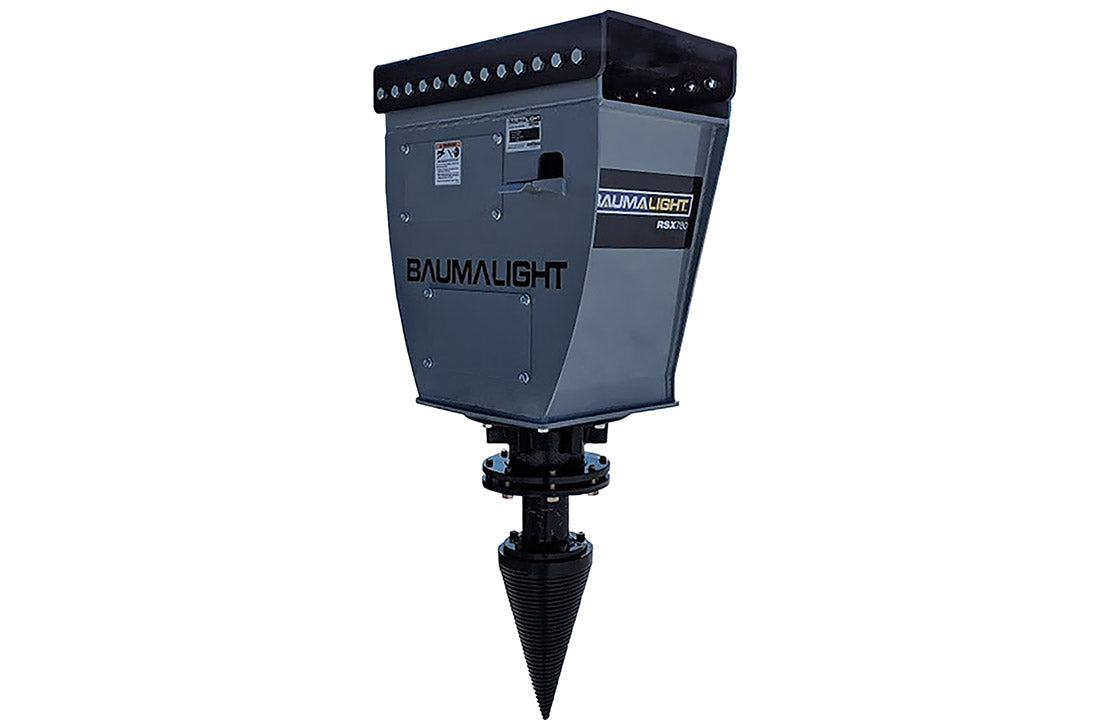

Baumalight Log Splitter | Model RSX780 | Diameter 18" | Machine Size 10-20 Tons | For Excavators

Product Description

Baumalight Log Splitter | Model RSX780 | Diameter 18" | Machine Size 10-20 Tons | For Excavators

DESCRIPTION

Splinter’s Log Splitter tool can split pieces of wood and logs up to 12 feet or even 20 ft long. The RSX models are designed with a bolt on excavator mount, the log splitter’s power comes from the hydraulically-driven motor mounting on a planetary drive, delivering a high amount of torque to the splitting head. The bit’s bite comes from machining two helical spirals machined into two pieces of steel. The two spirals join at the hardened tip for easy boring into the log. Driven on a 2” hex shaft or flange mount with an integrated shield that protects the drive from the rigors of splitting wood, the Log Splitter tool can tear into logs either horizontally or vertically.

Key Features

• Recommended Excavator Size: 10–20 Tons – Compatible with mid-range carriers for versatile use.
• 8-Bolt Flange Splitter Tool – Heavy-duty design with 14×8 splitter cone for secure log engagement.
• Splitter Cone Dimensions – ~18″ diameter × 14″ length for effective penetration and splitting.
• Splitting Capacity – Handles logs up to 20 ft long, ideal for large-scale operations.
• Bolt-On Adaptor Type – Easy installation and secure fit to carrier.
• Hydraulic Flow Requirement – Operates efficiently with 20–55 GPM (Max 65 GPM).
• Operating Pressure – Designed for 2,500–4,500 PSI (Max 5,000 PSI) for powerful performance.
• Planetary Drive System – Provides high torque output up to 3,800 ft/lbs for demanding tasks.
• Max Carrier Weight – 18 tons (planer) / 20 tons (splitter) for safe and efficient operation.
• No Hoses Included – Allows customization to match specific hydraulic setups.
• Durable Construction – Reinforced cone and drive system built for long service life.
• Versatile Applications – Ideal for log splitting and heavy-duty wood processing in forestry and land management.

Detailed Specifications

Manuals & Documents

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!

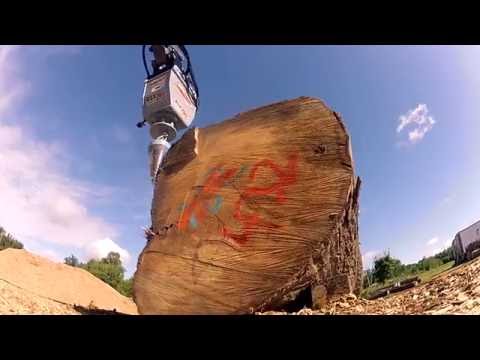

Videos
