Baumalight Mini Dumper | Model DT515RH | Tracked | 22.1 HP Honda GX690 | 0.5 yd³ Liquid Capacity | 35.8" Width

Baumalight Mini Dumper | Model DT515RH | Tracked | 22.1 HP Honda GX690 | 0.5 yd³ Liquid Capacity | 35.8" Width

Regular price $21,700.00
Regular price Sale price $21,700.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Engine Power: 22.1 HP Honda GX690 gasoline engine.

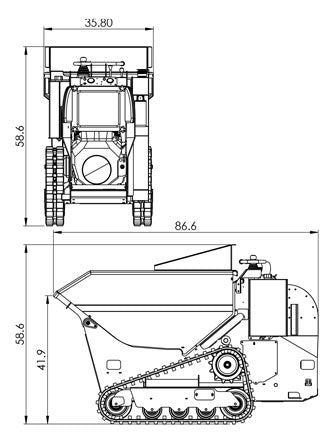

  • Machine Size: 35.8" W × 86.6" L × 58.6" H.
  • Operating Weight: 2,456 lbs for tracked configuration.
  • Bucket Capacity: 0.9 yd³ heaped material capacity.

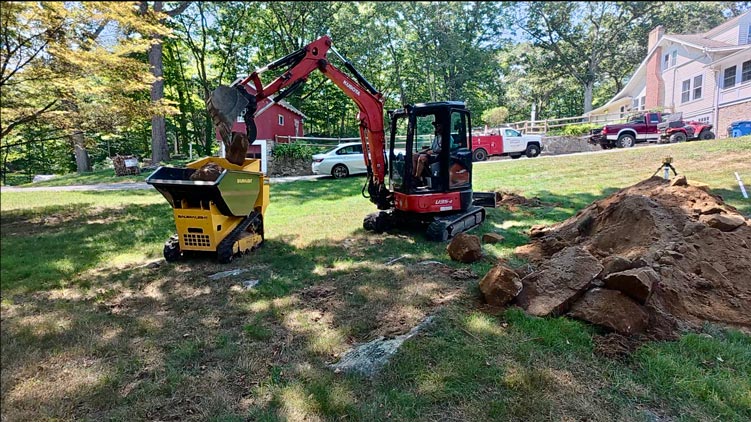

  • Intended Use: For landscaping, construction, fill, and debris.
View full details

Product Description

Baumalight Mini Dumper | Model DT515RH | Tracked | 22.1 HP Honda GX690 | 0.5 yd³ Liquid Capacity | 35.8" Width

DESCRIPTION

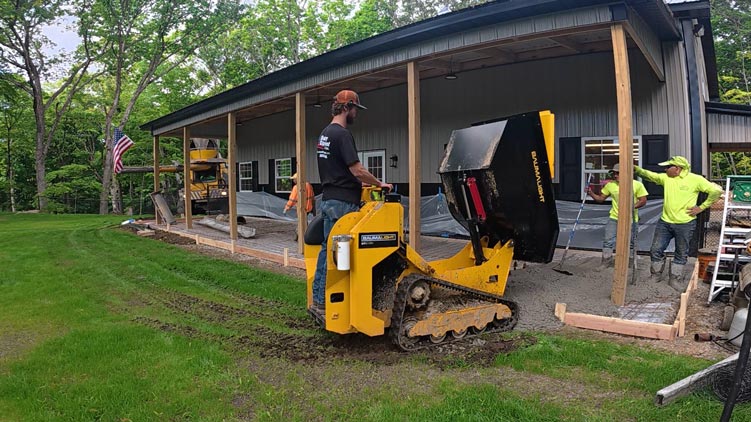

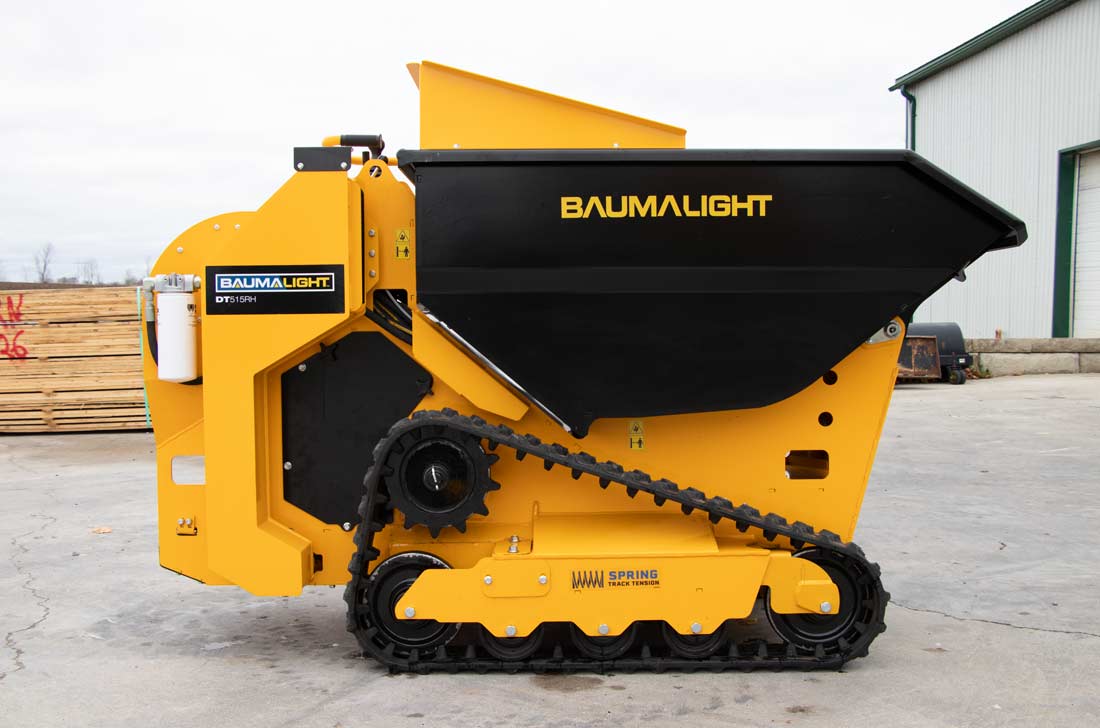

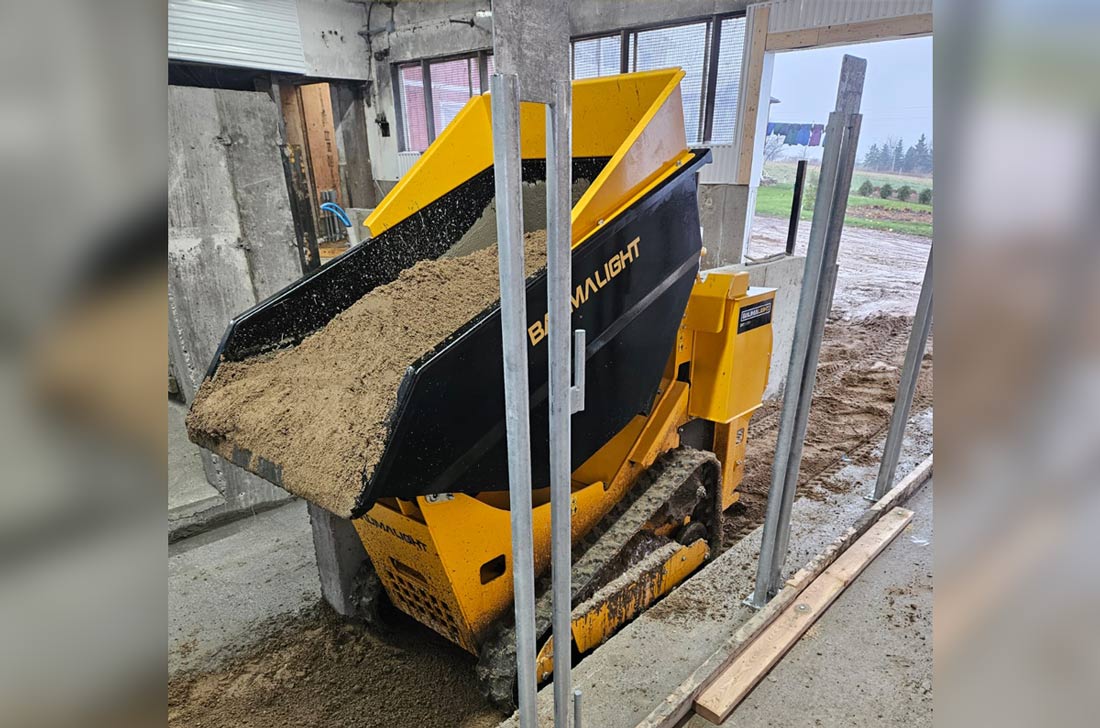

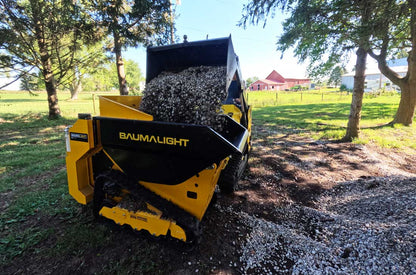

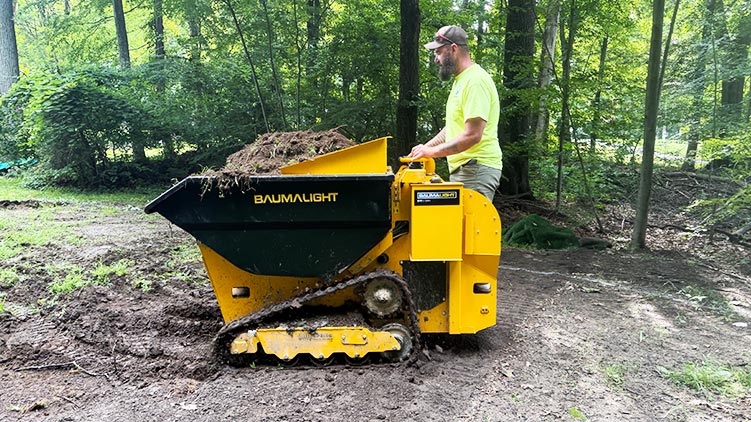

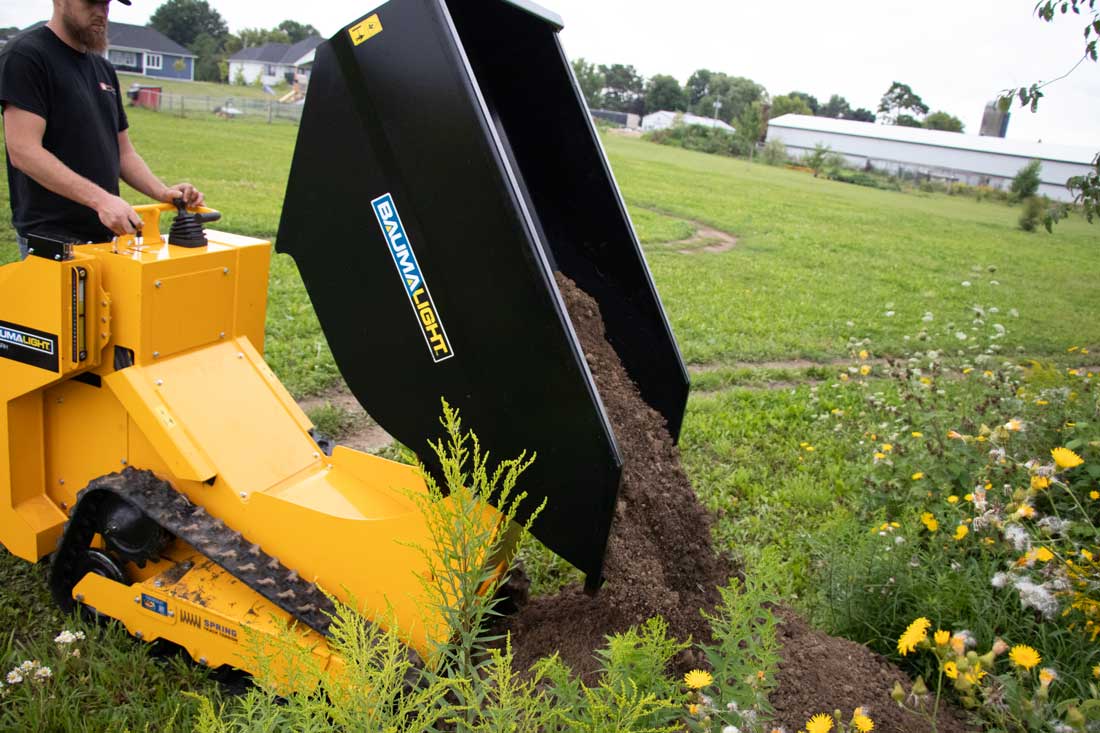

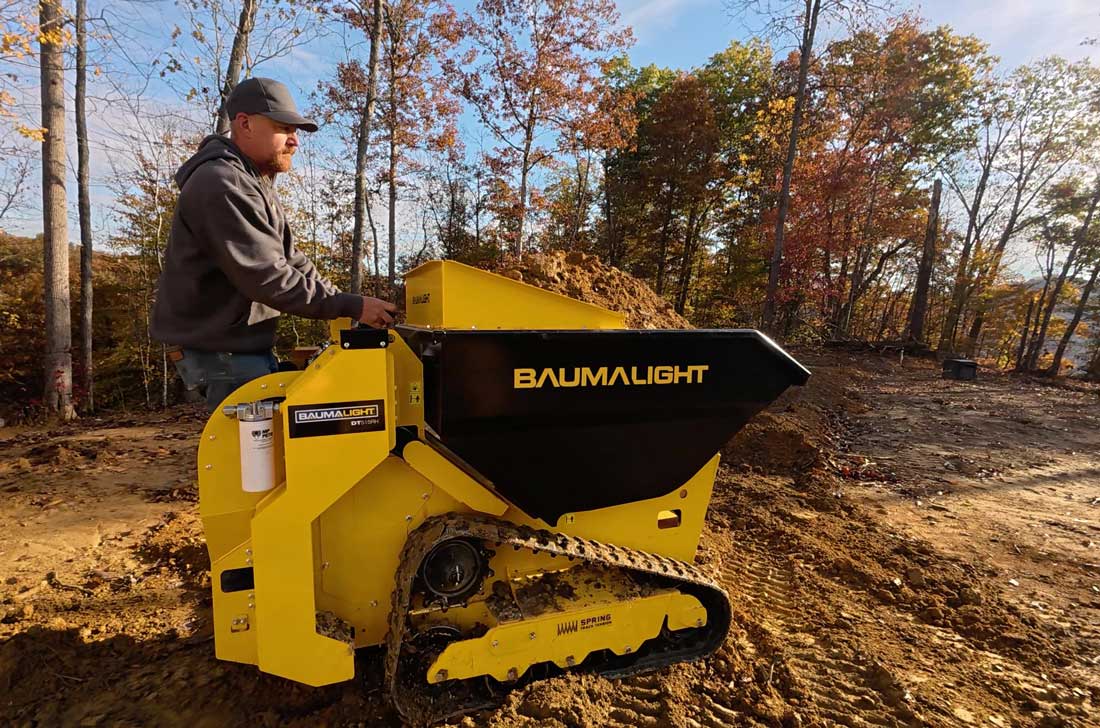

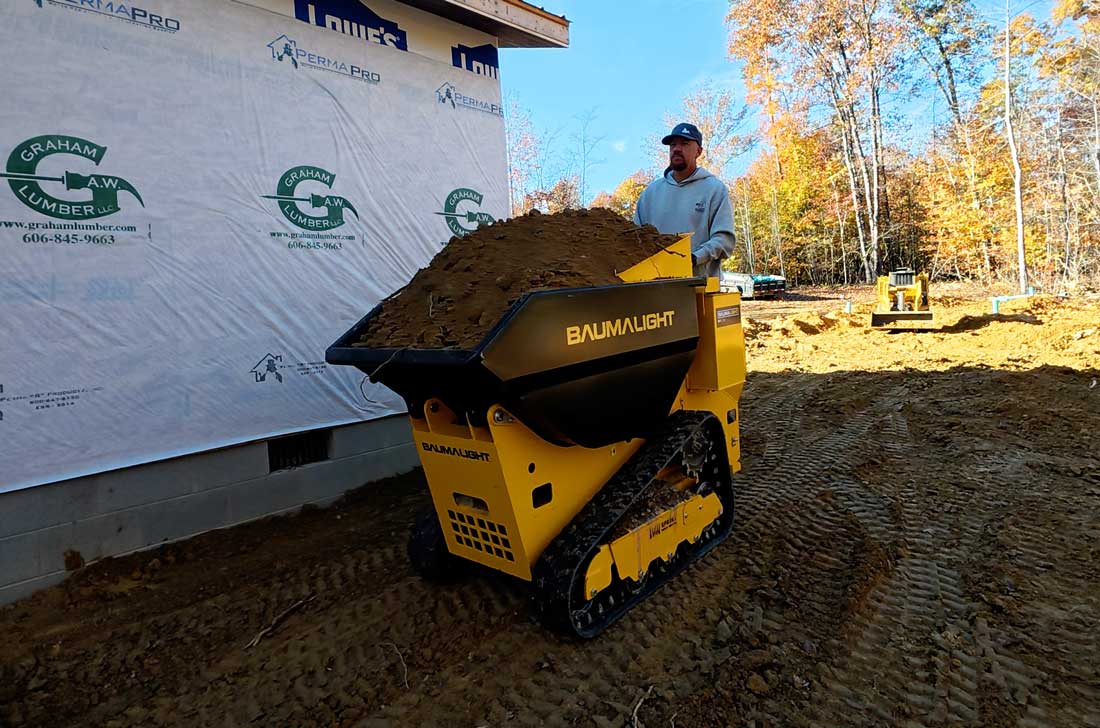

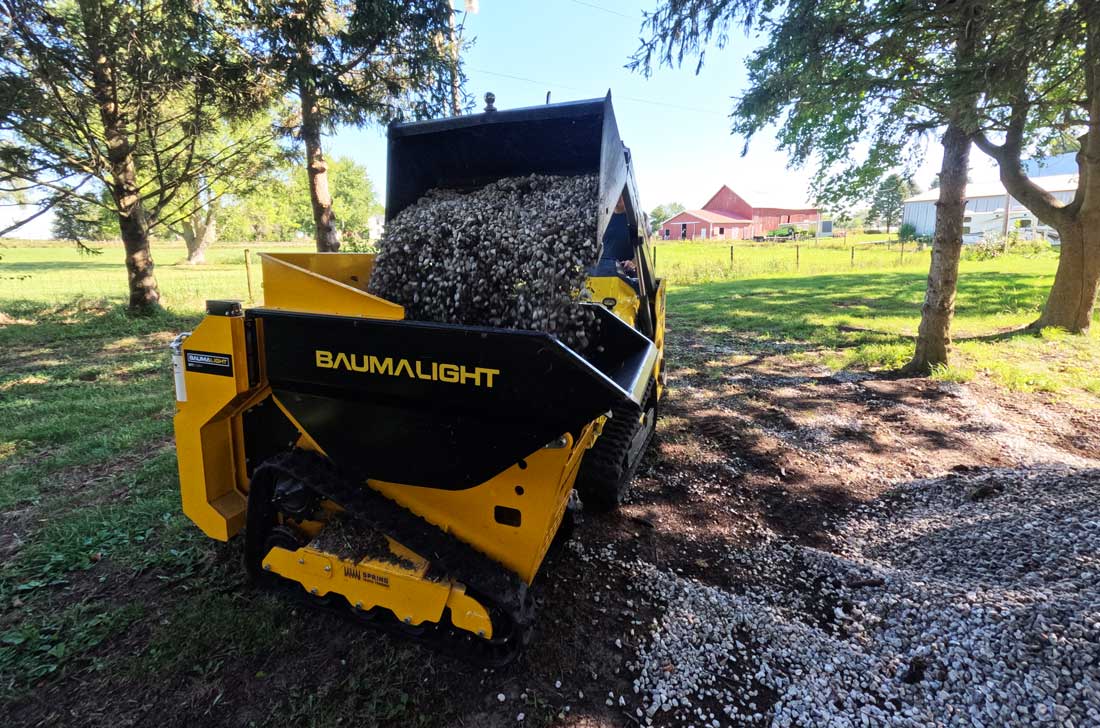

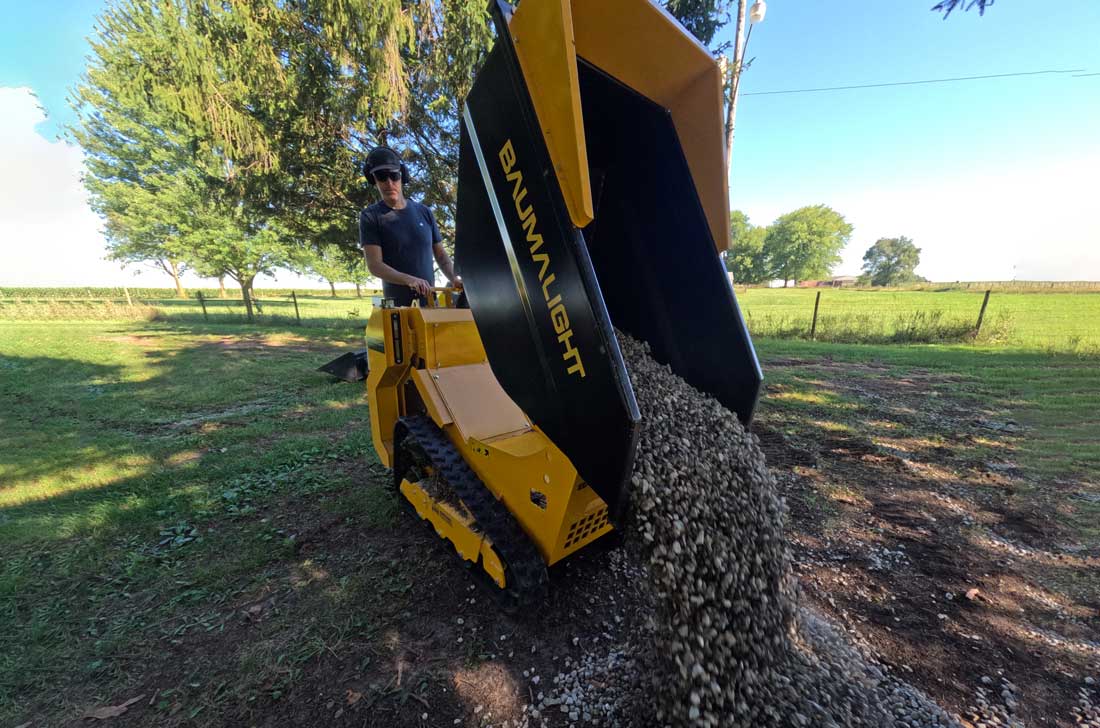

The Baumalight DT515RH Mini Tracked Dumper is a powerful, compact material-handling machine designed for landscaping, construction, debris removal, and demanding jobs in narrow spaces. Powered by a reliable 22.1 HP Honda GX690 gasoline engine, this self-propelled dumper delivers hydrostatic tracked drive and a travel speed of up to 7.84 km/h. Its heavy-duty 1/4" steel dump bucket provides excellent durability for moving fill, soil, gravel, and debris. The dual-piston hydraulic drive system independently powers both tracks for smooth maneuverability, while joystick controls allow simultaneous driving and bucket operation. A spring-cushioned front idler helps protect the undercarriage when encountering curbs and rocks. With 7.37" ground clearance, a 19 L fuel tank, three hydraulic pumps, greaseable pivot points, and a full stand-in operator compartment, the DT515RH combines power, durability, maneuverability, and serviceability for professional material handling.

Key Features

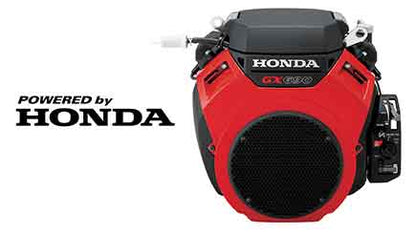

  • 22.1 HP Honda Engine Powered by a dependable Honda GX690 gasoline engine with 0.688 L displacement, delivering strong performance for demanding material-handling and landscaping applications.
  • Tracked Hydrostatic Drive The hydrostatic tracked drive system provides smooth propulsion and controlled maneuverability through tight work areas, uneven terrain, landscaping sites, and construction environments.

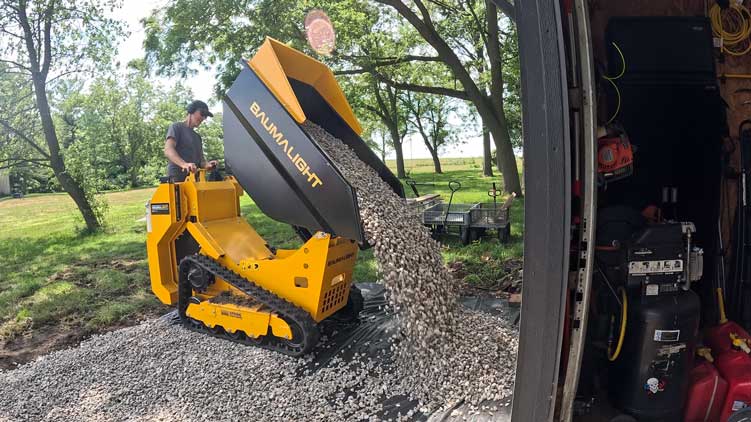

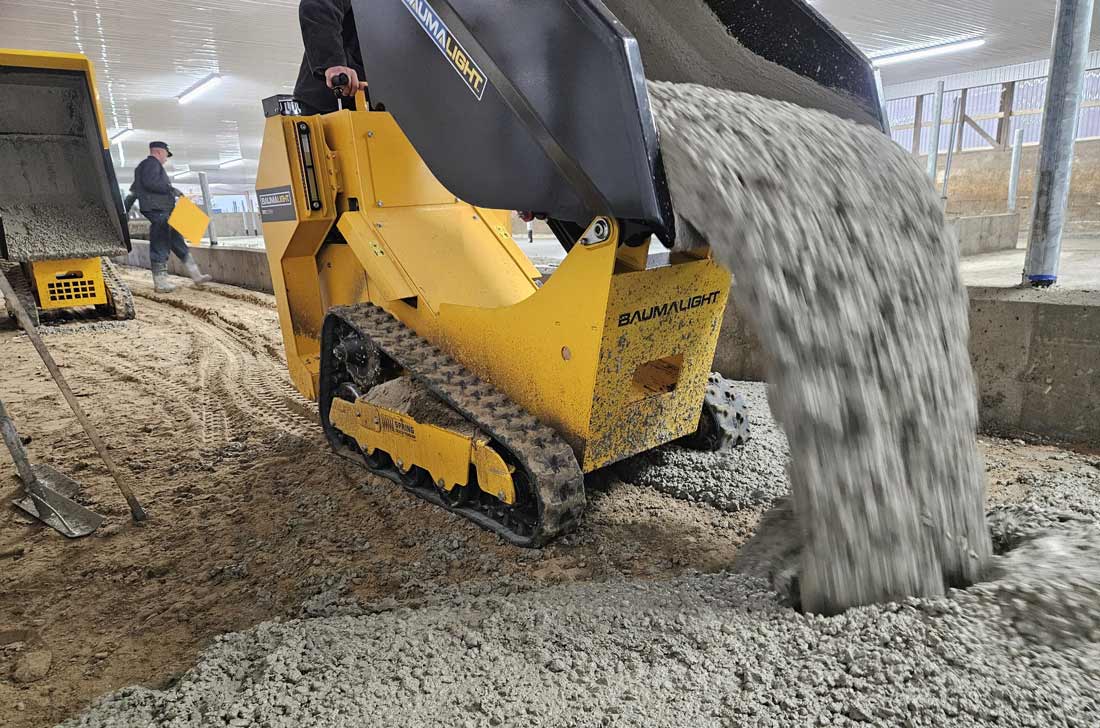

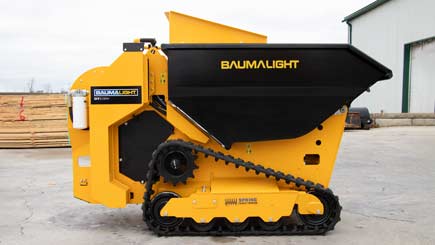

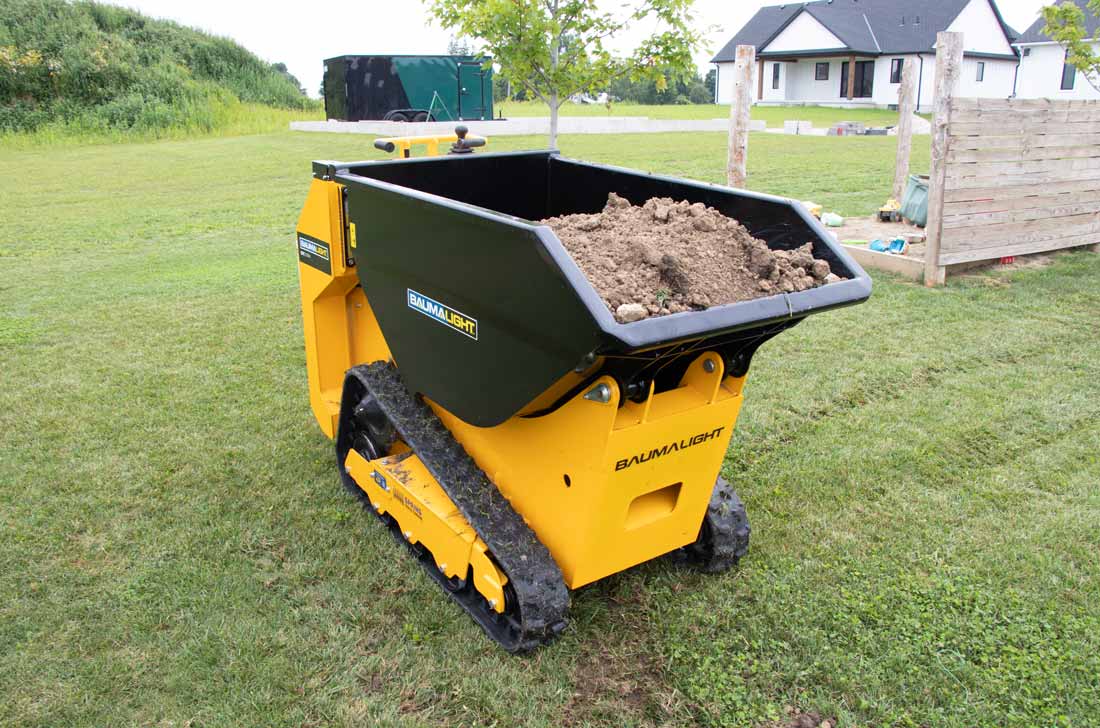

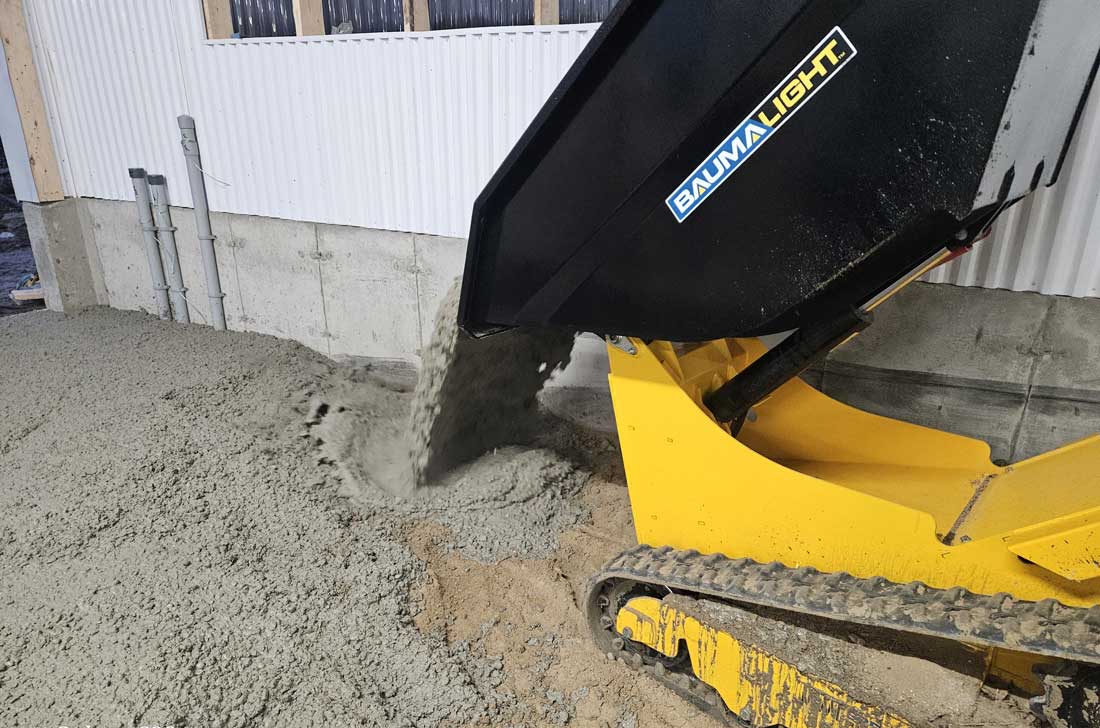

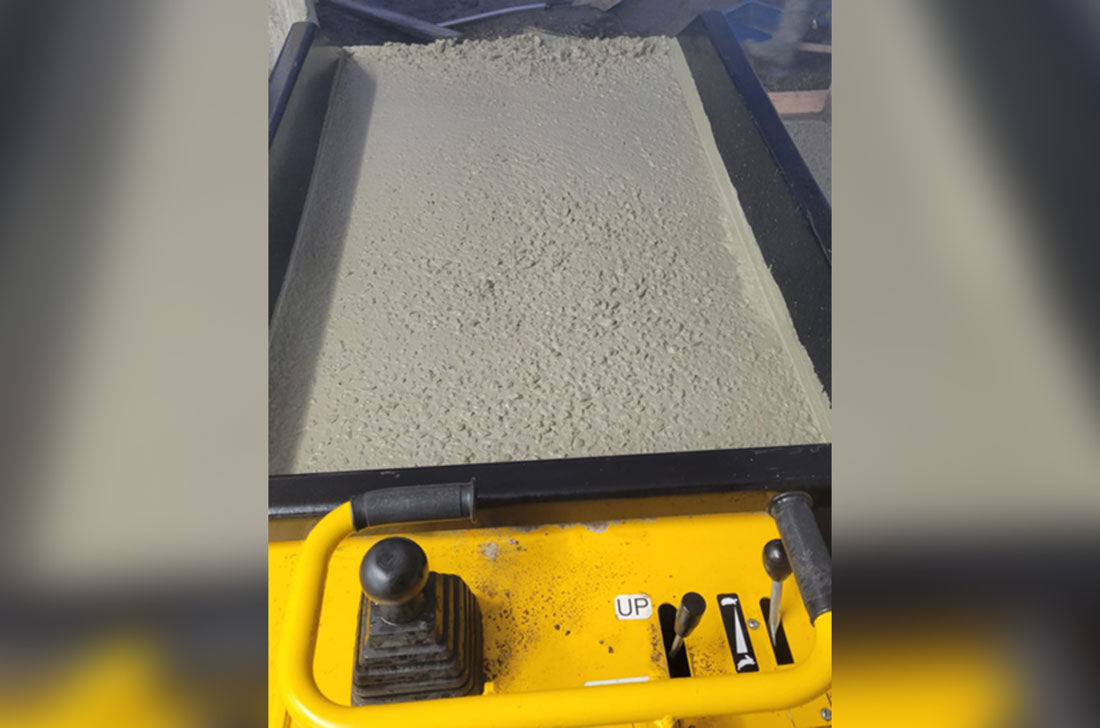

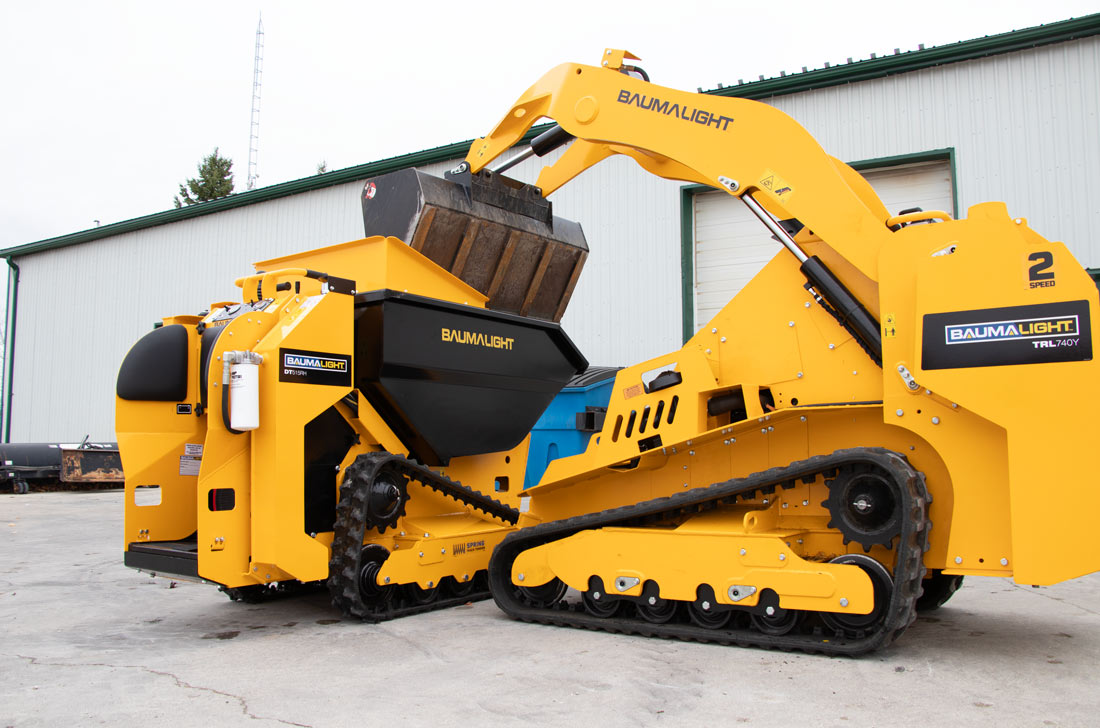

  • Heavy-Duty Steel Bucket Built with 1/4" thick steel plates, the dump bucket is engineered for durability when handling soil, gravel, fill material, debris, and other demanding loads.

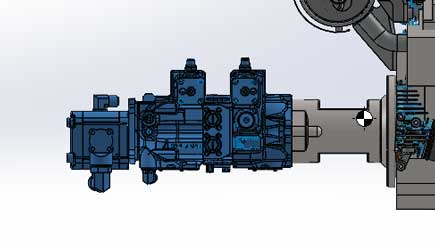

  • Dual-Piston Hydraulic Drive Dedicated hydraulic power drives both sides independently through a dual-piston hydraulic pump system, helping provide controlled movement and reliable traction.

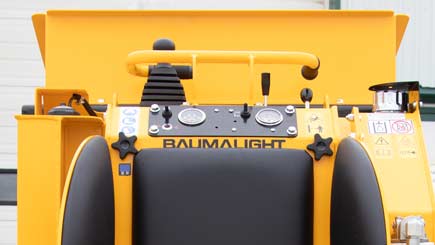

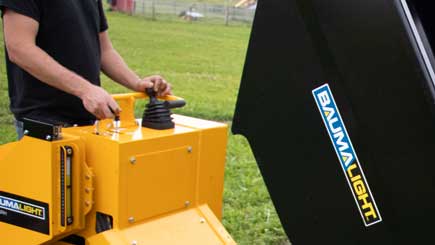

  • Joystick Drive Controls Convenient joystick controls allow the operator to manage machine travel and bucket functions smoothly, improving control during loading and material placement.

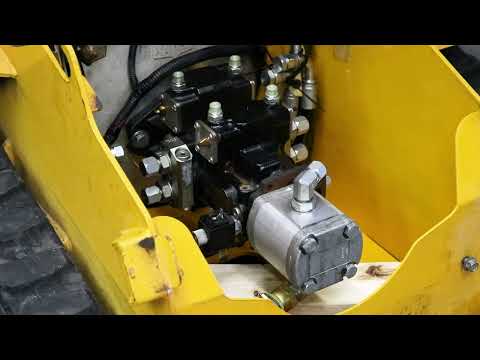

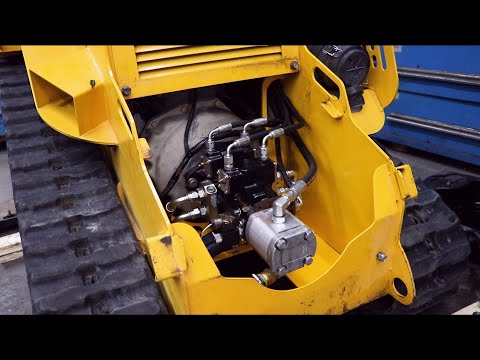

  • Three Hydraulic Pumps The machine features 3 hydraulic pumps, including a dedicated auxiliary pump for bucket operation, supporting efficient simultaneous driving and hydraulic functions.

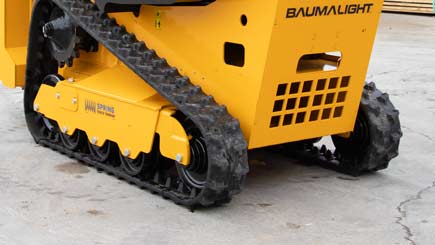

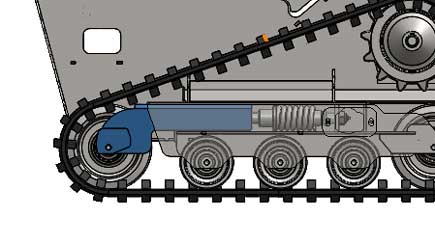

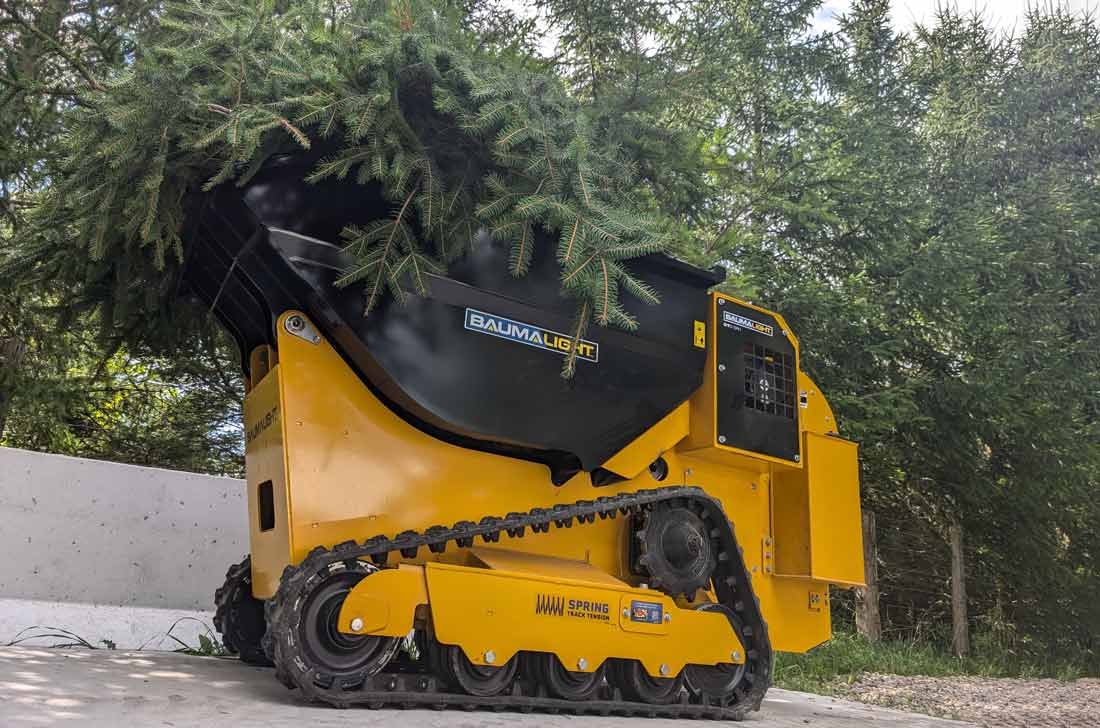

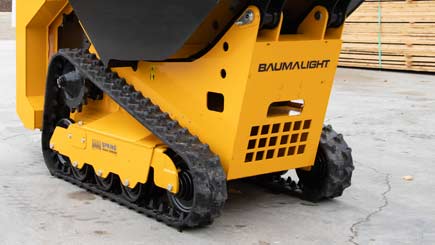

  • Spring-Cushioned Front Idler The spring-cushioned front idler helps absorb impacts when the tracks encounter curbs, rocks, and other obstacles, reducing stress on the undercarriage.
  • 7.37-Inch Ground Clearance Generous 7.37" ground clearance helps the tracked mini dumper navigate uneven surfaces and jobsite obstacles with reduced risk of bottoming out.

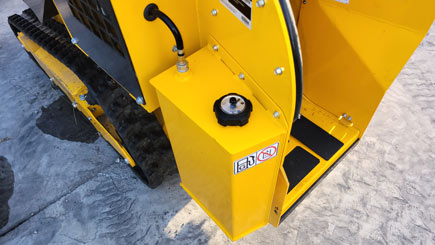

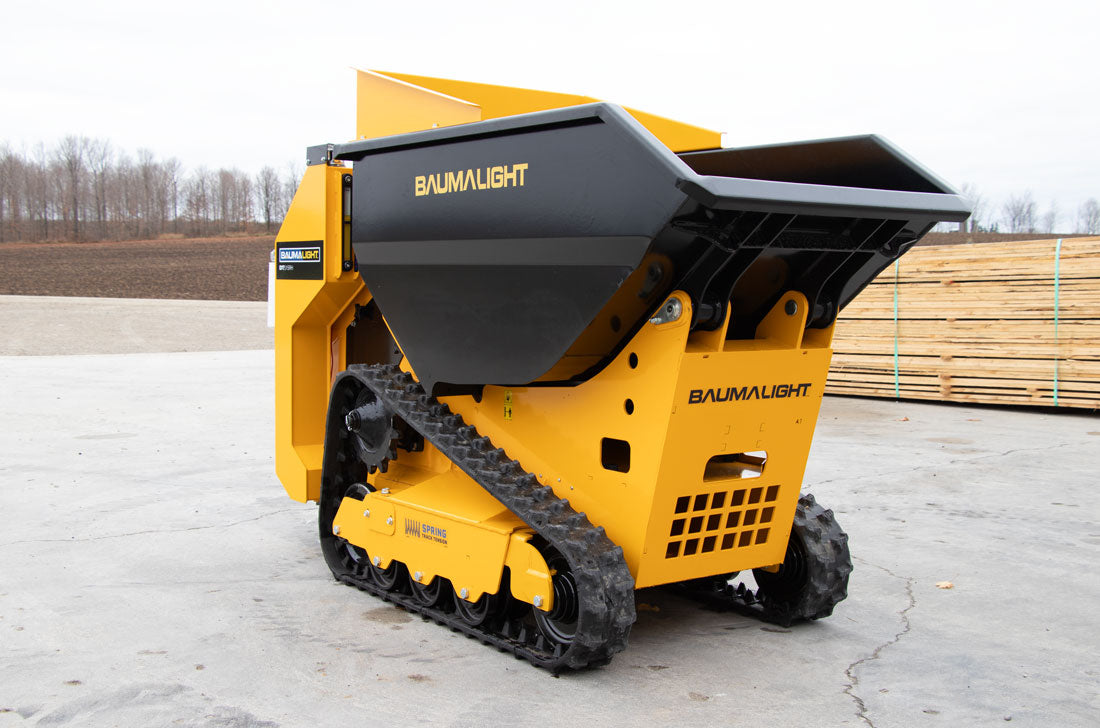

  • 19 L Fuel Tank The 19 L high-capacity fuel tank with an integrated fuel gauge supports longer working periods while making fuel level monitoring convenient.

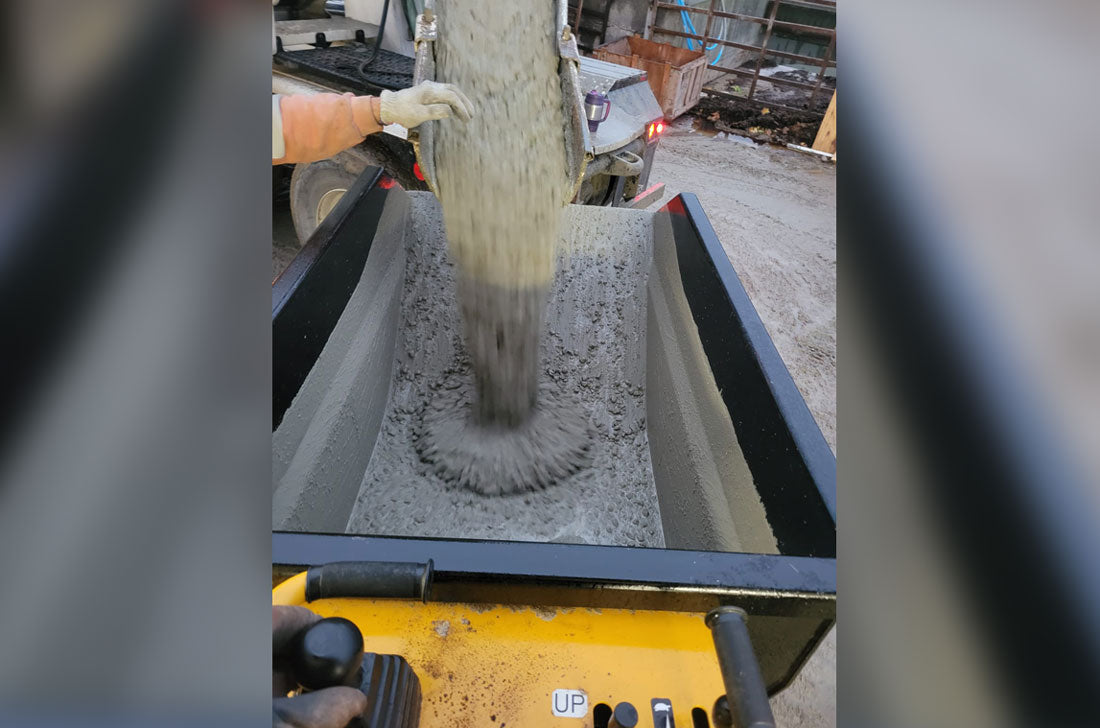

  • 0.5 yd³ Liquid Capacity The bucket provides a 0.5 cubic yard liquid capacity, making the DT515RH suitable for transporting a wide range of landscaping and construction materials.
  • 0.9 yd³ Heaped Capacity With up to 0.9 cubic yard heaped capacity, the dump bucket provides useful material volume for moving loose soil, debris, mulch, and fill.

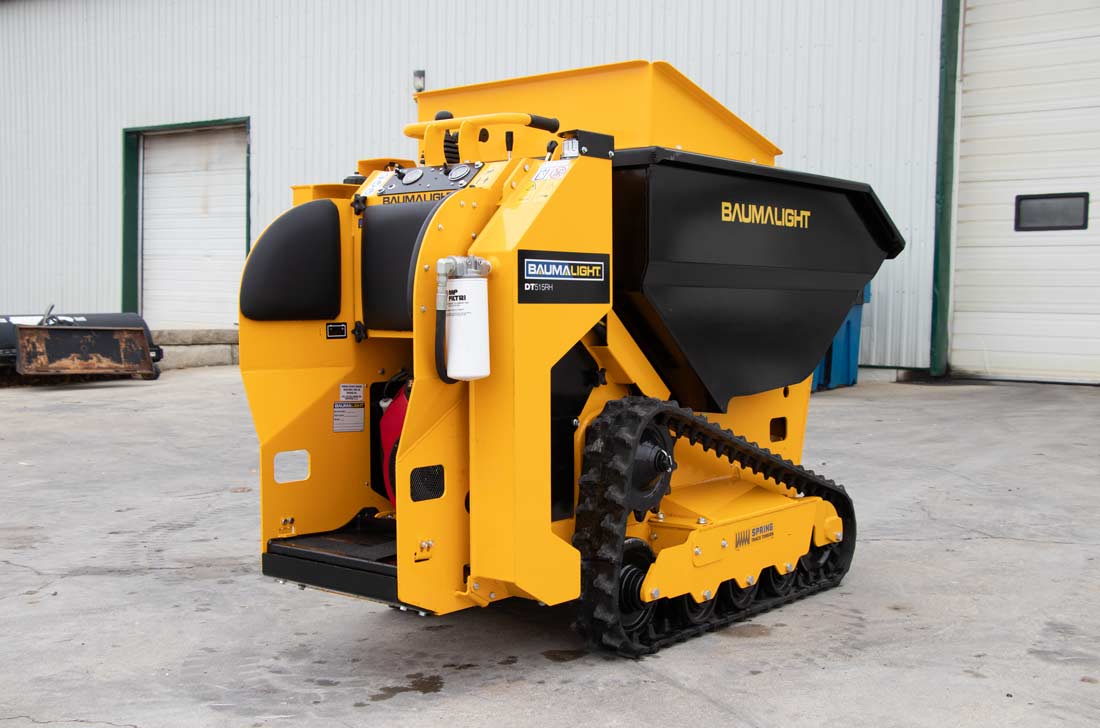

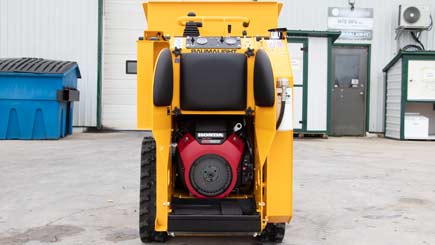

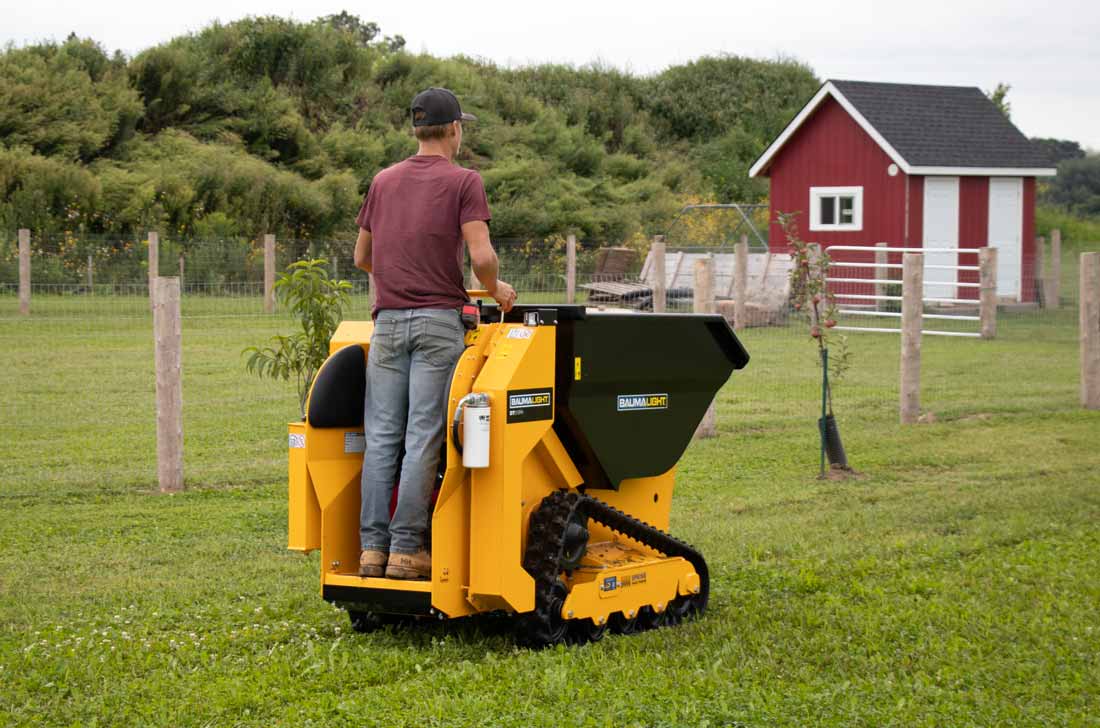

  • Full Stand-In Operator Area The full stand-in operator compartment provides practical operating space and easy access to controls for frequent material-handling tasks.

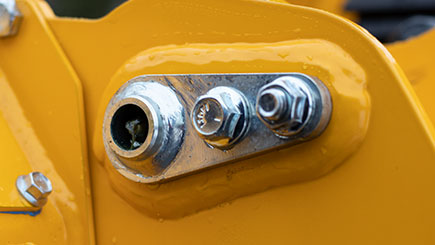

  • Greaseable Pivot Points Grease pins on all pivot points simplify routine maintenance, help reduce wear, and support long-term machine serviceability.

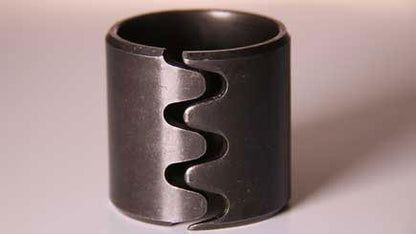

  • Hardened Steel Bushings High-grade chrome-vanadium AISI 6150 spring steel bushings are used on main pivot points to support durability in demanding operating conditions.

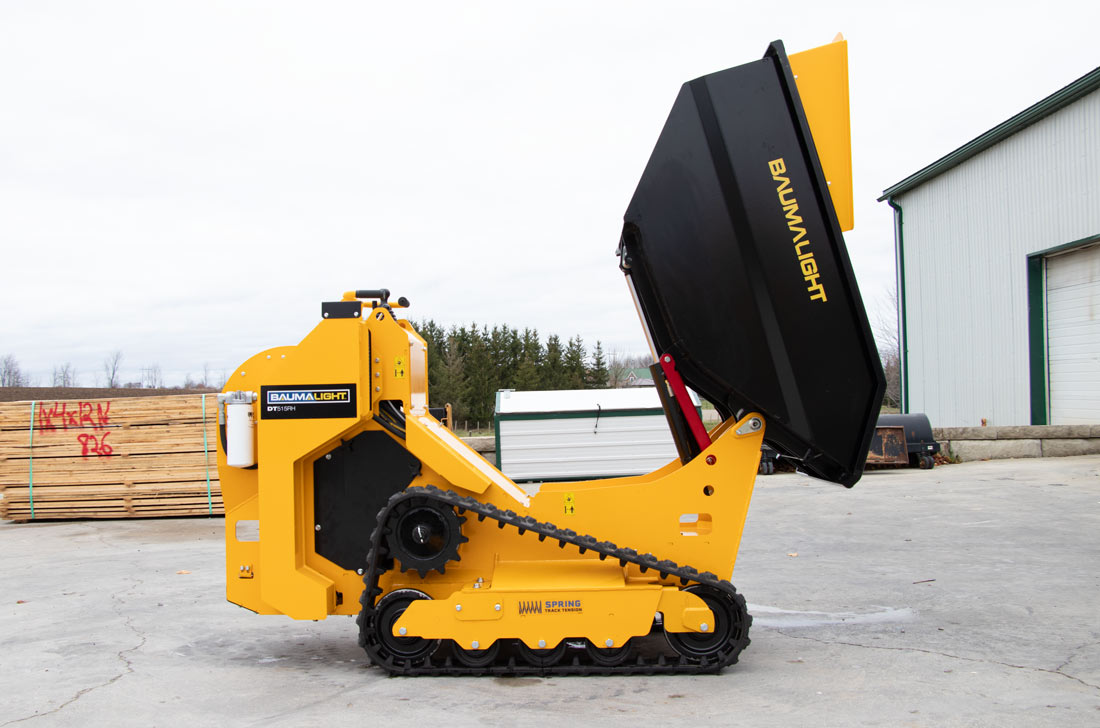

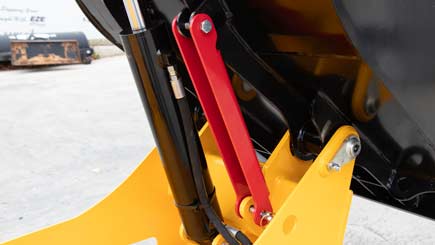

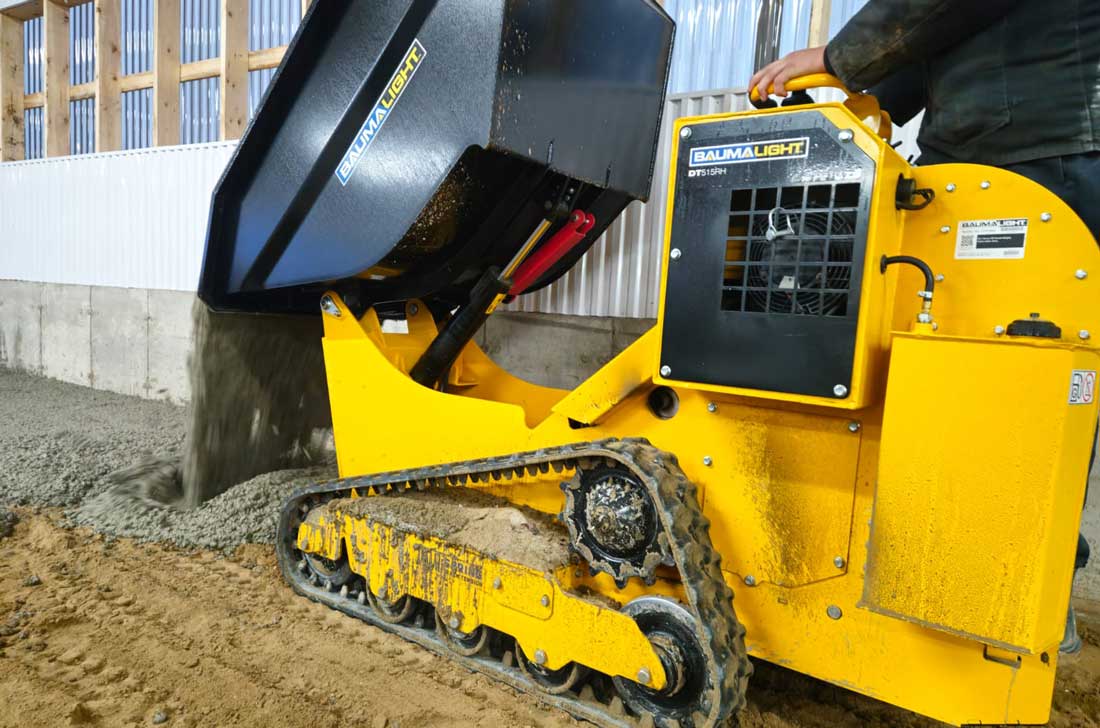

  • Bucket Safety Lock Bar The bucket safety lock bar secures the raised bucket during maintenance, providing an important mechanical safety feature when servicing beneath the bucket.

Detailed Specifications

Specification DT515RH Details
Brand Baumalight
Model DT515RH
Machine Type Self-Propelled Tracked Mini Dumper
Engine Brand Honda
Engine Model GX690
Engine Type Gasoline
Net Engine Power 22.1 HP
Engine Displacement 0.688 L
Drive Type Hydrostatic
Drive Control Joystick
Carriage Type Tracks
Track Size 150 x 72 x 45 mm
Travel Speed 7.84 km/h
Number of Hydraulic Pumps 3
Hydraulic Reservoir Capacity 25 L
Normal Bucket Capacity 0.55 m³ / 0.7 yd³
Heaped Bucket Capacity 0.66 m³ / 0.9 yd³
Liquid Bucket Capacity 0.38 m³ / 0.5 yd³

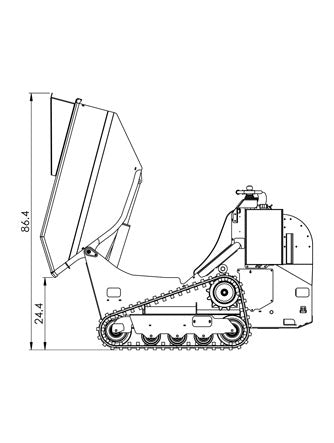

Bucket Tip Height 86.4"
Ground Clearance 7.37"
Overall Width 35.8"
Overall Length 86.6"
Overall Height 58.6"
Shipping Weight 2,456 lb
Bucket Construction 1/4" Thick Steel
Fuel Tank Capacity 19 L
Operator Compartment Full Stand-In
Front Idler Spring Cushioned
Pivot Point Bushings Hardened Chrome-Vanadium AISI 6150 Steel



Manuals & Documents

Product Manual

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

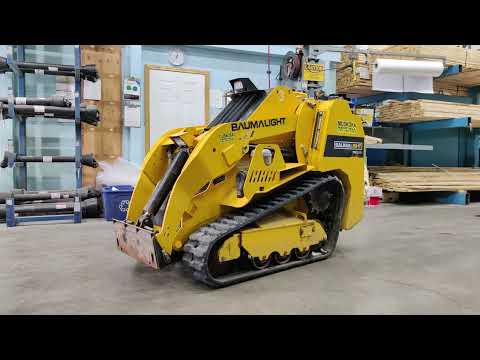

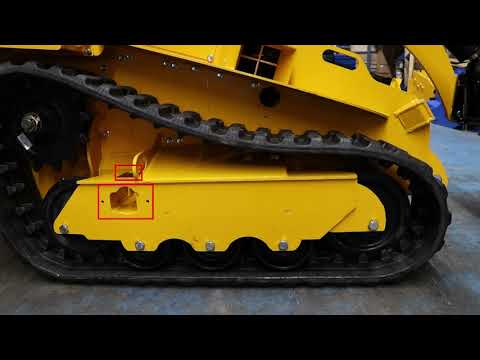

Videos
