Baumalight Rotary Brush Cutter | Model CXC-530 | Cutting Width 30" | Machine Size 3 To 11 Tons | For Excavators
DESCRIPTION

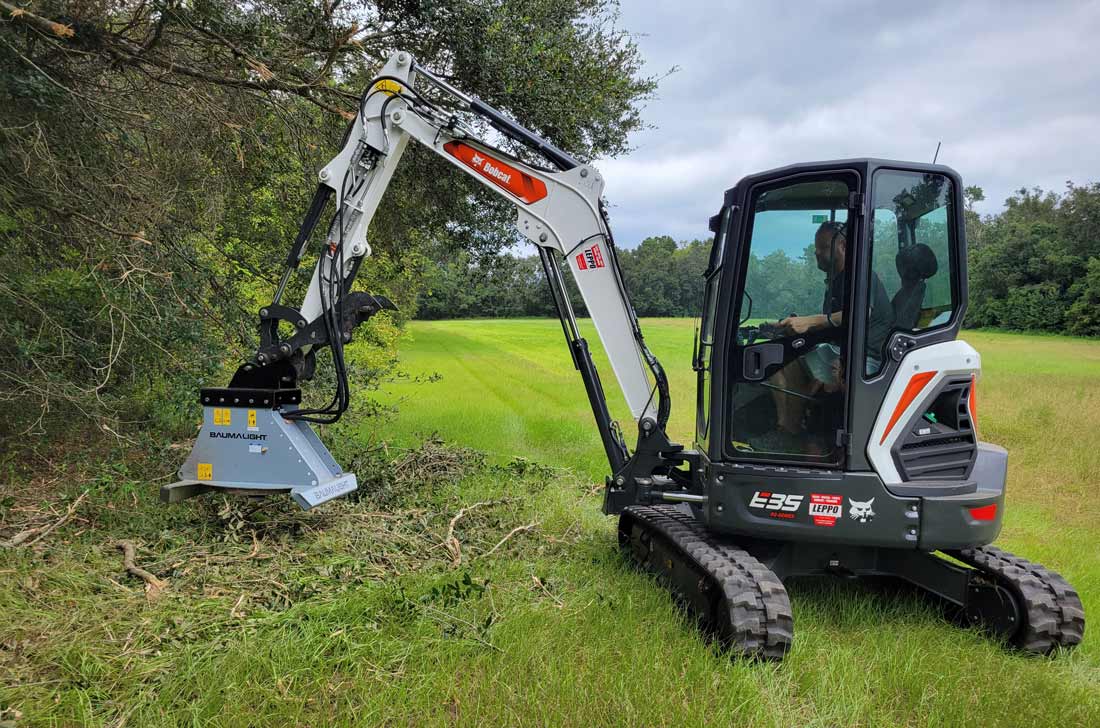

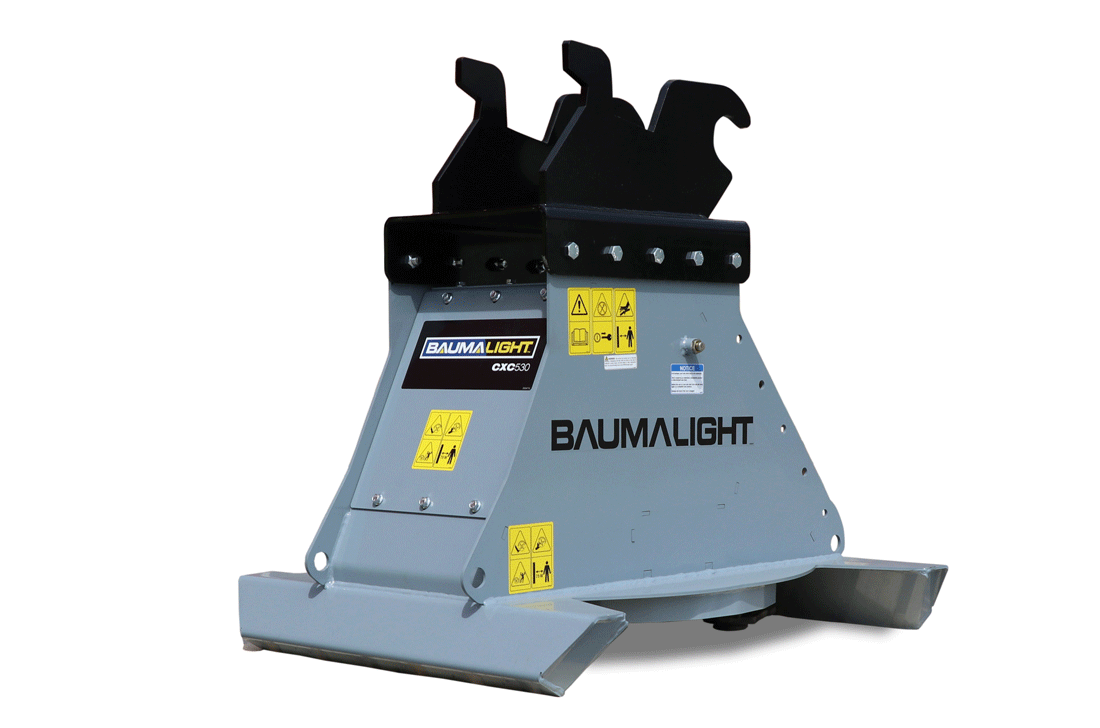

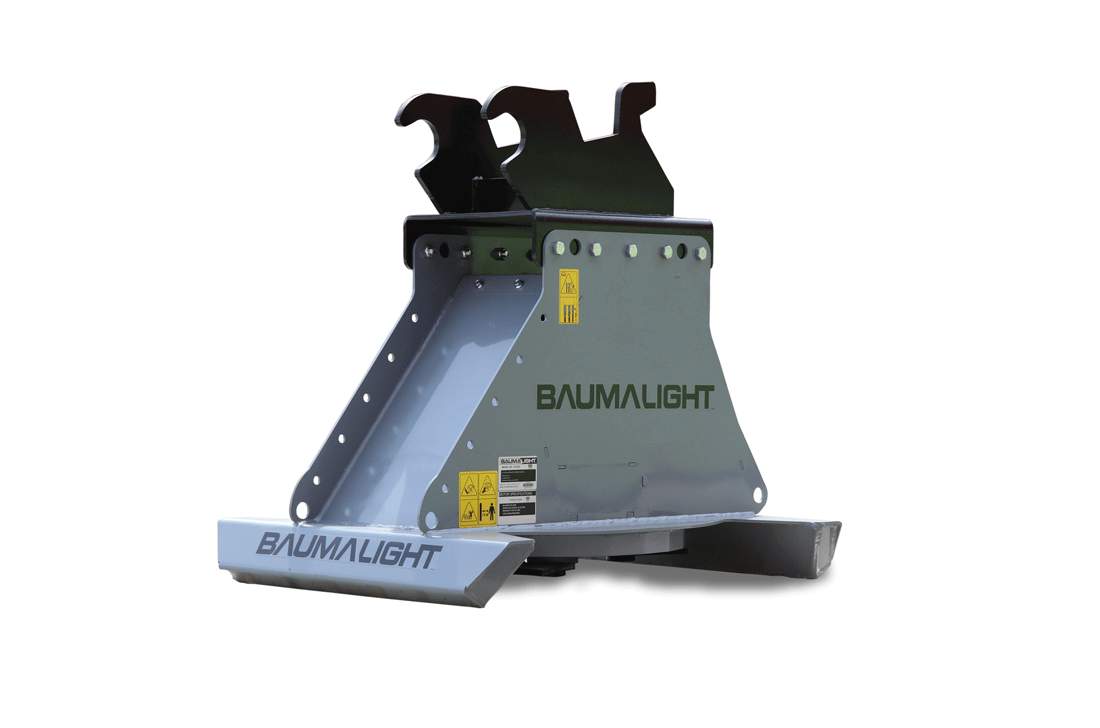

The Baumalight CXC530 Rotary Brush Cutter is a professional-grade land clearing attachment engineered for excavators from 3 to 11 tons. Compact yet powerful, this 30" cutter makes easy work of overgrown brush, small trees up to 3.5", and dense vegetation even in tight spaces where larger attachments can't reach. Whether you're clearing fence lines, reclaiming overgrown acreage, or managing roadside vegetation, the CXC530 delivers industry-leading performance with every pass.

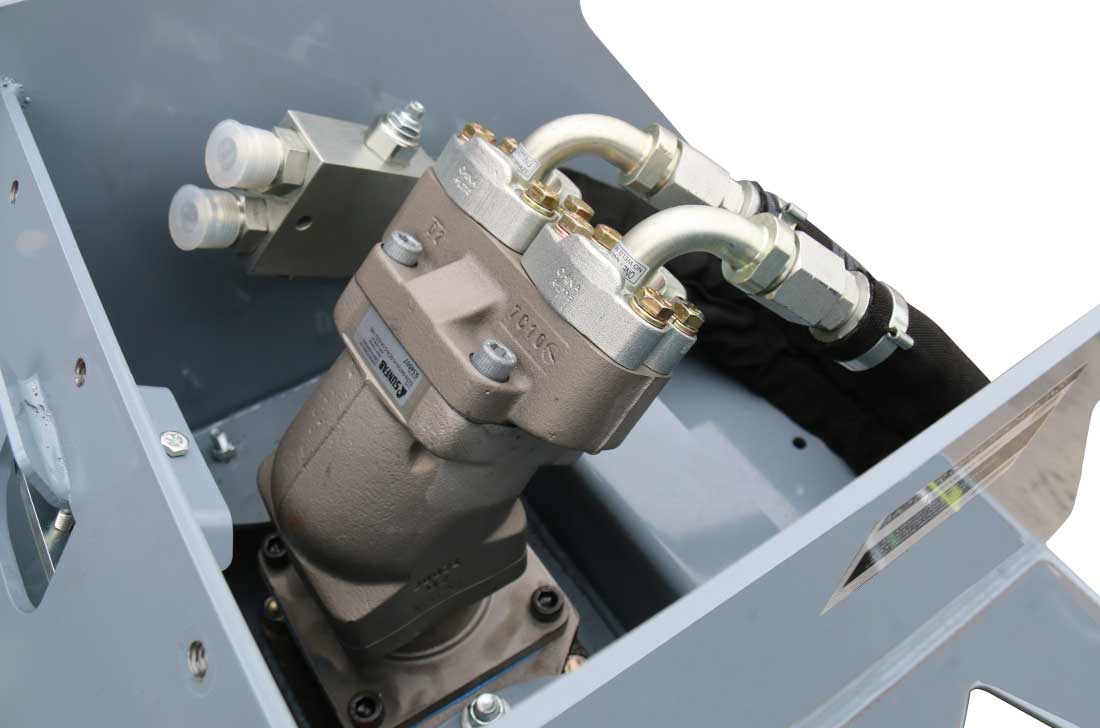

At the heart of this cutter is a high-torque bent axis piston motor, precision-matched to your machine’s hydraulic flow for maximum efficiency and cutting power. Its triple-swing blade system generates up to 80 slashes per second, shredding through brush and mulching material to ground level. Designed with durability in mind, the CXC530 features a rugged ¼" AR400 steel deck, reversible AR400 steel blades, and a heavy-duty rotor assembly.
Key Features

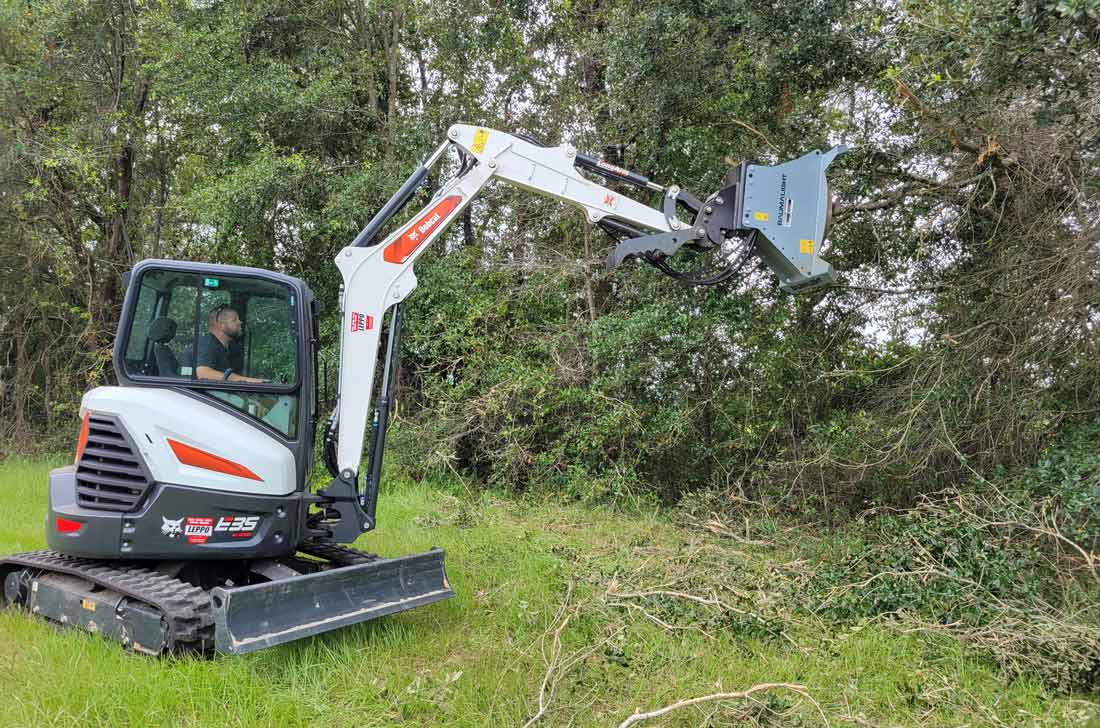

- 30-Inch Cutting Width Ideal rotary brush cutter for excavators working in confined spaces, such as trails, ditches, and urban lots.

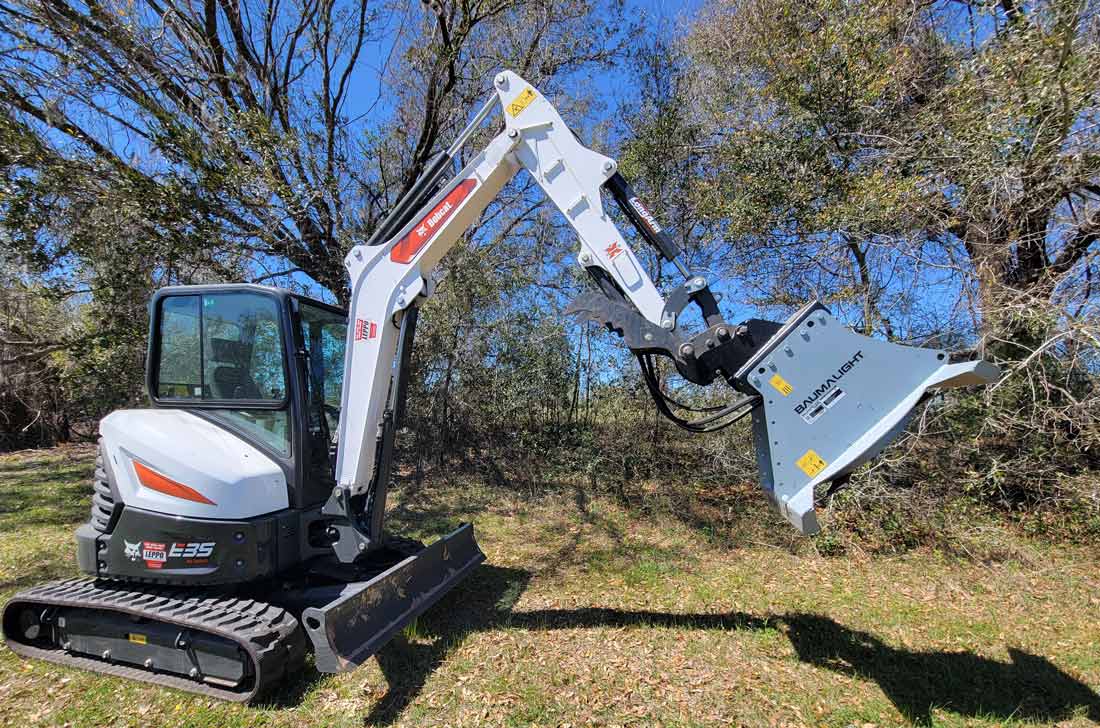

- Fits 3 To 11 Ton Excavators Compatible with mini and mid-size tracked or wheeled excavators.

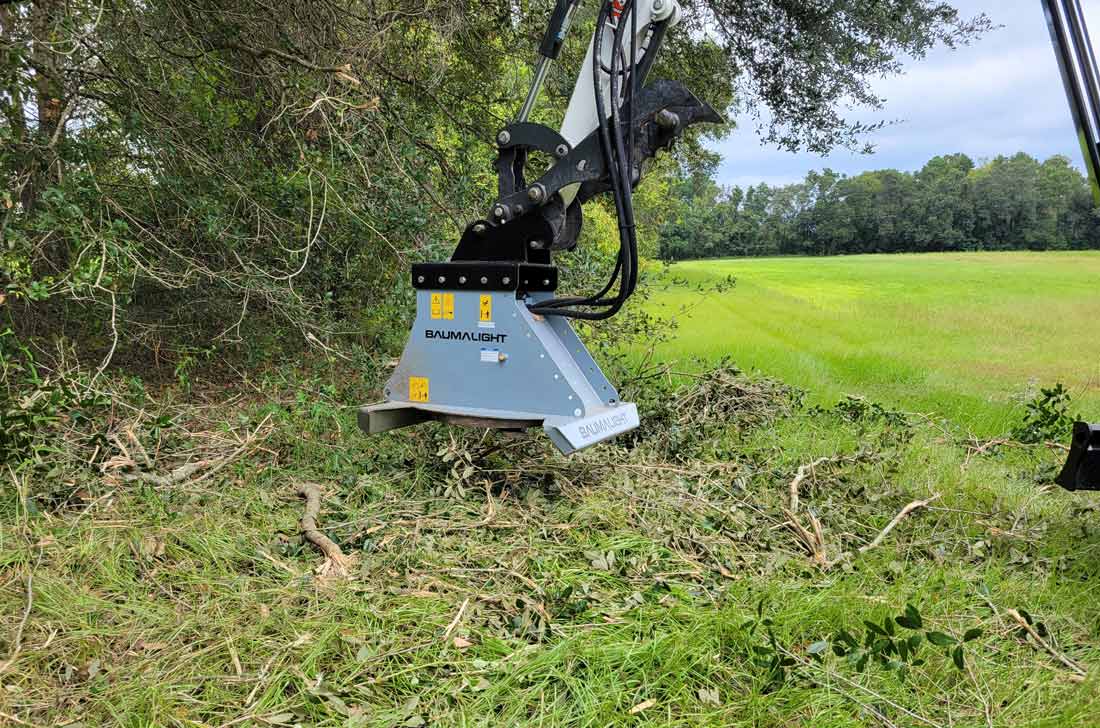

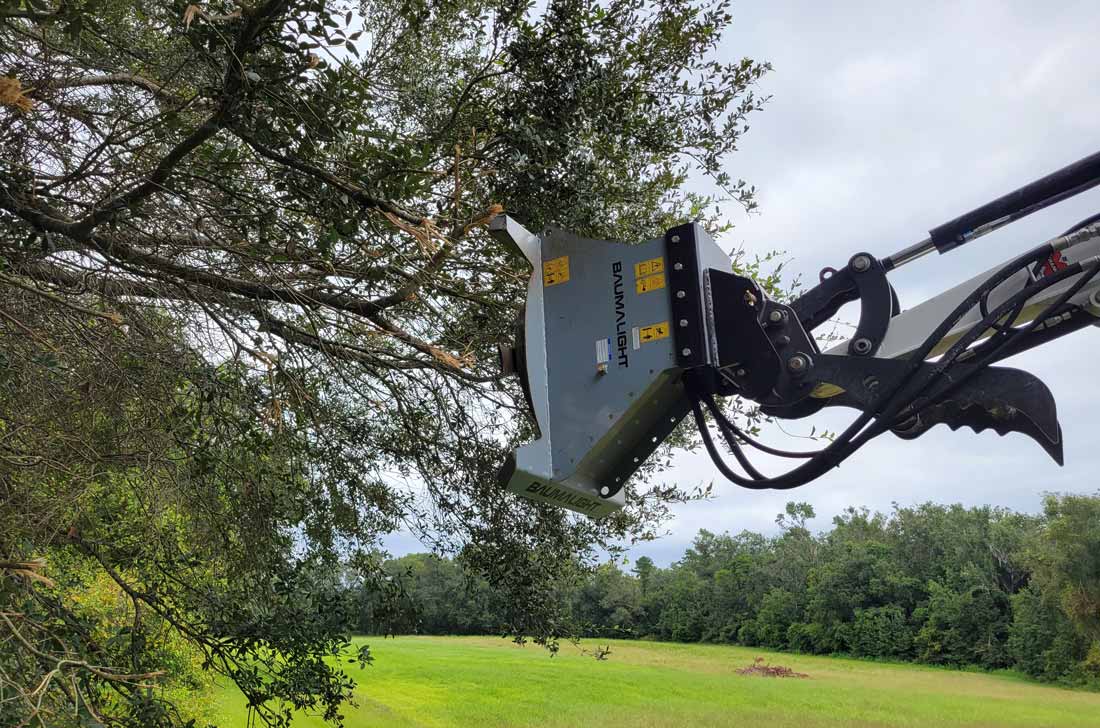

- Mulches Up to 3.5" Thick Brush High-impact tri-swing blades slash small trees and thick vegetation effortlessly.
- Hydraulic-Driven with Bent Axis Piston Motor Industry-best power transfer for brush cutter attachments.
- High Torque Rotor Slashes up to 80 times per second for thorough mulching in a single pass.
- Heavy-Duty AR400 Steel Blades Reversible, replaceable, and built for long-lasting performance.
- ¼" Reinforced Deck Construction Built tough for commercial brush clearing applications.
- Bolt-On Mounting System Secure, easy-to-service attachment with customizable mount options.
- Case Drain Required Protects hydraulic system and improves longevity under heavy-duty use.
- Low 2.5" Cutting Height Achieves ground-level cuts for complete brush elimination.
- Open Front and Rear Discharge Efficient material flow and discharge during operation.
- Safety Chain Curtain Shields surrounding areas from flying debris essential for roadside work.

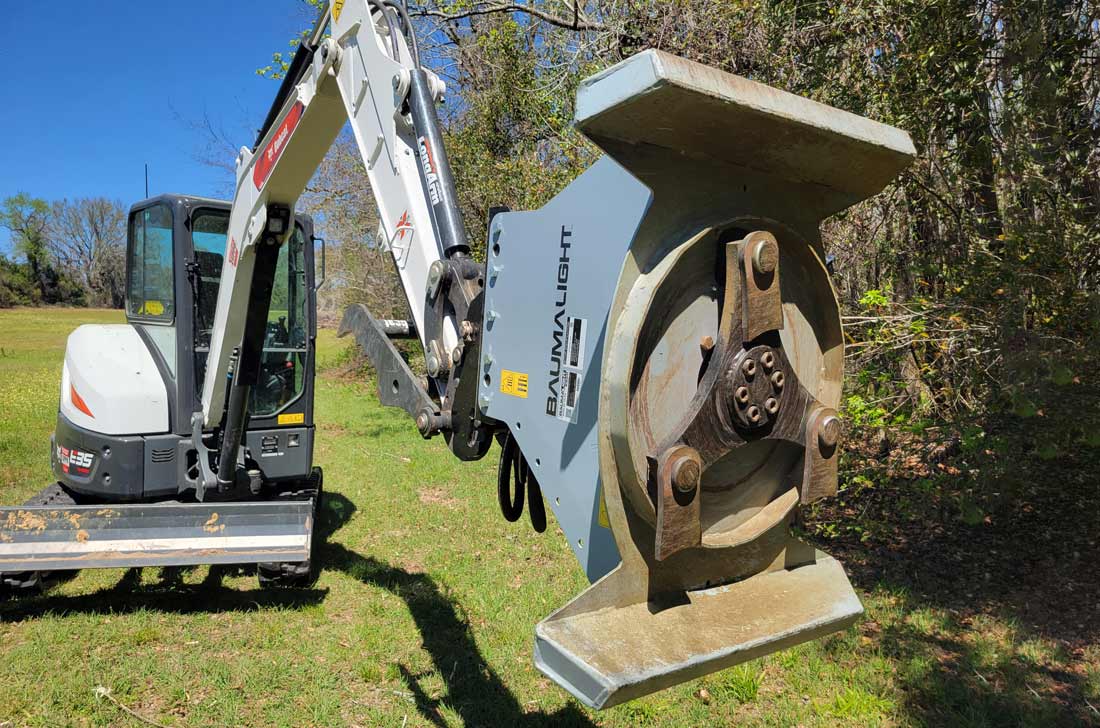

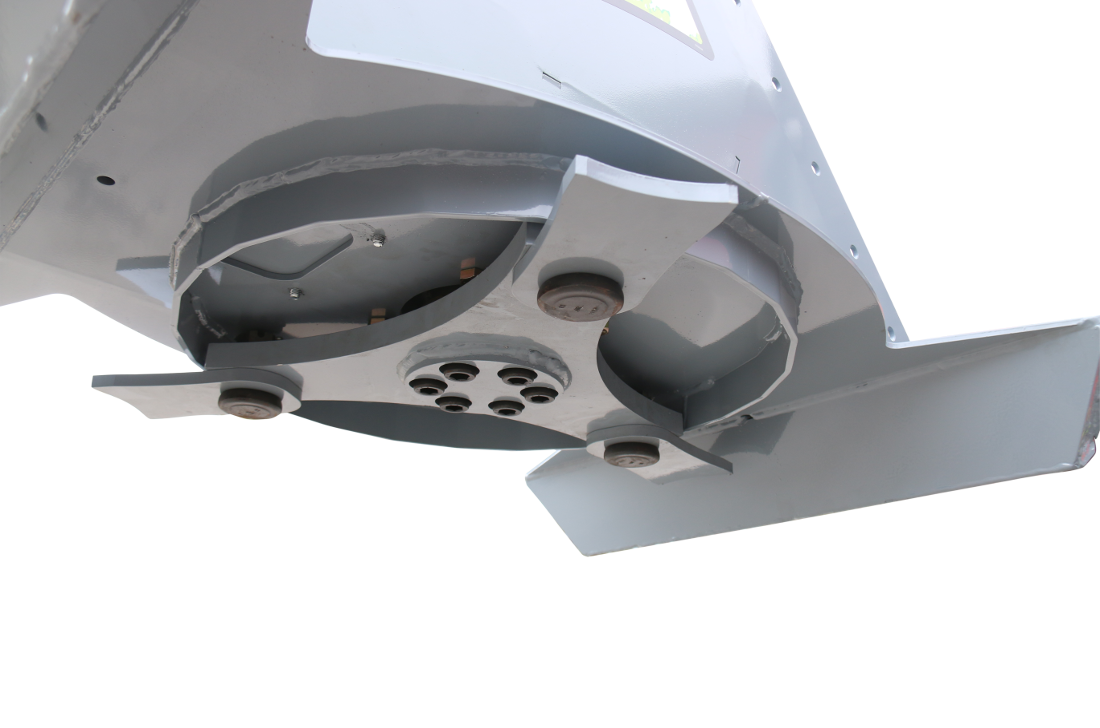

- Three-Way Blade Rotor System Max performance with minimal maintenance.
- Free Replacement Blade Set Included Save on maintenance costs with bonus blades on new purchases.
- PTO Power Pack Compatibility Expand usability with Baumalight’s Pack Wing PTO systems.
Host Machine
| Name | Photo (if available) |
|---|---|
| CATERPILLAR 304 |  |
| JOHN DEERE 35G |  |
| KUBOTA KX040 |  |
| TAKEUCHI TB240 |  |
| VOLVO EC35D |  |
| VOLVO ECR40D |  |
| YANMAR SV40 |  |
| YANMAR VIO 45 |  |
Detailed Specifications
| Feature | Specification |
|---|---|
| Brand | Baumalight |
| Model | CXC530 |
| Cutting Width | 30 inches |
| Compatible Excavator Size | 3–11 tons (tracked or wheeled) |
| Max Brush Cutting Diameter | Up to 3.5 inches |
| Hydraulic Motor Type | Bent Axis Piston Motor |
| Motor Options | HX508, HX510, HX530 |
| Recommended Flow (GPM) | Match per selected motor (15–25 GPM typical) |
| Rotor Configuration | 3-way with triple-swing blade extensions |
| Slashes Per Second | Up to 80 |
| Blade Material | ½" AR400 Steel Reversible/Replaceable |
| Deck Thickness | ¼" AR400 Steel with reinforced channels |
| Discharge Protection | Open Front and Back |
| Mounting Type | Bolt-On with optional mount customization |
| Cutting Height (Min) | 2.5 inches |
| Case Drain | Required |
| Weight | 550 lbs |
| Shipping Dimensions | 55" L x 55" W x 42" H |
| Attachment Category | Excavator Rotary Brush Cutter |
Comparison Chart
| Feature | CXC530 | CXC542 |
|---|---|---|
| Baumalight Connection Code | A02 | A02 |
| Available Motor Options | HX508, HX510, HX530 | HX530, HX550, HX570 |
| Recommended GPM | Check Motor Options Chart | Check Motor Options Chart |
| Maximum Brush Size | 3.5" | 5" |
| Discharge Protection | Open Front and Back | Open Front and Back |
| Path Width | 40" | 50" |
| Cutting Width | 30" | 42" |
| Low Cutting Height | 2.5" | 2.5" |
| Number of Blades | 3 | 3 |
| Slashes per Second | 80 | 80 |
| Attachment Type | Bolt-On | Bolt-On |
| Maximum HP | Check Flow & PSI on Carrier | Check Flow & PSI on Carrier |
| Case Drain | Critical | Critical |
| Min Tracked Excavator Size | 2 ton | 3 ton |
| Min Wheeled Excavator Size | 3 ton | 4.5 ton |
| Max Tracked Excavator Size | 10 ton | 15 ton |
| Max Wheeled Excavator Size | 11 ton | 17 ton |
| Deck Structure | 1/4" AR400 steel | 1/4" AR400 steel |
| Unit Weight | 550 lbs | 640 lbs |
| Feature | CXC550 |
|---|---|
| Baumalight Connection Code | A03 |
| Available Motor Options | HX550, HX570, HX590 |
| Recommended GPM | Check Motor Options Chart |
| Maximum Brush Size | 6" |
| Discharge Protection | Open Front and Back |
| Path Width | 67" |
| Cutting Width | 50" |
| Low Cutting Height | 2.5" |
| Number of Blades | 3 |
| Slashes per Second | 90 |
| Attachment Type | Bolt-On |
| Maximum HP | Check Flow & PSI on Carrier |
| Case Drain | Critical |
| Min Tracked Excavator Size | 8 ton |
| Min Wheeled Excavator Size | 10 ton |
| Max Tracked Excavator Size | 20 ton |
| Max Wheeled Excavator Size | 24 ton |
| Deck Structure | 3/8" AR400 steel |
| Unit Weight | 1,380 lbs |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

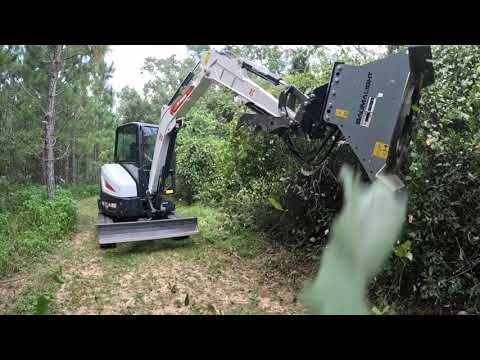

Videos
