Baumalight Rotary Brush Cutter | Model CXC-542 | Cutting Width 42" | Machine Size 5 To 14 Tons | For Excavators
Baumalight Rotary Brush Cutter | Model CXC-542 | Cutting Width 42" | Machine Size 5 To 14 Tons | For Excavators
Regular price
$14,314.00
Regular price
Sale price
$14,314.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Baumalight Rotary Brush Cutter | Model CXC-542 | Cutting Width 42" | Machine Size 5 To 14 Tons | For Excavators
DESCRIPTION

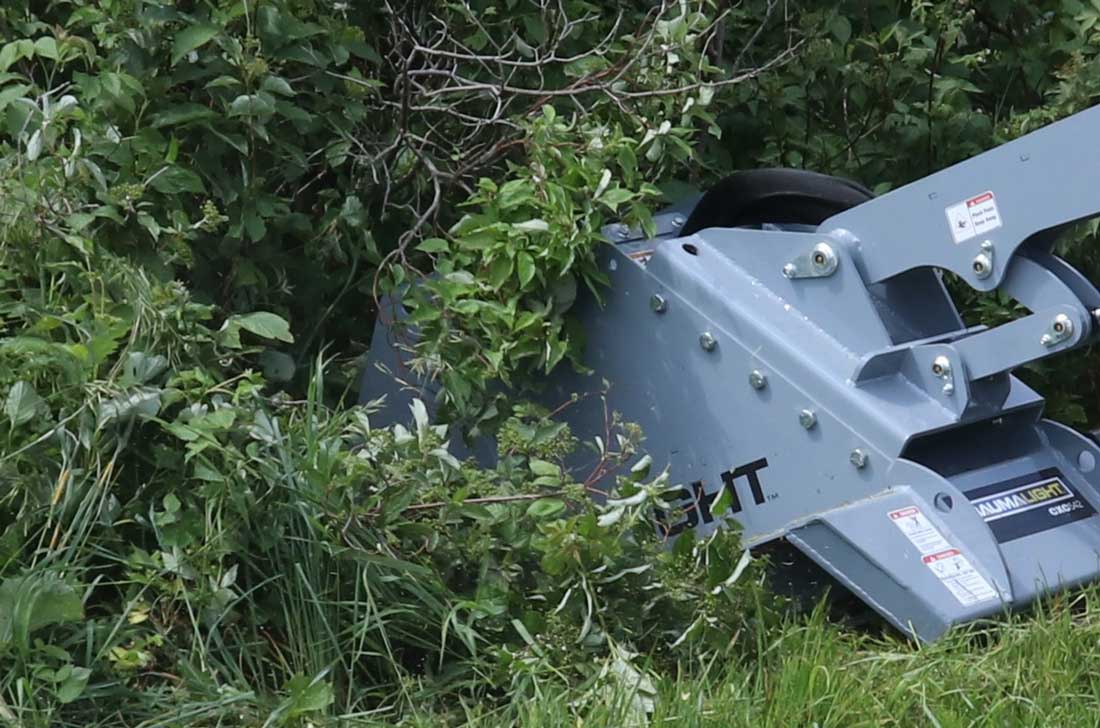

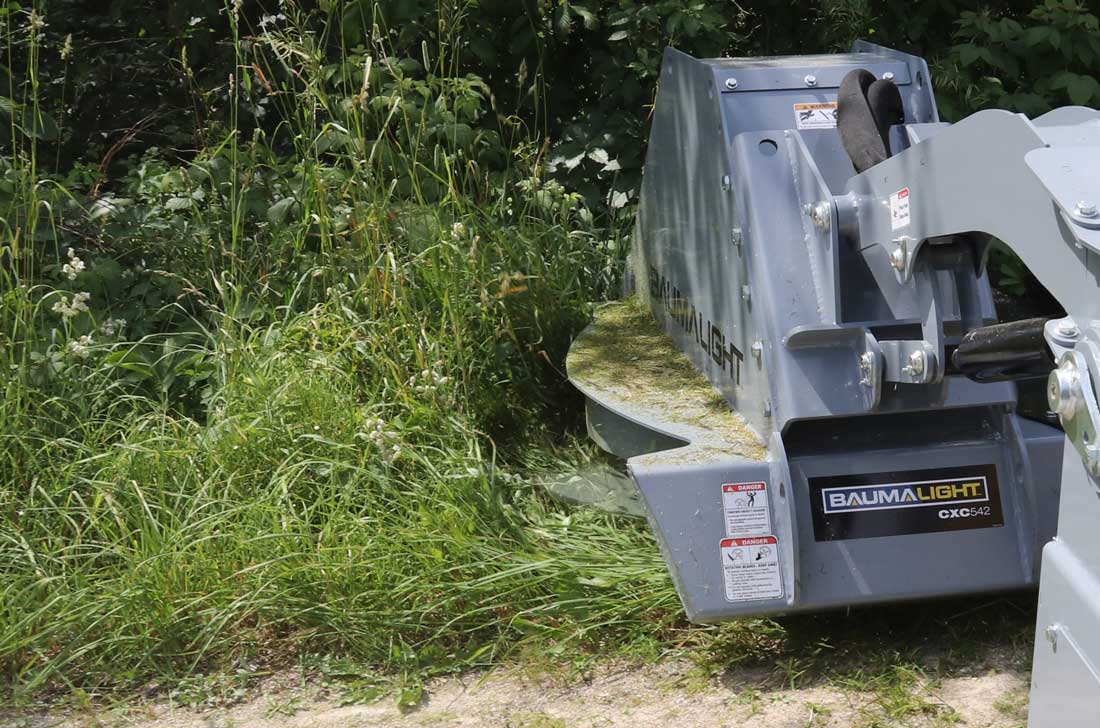

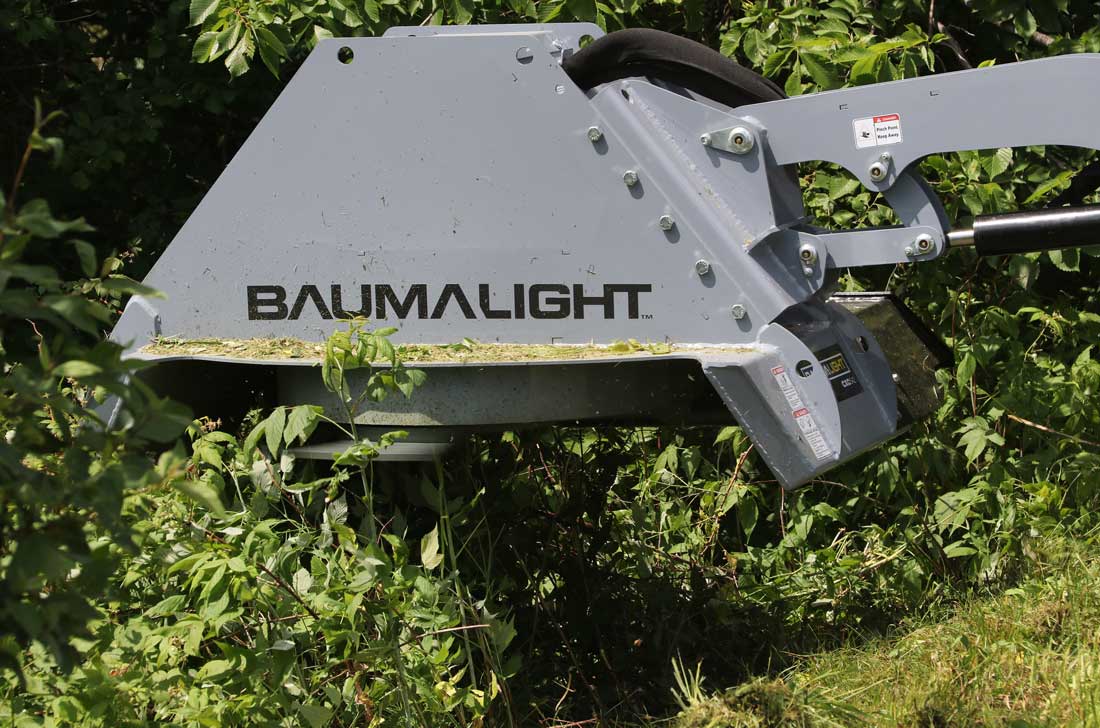

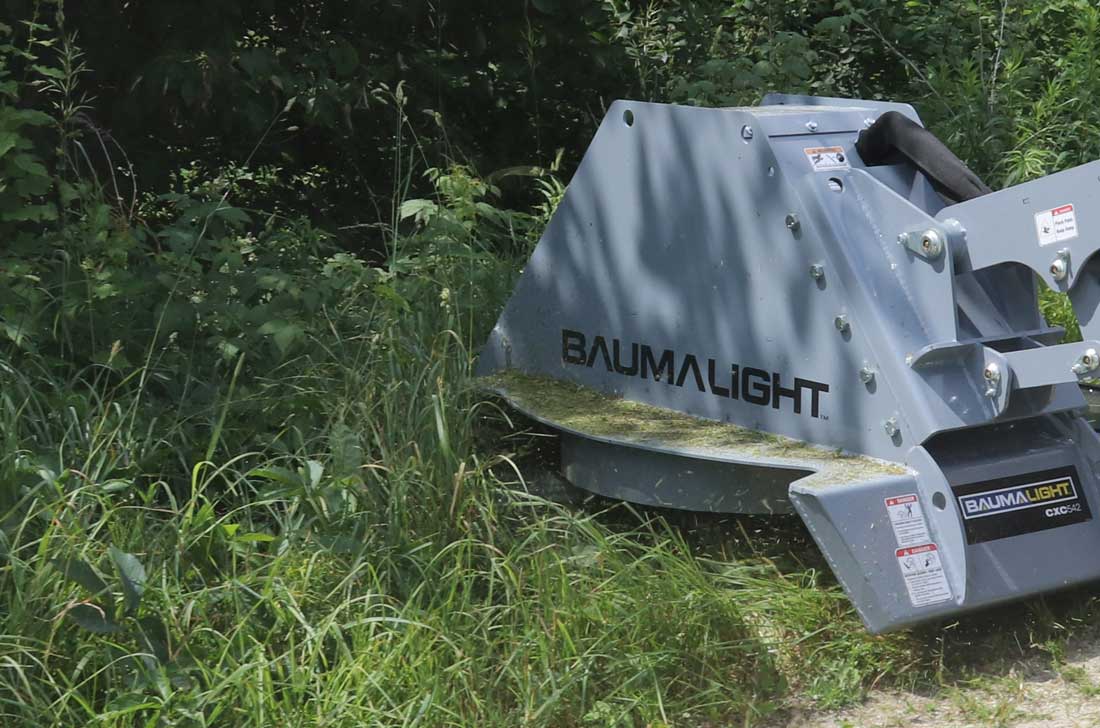

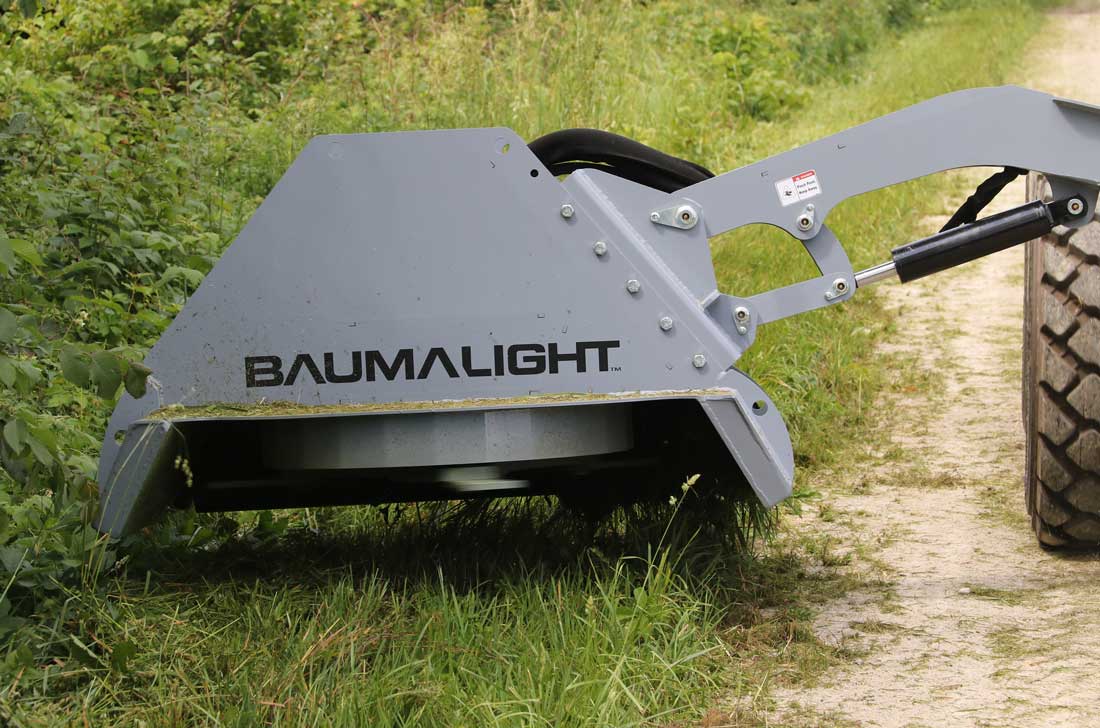

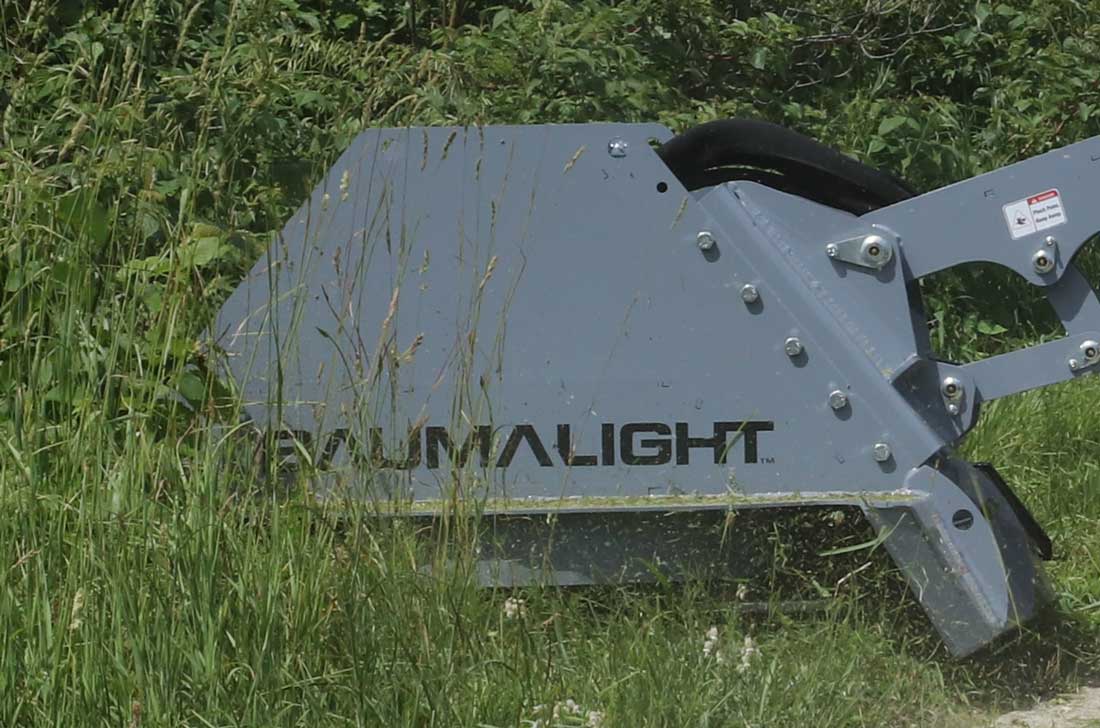

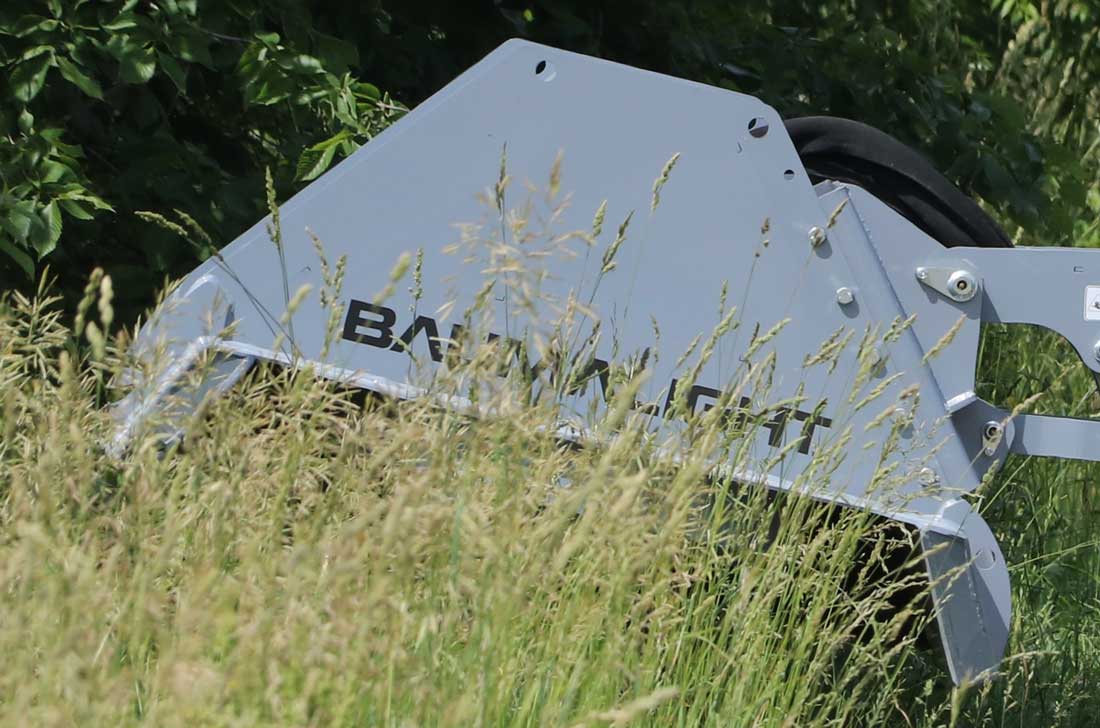

Take on the toughest brush, saplings, and undergrowth with confidence using the Baumalight CXC-542 Rotary Brush Cutter the perfect land-clearing solution for mid-size excavators (5 to 14 tons). Designed for serious performance and built with uncompromising durability, the CXC-542 is engineered to match your machine’s hydraulic flow, making it an essential tool for contractors, forestry professionals, and landowners.
With a 42-inch cutting width, this excavator-mounted rotary cutter delivers industry-leading cutting power. Whether you're managing roadside vegetation, clearing fields, or prepping sites for construction, the CXC-542 offers superior blade speed, reinforced construction, and the versatility to work with a wide range of hydraulic flow rates.
Key Features
- 42” Cutting Width Clear more ground with each pass, saving time on large-scale jobs like land clearing, right-of-way maintenance, and brush removal.
- Excavator Compatibility Designed for mid-size excavators (5–14 tons), perfect for contractors and land management crews.
- Three-Blade Rotor System High-velocity slashing with up to 80 cuts per second easily handles saplings up to 5" in diameter.
- Direct-Drive Hydraulic Motor Efficiently converts hydraulic flow into cutting torque; multiple motor options ensure ideal flow matching.
- Bent Axis Piston Motor Delivers premium torque, performance, and hydraulic efficiency in demanding terrain.
- Heavy-Duty AR400 Steel Deck 1/4” thick, reinforced with structural channels for maximum impact resistance and durability.
- Blade Mount System Grade 8 bolts with castle nuts and cotter pins keep slasher blades locked tight under high-impact use.
- Reversible AR400 Blades Tough 1/2" steel for longer life; flip or replace in the field for less downtime.
- Rotor Built to Last 1" thick steel plates on top and bottom sandwich the blade assembly for balanced and robust operation.
- Safety Chain Curtain Reduces flying debris for safer operation near roads, fences, or structures.
- Case Drain Protection Prevents pressure buildup in motor for reliable long-term operation.
- Integrated Skid Shoes Helps the cutter float smoothly over uneven ground, protecting both terrain and equipment.
- Simple Hydraulic Hookup No electrical wiring needed; just plug and go.
- Free Blade Set Included Every unit ships with a spare set of blades mounted on the crate.
- Locally Supported Designed with standardized parts; replacement components are widely available through local suppliers.
Detailed Specifications
| Feature | Details |
|---|---|
| Brand | Baumalight |
| Model | CXC-542 |
| Cutting Width | 42 inches |
| Compatible Excavator Size | 5 14 Tons (Tracked or Wheeled) |
| Motor Options Available | HX530, HX550, HX570 |
| Recommended GPM | Depends on motor (See Motor Options Chart) |
| Maximum Cutting Diameter | Up to 5 inches |
| Slashes Per Second | Up to 80 |
| Number of Blades | 3 |
| Blade Material | 1/2" AR400 Reversible Steel |
| Deck Thickness | 1/4" AR400 Steel |
| Unit Weight | 640 lbs |
| Low Cutting Height | 2.5 inches |
| Discharge Protection | Open Front and Back |
| Attachment Type | Bolt-On |
| Case Drain Requirement | Yes (Critical) |
| Rotor Plate Thickness | 1" Top & Bottom |
| Min Excavator Size (Tracked) | 3 tons |
| Max Excavator Size (Tracked) | 15 tons |
| Min Excavator Size (Wheeled) | 4.5 tons |
| Max Excavator Size (Wheeled) | 17 tons |
| Free Blade Set Included | Yes |
Comparison Chart
| Feature | CXC530 | CXC542 |
|---|---|---|
| Model No. | CXC530 | CXC542 |
| Baumalight Connection Code | A02 | A02 |
| Available Motor Options | HX508, HX510, HX530 | HX530, HX550, HX570 |
| Recommended GPM | Check Motor Options Chart | Check Motor Options Chart |
| Maximum Brush Size | 3.5" | 5" |
| Discharge Protection | Open Front and Back | Open Front and Back |
| Path Width | 40" | 50" |
| Cutting Width | 30" | 42" |
| Low Cutting Height | 2.5" | 2.5" |
| Number of Blades | 3 | 3 |
| Slashes per Second | 80 | 80 |
| Attachment Type | Bolt-On | Bolt-On |
| Maximum HP | Check Flow & PSI on Carrier | Check Flow & PSI on Carrier |
| Case Drain | Critical | Critical |
| Min Tracked Excavator Size | 2 ton | 3 ton |
| Min Wheeled Excavator Size | 3 ton | 4.5 ton |
| Max Tracked Excavator Size | 10 ton | 15 ton |
| Max Wheeled Excavator Size | 11 ton | 17 ton |
| Deck Structure | 1/4" AR400 steel | 1/4" AR400 steel |
| Unit Weight | 550 lbs | 640 lbs |
| Feature | CXC550 |
|---|---|
| Model No. | CXC550 |
| Baumalight Connection Code | A03 |
| Available Motor Options | HX550, HX570, HX590 |
| Recommended GPM | Check Motor Options Chart |
| Maximum Brush Size | 6" |
| Discharge Protection | Open Front and Back |
| Path Width | 67" |
| Cutting Width | 50" |
| Low Cutting Height | 2.5" |
| Number of Blades | 3 |
| Slashes per Second | 90 |
| Attachment Type | Bolt-On |
| Maximum HP | Check Flow & PSI on Carrier |
| Case Drain | Critical |
| Min Tracked Excavator Size | 8 ton |
| Min Wheeled Excavator Size | 10 ton |
| Max Tracked Excavator Size | 20 ton |
| Max Wheeled Excavator Size | 24 ton |
| Deck Structure | 3/8" AR400 steel |
| Unit Weight | 1,380 lbs |
