Baumalight Trailer Mounted Tree Spade | Model TR Series | Root Ball Diameter 30", 40" & 50" | Horsepower 40 To 120 HP | For Trucks
DESCRIPTION

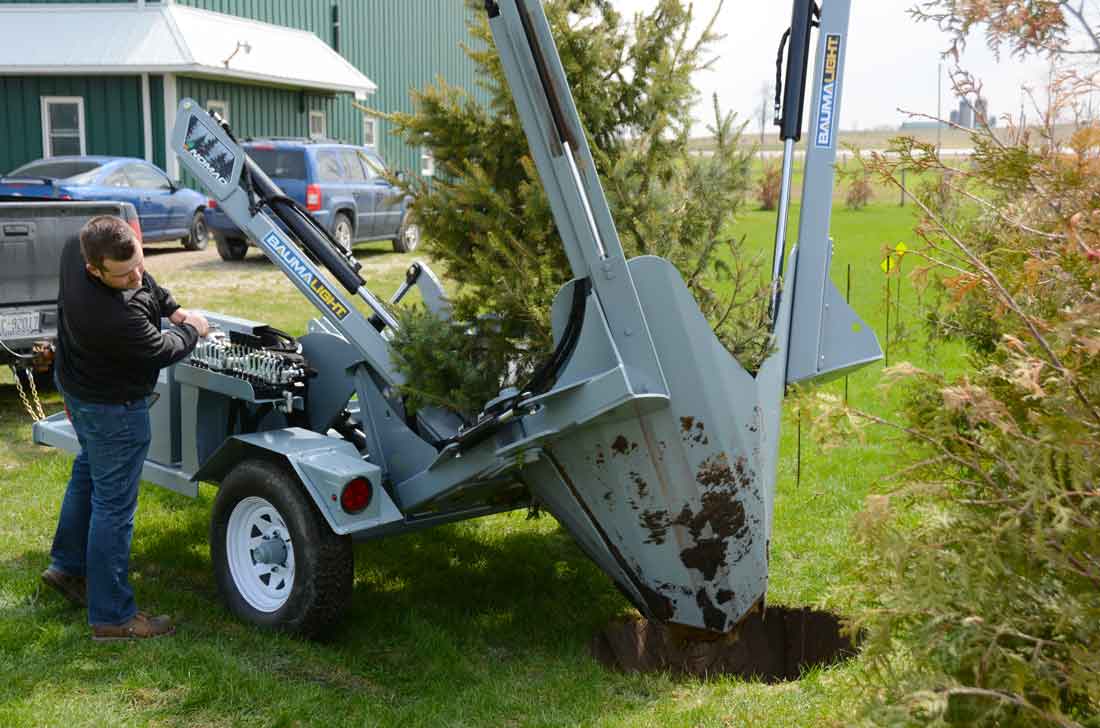

The Baumalight TR Series Trailer-Mounted Tree Spades are engineered for mobility, power, and precision designed for landscapers, nursery professionals, municipalities, and landowners who demand reliable transplanting results on the go.
Offered in three powerful models TR330 (30"), TR440 (40"), and TR650 (50") this series supports trees up to 5" in diameter and delivers consistent, clean root ball cuts for higher survival rates and stress-free transplants.

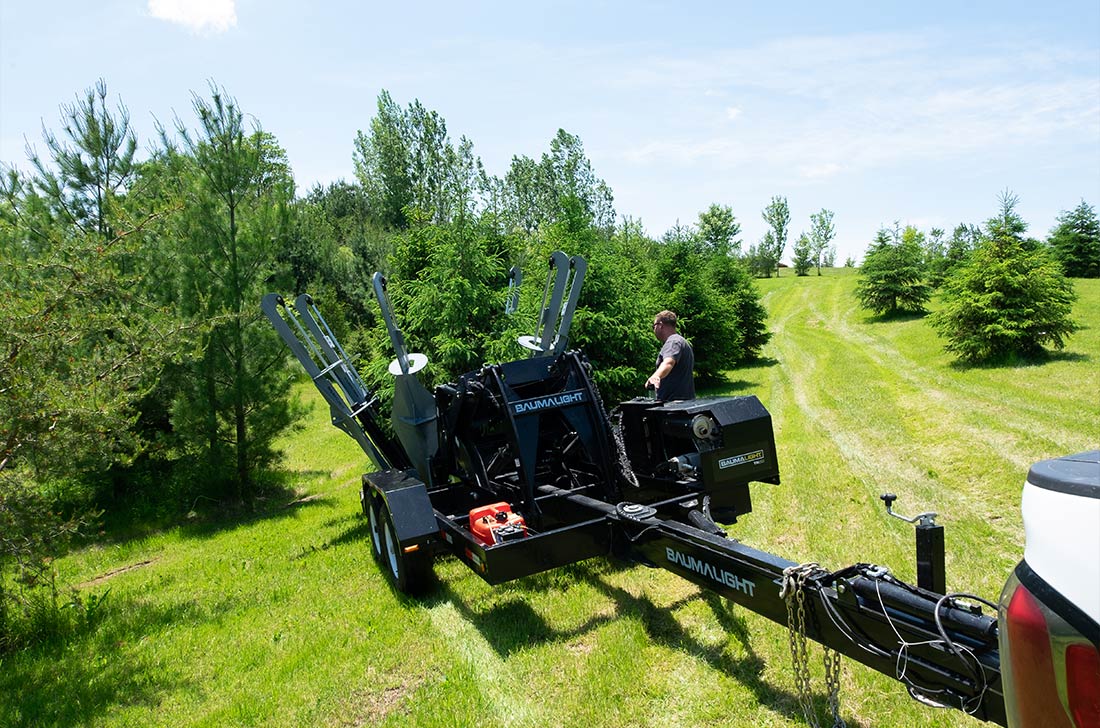

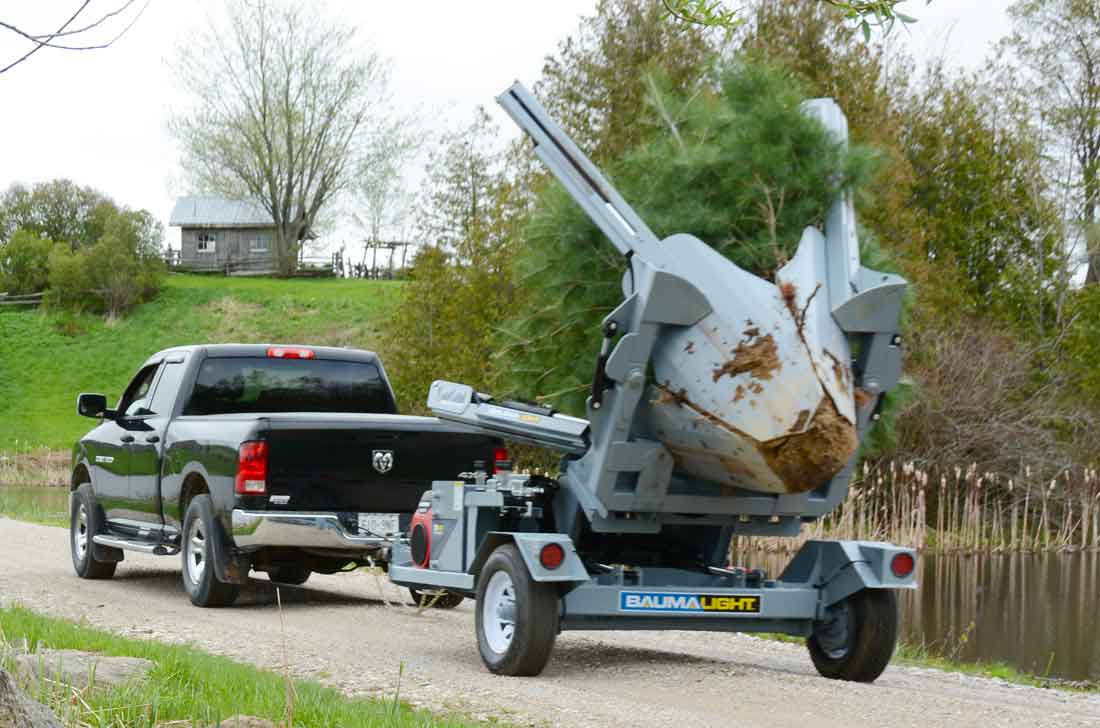

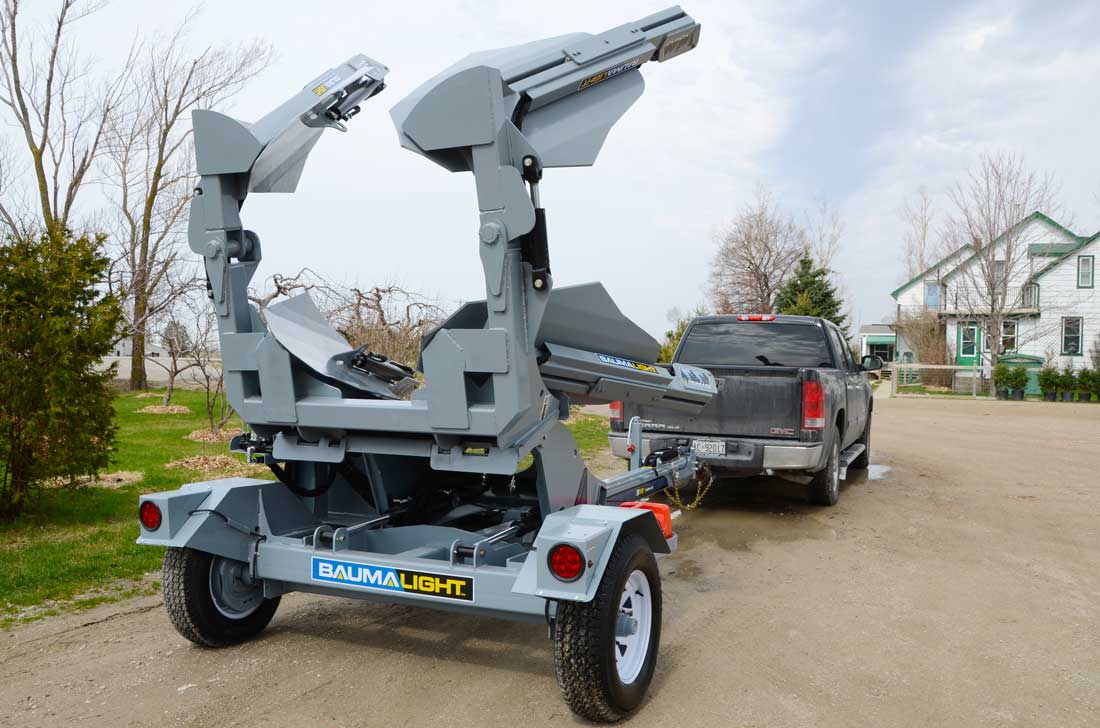

Each unit mounts securely to a highway-ready trailer, letting you transport trees without relying on loaders or skid steers. Featuring swing tower hinges, 3D positioning, and a hydraulic blade system, the TR Series lets you handle trees with surgical precision right from your truck seat.
Compatible with tractors or vehicles from 40–120 HP, and optionally equipped with a self-contained Honda GX630 688cc power pack, this is your all-in-one solution for professional-grade tree relocation.
Key Features
- Available in 30", 40", and 50" Root Ball Sizes Choose the perfect fit for your tree transplanting needs.
- Handles Up to 5" Diameter Trees Transplant both evergreen and hardwood species with confidence.
- Horsepower Compatibility: 40–120 HP Works with a wide range of tractors and power units.

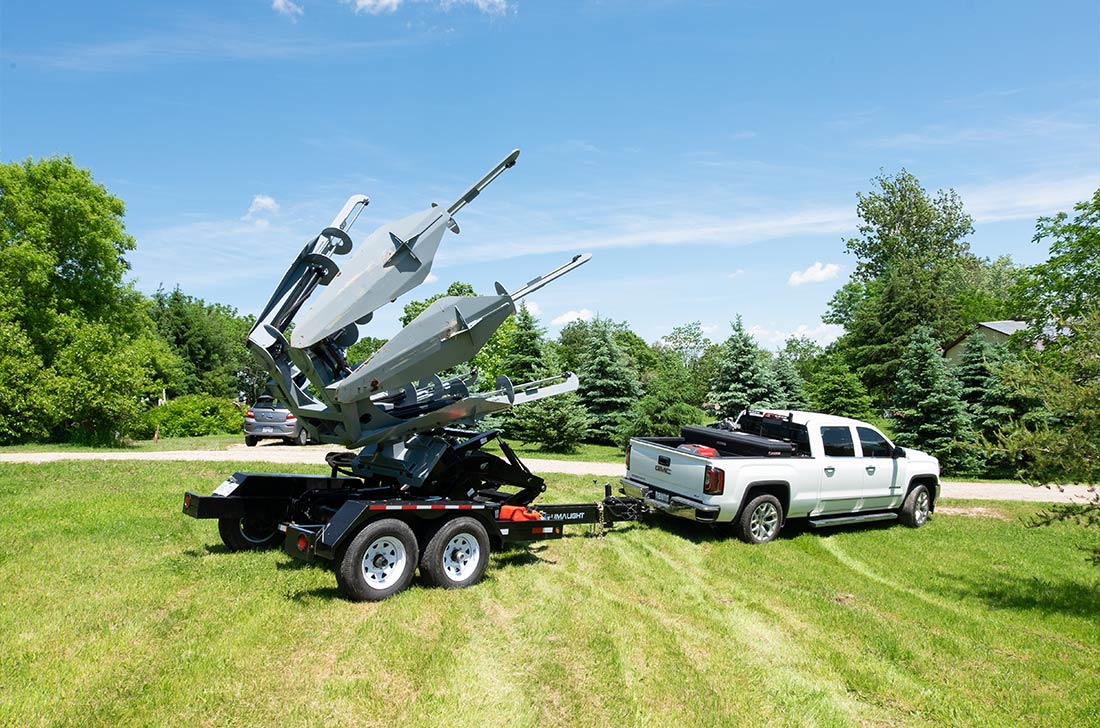

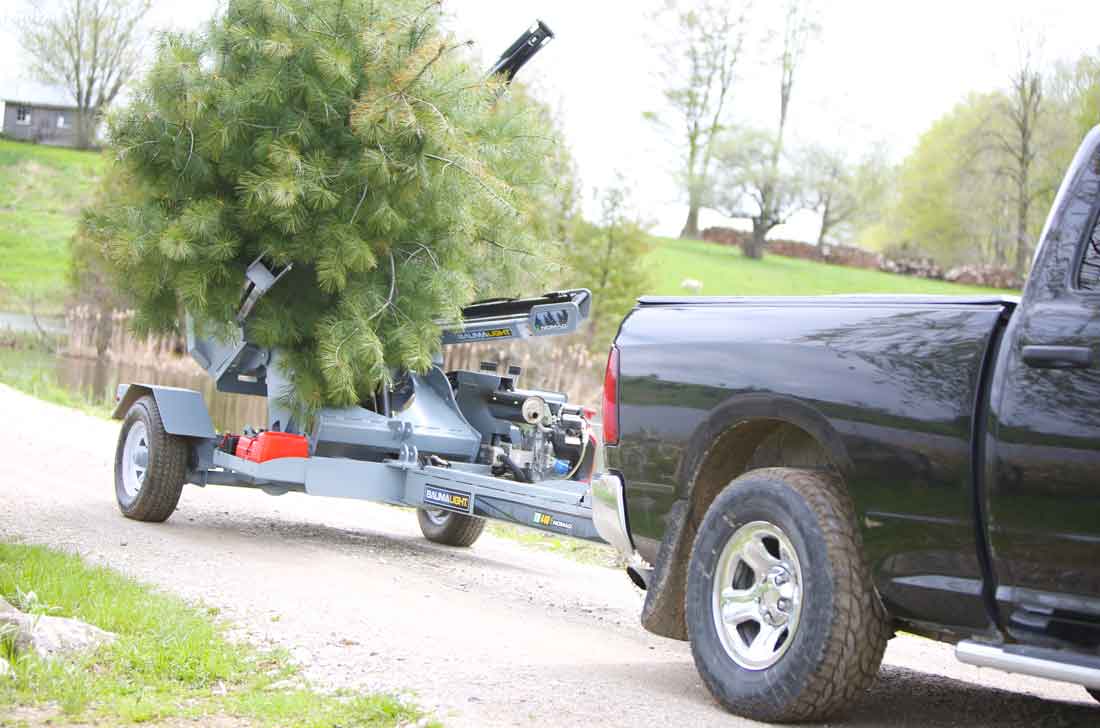

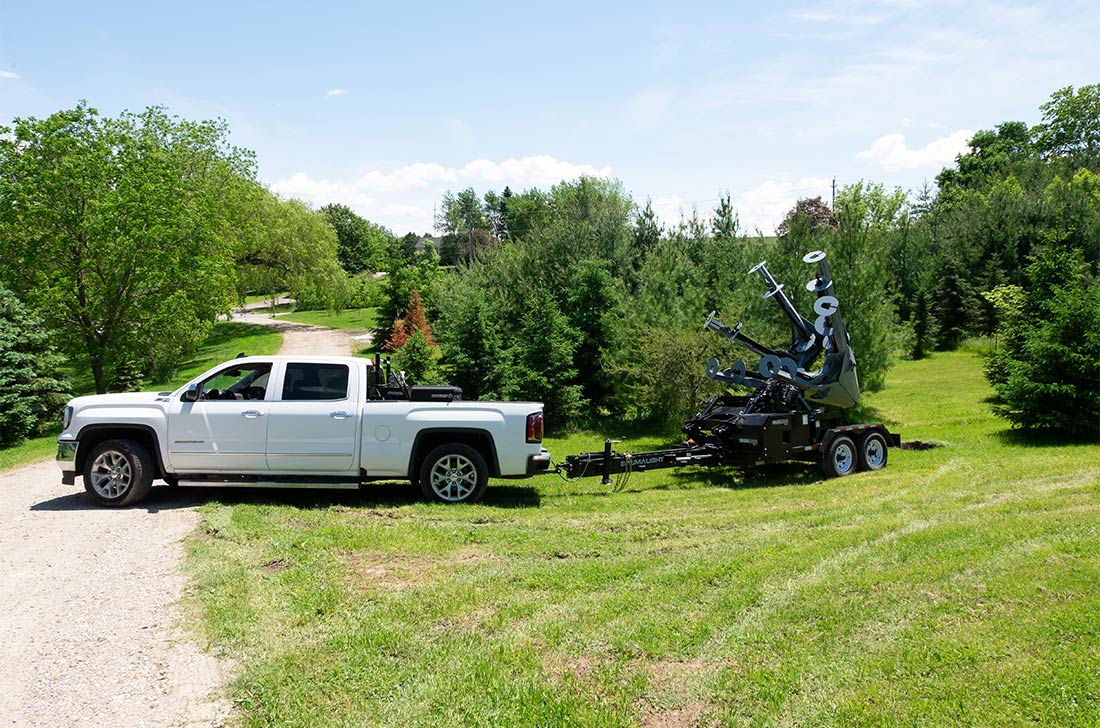

- Trailer-Mounted Design Fully highway-certified for easy transport with your truck.

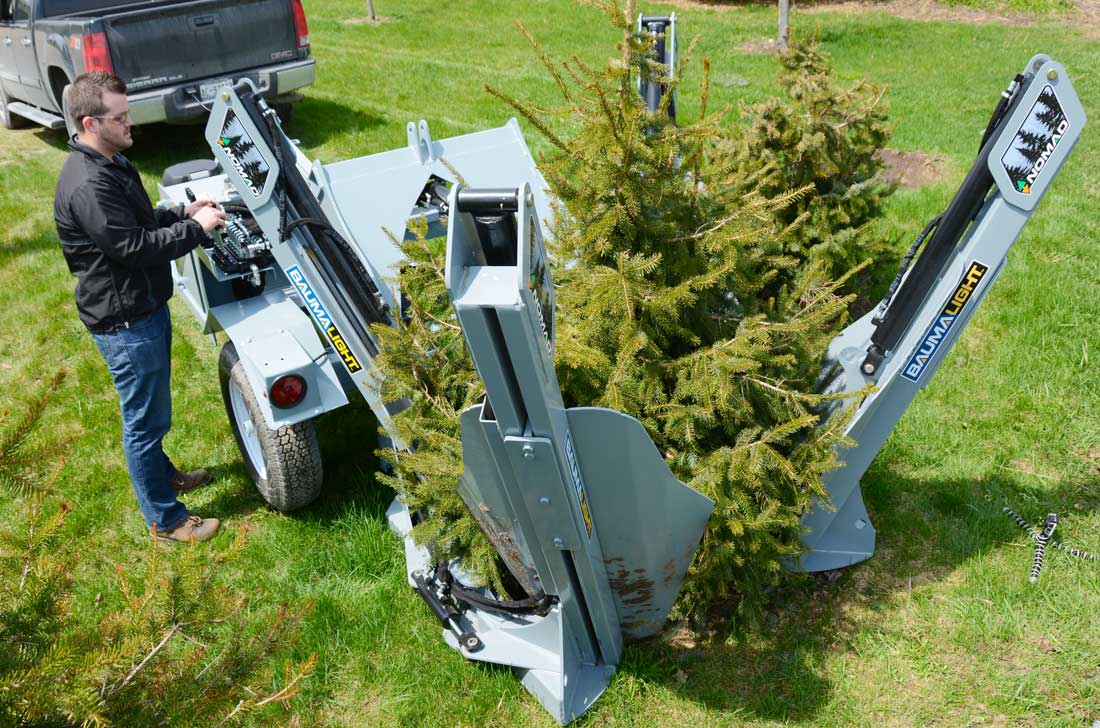

- 3D Hydraulic Positioning System Precisely position the spade without leaving your truck.
- AR-Grade Alloy Steel Blades Designed for tough digging with clean, damage-free root cuts.
- Optimized 25° Blade Angle Minimizes root stress and enhances soil penetration.

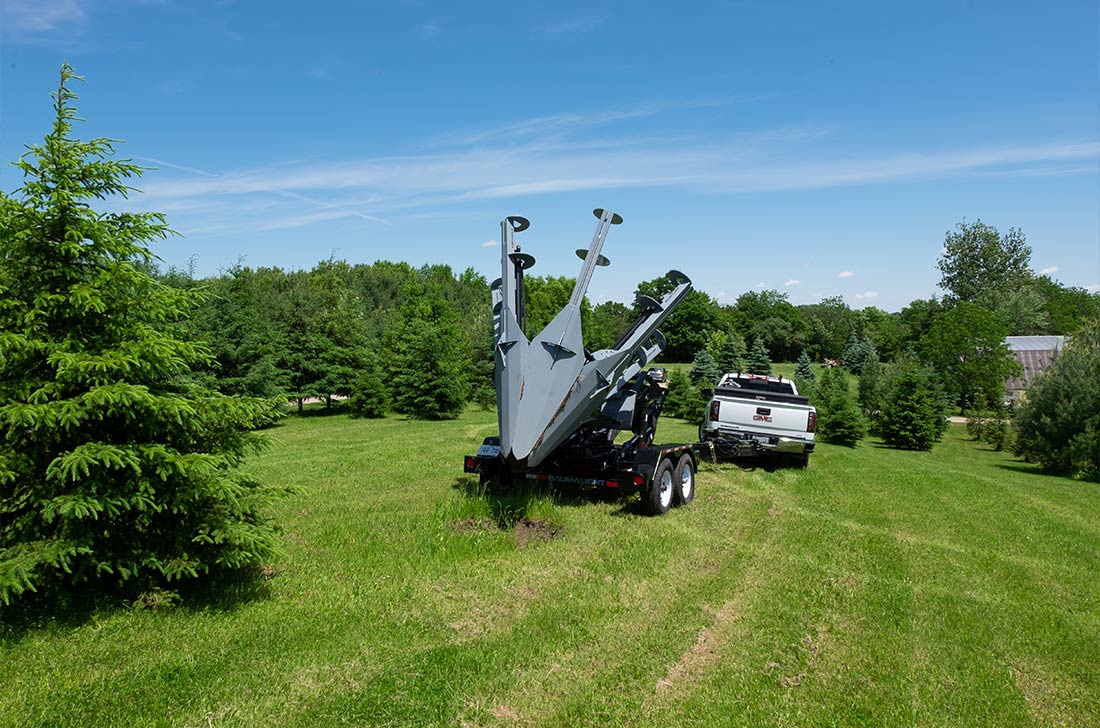

- Swing Tower Hinge System Allows smooth side-access for better alignment around trees
- Heavy-Duty Welded Steel Frame Built for long-term durability in rugged conditions.

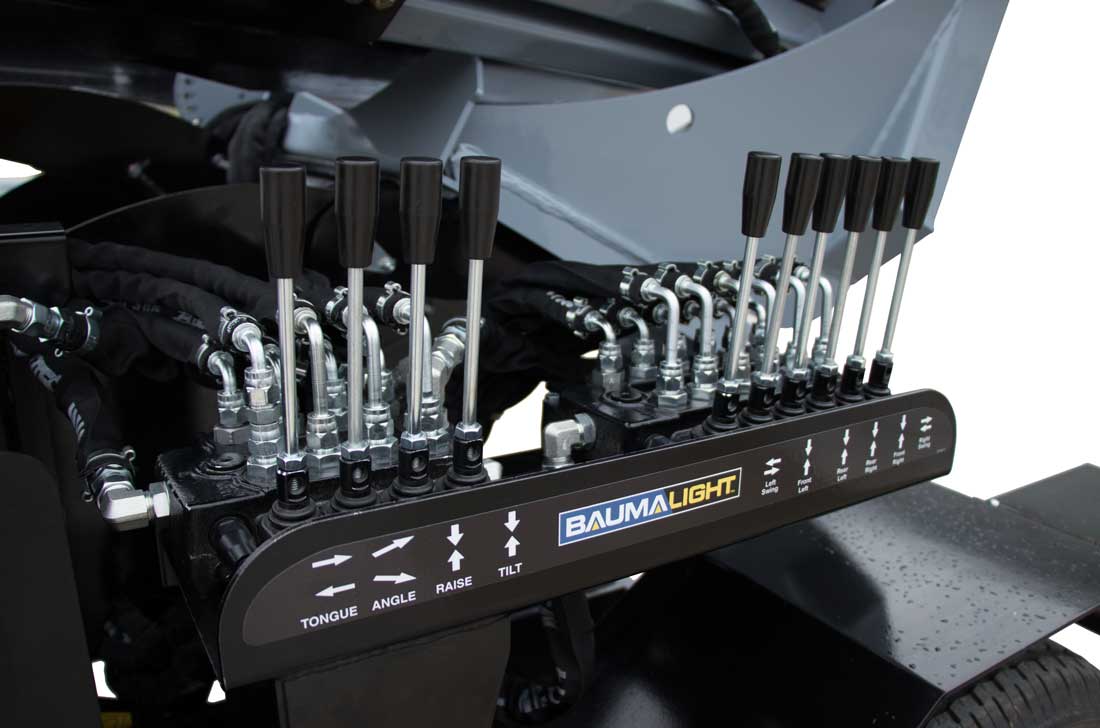

- Remote Hydraulic Operation Seamless control for lifting, tilting, and spade deployment.
- Powder-Coated Finish Rust- and chip-resistant for long-term good looks.
- Highway-Ready with Lighting Kit DOT-compliant with tires rated for road use.
- Pintle Hitch & Safety Chains Easy, secure hookup to your tow vehicle.
- Torflex Suspension Smooth ride over rough terrain or long distances.
- Optional GX630 Honda Power Pack Enables full hydraulic function without a tractor (688cc, 20 HP).
Detailed Specifications
| Model | TR330 |
|---|---|
| Tree Capacity (Evergreen) | Up to 3" |
| Tree Capacity (Hardwood) | Up to 2.5" |
| Root Ball Diameter | 30" |
| Root Ball Depth | 29" |
| Opening Width | 60" |
| Blade Angle | 25° |
| Blade Count | 3 |
| Blade Thickness | 3/8" Mild Steel |
| Blade Truncation | Semi-Truncated |
| Tower Swing Hinge | Yes |
| Frame Slides | Steel |
| Weight (Unit Only) | Approx. 4150 lbs |
| Weight w/ Root Ball | Approx. 5350 lbs |
| Horsepower Range | 40–60 HP |
| Power Pack (Optional) | Honda GX630, 688cc, 20 HP |
| Trailer Suspension | Torflex Axle System |
| Transport Compatibility | Pickup Trucks / Tractors |
| Model | TR440 |
|---|---|
| Tree Capacity (Evergreen) | Up to 4" |
| Tree Capacity (Hardwood) | Up to 3" |

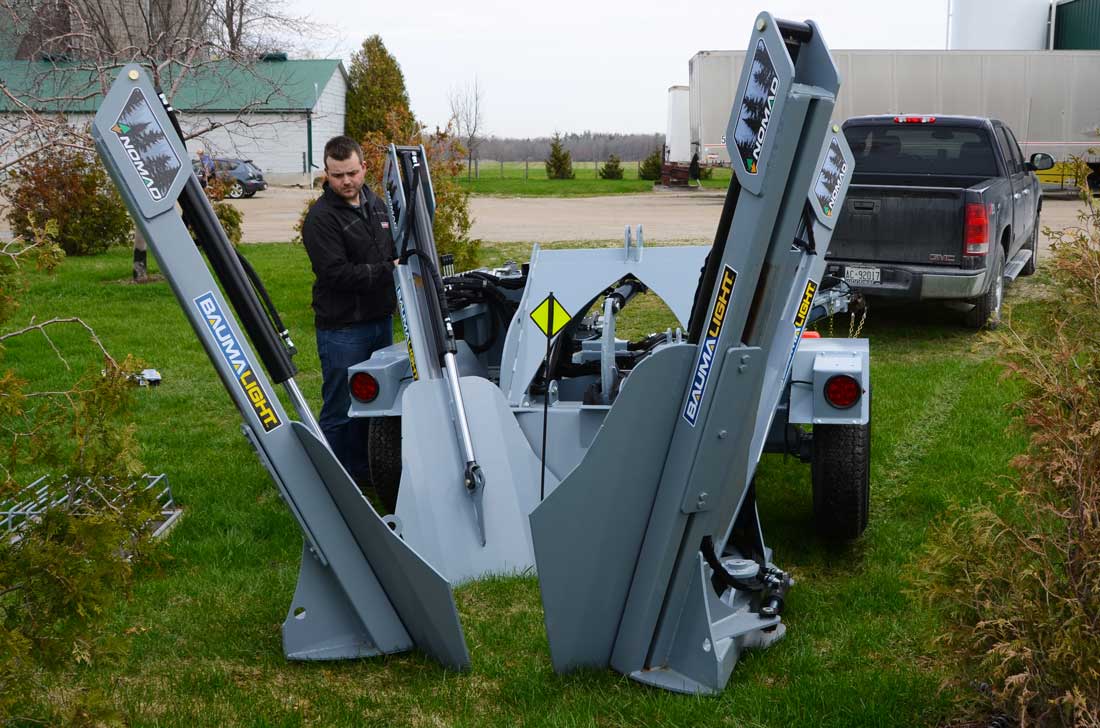

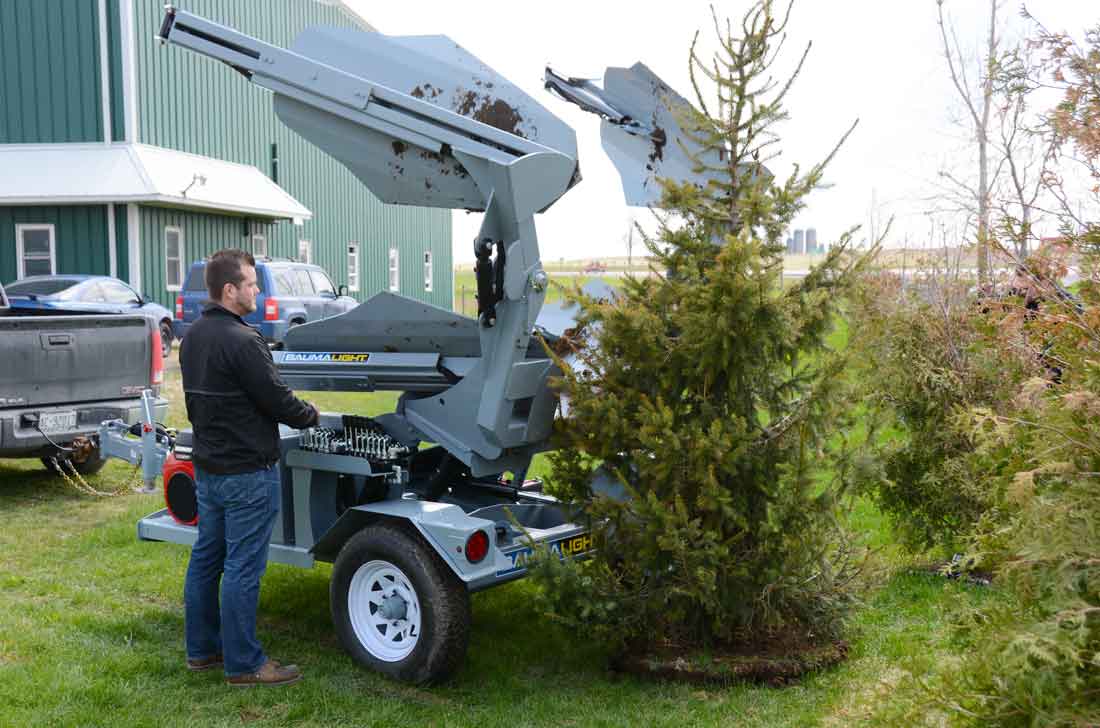

| Root Ball Diameter | 40" |
| Root Ball Depth | 30" |
| Opening Width | 52" |
| Blade Angle | 25° |
| Blade Count | 4 |
| Blade Thickness | 1/4" High-Alloy Steel |
| Blade Truncation | Full Truncated |
| Tower Swing Hinge | Yes |
| Frame Slides | Steel |
| Weight (Unit Only) | Approx. 4150 lbs |
| Weight w/ Root Ball | Approx. 4986 lbs |
| Horsepower Range | 60–90 HP |
| Power Pack (Optional) | Same |
| Trailer Suspension | Torflex Axle System |
| Transport Compatibility | Pickup Trucks / Tractors |
| Model | TR650 |
|---|---|
| Tree Capacity (Evergreen) | Up to 5" |
| Tree Capacity (Hardwood) | Up to 4" |

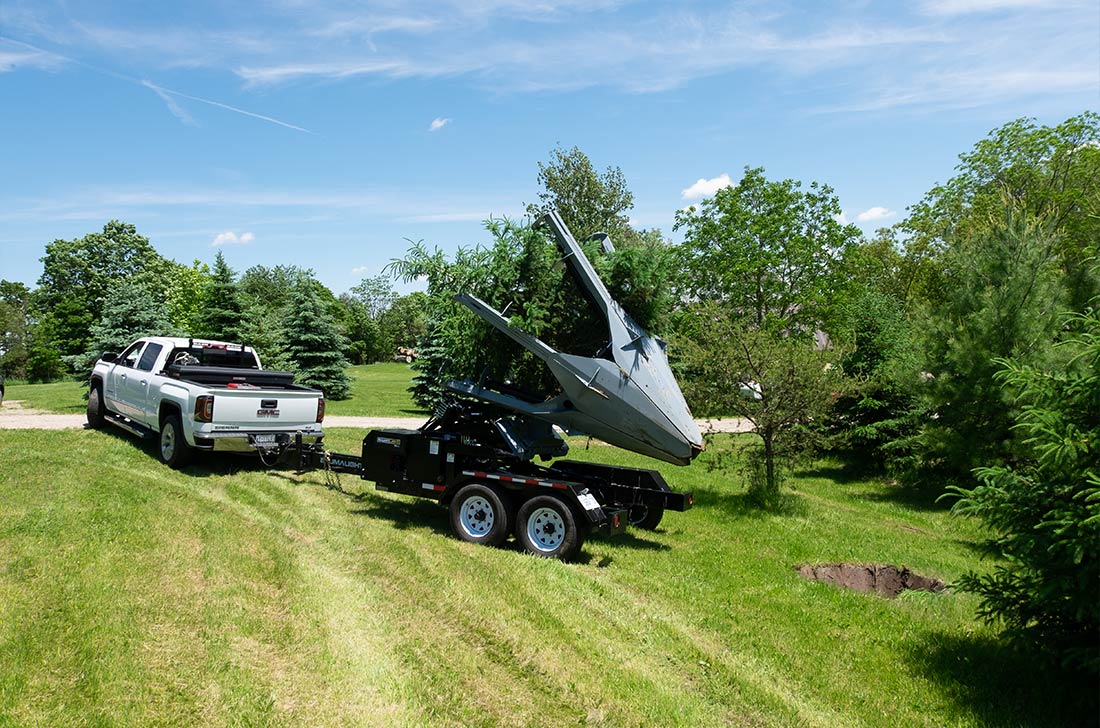

| Root Ball Diameter | 50" |
| Root Ball Depth | 43" |
| Opening Width | 47" |
| Blade Angle | 25° |
| Blade Count | 6 |
| Blade Thickness | 1/4" High-Alloy Steel |
| Blade Truncation | Semi-Truncated |
| Tower Swing Hinge | Yes |
| Frame Slides | Steel |
| Weight (Unit Only) | Approx. 8238 lbs |
| Weight w/ Root Ball | Approx. 10,785 lbs |
| Horsepower Range | 90–120 HP |
| Power Pack (Optional) | Same |
| Trailer Suspension | Torflex Axle System |
| Transport Compatibility | Pickup Trucks / Tractors |
Manuals & Documents
The Product Manual
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

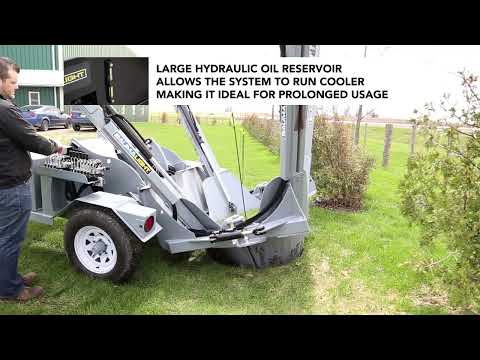

Videos
