Product Description
Baumalight Tree Saw | Model DXA530 & DXH752 | Blade Diameter 30" & 52" | Machine Size 4 To 22 Tons | For Excavators
DESCRIPTION

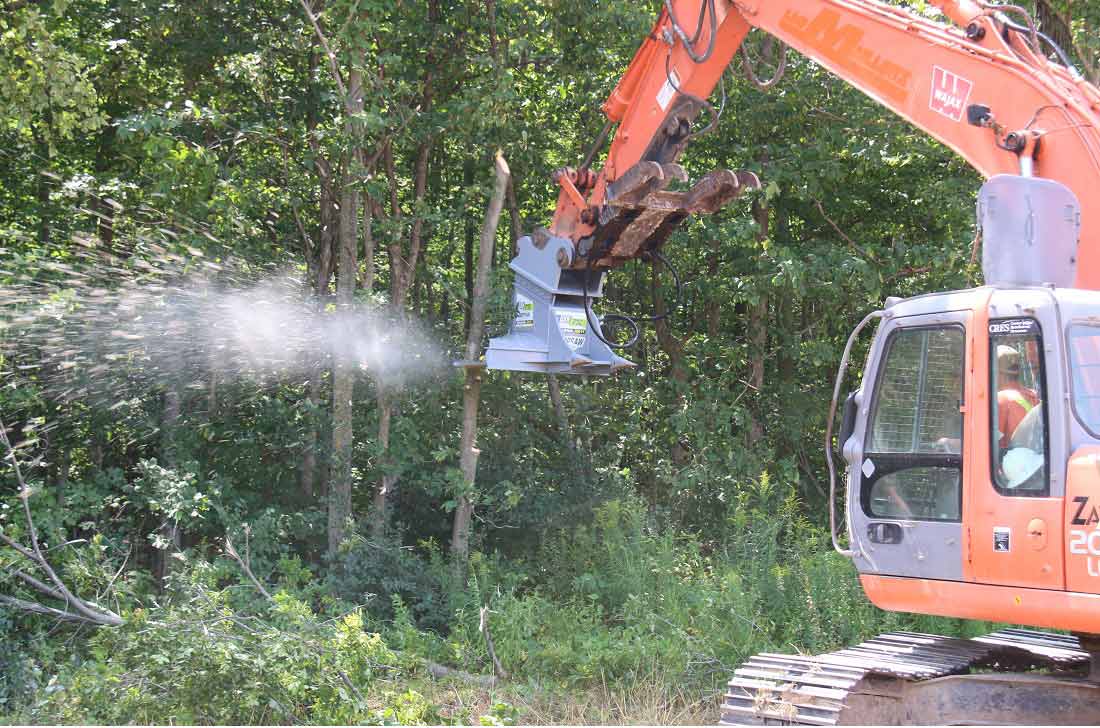

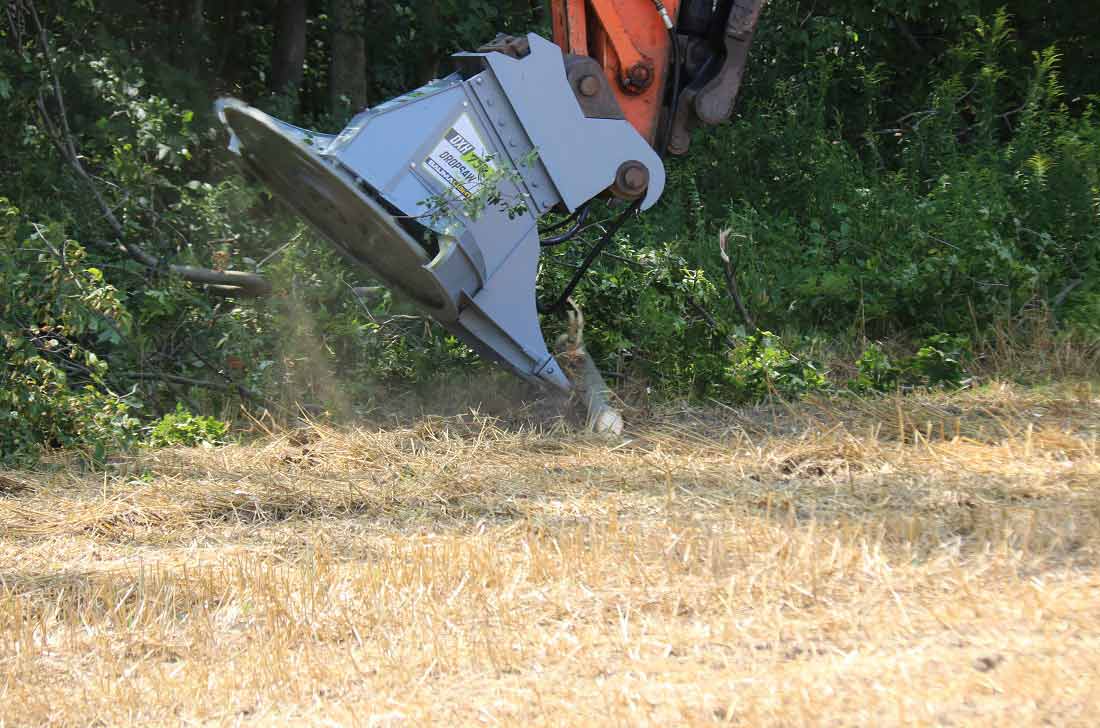

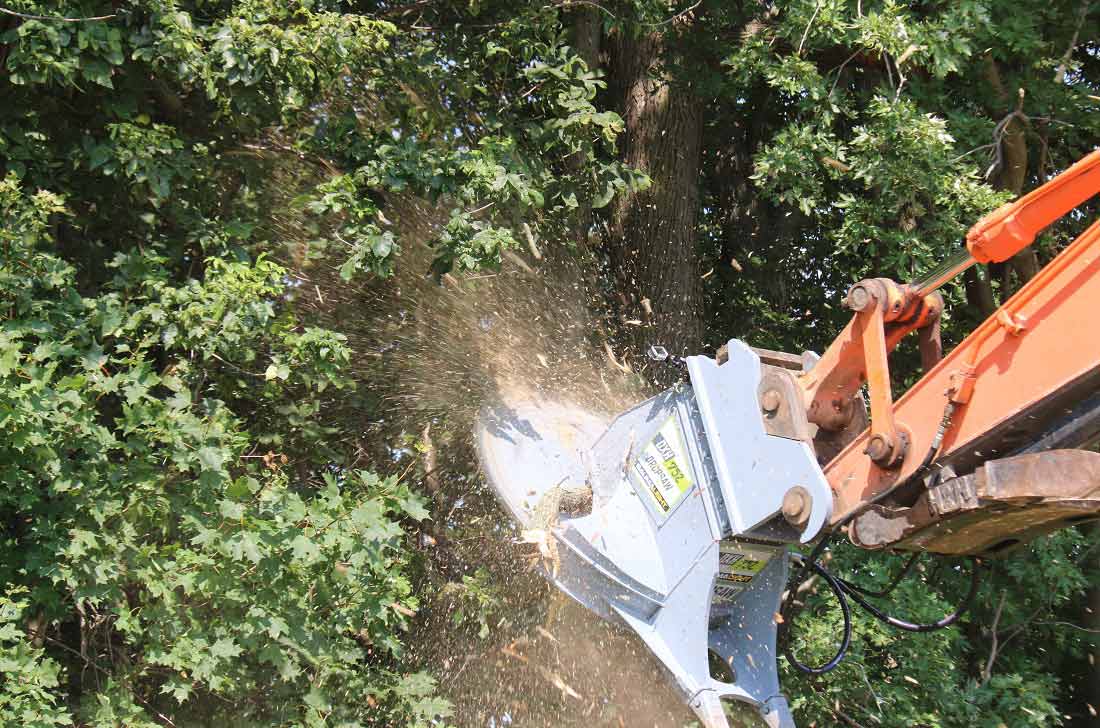

Meet your new essential excavator attachment for aggressive land clearing, precise tree trimming, and professional-grade brush management the Baumalight DropSaw Tree Saw Series, featuring the DXA530 and DXH752 models. Whether you're managing overgrown fence lines, clearing dense forest brush, or prepping land for development, these excavator-mounted tree saws give you unmatched cutting performance with professional precision.

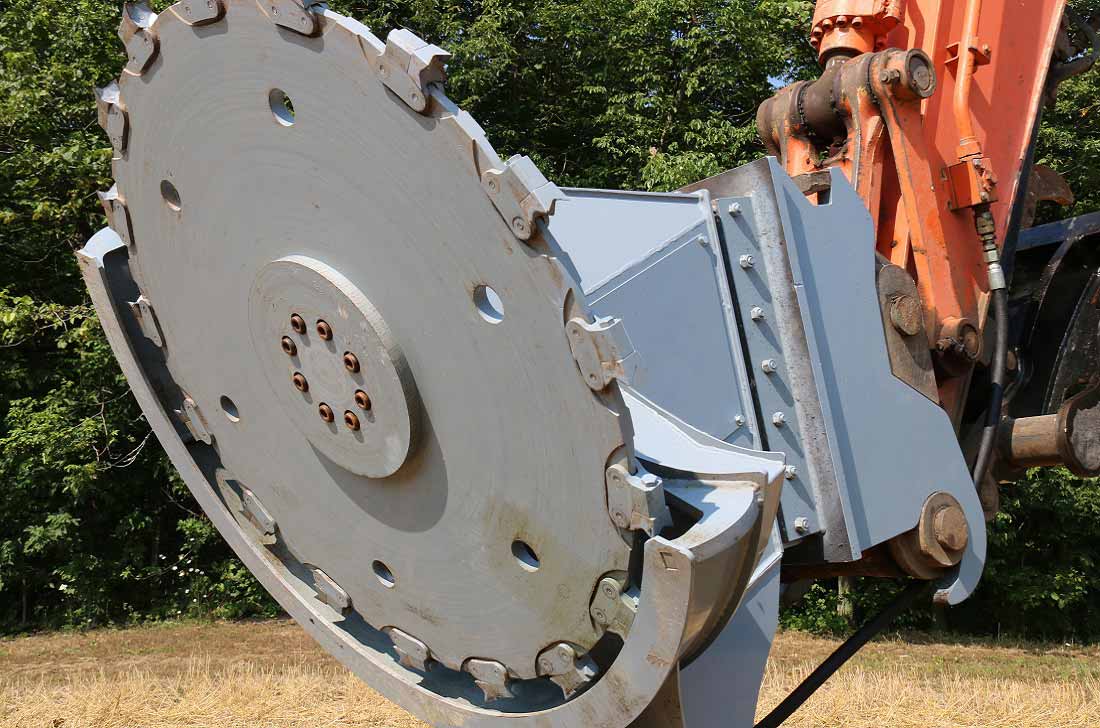

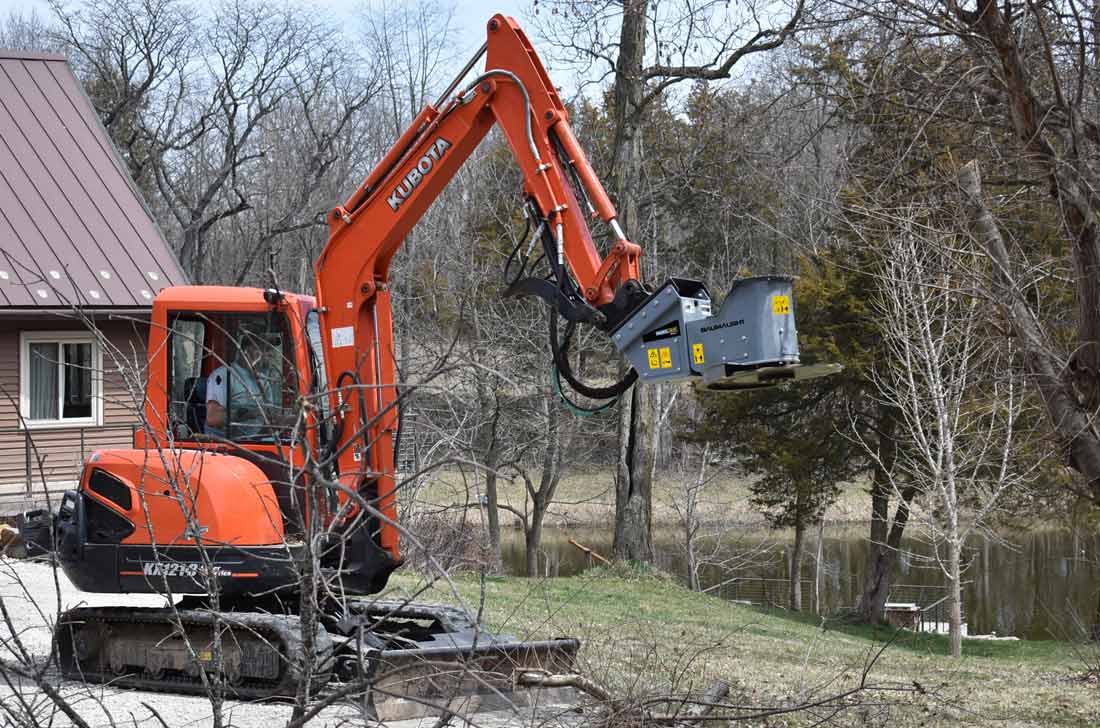

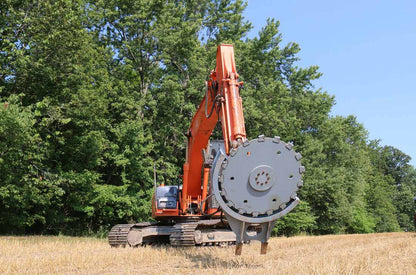

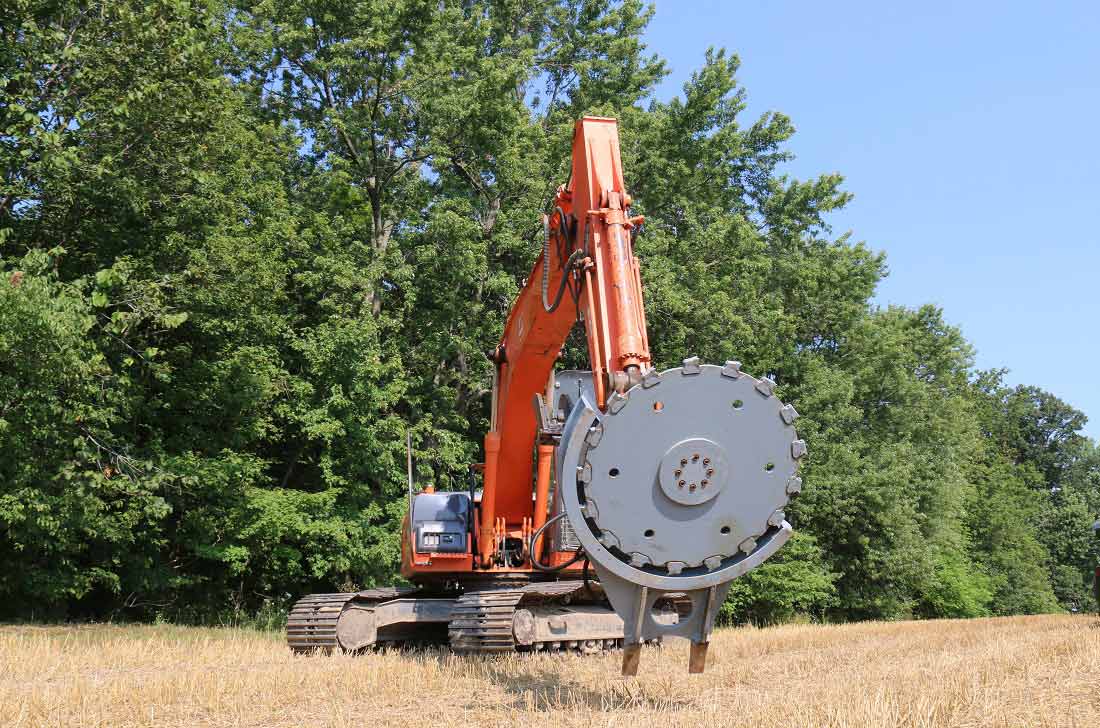

Built for 4–22 ton excavators, these high-performance attachments feature abrasion-resistant AR400 steel circular blades, replaceable cutting teeth, and bent-axis piston motors that convert your machine’s hydraulic flow into powerful, clean cuts. The DXA530’s 30” rotating blade is ideal for tight spaces and selective trimming, while the DXH752’s massive 52” fixed blade is made for large-scale, high-volume cutting operations.
Key Features
- Built for Excavators Compatible with 4 to 22-ton machines; perfect for mid to large excavators.
- Hydraulic Flow Range Operates between 15–60 GPM, making it ideal for high-output performance.
- Two Blade Options Choose between a 30” rotating blade (DXA530) or 52” fixed blade (DXH752).
- AR400 Steel Construction Blades made from high-strength, abrasion-resistant steel for longer life.

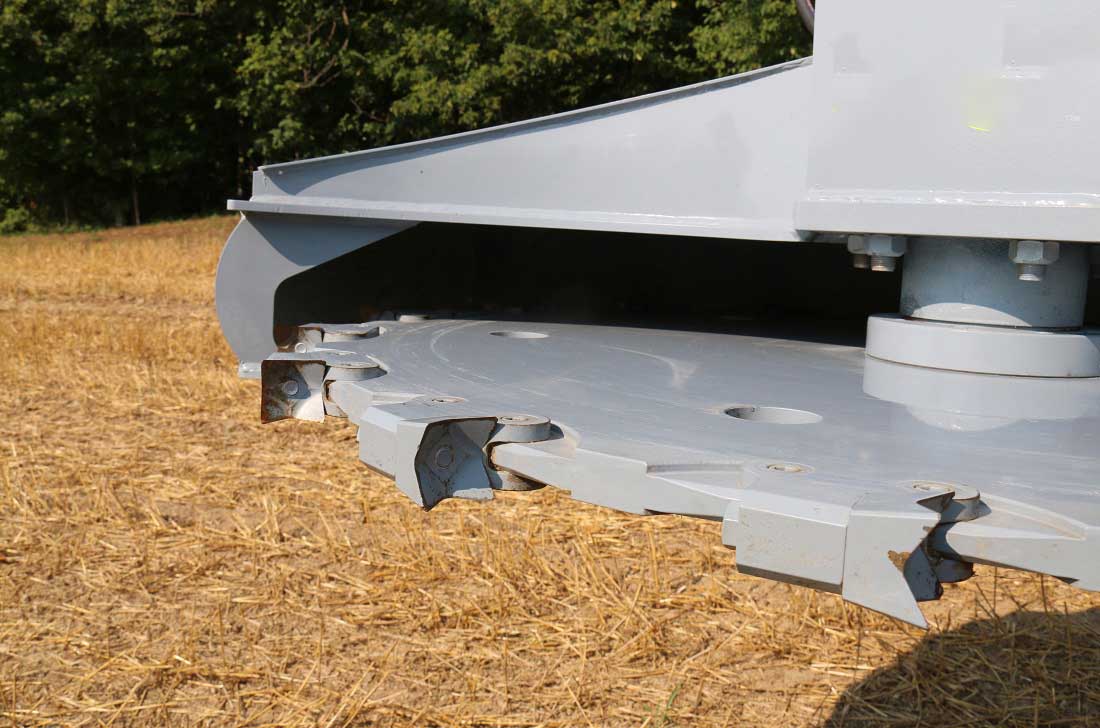

- Replaceable Teeth DXA530 uses High-Speed carbide teeth, DXH752 uses heavy-duty Beaver teeth.
- Clean, Controlled Cutting Delivers precise cuts on trees up to 20” in diameter (DXH752).

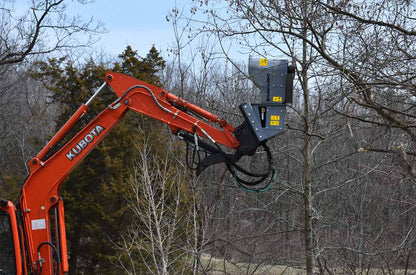

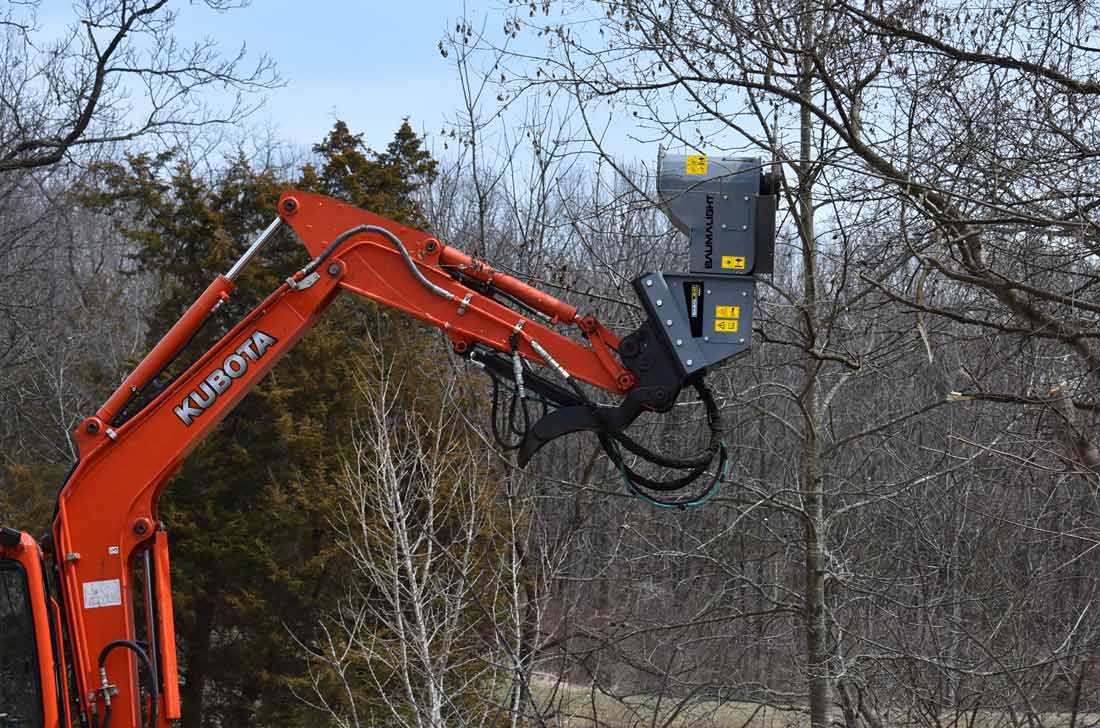

- Hydraulic Blade Rotation DXA530 offers 180° hydraulic rotation with a helical actuator for maneuverability.
- No-Grease Design Helical rotation system means less maintenance and more uptime.
- Bolt-On Mounting Flexible installation with bolt-on adaptors for various excavator types.
- Case Drain Protected Comes with vent-to-atmosphere relief to protect the motor seals.
- Internal Hose Routing Hoses are protected and armored, reducing damage and downtime.

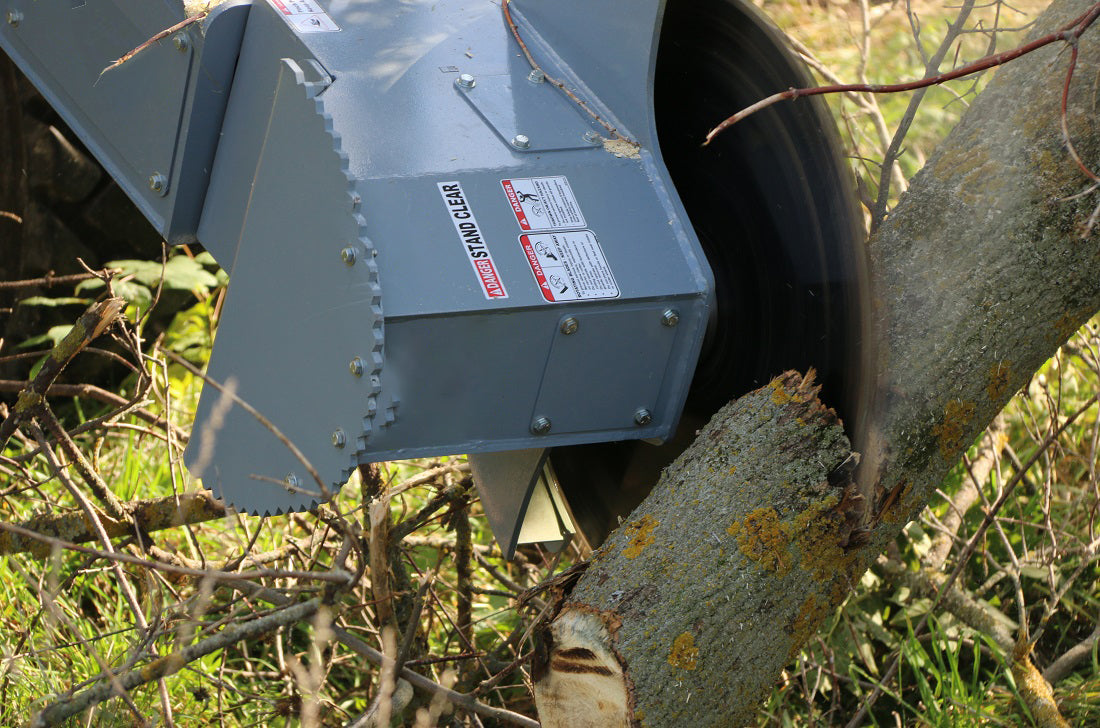

- Push Bar Protection Guides limbs away from operator and ensures safe, clean cuts.
- Optional Hand Control Run the unit without auxiliary electrical connections (in-cab 12V).

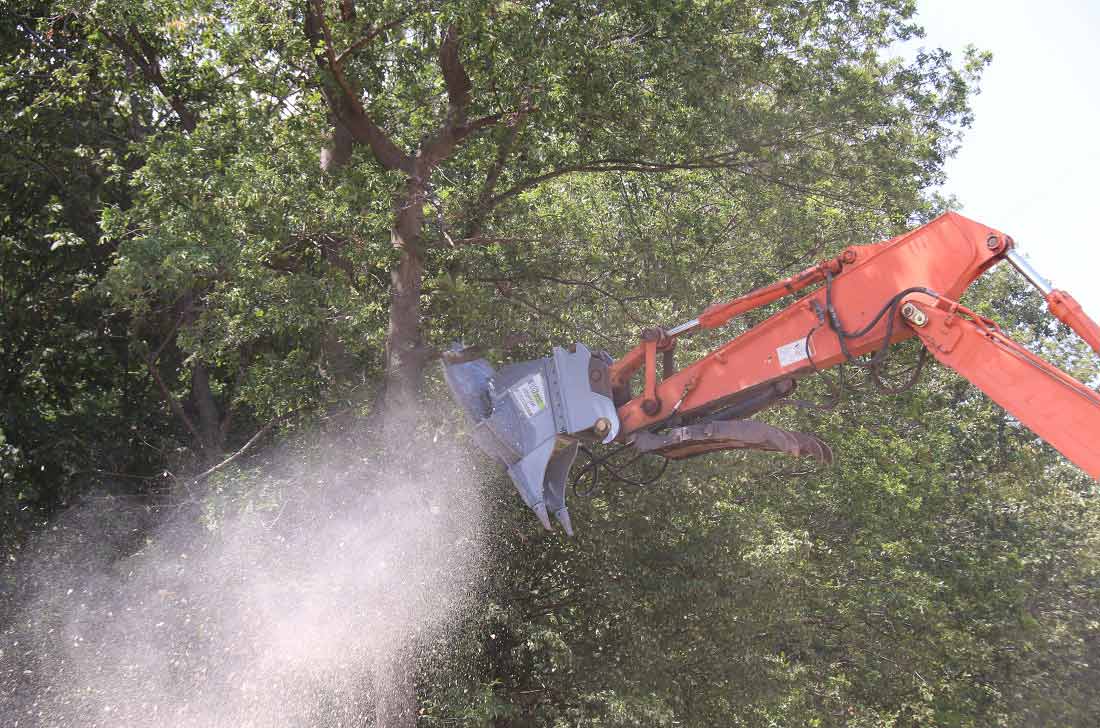

- Ideal for Dense Brush & Trees Whether limbing, topping, or clearing large trees, it's ready.
- Powder-Coated Finish Corrosion-resistant finish ensures durability in all conditions.
Detailed Specifications
| Feature | DXA530 |
|---|---|
| Compatible Machine Size | 4–12 Tons |
| Hydraulic Flow Range | 15–45 GPM |
| Blade Diameter | 30” |
| Blade Material | ½” AR400 Steel |
| Max Cut Diameter | 10” |
| Blade Rotation | 180° Hydraulic (Helical Actuator) |
| Motor Type | Bent Axis Piston |
| Motor Displacement (cc) | 47 |
| Tooth Type | High-Speed Carbide (3-edge) |
| Number of Teeth | 12 |
| Shipping Weight | 650 lbs |
| Case Drain Required | Yes |
| Hydraulic Hoses & Couplers | Not Included |
| Max Operating Pressure | 5,000 PSI |
| Electrical AUX Required | Yes (2 ON/OFF pins) |
| Feature | DXH752 |
|---|---|
| Compatible Machine Size | 10–22 Tons |
| Hydraulic Flow Range | 25–60 GPM |
| Blade Diameter | 52” |
| Blade Material | ¾” AR400 Steel |
| Max Cut Diameter | 20” |
| Blade Rotation | Fixed Horizontal |
| Motor Type | Bent Axis Piston |
| Motor Displacement (cc) | 108 |
| Tooth Type | Beaver (4-edge) |
| Number of Teeth | 18 |
| Shipping Weight | 2,380 lbs |
| Case Drain Required | Yes |
| Hydraulic Hoses & Couplers | Not Included |
| Max Operating Pressure | 5,000 PSI |
| Electrical AUX Required | No |
Comparison Chart
| Feature | DXM530 | DXA530 |
|---|---|---|
| Adaptor | Bolt-on | Bolt-on |
| Baumalight Connection Code | A02 | A02 |
| Maximum Carrier Ton | 12 | 12 |
| Minimum Carrier Ton | 4 | 4 |
| Blade Angle | 180° | 180° |
| Rotation | Manual | Actuator |
| Actuator | – | Helical |
| Hydraulic Flow (GPM) | 10–40 | 10–45 |
| Hydraulic Pressure (PSI) | 5,000 | 5,000 |
| Electrical AUX | Not required | 2 ON/OFF pins & G |
| Requires Case Drain | Yes | Yes |
| Hydraulic Hose | Not Supplied | Not Supplied |
| Hydraulic Couplers | Not Supplied | Not Supplied |
| Motor Type | Bent Axis Piston | Bent Axis Piston |
| Motor CC | 47 | 47 |
| Motor Option | T530 | T530 |
| Blade Diameter | 30" | 30" |
| Max Cut Diameter | 10" | 10" |
| Blade Material | 1/2" AR400 Blade | 1/2" AR400 Blade |
| Cut Thickness | 3/4" | 3/4" |
| Tooth Part Number | H3000 | H3000 |
| Type of Teeth | High Speed Teeth | High Speed Teeth |
| Edges per Tooth | 3 | 3 |
| Number of Teeth | 12 | 12 |
| Unit Shipping Weight | 625 lbs | 650 lbs |
| Feature | DXD752 | DXH752 |
|---|---|---|
| Adaptor | Bolt-on | Bolt-on |
| Baumalight Connection Code | A03 | A03 |
| Maximum Carrier Ton | 22 | 22 |
| Minimum Carrier Ton | 10 | 10 |
| Blade Angle | 360° | Horizontal |
| Rotation | Actuator | Fixed |
| Actuator | Slew Drive | – |
| Hydraulic Flow (GPM) | 25–60 | 25–60 |
| Hydraulic Pressure (PSI) | 5,000 | 5,000 |
| Electrical AUX | 2 ON/OFF pins & G | Not required |
| Requires Case Drain | Yes | Yes |
| Hydraulic Hose | Not Supplied | Not Supplied |
| Hydraulic Couplers | Not Supplied | Not Supplied |
| Motor Type | Bent Axis Piston | Bent Axis Piston |
| Motor CC | 108 | 108 |
| Motor Option | T590 | T590 |
| Blade Diameter | 52" | 52" |
| Max Cut Diameter | 20" | 20" |
| Blade Material | 3/4" Steel Blade | 3/4" Steel Blade |
| Cut Thickness | 1-5/8" | 1-5/8" |
| Tooth Part Number | B8000 | B8000 |
| Type of Teeth | Beaver | Beaver |
| Edges per Tooth | 4 | 4 |
| Number of Teeth | 18 | 18 |
| Unit Shipping Weight | 2,380 lbs | 1,808 lbs |
Manuals & Documents
The Product Manual
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

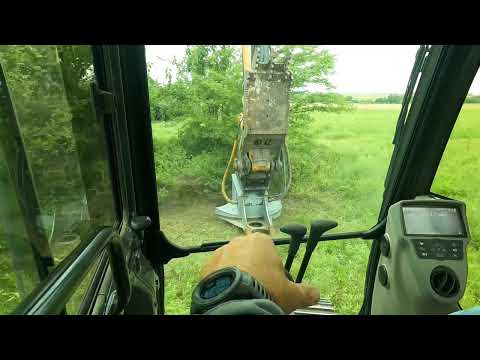

Videos
