Baumalight Tree Saw | Model DXM530 | Blade Diameter 30" | Machine Size 4 To 12 Tons | For Excavators
Baumalight Tree Saw | Model DXM530 | Blade Diameter 30" | Machine Size 4 To 12 Tons | For Excavators
Regular price
$5,808.00
Regular price
Sale price
$5,808.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Baumalight Tree Saw | Model DXM530 | Blade Diameter 30" | Machine Size 4 To 12 Tons | For Excavators
DESCRIPTION

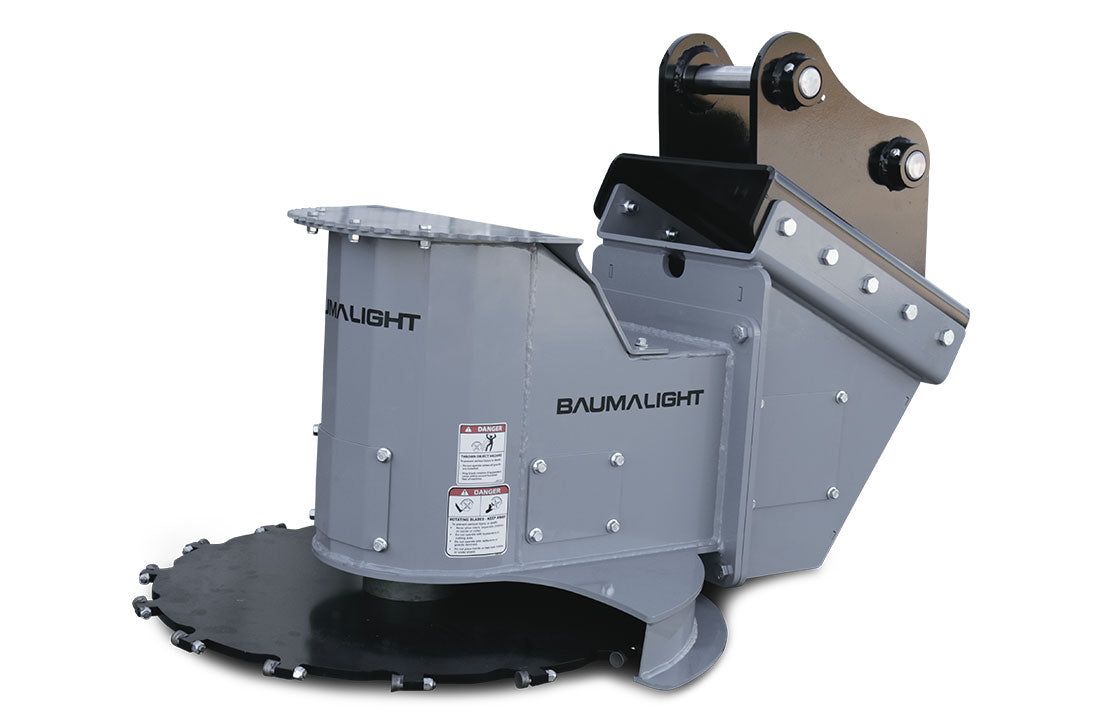

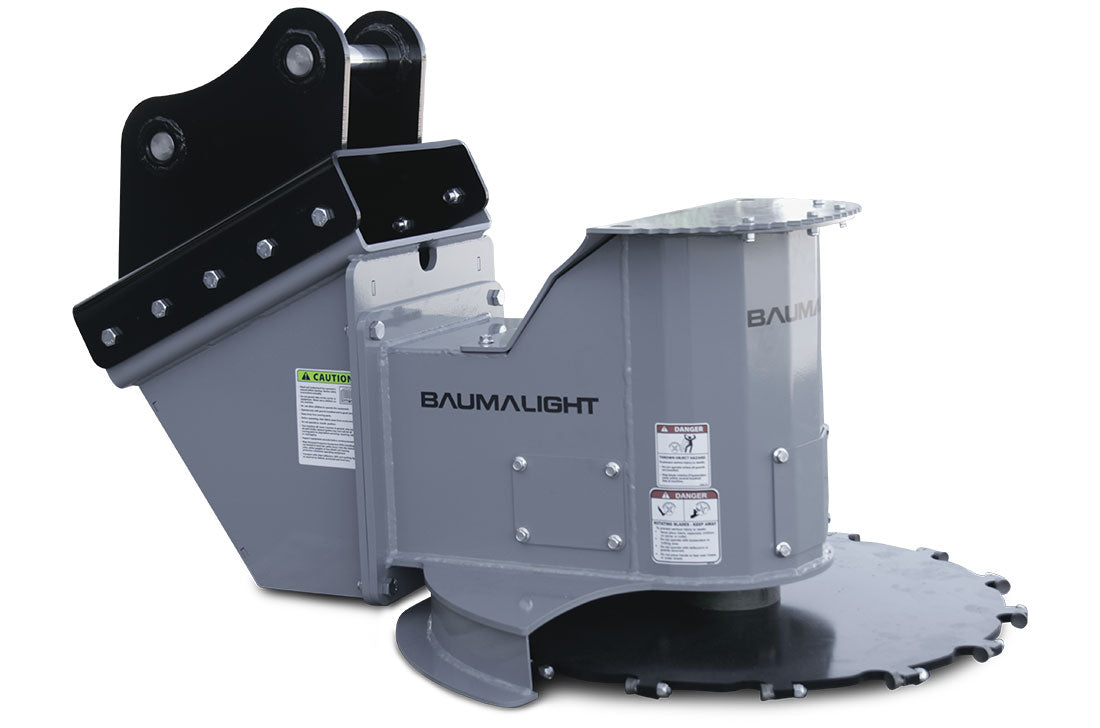

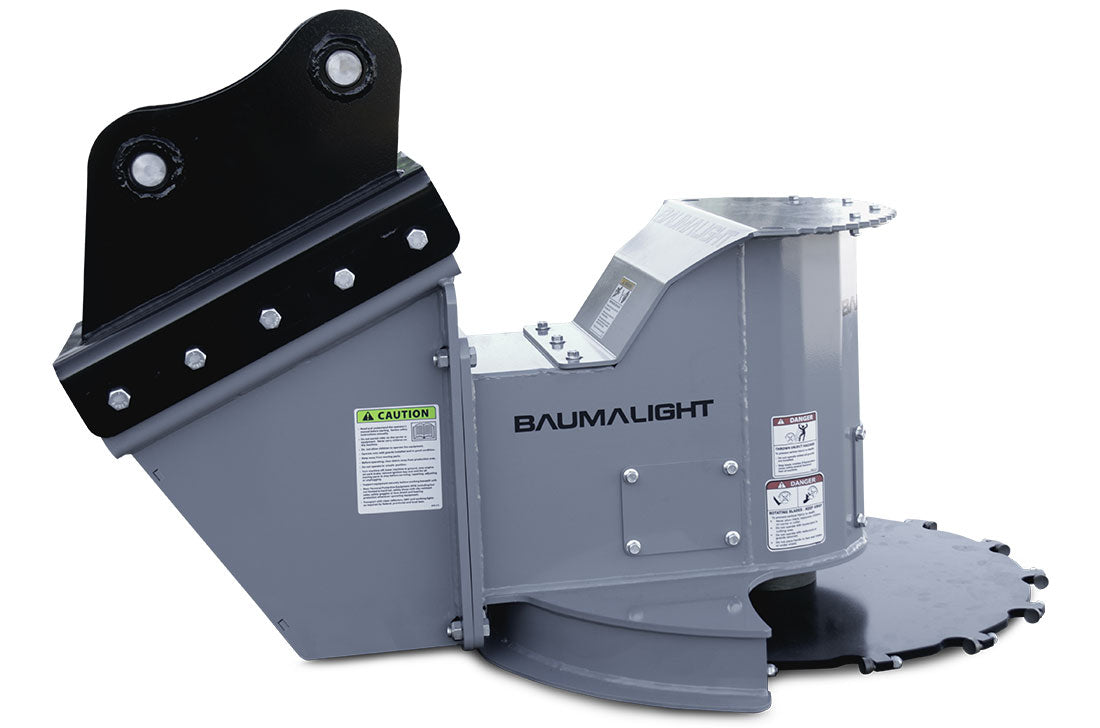

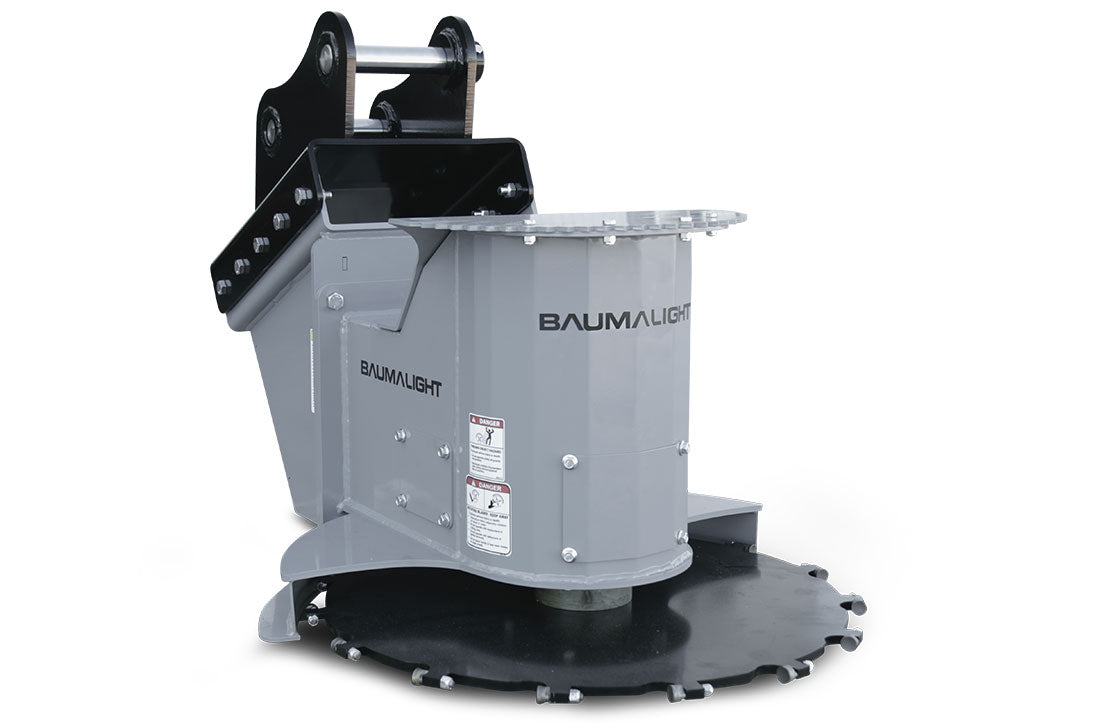

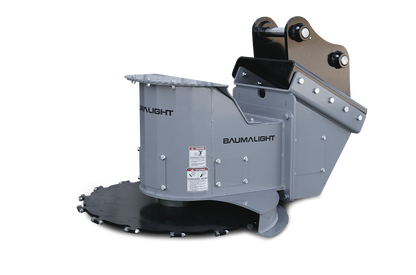

The Baumalight DXM530 Rotating Tree Saw is a heavy-duty, hydraulically driven attachment engineered specifically for 4 To 12 ton excavators. Whether you're clearing land, trimming branches, or managing overgrowth in remote or rugged terrain, this high-performance tree saw delivers clean, precise cuts with the power and visibility only an excavator can provide.
What sets the DXM530 apart is its manually rotating head, allowing you to switch between horizontal and vertical cutting positions for maximum flexibility. The powerful 30" AR400 steel blade, combined with replaceable high-speed carbide-tipped teeth, rips through limbs up to 10 inches in diameter. And with internal hose routing, durable bearing supports, and a protective blade shield, this attachment is built to endure the harshest job sites while keeping operators safe and productive.
Key Features
- Fits 4–12 Ton Excavators Designed for optimal power and maneuverability in mid-sized excavators.
- Manual Rotating Cutting Head Easily switch from horizontal to vertical cutting for trimming, limbing, and felling.
- Hydraulic-Driven Performance Requires 10–40 GPM for smooth, efficient operation in varied cutting conditions.
- 30" Heavy-Duty AR400 Steel Blade Precision-crafted for durability and aggressive cutting power.
- Clean, Controlled Cuts High-speed carbide teeth chip instead of shear, leaving clean, professional results.
- High Visibility Design Open construction ensures excellent sightlines for better accuracy and safety.
- Replaceable 3-Edge Teeth Each carbide tooth rotates 3 times for extended cutting life and lower maintenance.
- Includes 6 FREE Spare Teeth Keep productivity high with extra teeth conveniently stored onboard.
- Internal Hydraulic Hose Routing Protects hoses from snags, pinching, and harsh site conditions.
- Overhung Load Adapter Bearing Rugged bearing support ensures blade stability under tough loads.
- Protective Blade Shielding Deflects chips and debris while adding a layer of safety for the operator.
- Durable Powder Coat Finish Resists corrosion and wear for long-lasting performance in any climate.
- Bolt-On Excavator Adaptor Easily switch machines or replace mounts without welding.
- Case Drain with Vent to Atmosphere Extends motor life and prevents seal damage under pressure spikes.
- AR400 Blade + Serrated Push Bar Aggressive front plate helps control limbs and direct debris away from the cab.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | DXM530 |
| Compatibility | Excavators (4–12 Tons) |
| Hydraulic Flow Required | 10–40 GPM |
| Maximum Pressure | 5,000 PSI |
| Blade Diameter | 30 inches |
| Maximum Cutting Diameter | 10 inches |
| Blade Material | 1/2" AR400 Abrasion-Resistant Steel |
| Motor Type | Bent Axis Piston Motor |
| Motor Displacement | 47 cc |
| Rotation Type | Manual 90° (Horizontal to Vertical) |
| Number of Teeth | 12 High-Speed Carbide Teeth |
| Teeth Edges per Tooth | 3 (Rotatable) |
| Tooth Part Number | H3000 |
| Unit Weight (Shipping) | 625 lbs |
| Requires Case Drain | Yes |
| Adaptor Type | Bolt-On Excavator Mount |
| Visibility Features | Open Frame Design |
| Safety Features | Blade Shielding, Internal Hose Routing |
| Additional Accessories | 6 Free Replacement Teeth Included |
Comparison Chart
| Feature | DXM530 | DXA530 |
|---|---|---|
| Adaptor | Bolt-on | Bolt-on |
| Baumalight Connection Code | A02 | A02 |
| Maximum Carrier Ton | 12 | 12 |
| Minimum Carrier Ton | 4 | 4 |
| Blade Angle | 180° | 180° |
| Rotation | Manual | Actuator |
| Actuator | – | Helical |
| Hydraulic Flow (GPM) | 10–40 | 10–45 |
| Hydraulic Pressure (PSI) | 5,000 | 5,000 |
| Electrical AUX | Not required | 2 ON/OFF pins & G |
| Requires Case Drain | Yes | Yes |
| Hydraulic Hose | Not Supplied | Not Supplied |
| Hydraulic Couplers | Not Supplied | Not Supplied |
| Motor Type | Bent Axis Piston | Bent Axis Piston |
| Motor CC | 47 | 47 |
| Motor Option | T530 | T530 |
| Blade Diameter | 30" | 30" |
| Max Cut Diameter | 10" | 10" |
| Blade Material | 1/2" AR400 Blade | 1/2" AR400 Blade |
| Cut Thickness | 3/4" | 3/4" |
| Tooth Part Number | H3000 | H3000 |
| Type of Teeth | High Speed Teeth | High Speed Teeth |
| Edges per Tooth | 3 | 3 |
| Number of Teeth | 12 | 12 |
| Unit Shipping Weight | 625 lbs | 650 lbs |
| Feature | DXD752 | DXH752 |
|---|---|---|
| Adaptor | Bolt-on | Bolt-on |
| Baumalight Connection Code | A03 | A03 |
| Maximum Carrier Ton | 22 | 22 |
| Minimum Carrier Ton | 10 | 10 |
| Blade Angle | 360° | Horizontal |
| Rotation | Actuator | Fixed |
| Actuator | Slew Drive | – |
| Hydraulic Flow (GPM) | 25–60 | 25–60 |
| Hydraulic Pressure (PSI) | 5,000 | 5,000 |
| Electrical AUX | 2 ON/OFF pins & G | Not required |
| Requires Case Drain | Yes | Yes |
| Hydraulic Hose | Not Supplied | Not Supplied |
| Hydraulic Couplers | Not Supplied | Not Supplied |
| Motor Type | Bent Axis Piston | Bent Axis Piston |
| Motor CC | 108 | 108 |
| Motor Option | T590 | T590 |
| Blade Diameter | 52" | 52" |
| Max Cut Diameter | 20" | 20" |
| Blade Material | 3/4" Steel Blade | 3/4" Steel Blade |
| Cut Thickness | 1-5/8" | 1-5/8" |
| Tooth Part Number | B8000 | B8000 |
| Type of Teeth | Beaver | Beaver |
| Edges per Tooth | 4 | 4 |
| Number of Teeth | 18 | 18 |
| Unit Shipping Weight | 2,380 lbs | 1,808 lbs |
