Baumalight Tree Spade | Model ST440 | Capacity 40" Root Ball | Hydraulic Flow 5 To 20 GPM | For Telehandler / Skid Steer
Baumalight Tree Spade | Model ST440 | Capacity 40" Root Ball | Hydraulic Flow 5 To 20 GPM | For Telehandler / Skid Steer
Regular price
$15,800.00
Regular price
Sale price
$15,800.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

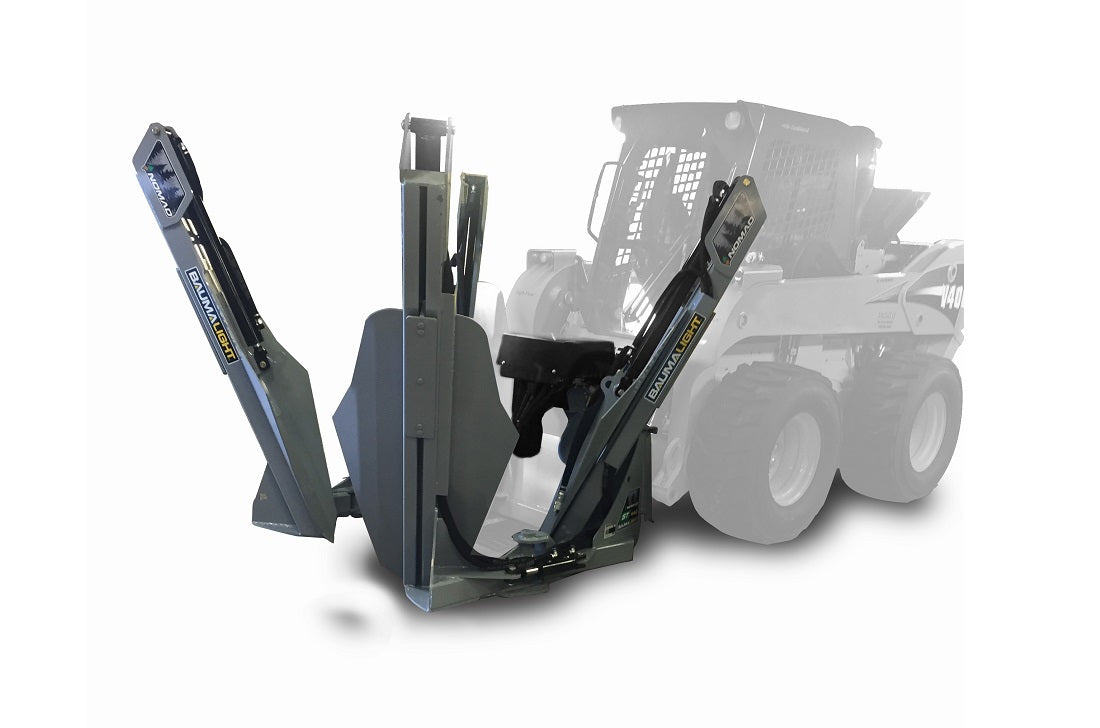

Baumalight Tree Spade | Model ST440 | Capacity 40" Root Ball | Hydraulic Flow 5 To 20 GPM | For Telehandler & Skid Steer
Description

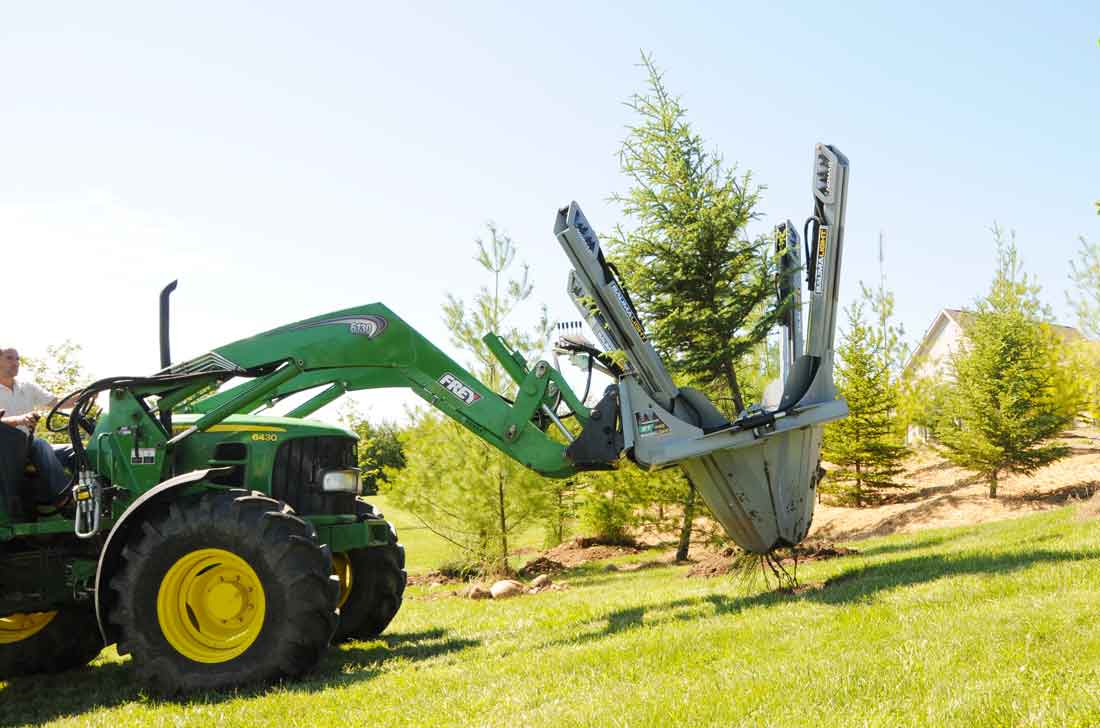

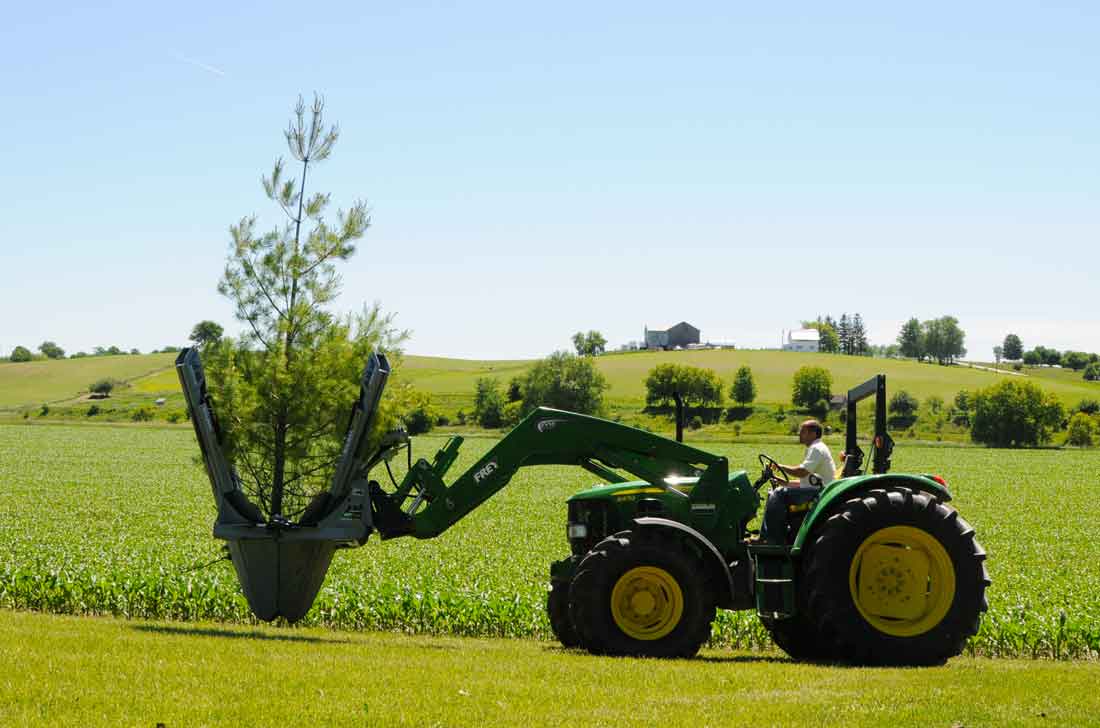

Bring precision and power to your tree transplanting jobs with the Baumalight ST440 Tree Spade a rugged, professional-grade tree digging solution engineered for landscapers, nurseries, municipalities, and forestry professionals. Designed to create a clean, compact 40-inch root ball, the ST440 lets you relocate trees with minimal root damage and maximum efficiency.

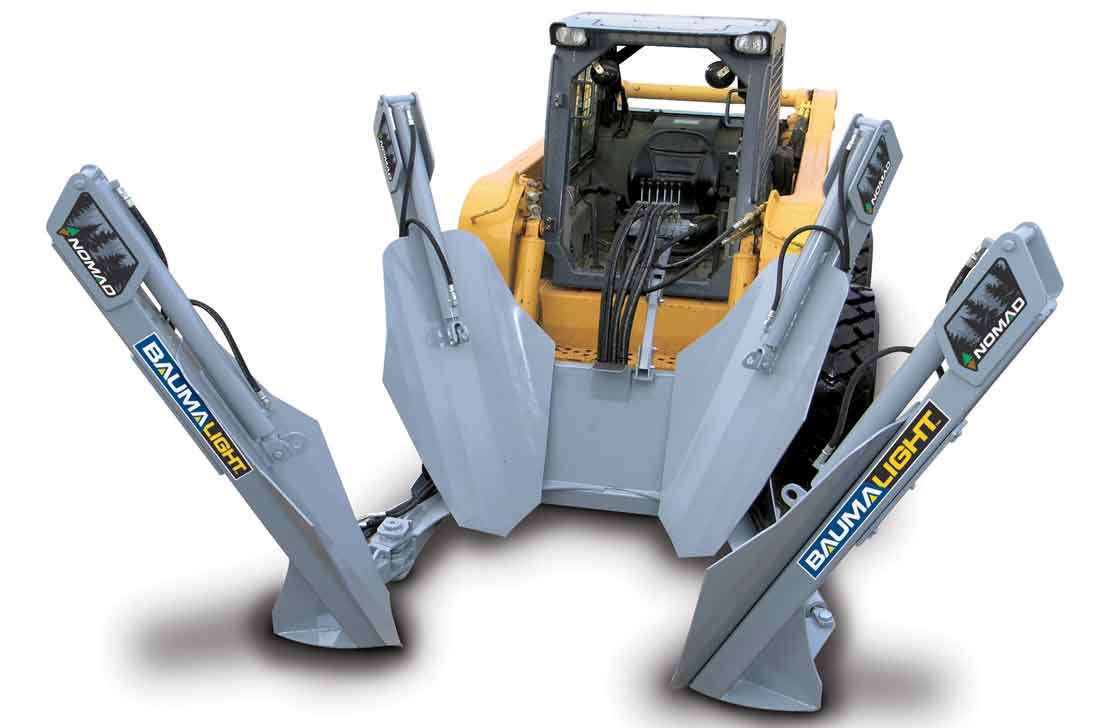

Its unique four-blade, dual-hinged design offers excellent visibility, enhanced stability, and unmatched control during operation. Compatible with skid steers, telehandlers, and wheel loaders, this hydraulic tree spade thrives in tight spaces and varied terrain. Whether you're planting trees for urban development or preserving large specimens, the ST440 gives you the power, performance, and flexibility you need.
Key Features
- 40-Inch Root Ball Capacity Perfect for transplanting mature evergreens (up to 4") and hardwoods (up to 3").
- Universal Skid Steer Mount Compatible with most skid steers, wheel loaders, and telehandlers.
- Durable High-Alloy Steel Blades Four hardened 1/4" AR400 steel blades designed to self-harden with use.
- Dual-Hinged Frame Arms Allow precise positioning and “tree-hugging” for safer digging near branches.
- Operator Visibility Wide blade angle and open design give clear sightlines during spading operations.
- Multiple Control Options Choose from manual, electric, wireless, or hydraulic auxiliary controls.
- Hydraulic Flow Range: 5 To 20 GPM Operates efficiently with a wide range of skid steer models.
- Adjustable Stabilizers (Optional) Maintain spade balance when handling trees with varying root ball sizes.
- Locally Available Replacement Parts Standard fittings, hoses, and wear parts for easy maintenance.
- Compact, Transport-Ready Design Includes lifting eyes for safe and simple loading or storage.
- Powder-Coated Finish Durable, corrosion-resistant coating stands up to tough job site conditions.
- Greaseable Pins & Zinc-Plated Hardware For smooth, rust-free operation and longevity.
- Semi-Truncated Blade Shape Ideal for compacting sandy soils and penetrating dense clay.
- Hose Sleeves & JIC Fittings Protect hoses from abrasion while ensuring leak-proof connections.
- Baumalight’s Right-to-Repair Support Backed by instructional videos and DIY repair guides.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | ST440 |
| Root Ball Diameter | 40 inches |
| Root Ball Depth | 30 inches |
| Tree Size (Evergreen) | Up to 4 inches |
| Tree Size (Hardwood) | Up to 3 inches |
| Number of Blades | 4 |
| Blade Thickness | 1/4" AR400 High-Alloy Steel |
| Hydraulic Flow Requirement | 5 To 20 GPM |
| Hydraulic Pressure Range | 2900 To 4000 PSI |
| Machine Compatibility | Skid Steer, Wheel Loader, Telehandler |
| Minimum Equipment Weight | 6,000 To 7,800 lbs (varies by equipment) |
| Control Options | Electric, Manual, Wireless, Hydraulic Aux |
| Mounting Type | Universal Skid Steer Mount |
| Spade Frame Style | Dual-Hinged Arms with Open Sight Window |
| Weight (Without Root Ball) | 1,934 lbs |
| Weight (With Root Ball) | 3,134 lbs |
| Optional Stabilizer Kit | Part #D001539 6", 8", 10" adjustment |
| Optional Skid Steer Outriggers | Part #D001542 Back-end support |
Tree Spade Control Options
| Feature | Electric Controls | Aux Connection | Wireless Controls | Manual Controls |
|---|---|---|---|---|
| Control Type | Wired Electric | Hydraulic Aux | Wireless Remote | Manual |
| Wire Length | 20 ft | Requires Harness | 20 ft | No Wire Required |
| Tree Size (Evergreen) | 4" | 4" | 4" | 4" |
| Tree Size (Hardwood) | 3" | 3" | 3" | 3" |
| Minimum Equipment Weight | 6000-7800 lbs (varies by equipment type) | 6000-7800 lbs (varies by equipment type) | 6000-7800 lbs (varies by equipment type) | 6000-7800 lbs (varies by equipment type) |

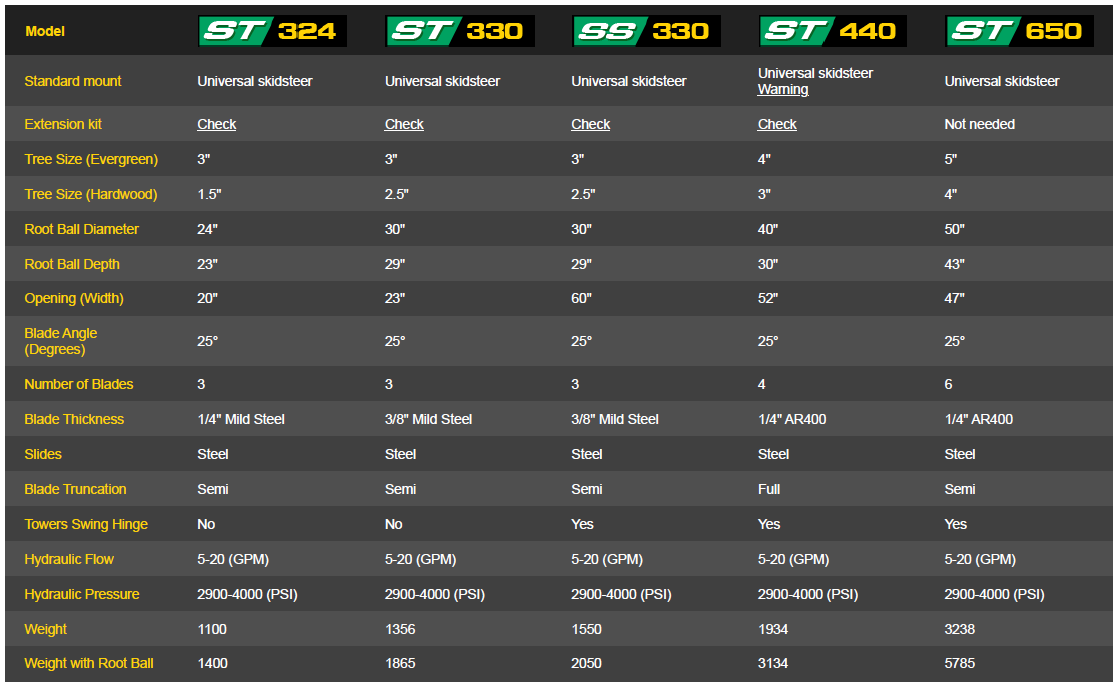

Comparison Chart
| Feature | ST324 | ST330 |
|---|---|---|
| Tree Size (Evergreen) | 3" | 3" |
| Tree Size (Hardwood) | 1.5" | 2.5" |
| Root Ball Diameter (inches) | 24" | 30" |
| Root Ball Depth | 23" | 29" |
| Opening (Width) | 20" | 23" |
| Number of Blades | 3 | 3 |
| Hydraulic Flow (GPM) | 5-20 | 5-20 |
| Weight | 1100 | 1356 |
| Weight with Root Ball (lbs) | 1400 | 1865 |
| Feature | SS330 | ST440 |
|---|---|---|
| Tree Size (Evergreen) | 3" | 4" |
| Tree Size (Hardwood) | 2.5" | 3" |
| Root Ball Diameter (inches) | 30" | 40" |
| Root Ball Depth | 29" | 30" |
| Opening (Width) | 60" | 52" |
| Number of Blades | 3 | 4 |
| Hydraulic Flow (GPM) | 5-20 | 5-20 |
| Weight | 1550 | 1934 |
| Weight with Root Ball (lbs) | 2050 | 3134 |
| Feature | ST650 |
|---|---|
| Tree Size (Evergreen) | 5" |
| Tree Size (Hardwood) | 4" |
| Root Ball Diameter (inches) | 50" |
| Root Ball Depth | 43" |
| Opening (Width) | 47" |
| Number of Blades | 6 |
| Hydraulic Flow (GPM) | 5-20 |
| Weight | 3288 |
| Weight with Root Ball (lbs) | 5785 |
