Product Description
Baumalight Trencher | Model TN-548 | Width 6" To 10" | Horsepower 40 To 100 HP | For Tractors
DESCRIPTION
When it comes to tough trenching tasks, the Baumalight TN548 Trencher is built to perform with strength, efficiency, and reliability. Designed for universal skid steers (3,000 – 7,000 lbs) and compatible with tractors via an optional 3-point hitch mount, this trencher makes light work of burying cables, utility lines, and irrigation systems.
With the ability to cut trenches up to 48 inches deep and 6 to 10 inches wide, depending on your chain selection, the TN548 delivers consistent results across a variety of soil conditions. It’s equipped with a sealed planetary drive system that maximizes torque and eliminates roller chains resulting in smoother, more dependable operation. Whether you're tackling soft ground or rocky terrain, the TN548 offers customization through multiple chain options, including standard cup tooth and mixed rock-tooth styles.
This trencher isn’t just muscle it’s smart too. The TN548 is engineered with serviceability and control in mind, offering features like an adjustable chain tensioner, side auger for clean trenching, and an integrated crumb scraper bar for efficient dirt removal. Its solid steel nose ensures durability where it counts, while optional control kits allow operation even with tractors that have only one hydraulic remote.
Whether you're a contractor, landowner, or utility professional, the Baumalight TN548 gives you professional-grade trenching in a rugged, operator-friendly package.
Key Features
- Built for Skid Steers & Tractors: Fits 3,000–7,000 lb skid steers or 40 To 100 HP tractors using optional 3-point hitch mount.
- Up to 48" Trenching Depth: Easily reach deep for utilities, irrigation, or cable lines.
- Adjustable Trench Width (6"–10"): Choose the width you need with interchangeable cutting chains.
- High-Torque Planetary Drive: Sealed planetary system delivers 21,856 lbs-in of torque no roller chains to fail.

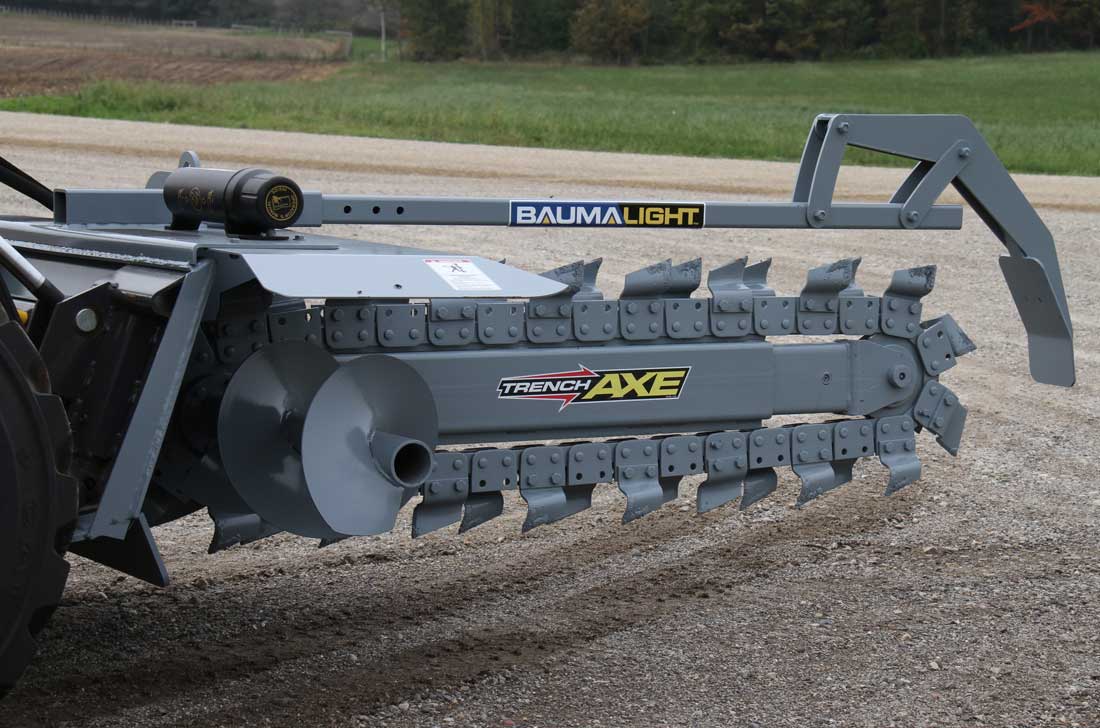

- Side Auger for Clean Trenches: Keeps soil clear from the trench while preserving backfill proximity.
- Crumb Scraper Bar Included: Removes debris efficiently to leave a clean trench bottom.
- Solid Steel Nose Assembly: Precision machined for extreme durability with dual tapered roller bearings.
- Fast Chain Tensioning: Grease-cylinder tension system adjusts with a few quick pumps—no tools needed.
- Cup Tooth Chain (Standard): Ideal for most soils; cuts cleanly and efficiently.
- Optional Bullet Tooth Chains: Handle rocky terrain with 50/50 mixed rock and cup tooth chains.
- 3PH Mount Compatibility (Optional): Use with tractors via CAT 1 or CAT 2 adapters.
- External Hydraulic Control Kit (Optional): Operate on tractors with only one hydraulic remote.
- Hydraulic Relief Valve: Protects the system from torque overload.
- Fits Deep Utility Applications: Perfect for water lines, electrical conduit, septic systems, and more.
- Engineered for Longevity: Built with heavy-duty materials for years of demanding use.
Detailed Specifications
| Specification | TN548 |
|---|---|
| Mount Compatibility | Universal Skid Steer / Tractor (optional 3PH mount) |
| Trench Depth | Up to 48 inches |
| Trench Width | 6", 8", or 10" (based on chain) |
| Drive Type | Sealed Planetary Drive |
| Main Shaft | 2-9/16" Solid Hardened Steel |
| Chain Torque at 3,000 PSI | 21,856 lbs-in |
| Over Torque Protection | Hydraulic Relief Valve |
| Horsepower Requirement | 40 – 100 HP |
| Carrier Weight | 3,000 – 7,000 lbs |
| Hydraulic Flow (Skid Steer) | 15 – 25 GPM |
| Hydraulic Flow (Tractor) | 15 – 25 GPM |
| Weight (Approx.) | 1,250 lbs |
Chain Options for Every Job
| Chain Option | Description | Weight (lbs) |
|---|---|---|
| S4806 | 48" x 6" Standard Cup Tooth | 1250 |
| S4808 | 48" x 8" Standard Cup Tooth | 1260 |
| S4810 | 48" x 10" Standard Cup Tooth | 1270 |
| M4806 | 48" x 6" 50/50 Rock & Cup Tooth | 1284 |
| M4808 | 48" x 8" 50/50 Rock & Cup Tooth | 1290 |
| M4810 | 48" x 10" 50/50 Rock & Cup Tooth | 1310 |
Comparison Chart
| Feature | TN236 | TNM336B |
|---|---|---|
| Trench width | 4" To 6" | 4" To 6" |
| Trench Depth (inches) | 36" | 36" |
| Drive Type | Direct drive | Direct drive |
| Horse Power (HP) | 10 - 25 | 10 - 25 |
| Main shaft size | 1:10 Taper | 1:10 Taper |
| Trencher chain torque at 3,000 PSI | 6,703 lbs-in | 6,703 lbs-in |
| Carrier weight (lb) | 1,500 - 4,000 | 1,500 - 4,000 |
| Min. / Max. GPM Skidsteer | 7 To 18 | 7 To 18 |
| Weight (lbs) | 470 | 675 |
| Feature | TNS336 | TN548 |
|---|---|---|
| Trench width | 4" To 6" | 6" To 10" |
| Trench Depth (inches) | 36" | 48" |
| Drive Type | Planetary | Planetary |
| Horse Power (HP) | 30 - 55 | 40 - 100 |
| Main shaft size | 1:10 Taper | 2-9/16" Solid |
| Trencher chain torque at 3,000 PSI | 14,571 lbs-in | 21,856 lbs-in |
| Carrier weight (lb) | 2,000 - 5,000 | 3,000 - 7,000 |
| Min. / Max. GPM Skidsteer | 10 To 20 | 15 To 25 |
| Weight (lbs) | 850 | 1,250 |
| Feature | TN560 | TN760 |
|---|---|---|
| Trench width | 6" To 10" | 6" To 10" |
| Trench Depth (inches) | 60" | 60" |
| Drive Type | Planetary | Planetary |
| Horse Power (HP) | 40 - 100 | 40 - 100 |
| Main shaft size | 2-9/16" Solid | 2-9/16" Solid |
| Trencher chain torque at 3,000 PSI | 21,856 lbs-in | 33,877 lbs-in |
| Carrier weight (lb) | 3,000 - 7,000 | 4,000 - 12,000 |
| Min. / Max. GPM Skidsteer | 12 To 25 | 20 To 42 |
| Weight (lbs) | 1,500 | 1,800 |
