Product Description
Baumalight Trencher | Model TNS-336 | Trench Depth 36" | Width 4" To 6" | Horsepower 30 To 55 HP | For Tractors
DESCRIPTION
The Baumalight TNS336 Trencher is the ultimate solution for efficiently cutting trenches while keeping your cables and lines protected. Ideal for rural property owners, landscapers, and professional contractors, this trencher allows you to quickly cut trenches up to 36 inches deep and between 4 to 6 inches wide, depending on the chain option selected.
Powered by a robust planetary drive system, the TNS336 eliminates the need for a roller chain, delivering hydraulic power directly to the sprocket of the digging chain. This design ensures optimal trenching performance, making it a reliable choice for various applications.
Versatility is a key feature of the TNS336, as it can be mounted on skidsteers weighing between 2,000 - 5,000 lbs or on a tractor with the optional 3-point hitch mount. This adaptability makes it an excellent tool for any job site, ensuring you have the right equipment for your specific needs.
Key Features
- Trench Depth: Up to 36" Ideal for irrigation, electrical, drainage, and utility line installation.
- Adjustable Trench Width: 4"–6" Switch chains for precision or wider cuts depending on project needs.
- Compatible with Tractors & Skid Steers Fits skid steers (2,000–5,000 lbs) or tractors (30–55 HP) with optional 3PH.
- Horsepower Range: 30 To 55 HP (Tractor) Matches standard hydraulic outputs for seamless integration.
- Planetary Drive System Delivers 14,571 lbs-in of torque with fewer moving parts and lower maintenance.

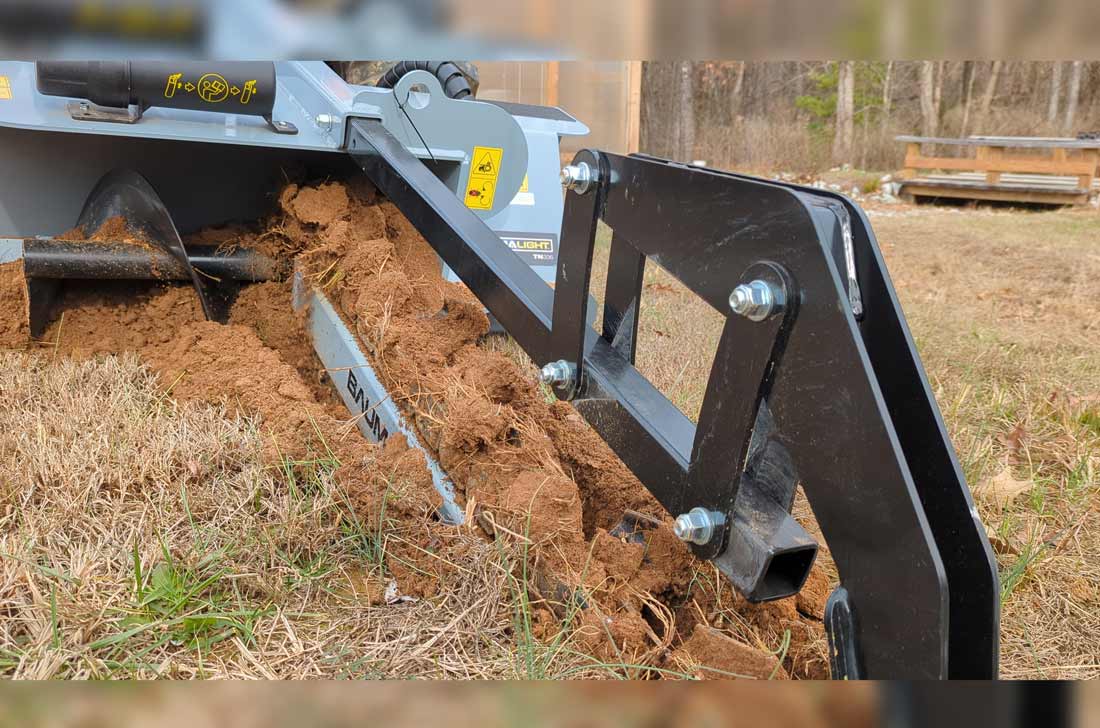

- Side Auger System Efficiently pushes loose dirt out of the trench while keeping backfill close.
- Integrated Crumb Scraper Bar Leaves a clean, uniform trench by lifting debris into the digging chain.
- Grease-Powered Chain Tensioner Quick tension adjustments using a standard grease gun—no tools needed.
- Solid Nose Assembly Machined from solid steel and rides on dual tapered roller bearings for unmatched durability.
- Cup Tooth Chain Included Cuts cleanly through most soil types; optional rock-tooth chains available.
- Optional Bullet Tooth Chains Handle rocky or mixed ground conditions with ease.
- 3PH Mount Option (D001393) Adds CAT 1 tractor compatibility with hydrostatic drive.
- External Hydraulic Control Kit (S1050) Operate with tractors that have only one hydraulic remote.
- Rugged 850 lb Frame Heavy-duty yet compact enough for maneuverability in tight areas.
- Ideal for Rural and Commercial Use Perfect for farmsteads, ranches, utility work, and landscaping professionals.
Detailed Specifications
| Specification | TNS336 |
|---|---|
| Mount | Universal Skid Steer or Tractor (optional 3PH) |
| Trench Depth | Up to 36" |
| Trench Width | 4" to 6" (depending on chain) |
| Drive Type | Planetary Drive |
| Main Shaft Size | 1:10 Taper Hardened Shaft |
| Trencher Chain Torque @ 3,000 PSI | 14,571 lbs-in |
| Over Torque Protection | Hydraulic Relief |
| Horsepower Requirement | 30 55 HP |
| Carrier Weight | 2,000 5,000 lbs |
| Hydraulic Flow (Skid Steer) | 10 20 GPM |
| Hydraulic Flow (Tractor) | 14 22 GPM |
| Weight | 850 lbs (standard chain setup) |
Chain Options for Every Job
| Chain Type | Width | Tooth Style | Best For |
|---|---|---|---|
| S3604 (Standard) | 4" | Cup Tooth | General trenching in soil & clay |
| S3606 (Standard) | 6" | Cup Tooth | Wider trenches in softer ground |
| M3604 (Rock Mix) | 4" | 50% Rock Teeth | Rocky or mixed soil conditions |
| M3606 (Rock Mix) | 6" | 50% Rock Teeth | Wider trenches in tough terrain |
Comparison Chart
| Feature | TN236 | TNM336B |
|---|---|---|
| Trench width | 4" To 6" | 4" To 6" |
| Trench Depth (inches) | 36" | 36" |
| Drive Type | Direct drive | Direct drive |
| Horse Power (HP) | 10 - 25 | 10 - 25 |
| Main shaft size | 1:10 Taper | 1:10 Taper |
| Trencher chain torque at 3,000 PSI | 6,703 lbs-in | 6,703 lbs-in |
| Carrier weight (lb) | 1,500 - 4,000 | 1,500 - 4,000 |
| Min. / Max. GPM Skidsteer | 7 To 18 | 7 To 18 |
| Weight (lbs) | 470 | 675 |
| Feature | TNS336 | TN548 |
|---|---|---|
| Trench width | 4" To 6" | 6" To 10" |
| Trench Depth (inches) | 36" | 48" |
| Drive Type | Planetary | Planetary |
| Horse Power (HP) | 30 - 55 | 40 - 100 |
| Main shaft size | 1:10 Taper | 2-9/16" Solid |
| Trencher chain torque at 3,000 PSI | 14,571 lbs-in | 21,856 lbs-in |
| Carrier weight (lb) | 2,000 - 5,000 | 3,000 - 7,000 |
| Min. / Max. GPM Skidsteer | 10 To 20 | 15 To 25 |
| Weight (lbs) | 850 | 1,250 |
| Feature | TN560 | TN760 |
|---|---|---|
| Trench width | 6" To 10" | 6" To 10" |
| Trench Depth (inches) | 60" | 60" |
| Drive Type | Planetary | Planetary |
| Horse Power (HP) | 40 - 100 | 40 - 100 |
| Main shaft size | 2-9/16" Solid | 2-9/16" Solid |
| Trencher chain torque at 3,000 PSI | 21,856 lbs-in | 33,877 lbs-in |
| Carrier weight (lb) | 3,000 - 7,000 | 4,000 - 12,000 |
| Min. / Max. GPM Skidsteer | 12 To 25 | 20 To 42 |
| Weight (lbs) | 1,500 | 1,800 |
