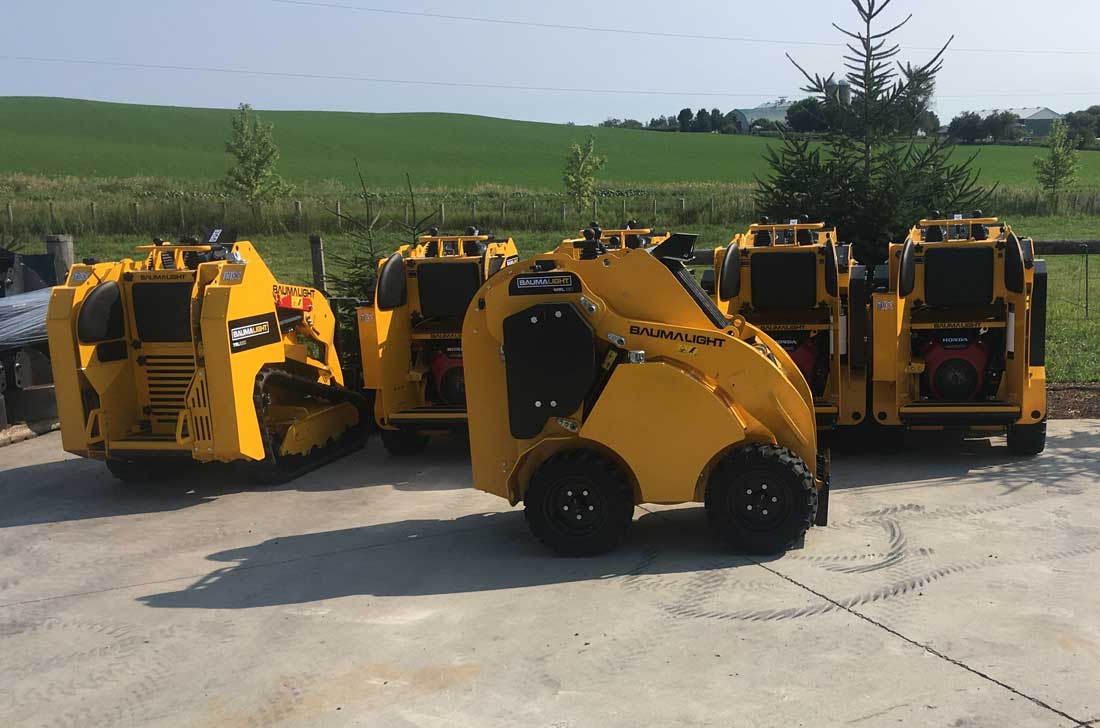

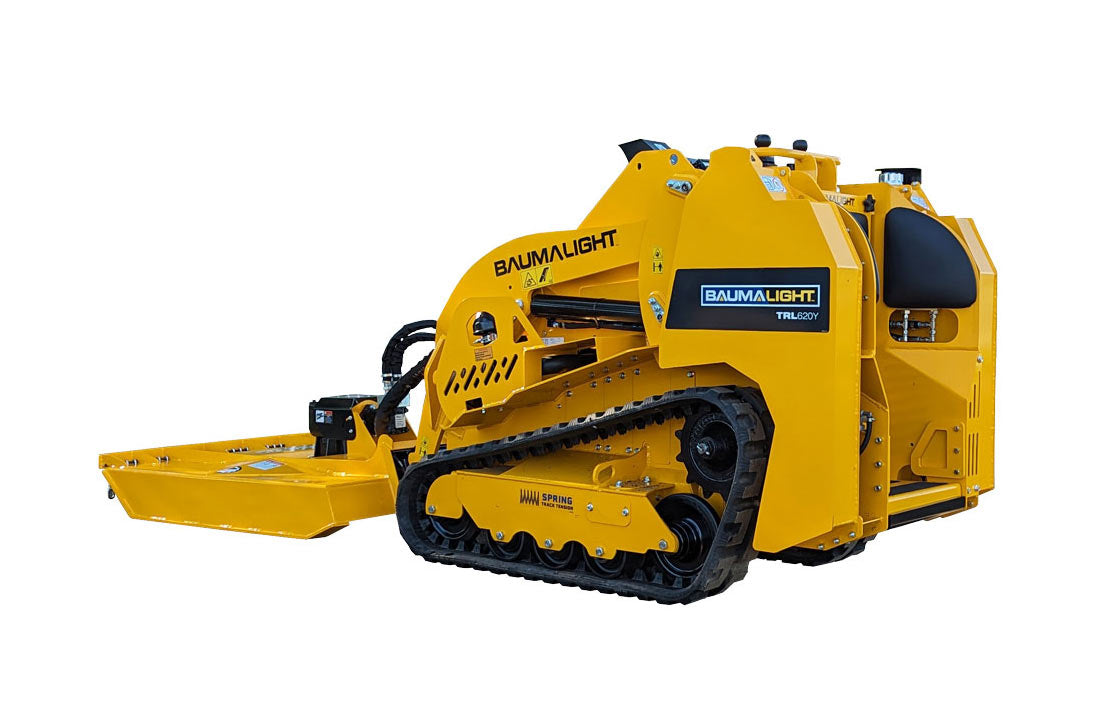

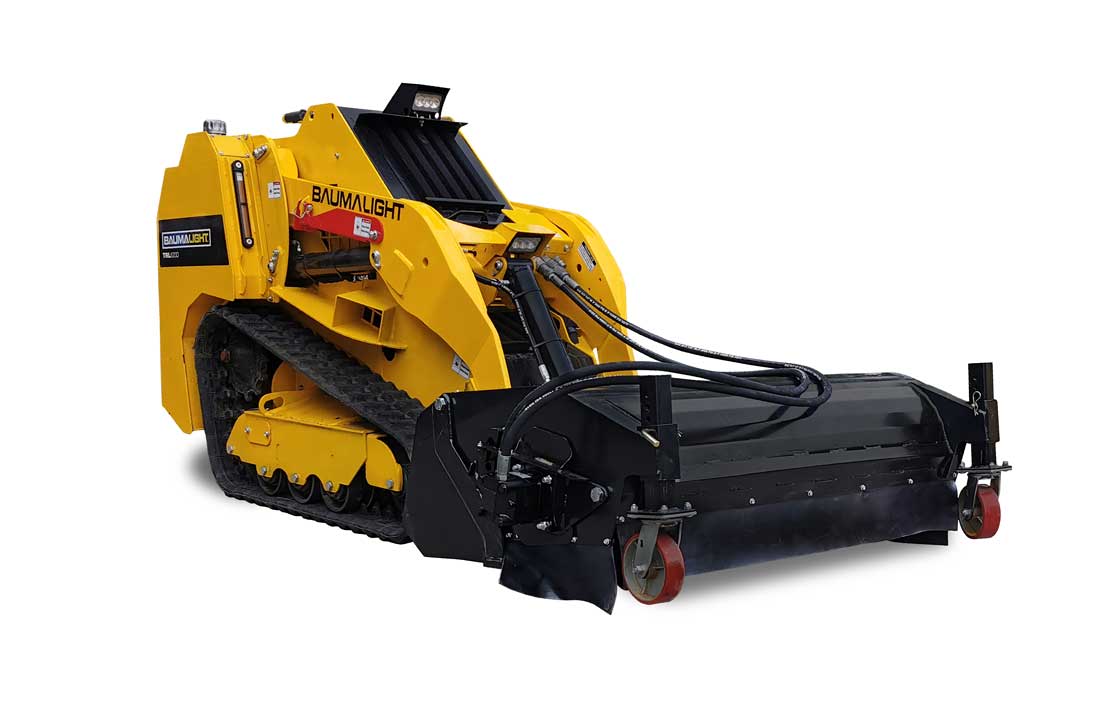

Baumalight TRLDUMP Mini Skid Steer Tracked | Kubota Engine 24.8 HP | 8 - 12 GPM

Baumalight TRLDUMP Mini Skid Steer Tracked | Kubota Engine 24.8 HP | 8 - 12 GPM

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Engine Power: Kubota 24.8 HP diesel engine
  • Hydraulic Flow: 8 To 12 GPM for precise attachment control.
  • Machine Dimensions: 40" width x 70" length, compact for tight spaces.
  • Operating Weight: 2,930 lbs (3,170 lbs with weight kit).
  • Intended Use: Mini skid steer for landscaping, construction, and material handling.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Baumalight Trldump Mini Skid Steer Tracked | Kubota Engine 24.8 HP | 8 - 12 GPM

DESCRIPTION

The Baumalight TRLDUMP Mini Skid Steer Tracked is the ultimate compact powerhouse designed for landscapers, contractors, and property owners who demand reliability, maneuverability, and versatility in tight spaces. Powered by a robust 24.8 HP Kubota diesel engine, this mini skid steer combines impressive strength with smooth, controlled hydraulic performance (8-12 GPM), making it perfect for digging, grading, loading, and material handling in confined or rugged environments.

Its tracked design delivers outstanding traction and stability across uneven terrain, while the compact 40-inch width allows easy navigation through narrow pathways and crowded job sites. Whether you’re managing residential landscaping, commercial construction, or small-scale excavation, the Baumalight TRLDUMP ensures you work efficiently without sacrificing power or precision.

The user-friendly dual joystick controls provide intuitive handling, letting operators manage boom and movement simultaneously for superior control. Safety and durability are built into every detail from the spring-cushioned front idler that protects the undercarriage to the heavy-duty boom construction with hardened bushings, ensuring longevity even in the toughest conditions.

Key Features

  • Powerful Kubota Diesel Engine (24.8 HP): Dependable Kubota D1105 engine delivers efficient, cooler operation with cold air intake and oversized radiator, built to last.
  • Tracked Stability with 6.5" Ground Clearance: Superior off-road traction combined with enough clearance to navigate rocky, uneven terrain confidently.
  • Hydraulic Flow Range 8-12 GPM: Optimal hydraulic performance for precise control of attachments such as buckets, augers, and trenchers.
  • Compact 40" Width for Tight Spaces: Perfect for landscaping, construction, and agricultural sites where space is limited.
  • Dual Joystick Controls for Intuitive Operation: Simultaneously control boom and travel for smooth, precise maneuvering.
  • Best-in-Class Operating Capacity (800 lbs): Safely handle heavy loads up to 50% of tipping capacity without stress.
  • Durable Boom & Pivot Architecture: ¾" steel plates and chrome-vanadium bushings provide enhanced strength and long machine life.
  • Spring-Cushioned Front Idler: Absorbs shocks from curbs and rocks to protect the undercarriage during rough jobs.
  • LOFA EL240 G1H Control Panel: Features LED diagnostics, auto preheat, and an IP64-rated key switch for reliable start-up in cold conditions.
  • Auxiliary Pressure Gauge & 12V Power Outlet: Keep track of hydraulic pressures and power tools or lighting with ease.
  • Heavy-Duty Tracked Mobility: Navigate mud, sand, or gravel with excellent stability and traction.
  • Maximum Travel Speed of 4.57 km/h: Efficient site mobility saves time on the job.
  • Boom Safety Lock Bar: Secure boom arms in the raised position for safe maintenance.
  • Hydraulic Float Function: Allows attachments to follow ground contours naturally without downforce damage.

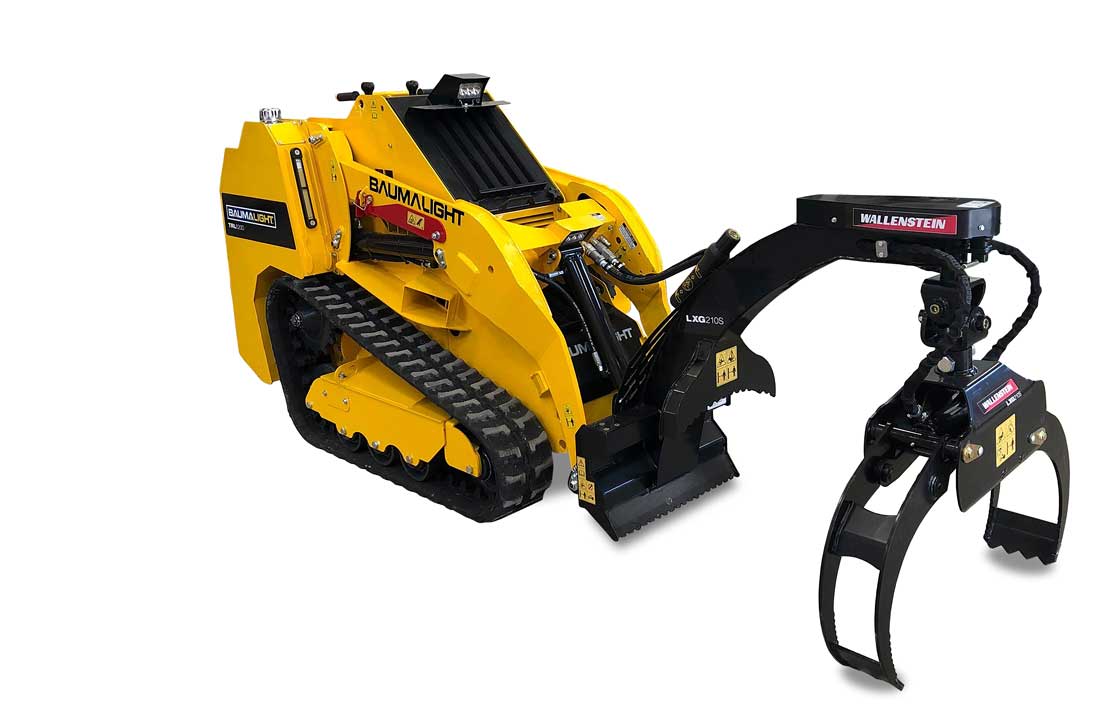

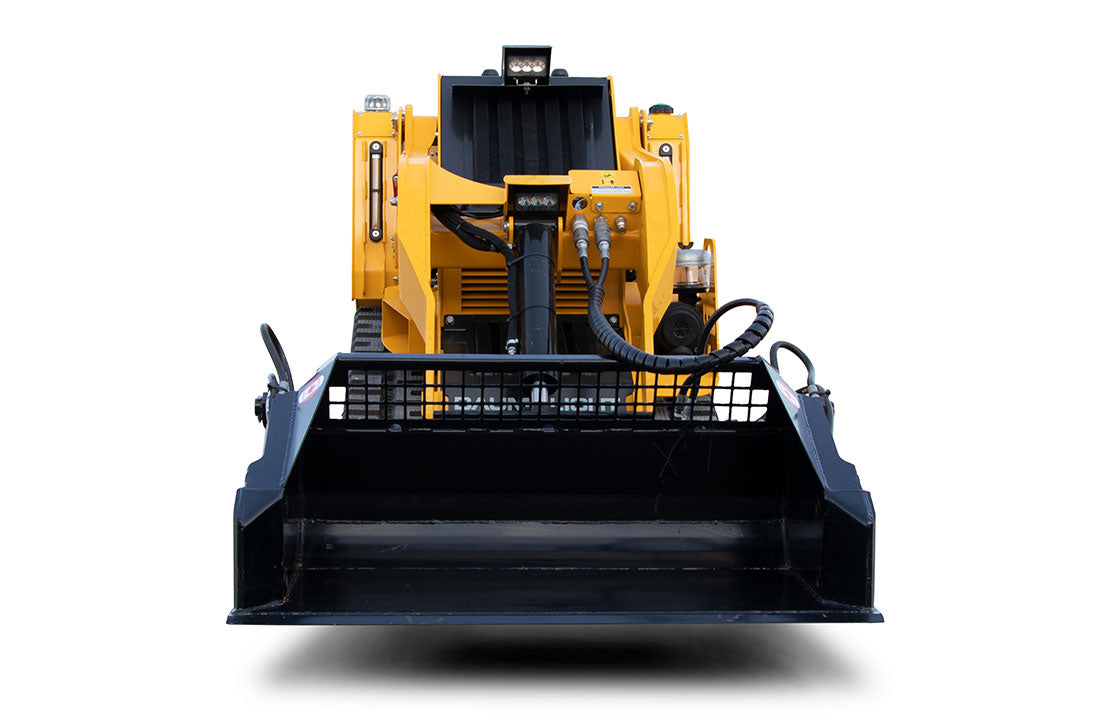

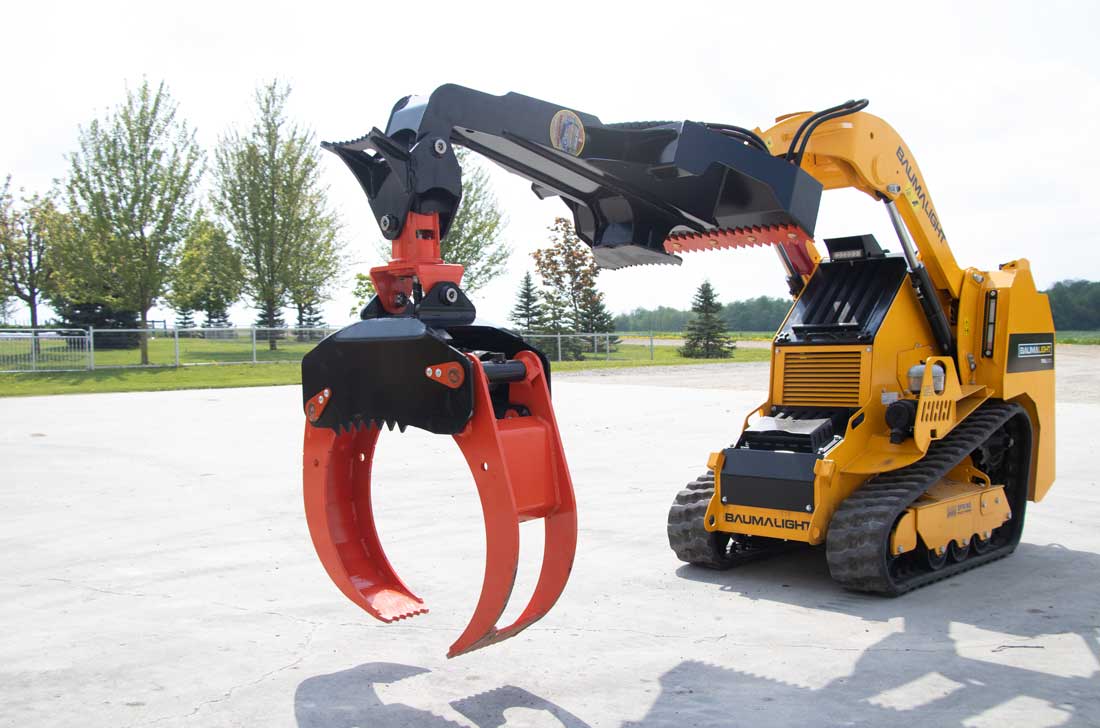

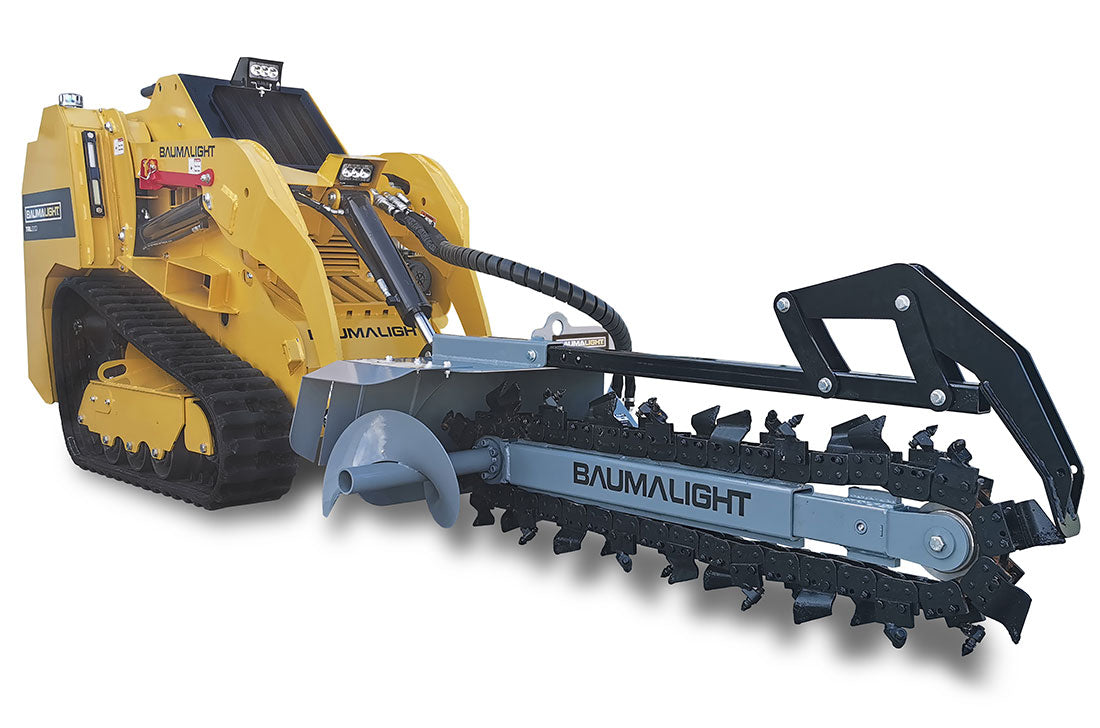

  • Versatile Attachment Compatibility: Compatible with standard buckets, augers, trenchers, and grapples for diverse tasks.

Detailed Specifications

Feature Specification
Engine Brand Kubota
Engine Model D1105 Diesel
Engine Power 24.8 HP
Displacement 1.1 L
Fuel Tank Capacity 40 Liters
Hydraulic Flow Range 8-12 GPM
Operating Pressure 3,000 PSI
Drive Type Hydrostatic, Tracked
Control System Dual Joystick
Ground Clearance 6.5 inches
Machine Width (without bucket) 40 inches
Machine Length (without bucket) 70 inches
Operating Capacity (Rated Load) 800 lbs
Travel Speed 4.57 km/h
Weight (without weight kit) 2,930 lbs
Weight (with weight kit) 3,170 lbs
Boom Reach Height 76 inches
Hydraulic Reservoir Capacity 40 Liters
Attachment Compatibility Buckets, Augers, Trenchers, Grapples
