Baumalight Wheeled Mini Skid Steer | Model WRL-58G | Width 38" | Length 62" | Hydraulic Flow Range 11 GPM
DESCRIPTION

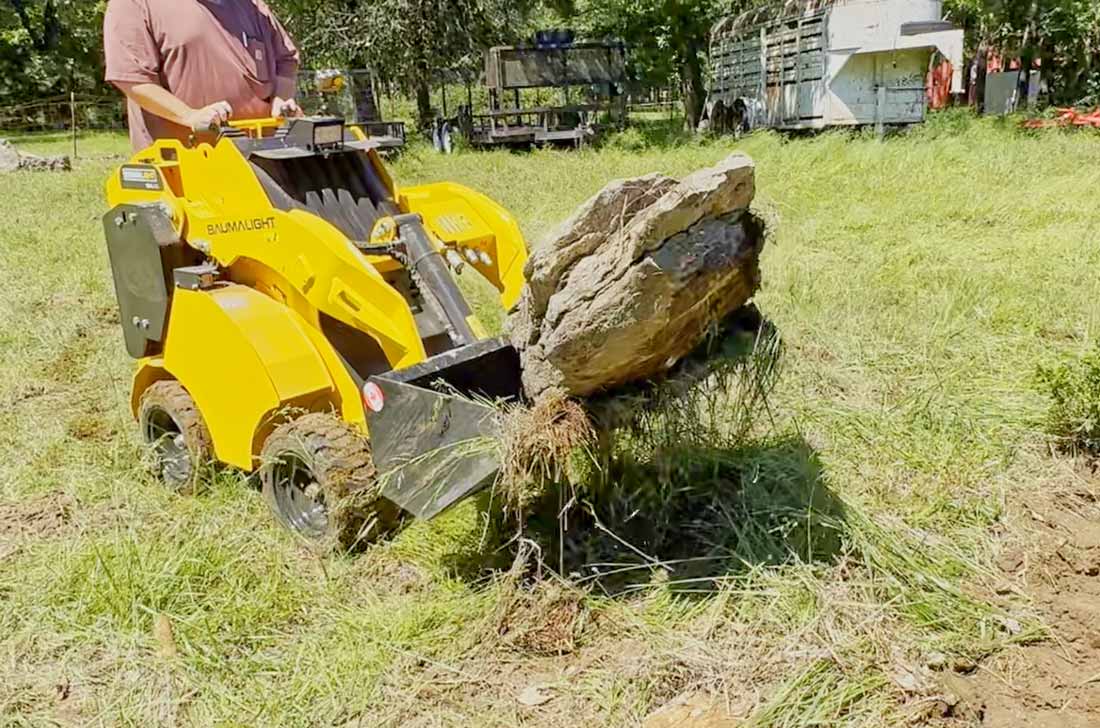

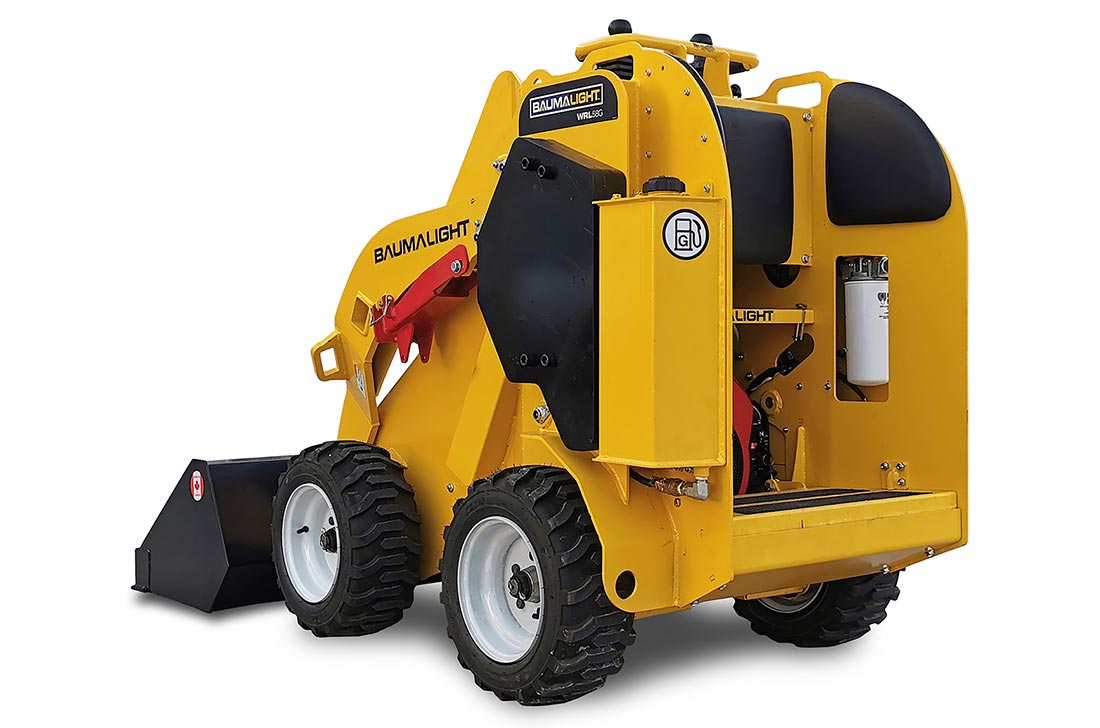

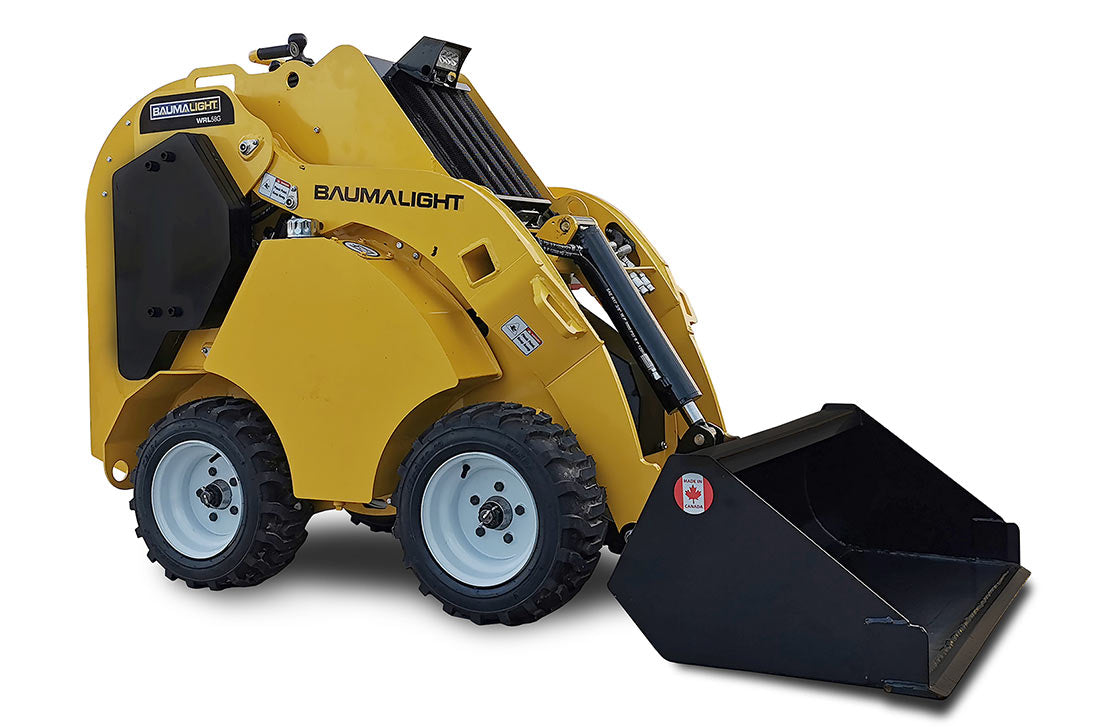

The Baumalight WRL58G Wheeled Mini Skid Steer is a compact, gas-powered utility loader purpose-built for tight spaces, urban job sites, and demanding terrain. Engineered and manufactured in Ontario, Canada, the WRL58G offers the versatility of a full-size skid steer in a highly maneuverable 38" frame. Whether you're a landscaper, construction contractor, rental yard, or property manager, this compact beast empowers you to get more done faster and easier.
At the heart of the WRL58G lies a reliable Honda GX690 22.1 HP gas engine, paired with a three-pump hydrostatic drive system for powerful propulsion and seamless auxiliary hydraulic performance. Its 11 GPM hydraulic flow enables compatibility with a wide variety of mini skid steer attachments dig, trench, auger, or haul with confidence.
Built on a rugged wheeled platform, the WRL58G glides over lawns, pavement, and uneven ground, while its raised operator platform ensures full visibility and control in tight quarters. Designed for longevity, ease of maintenance, and all-day productivity, this mini loader is a game-changer for contractors who need to move quickly and work smart in constrained spaces.
Key Features
- Compact 38” Width: Navigate narrow gates, alleys, and pathways with ease ideal for urban landscaping and backyard jobs.

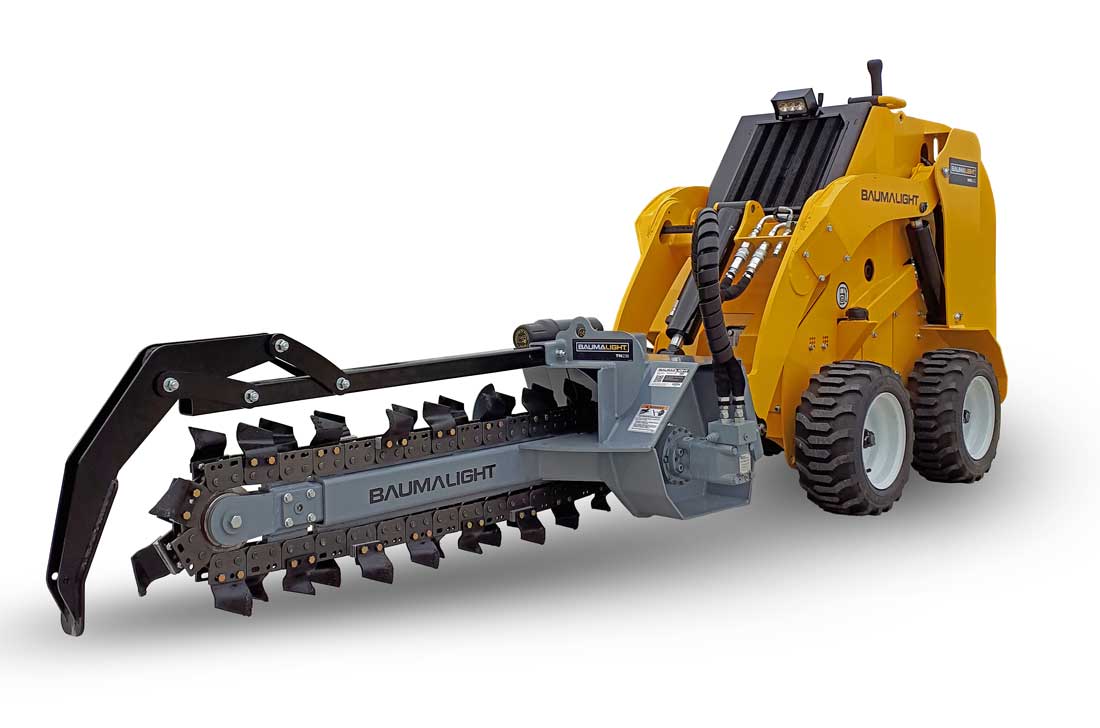

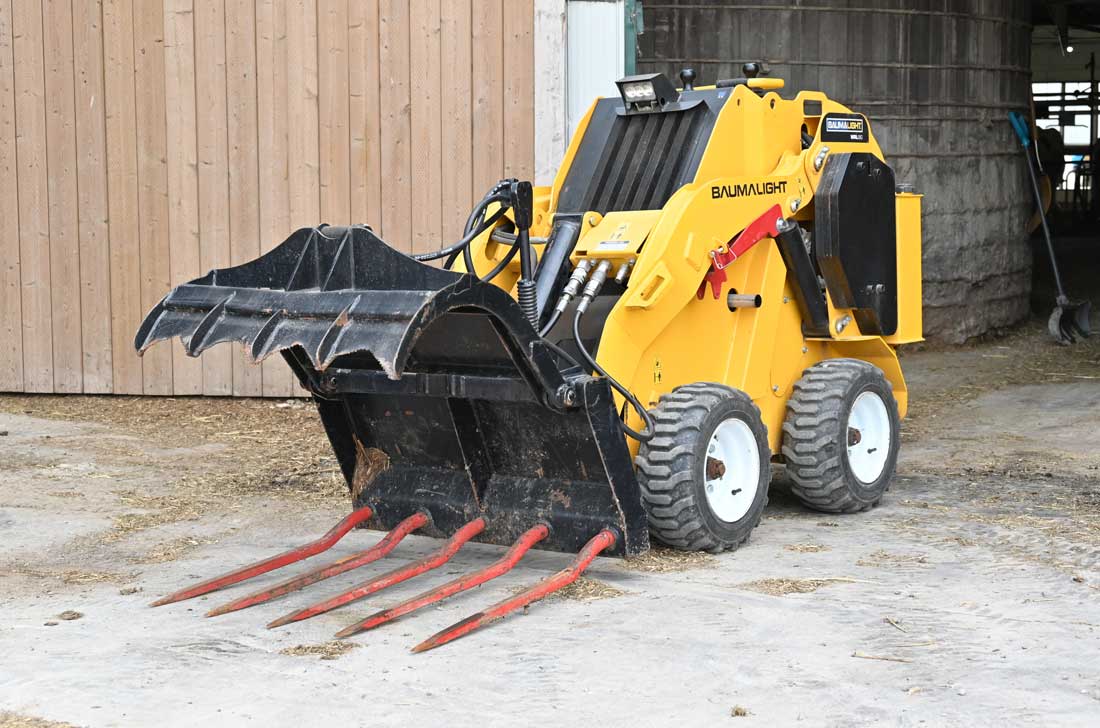

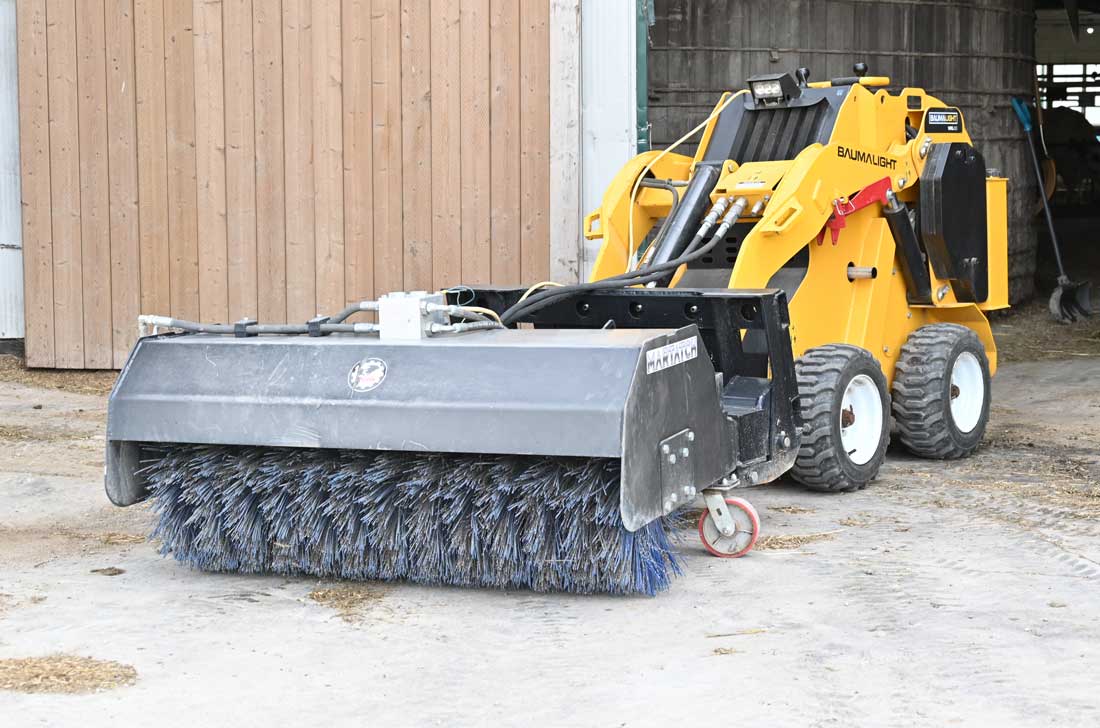

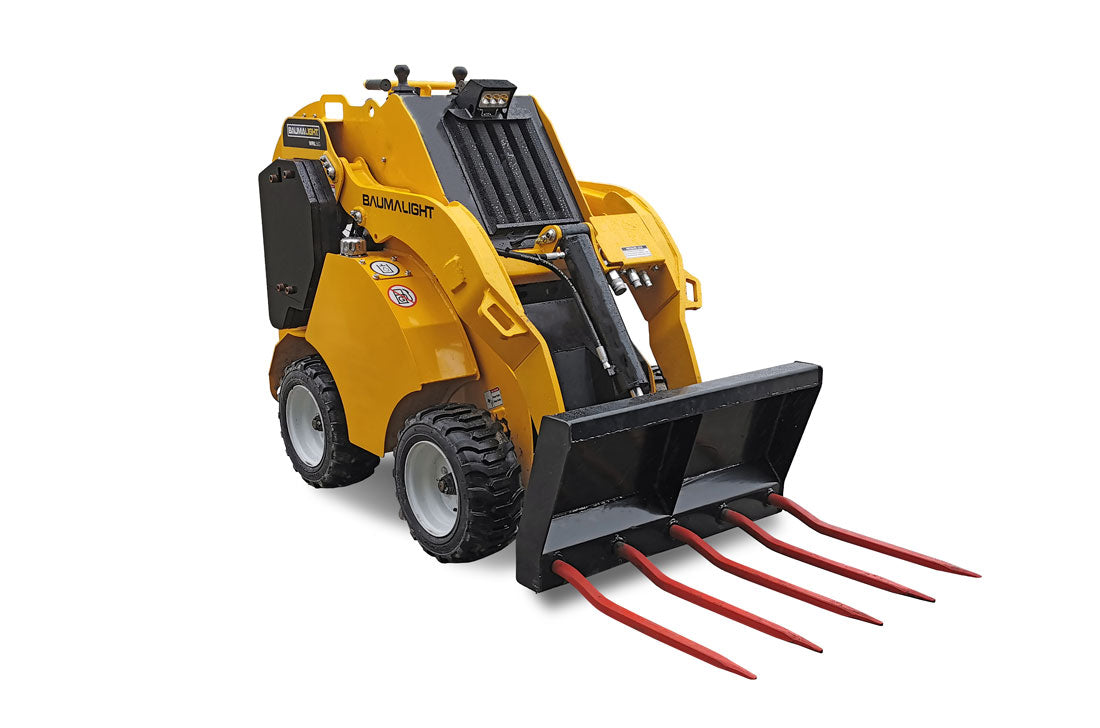

- 11 GPM Hydraulic Flow: Optimized for light to medium-duty attachments like augers, trenchers, sweepers, and forks.

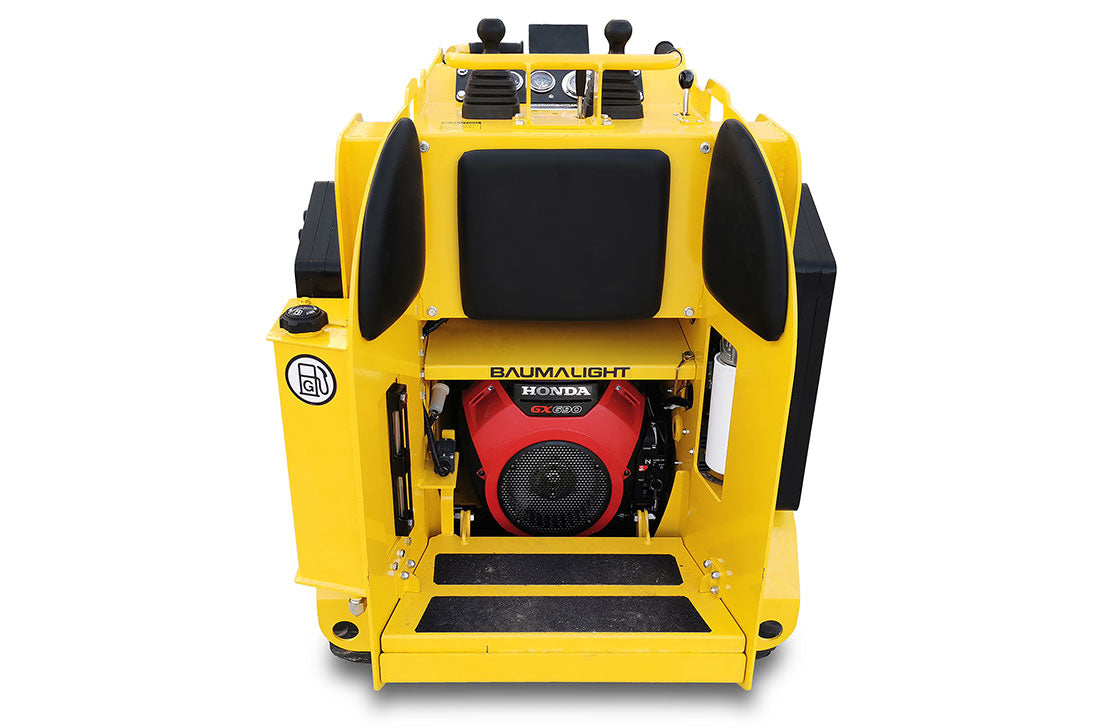

- Honda GX690 Engine (22.1 HP): Dependable, air-cooled, and easy to maintain trusted by professionals worldwide.
- Wheeled Traction System: Heavy-duty 18×8.50-10 tires ensure smooth travel over lawns and rough terrain without tearing turf.
- Three-Pump Hydraulic System: Dedicated pumps for left/right drive and auxiliary flow provide superior efficiency and control.
- Hydrostatic Joystick Controls: True dual-joystick operation like full-size skid steers no learning curve for experienced operators.

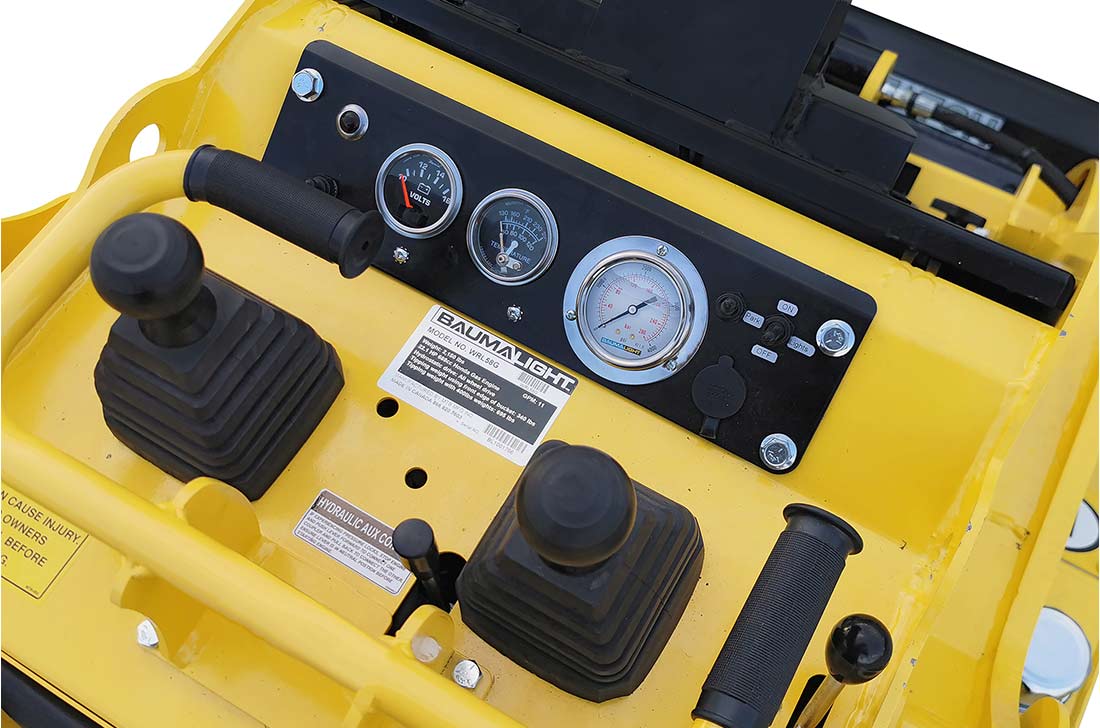

- Dashboard Pressure Gauge: Real-time system pressure readout keeps performance and safety in check.
- Raised Operator Platform: Stand-on design gives better visibility and balance, especially in cluttered work areas.
- Boom Safety Lock Bar: Secure the boom in a raised position for safe and easy maintenance.
- Auxiliary Hydraulic Control & Case Drain: Allows attachment compatibility and protects seals with a third-line pressure relief.
- High Ground Clearance (8"): Easily roll over obstacles and uneven surfaces without damaging undercarriage.
- Oversized Hydraulic Radiator: Keeps oil temperatures low even during heavy-duty or continuous operation.
- 12.5L Fuel Tank: Stay productive longer between refueling sessions.
- Steel Boom Arms (¾”): Heavy-duty construction with greaseable pivot pins and hardened AISI 6150 bushings for long service life.
- Universal Mini Skid Steer Mount: Compatible with industry-standard mini attachments maximize your investment.
Detailed Specifications
| Category | Specification |
|---|---|
| Brand | Baumalight |
| Model | WRL58G |
| Machine Type | Wheeled Mini Skid Steer |
| Engine | Honda GX690 Gas Engine |
| Horsepower | 22.1 HP (Net) |
| Displacement | 688cc |
| Hydraulic Flow | 11 GPM (No Load) |
| Hydraulic System | 3-Pump (1 Auxiliary + 2 Drive) |
| Relief Setting | 2,730 PSI |
| Drive Type | Hydrostatic |
| Control System | Dual Joystick (Drive & Boom) |
| Carriage Type | Pneumatic Tires |
| Tire Size | 18×8.50-10 6P |
| Ground Speed | 7.84 km/h (4.87 mph) |
| Fuel Tank Capacity | 12.5 Liters |
| Hydraulic Reservoir | 40 Liters |
| Ground Clearance | 8 Inches |
| Operating Capacity (35%) | 665 lbs (760 lbs with weight kit) |
| Tipping Capacity | 1,900 lbs (with weight kit) |
| Breakout Force (Bucket) | 2,340 lbs (3,300 lbs w/ weight kit) |
| Width (No Bucket) | 38 Inches |
| Length (No Bucket) | 62 Inches |
| Pin Height | 70 Inches |
| Weight | 1,800 lbs (2,200 lbs with weight kit) |
| Mount Type | Universal Mini Skid Steer Mount |
| Lighting | Protected, metal-framed front light |
| Crated Shipping | Yes (LTL Shipping Available) |
| Made In | Ontario, Canada |

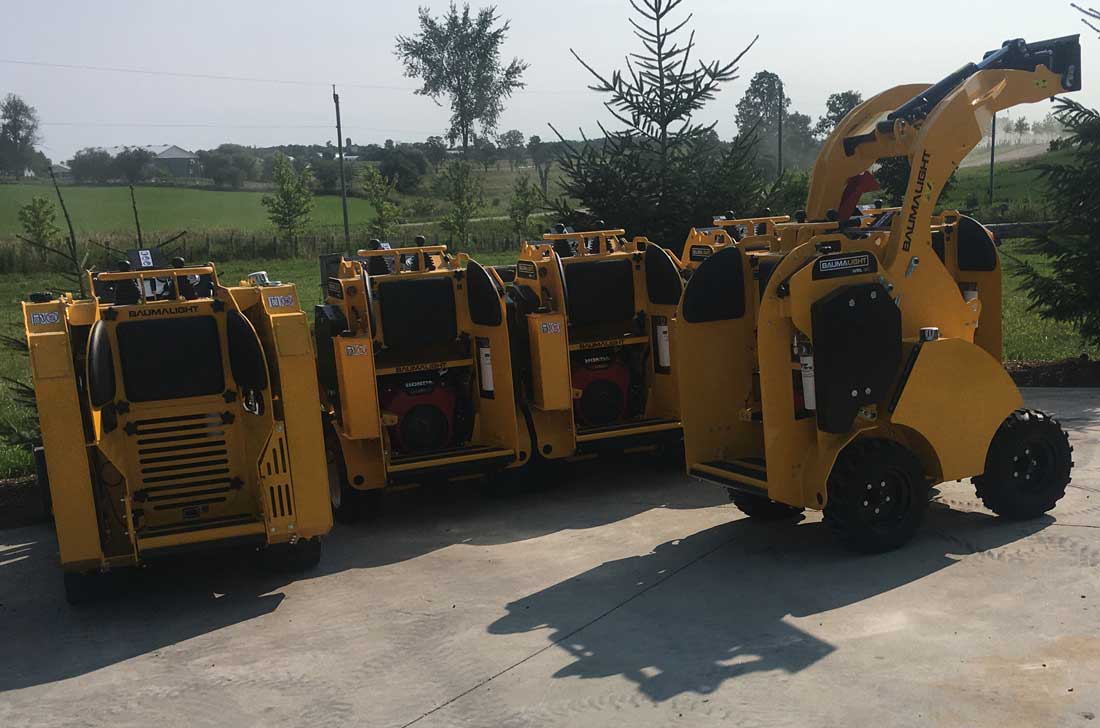

Comparison Chart
| Feature | WRL58G | TRL536D |
|---|---|---|
| Gross Engine HP | N/A | 24.8 HP |
| Net Engine HP | 22.1 HP | 23.9 HP |
| Peak Gross Engine Torque | N/A | 52.7 ft/lb |
| Displacement | 0.688 L | 1.1 L |
| Engine Type | Gas | Diesel |
| Fuel Tank Size | 12.5 L | 29.25 L |
| Engine Brand | Honda | Kubota |
| Engine Model | GX690 | D1105 |
| Drive Type | Hydrostatic | Hydrostatic |
| Drive Control | Joystick | Joystick |
| Carriage | Tires | Tracks |
| Track/Tire Size | 18 x 8.50-10 6P | 150x72x45 (upgradable) |
| Travel Speed (Old) | 7.84 km/h | 5.7 km/h |
| Travel Speed (Updated) | Same | 8.8 km/h (after Dec 2024) |
| Ground Pressure (No Kit) | 5.5 psi | 5.7 psi (Narrow) / 3.9 psi (Wide) |
| Relief Setting | 2,730 psi | 3,000 psi |
| GPM (No Load) | 11 | 10.5 |
| Hydraulic Reservoir Capacity | 40 L | 29.25 L |
| Number of Pumps | 3 | 3 |
| Boom Control | Joystick | Joystick |
| Self-Leveling | No | No |
| Pin Height | 70" | 76" |
| Ground Clearance | 8" | 6.5" |
| Width (No Bucket) | 38" | 35.5" (Narrow), 37.9" (Wide) |
| Length (No Bucket) | 62" | 70" |
| Tilt Breakout Force (Bucket) | 2,340 lbs | 3,620 lbs |
| with Extra Weight | 3,300 lbs | 3,620 lbs |
| Lift Breakout Force (Bucket) | 1,385 lbs | 1,830 lbs |
| with Extra Weight | 1,900 lbs | 1,950 lbs |
| Machine Weight | 1,800 lbs | 2,523 lbs |
| Weight with Weight Kit | 2,200 lbs | 2,660 lbs |
| Feature | TRL620D | TRL620Y |
|---|---|---|
| Gross Engine HP | 24.8 HP | 23.9 HP |
| Net Engine HP | 23.9 HP | 22.8 HP |
| Peak Gross Engine Torque | 52.7 ft/lb | 46 ft/lb |
| Displacement | 1.1 L | 1.267 L |
| Engine Type | Diesel | Diesel |
| Fuel Tank Size | 40 L | 40 L |
| Engine Brand | Kubota | Yanmar |
| Engine Model | D1105 | 3TNV80F |
| Drive Type | Hydrostatic | Hydrostatic |
| Drive Control | Joystick | Joystick |
| Carriage | Tracks | Tracks |
| Track Size | 230 x 72 x 45 | 230 x 72 x 45 |
| Travel Speed (Old) | 4.57 km/h | 4.57 km/h |
| Travel Speed (Updated) | 5.7 km/h (after Apr 2024) | 5.7 km/h (after Apr 2024) |
| Ground Pressure (No Kit) | 4 psi | 4 psi |
| Relief Setting | 3,000 psi | 3,000 psi |
| GPM (No Load) | 10.5 | 10.5 |
| Hydraulic Reservoir Capacity | 40 L | 40 L |
| Number of Pumps | 3 | 3 |
| Boom Control | Joystick | Joystick |
| Self-Leveling | Yes | Yes |
| Pin Height | 76" | 76" |
| Ground Clearance | 6.5" | 6.5" |
| Width (No Bucket) | 40" | 40" |
| Length (No Bucket) | 70" | 72" |
| Tilt Breakout Force (Bucket) | 3,620 lbs | 3,620 lbs |
| with Extra Weight | 3,620 lbs | 3,620 lbs |
| Lift Breakout Force (Bucket) | ~2,100 lbs | ~2,100 lbs |
| with Extra Weight | ~2,260 lbs | ~2,260 lbs |
| Machine Weight | 2,930 lbs | 3,140 lbs |
| Weight with Weight Kit | 3,170 lbs | 3,380 lbs |
| Feature | TRL630D | TRL630Y |
|---|---|---|
| Gross Engine HP | 24.8 HP | 23.9 HP |
| Net Engine HP | 23.9 HP | 22.8 HP |
| Peak Gross Engine Torque | 52.7 ft/lb | 46 ft/lb |
| Displacement | 1.1 L | 1.267 L |
| Engine Type | Diesel | Diesel |
| Fuel Tank Size | 40 L | 40 L |
| Engine Brand | Kubota | Yanmar |
| Engine Model | D1105 | 3TNV80F |
| Drive Type | Hydrostatic | Hydrostatic |
| Drive Control | Joystick | Joystick |
| Carriage | Tracks | Tracks |
| Track Size | 230 x 72 x 45 | 230 x 72 x 45 |
| Travel Speed (Updated) | 8.8 km/h | 8.8 km/h |
| Ground Pressure (No Kit) | 4 psi | 4 psi |
| Relief Setting | 3,000 psi | 3,000 psi |
| GPM (No Load) | 10.5 | 10.5 |
| Hydraulic Reservoir Capacity | 40 L | 40 L |
| Number of Pumps | 3 | 3 |
| Boom Control | Joystick | Joystick |
| Self-Leveling | Yes | Yes |
| Pin Height | 76" | 76" |
| Ground Clearance | 6.5" | 6.5" |
| Width (No Bucket) | 40" | 40" |
| Length (No Bucket) | 70" | 72" |
| Tilt Breakout Force (Bucket) | 3,620 lbs | 3,620 lbs |
| with Extra Weight | 3,620 lbs | 3,620 lbs |
| Lift Breakout Force (Bucket) | 2,100 lbs | ~2,100 lbs |
| with Extra Weight | 2,260 lbs | ~2,260 lbs |
| Machine Weight | 2,930 lbs | 3,140 lbs |
| Weight with Weight Kit | 3,170 lbs | 3,380 lbs |
