Bedrock Attachments Cleaning Bucket | Model EB336DBCL-78-2.22 | Width 78-Inch | Capacity 2.22 CU M | Machine Size 30-40 Tons | For Excavators CAT 336

Bedrock Attachments Cleaning Bucket | Model EB336DBCL-78-2.22 | Width 78-Inch | Capacity 2.22 CU M | Machine Size 30-40 Tons | For Excavators CAT 336

Regular price $7,129.00
Regular price Sale price $7,129.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Working Width 78-Inches & Machine Size 30-40 Tons for Excavators CAT 336
  • Optimized Cleaning & Grading: Designed for ditch maintenance, trench-cleaning, and efficient grading applications.
  • High-Capacity Build: 2.22 CU M, allowing effective material handling.
  • Precision Pin System: Includes S Pin (100mm) & L Pin (90mm) for secure attachment.
View full details

Product Description

Bedrock Attachments Heavy-Duty Bucket & Adjuster GP | Width 54" | Capacity 1.2 CU M | Machine Size 18-24 Tons | For Excavators CAT 320

DESCRIPTION

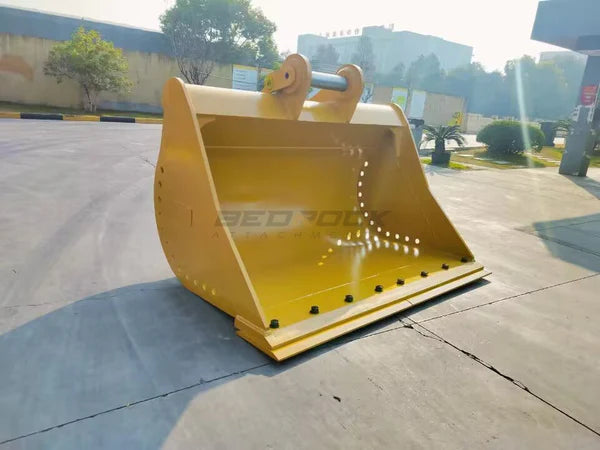

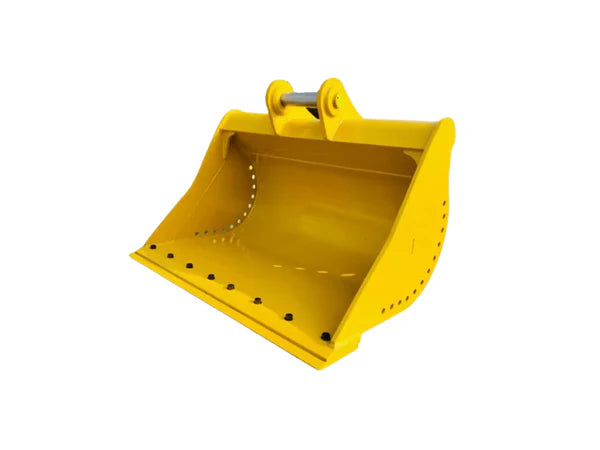

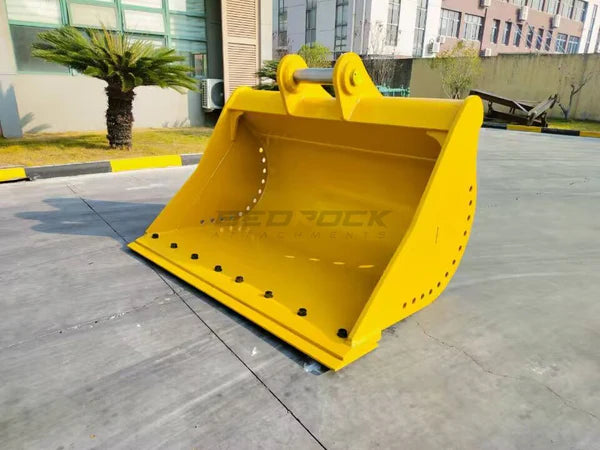

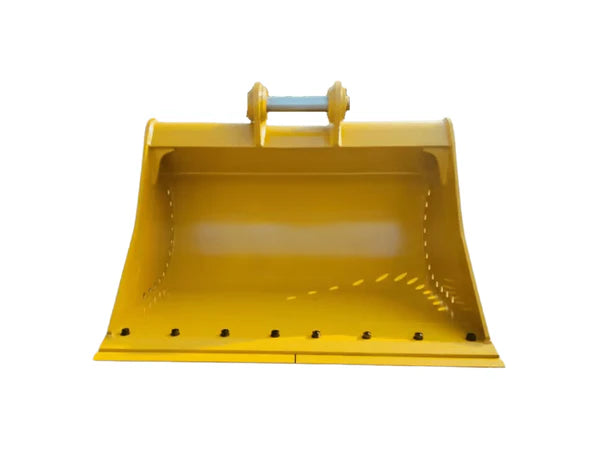

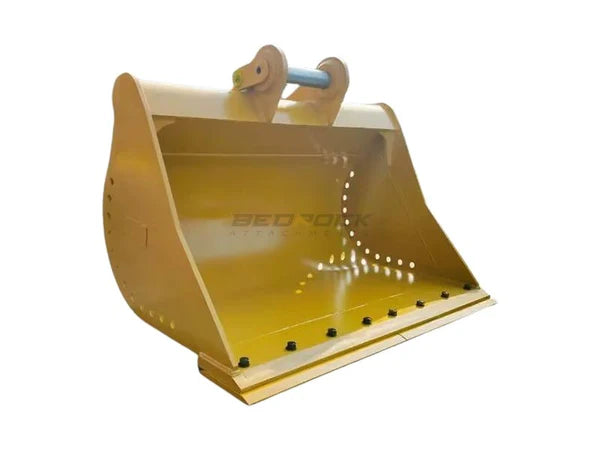

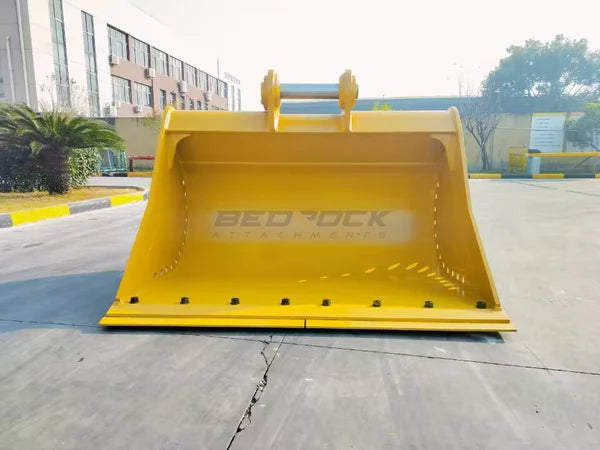

The Bedrock Attachments Cleaning Bucket is engineered for CAT 336 excavators, delivering superior material handling, grading, and trench-cleaning performance for demanding applications. Designed with a robust structure and reinforced cutting edge, this bucket ensures efficient material movement, reduced downtime, and enhanced operational reliability in excavation projects. Featuring a wide 78-inch design, DB Linkage system, and optimized pin alignment, this attachment is ideal for landscaping, ditch maintenance, and precision excavation tasks.

Key Features

  • Optimized Cleaning & Grading: Designed for ditch maintenance, trench-cleaning, and efficient grading applications.
  • High-Capacity Build: 2.22 CU M, allowing effective material handling.
  • Precision Pin System: Includes S Pin (100mm) & L Pin (90mm) for secure attachment.
  • Wide Excavation Reach: 78-inch (2018mm) bucket width, maximizing productivity.
  • Reliable DB Linkage: Enhances bucket stability and operational control.
  • Accurate Fitment: Ear-to-Ear width: 590mm (23.22 in) and Center-to-Center spacing: 500mm (19.68 in).
  • Machine Compatibility: Fits CAT 336 excavators within the 30-40 ton size range.
  • CE Certified: Meets strict European safety standards, ensuring quality and reliability.

Detailed Specifications

Specification Details
SKU EB336DBCL-78-2.22
Bucket Width 2018mm (78 in)
Bucket Capacity 2.22 CU M
Pin Type S Pin (100mm) & L Pin (90mm)
Ear-to-Ear Width 590 mm (23.22 in)
Center-to-Center Width 500 mm (19.68 in)
Total Weight 1275 kg (2811 lbs)
Linkage Type DB Linkage
Machine Size 30-40 Tons
Certification CE Marked
