Product Description

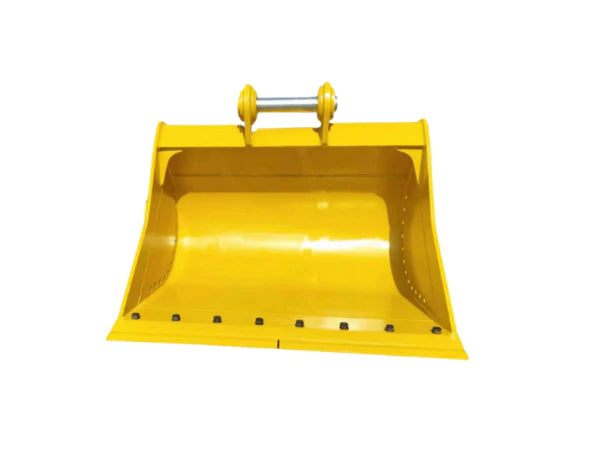

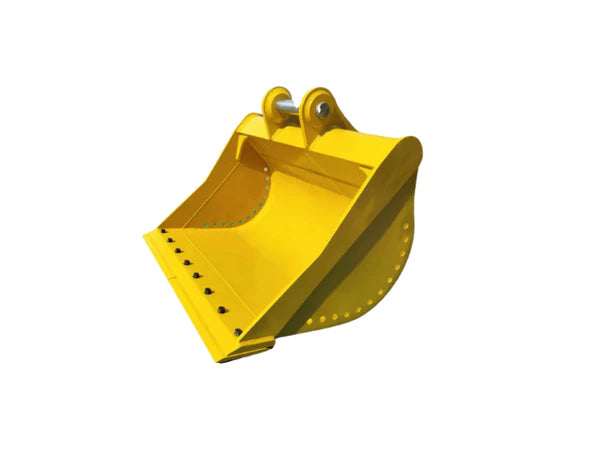

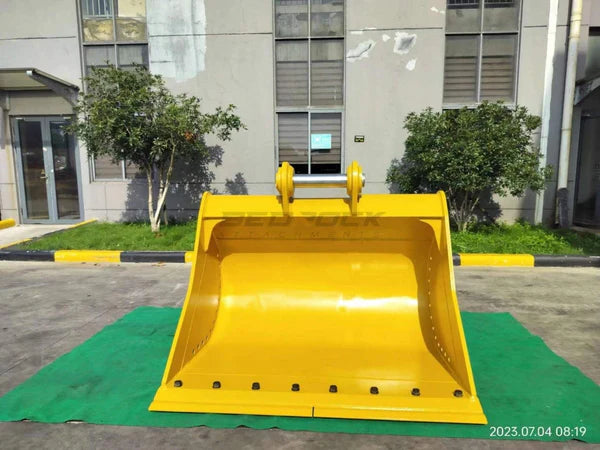

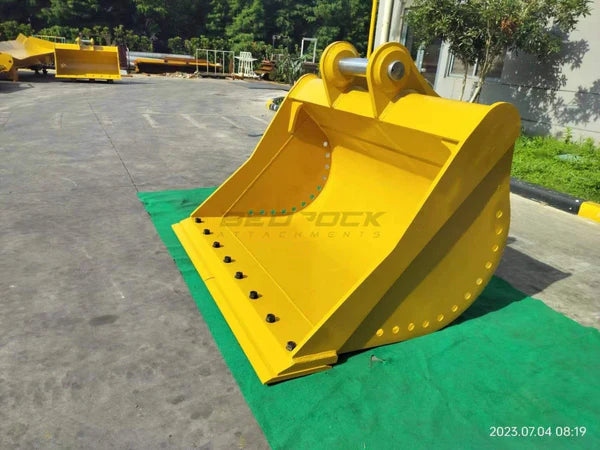

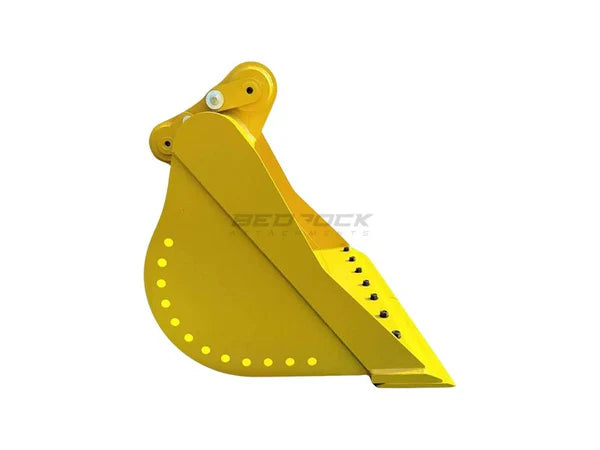

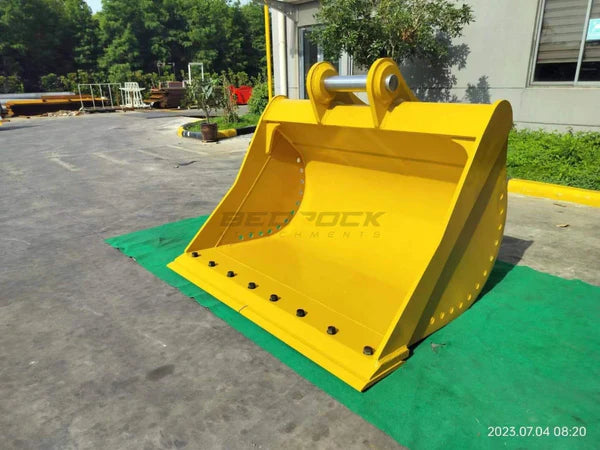

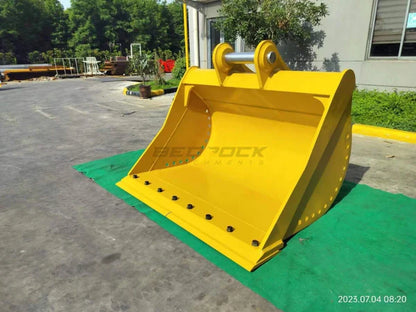

Bedrock Attachments General Cleaning Bucket | Width 72-Inch | Capacity 1.96 CU M | Machine Size 30-40 Tons | For Excavators CAT 336
DESCRIPTION
The Bedrock Attachments General Cleaning Bucket is specifically designed for CAT 336 excavators, delivering high-capacity material handling, precision grading, and effective trench cleaning for demanding applications. Constructed with reinforced steel and optimized engineering, this bucket ensures superior wear resistance, operational durability, and enhanced grading efficiency. Featuring a wide 72-inch design, a DB Linkage system, and secure pin compatibility, this attachment is ideal for cleaning ditches, excavation site preparation, and large-scale grading tasks.
Key Features
- Optimized Cleaning & Grading: Engineered for ditch maintenance, trench-cleaning, and efficient material movement.
- High-Capacity Build: 1.96 CU M (2.56 CU YD), ensuring effective excavation handling.
- Precision Pin System: Includes S Pin (100mm) & L Pin (90mm) for secure attachment.
- Wide Excavation Reach: 72-inch (1800mm) bucket width, enhancing grading productivity.
- Reliable DB Linkage: Strengthens bucket stability and operational control.
- Accurate Fitment: Ear-to-Ear width: 460mm (18.11 in) and Center-to-Center spacing: 500mm (19.68 in).
- Machine Compatibility: Fits CAT 336 excavators within the 30-40 ton size range.
-
CE Certified: Meets strict European safety standards, ensuring quality and reliability.
Detailed Specifications
Specification | Details |
---|---|
SKU | EB336DBCL-72-1.96 |
Bucket Width | 1800mm (72 in) |
Bucket Capacity | 1.96 CU M (2.56 CU YD) |
Pin Type | S Pin (100mm) & L Pin (90mm) |
Ear-to-Ear Width | 460 mm (18.11 in) |
Center-to-Center Width | 500 mm (19.68 in) |
Total Weight | 1180 kg (2601 lbs) |
Linkage Type | DB Linkage |
Machine Size | 30-40 Tons |
Certification | CE Marked |
