Bedrock Attachment

Bedrock Attachments General Purpose Bucket & Adjuster GP | Width 36-Inch | Capacity 1.35 CU M | Machine Size 45-55 Tons | For Excavators CAT 349

Bedrock Attachments General Purpose Bucket & Adjuster GP | Width 36-Inch | Capacity 1.35 CU M | Machine Size 45-55 Tons | For Excavators CAT 349

Regular price $8,952.00
Regular price Sale price $8,952.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Working Width 36-Inches & Machine Size 45-55 Tons for Excavators CAT 349
  • Versatile General-Purpose Design: Optimized for earthmoving, excavation, and material handling applications.
  • Optimized Capacity: 1.35 CU M, providing efficient material transport.
  • Reinforced Teeth: 4 hardened teeth, offering maximum wear resistance.
View full details

Product Description

Bedrock Attachments General Purpose Bucket & Adjuster GP | Width 36-Inch | Capacity 1.35 CU M | Machine Size 45-55 Tons | For Excavators CAT 349

DESCRIPTION

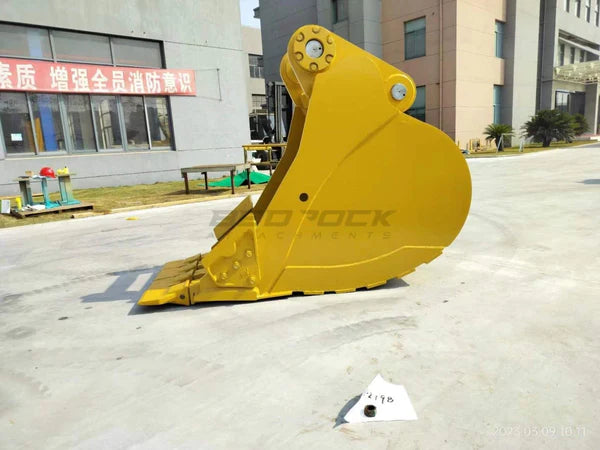

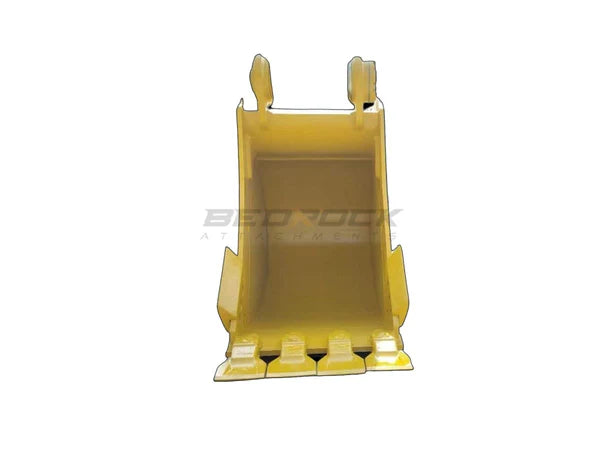

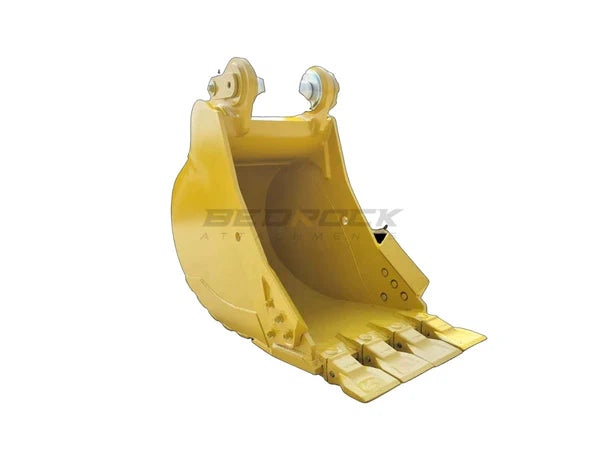

The Bedrock Attachments General Purpose Bucket & Adjuster GP is designed for CAT 349 excavators, offering durability, efficiency, and optimized digging performance for earthmoving, material transport, and excavation tasks. Built with reinforced steel and precision engineering, this bucket ensures long-lasting reliability and excavation effectiveness. Featuring a compact 36-inch width, 4 toughened teeth, and a TB Linkage system, this attachment enhances digging precision and stability, making it ideal for demanding work environments.

Key Features

  • Versatile General-Purpose Design: Optimized for earthmoving, excavation, and material handling applications.
  • Optimized Capacity: 1.35 CU M, providing efficient material transport.
  • Reinforced Teeth: 4 hardened teeth, offering maximum wear resistance.
  • Precision Pin System: Includes S Pin (110mm) & L Pin (100mm) for secure attachment.
  • Reliable TB Linkage: Enhances bucket stability and operational efficiency.
  • Compact Excavation Reach: 36-inch (914mm) bucket width, ideal for precision digging.
  • Machine Compatibility: Fits CAT 349 excavators within the 45-55 ton size range.
  • CE Certified: Meets strict European safety standards, ensuring quality and reliability.

Detailed Specifications

Specification Details
SKU EB349TBGP-36-1.35
Bucket Width 914mm (36 in)
Bucket Capacity 1.35 CU M
Pin Type S Pin (110mm) & L Pin (100mm)
Teeth Count 4
Total Weight 1620 kg (3571 lbs)
Linkage Type TB Linkage
Machine Size 45-55 Tons
Certification CE Marked
