Bedrock Attachments Heavy-Duty Bucket & Adjuster GP | Model EB336DBHD-72-2.36 | Width 72-Inch | Capacity 2.36 CU M | Machine Size 30-40 Tons | For Excavators CAT 336
Bedrock Attachments Heavy-Duty Bucket & Adjuster GP | Model EB336DBHD-72-2.36 | Width 72-Inch | Capacity 2.36 CU M | Machine Size 30-40 Tons | For Excavators CAT 336
Regular price
$11,781.00
Regular price
Sale price
$11,781.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Bedrock Attachments Heavy-Duty Bucket & Adjuster GP | Model EB336DBHD-72-2.36 | Width 72-Inch | Capacity 2.36 CU M | Machine Size 30-40 Tons | For Excavators CAT 336
DESCRIPTION

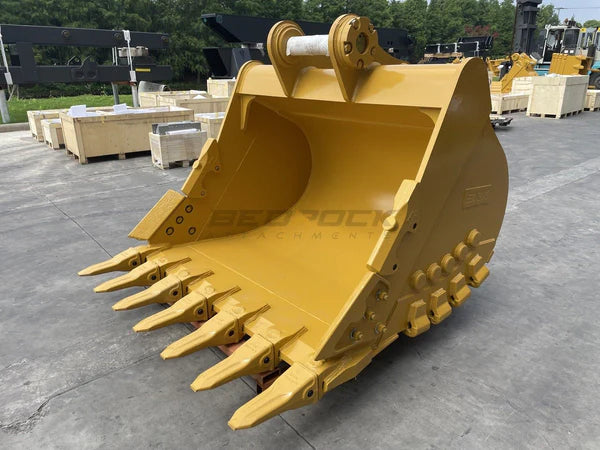

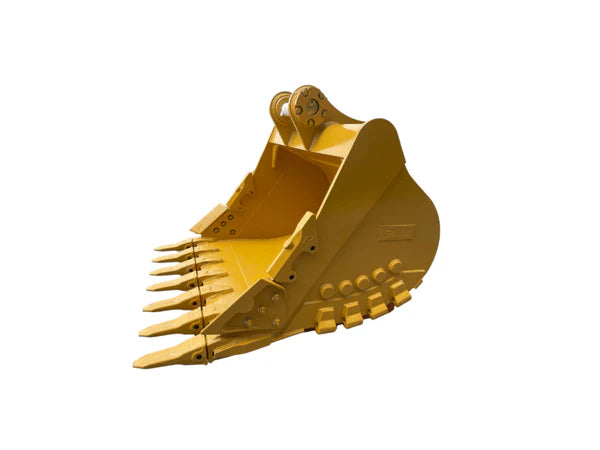

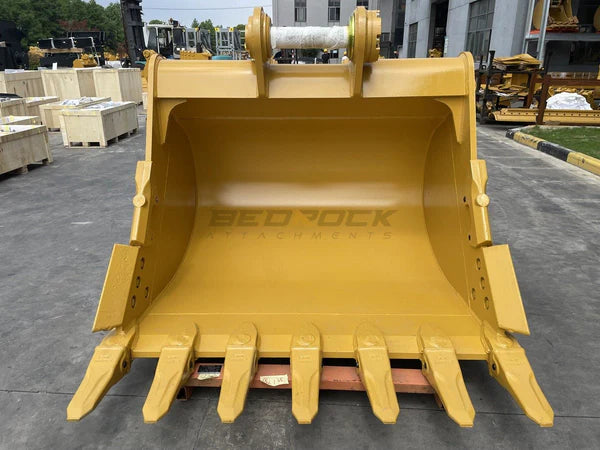

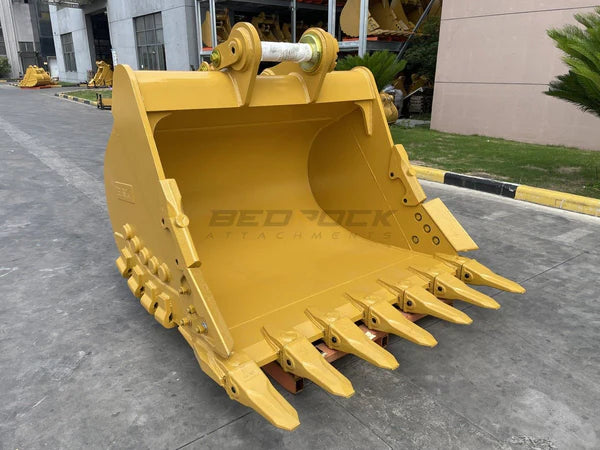

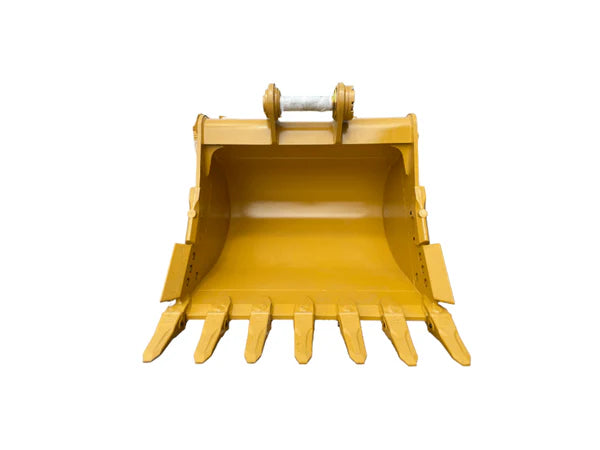

The Bedrock Attachments Heavy-Duty Bucket & Adjuster GP is designed for CAT 336 excavators, ensuring exceptional strength, durability, and optimized performance for rock excavation, material handling, and quarrying applications. Manufactured using reinforced steel and precision engineering, this bucket delivers extended wear resistance and reliable excavation efficiency. Featuring a 72-inch bucket width, 7 hardened teeth, and a DB Linkage system, this attachment provides maximum stability and durability for high-demand job sites.
Key Features
- Heavy-Duty Build: Engineered for rock excavation, material handling, and demanding applications.
- Optimized Capacity: 2.36 CU M, allowing efficient material transport.
- Reinforced Teeth: 7 toughened teeth, providing superior wear resistance and digging precision.
- Precision Pin System: Includes S Pin (100mm) & L Pin (90mm) for secure attachment.
- Reliable DB Linkage: Enhances bucket stability and operational efficiency.
- Wide Excavation Reach: 72-inch (1830mm) bucket width, improving material handling capability.
- Machine Compatibility: Fits CAT 336 excavators within the 30-40 ton size range.
-
CE Certified: Meets strict European safety standards, ensuring quality and reliability.
Detailed Specifications
| Specification | Details |
|---|---|
| SKU | EB336DBHD-72-2.36 |
| Bucket Width | 1830mm (72 in) |
| Bucket Capacity | 2.36 CU M |
| Pin Type | S Pin (100mm) & L Pin (90mm) |
| Included Pins | 2512552B & 2512558B |
| Teeth Count | 7 |
| Ear-to-Ear Width | 387mm (15.32 in) |
| Center-to-Center Width | 500mm (19.69 in) |
| Total Weight | 2020 kg (4453.3 lbs) |
| Linkage Type | DB Linkage |
| Machine Size | 30-40 Tons |
| Certification | CE Marked |
