Product Description

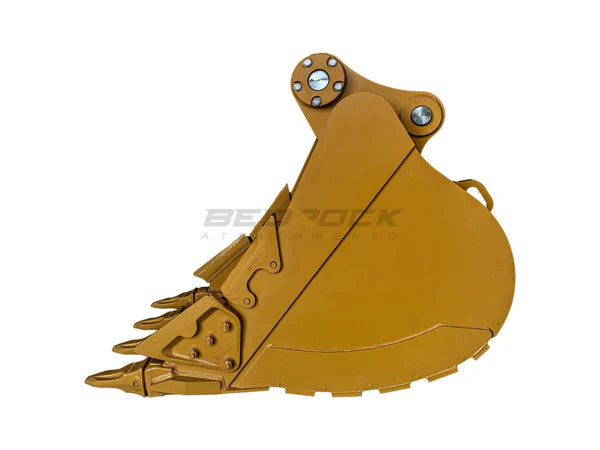

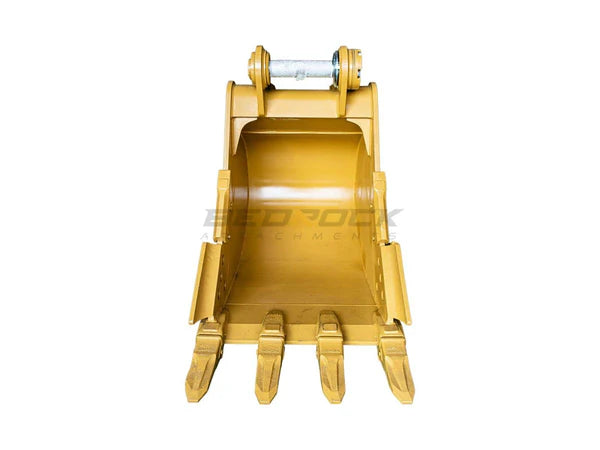

Bedrock Attachments Heavy-Duty Bucket & Adjuster GP | Width 42-Inch | Capacity 1.17 CU M | Machine Size 30-40 Tons | For Excavators CAT 336E
DESCRIPTION
The Bedrock Attachments Heavy-Duty Bucket & Adjuster GP is designed for CAT 336E excavators, providing superior strength, durability, and optimized excavation capabilities. Engineered to handle rock excavation, material transport, and earthmoving applications, this bucket is built using reinforced steel and precision engineering for maximum wear resistance and long-term reliability. Featuring a compact 42-inch width, 4 toughened teeth, and a DB Linkage system, this attachment enhances digging power and operational efficiency, making it a valuable addition to high-performance job sites.
Key Features
- Robust Heavy-Duty Design: Optimized for rock excavation, material handling, and demanding environments.
- Optimized Capacity: 1.17 CU M (1.54 CU YD) ensures efficient material transport.
- Reinforced Teeth: 4 hardened teeth, providing superior durability and wear resistance.
- Precision Pin System: Includes S Pin (100mm) & L Pin (90mm) for secure attachment and stability.
- Reliable DB Linkage: Enhances bucket strength and operational efficiency.
- Compact Excavation Reach: 42-inch (1050mm) bucket width, improving digging accuracy.
- Machine Compatibility: Fits CAT 336E excavators within the 30-40 ton size range.
-
CE Certified: Meets strict European safety standards, ensuring quality and reliability.
Detailed Specifications
Specification | Details |
---|---|
SKU | EB336DBHD-42-1.17 |
Bucket Width | 1050mm (42 in) |
Bucket Capacity | 1.17 CU M (1.54 CU YD) |
Pin Type | S Pin (100mm) & L Pin (90mm) |
Teeth Count | 4 |
Ear-to-Ear Width | 588 mm (23.15 in) |
Center-to-Center Width | 500 mm (19.69 in) |
Total Weight | 1410 kg (3102 lbs) |
Linkage Type | DB Linkage |
Machine Size | 30-40 Tons |
Certification | CE Marked |
