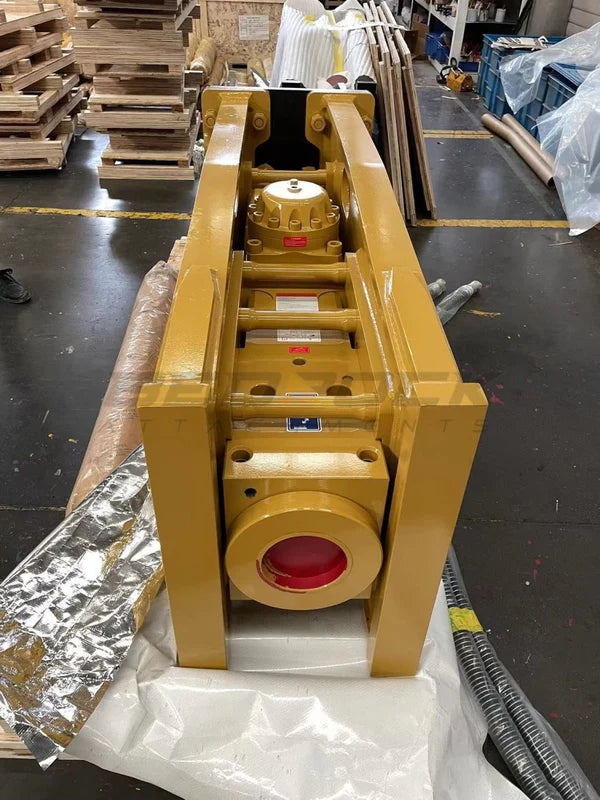

Bedrock Attachments Hydraulic Breaker Hammer | Model EH320 | Width 22.6" | Machine Size 18-26 Ton | For Excavators
Bedrock Attachments Hydraulic Breaker Hammer | Model EH320 | Width 22.6" | Machine Size 18-26 Ton | For Excavators
Regular price
$20,938.00
Regular price
Sale price
$20,938.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Bedrock Attachments Hydraulic Breaker Hammer | Model EH320 | Width 22.6" | Machine Size 18-26 Ton | For Excavators
DESCRIPTION
The Bedrock Attachments Hydraulic Breaker Hammer EH320 is engineered for high-performance rock breaking, trench excavation, and demolition tasks. Designed to fit CAT, KOMATSU, HITACHI, KOBELCO, VOLVO, and SUMITOMO excavators, this attachment offers powerful impact energy, efficient hydraulic control, and durable construction to tackle tough excavation projects. With a high-frequency impact system, robust inward valve mechanism, and reinforced accumulator, the EH320 ensures optimal breaking force for maximum productivity.
Key Features
- Wide Excavator Compatibility: Fits CAT 320D, KOMATSU PC200/210/220, HITACHI EX200, KOBELCO SK200/210E, VOLVO EC210, SUMITOMO SH200/210 excavators.
- High-Performance Hydraulic System: Operates at 160-180 kg/cm² (2272-2556 psi / 157-177 bar) for powerful impact delivery.
- Optimized Impact Frequency: 350-550 bpm, ensuring consistent force application for effective rock breaking.
- Superior Impact Energy: 3900-4100J, maximizing excavation efficiency and demolition power.
- Precision Hydraulic Flow: 120-180 L/min (31.7-47.6 gal/min) optimizing machine functionality.
- Reinforced Tool Build: Diameter of tool: 140mm (5.51 in), hose diameter: 25.4mm (1 in), ensuring long-term durability.
- Stable Valve & Accumulator System: Inward valve type with accumulator, guaranteeing consistent pressure regulation.
- Optimized Excavator Carrier Size: Works with 0.7-0.9m³ capacity excavators within the 18-26 ton size range.
- Durable Construction: Body weight: 956 kg, total weight: 2094 kg, ensuring operational longevity.
- Compact & Efficient Design: Width: 22.6 in, Length: 112.8 in, Height: 28 in, optimizing transport and installation.
- CE Certified: Meets strict European safety standards, ensuring quality and reliability.
Detailed Specifications
| Specification | Details |
|---|---|
| SKU | EH320 |
| Compatible Excavators | CAT 320D, KOMATSU PC200/210/220, HITACHI EX200, KOBELCO SK200/210E, VOLVO EC210, SUMITOMO SH200/210 |
| Operating Pressure | 160-180 kg/cm² (2272-2556 psi / 157-177 bar) |
| Hydraulic Flow Range | 120-180 L/min (31.7-47.6 gal/min) |
| Impact Frequency | 350-550 bpm |
| Impact Energy | 3900-4100J |
| Tool Diameter | 140mm (5.51 in) |
| Hose Diameter | 25.4mm (1 in) |
| Tool Weight | 135 kg |
| Suitable Carrier | 0.7-0.9m³ |
| Suitable Carrier Size | 18-26 Tons |
| Valve Type | Inward |
| Accumulator | Yes |
| Body Weight | 956 kg (2103 lbs) |
| Total Weight | 2094 kg |
| Dimensions | Width: 22.6 in, Length: 112.8 in, Height: 28 in |
| Certification | CE Marked |
