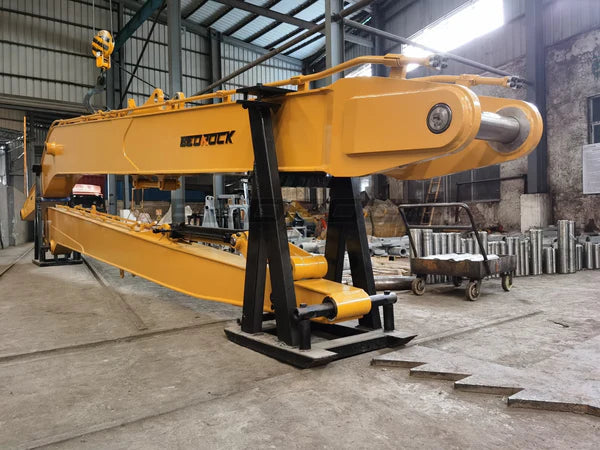

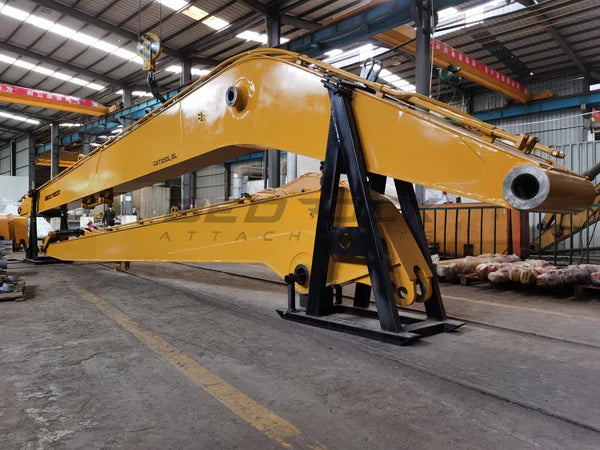

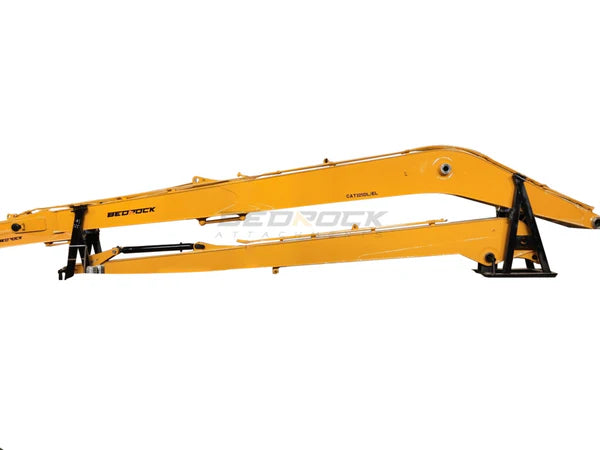

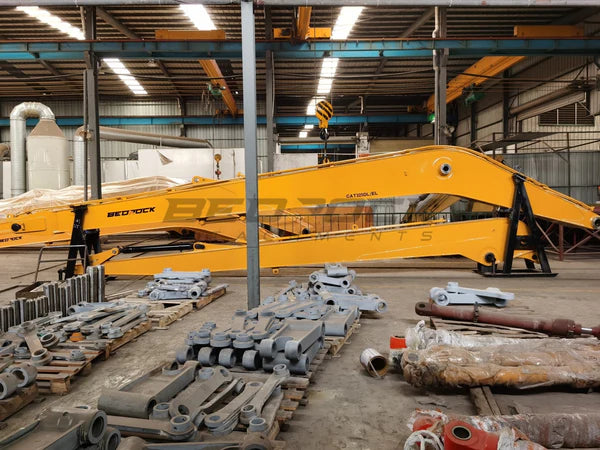

Bedrock Attachments Long Reach Arm and Boom | Model EL325D-18 | Reach 59' Ft | Machine Size 30-35 Tons | For Excavators CAT 325D-330D2L
DESCRIPTION
The Bedrock Attachments Long Reach Arm and Boom is designed to extend the operational reach of CAT 325D, 325DL, 329, 329D, 329DL, 329D2, 330GC, 330, 330D2, and 330D2L excavators, making it perfect for deep excavation, dredging, and material handling. With an 18-meter total reach, this attachment ensures maximum durability, hydraulic efficiency, and precision in demanding job sites. Built with advanced engineering techniques and robotic welding, it guarantees structural integrity and smooth operation. The included supporting structure makes packing and transportation simpler and more convenient.
Key Features
- Extended Reach: 18m total reach with 9.7m boom and 8.3m stick, allowing deeper excavation.
- High-Efficiency Bucket: 0.65m³ cleaning bucket, optimized for dredging and material cleanup.
- Precision Engineering: Computerized stress distribution analysis ensures durability and strength.
- Advanced Manufacturing: Large-scale milling equipment enhances welding precision.
- Premium Hydraulic System: Cold-rolled precision steel pipes, finished with phosphoric acid washing, ensuring smooth oil flow and reducing hydraulic circuit contamination.
- Top-Tier Welding: Robotic ultrasonic-tested welding ensures maximum structural integrity.
- Pin Hole Accuracy: High-quality boring machine ensures parallelism, securing flawless pin alignment.
- Surface Treatment: Fully sandblasted finish, delivering a clean and polished appearance.
- Reliable Cylinders: Equipped with Cat 312 cylinder for smooth hydraulic efficiency.
- Robust Linkage: 312 Linkage system with 2 x 65mm Pins for improved attachment stability.
-
CE Certified: Meets strict European safety standards, ensuring quality and reliability.
Detailed Specifications
| Specification | Details |
|---|---|
| SKU | EL325D-18 |
| Total Reach | 18m (59 ft) |
| Boom Length | 9.7m |
| Stick Length | 8.3m |
| Bucket Capacity | 0.65m³ (Cleaning Bucket) |
| Pin Count | 6 |
| Pin Size | 2 x 65mm Pins |
| Hydraulic System | Cold-rolled precision steel pipes with phosphoric acid treatment |
| Welding Method | Robotic welding with ultrasonic non-destructive testing |
| Surface Treatment | Sandblasted for smooth finish |
| Transport Support | Supporting structure included for easier packing and shipment |
| Cylinder Type | Cat 312 Cylinder |
| Linkage Type | 312 Linkage |
| Certification | CE Marked |
