Bedrock Attachments Long Reach Arm and Boom | Model EL326-18-SCN | Reach 59' Ft | Machine Size 24-26 Tons | For Excavators CAT 324D-326D2L
Bedrock Attachments Long Reach Arm and Boom | Model EL326-18-SCN | Reach 59' Ft | Machine Size 24-26 Tons | For Excavators CAT 324D-326D2L
Regular price
$39,176.00
Regular price
Sale price
$39,176.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Bedrock Attachments Long Reach Arm and Boom | Model EL326-18-SCN | Reach 59' Ft | Machine Size 24-26 Tons | For Excavators CAT 324D-326D2L
DESCRIPTION

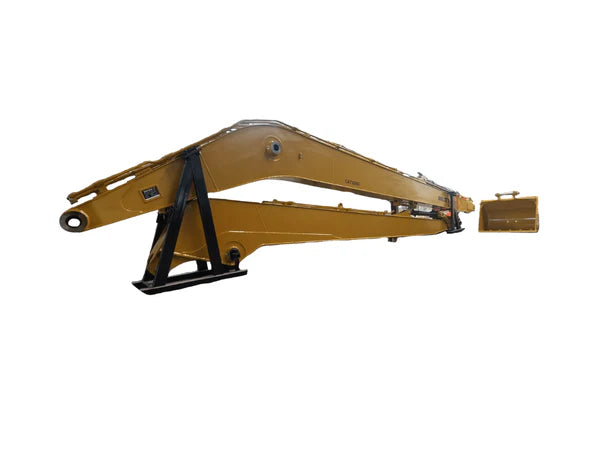

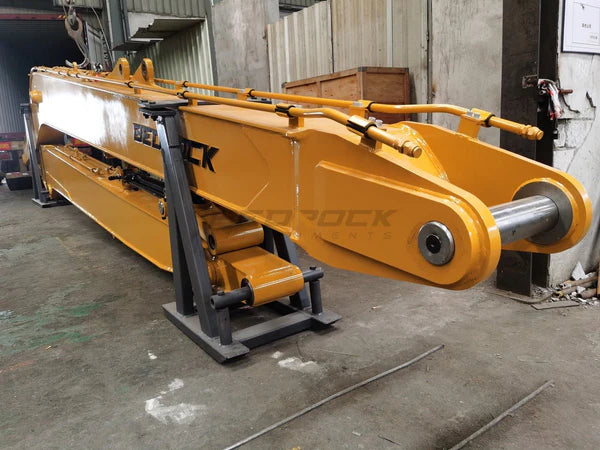

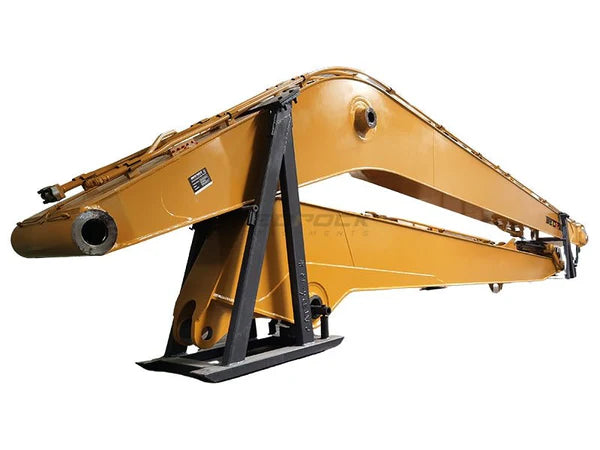

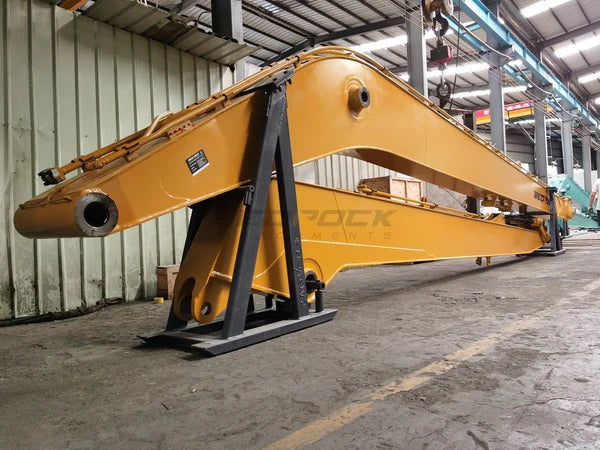

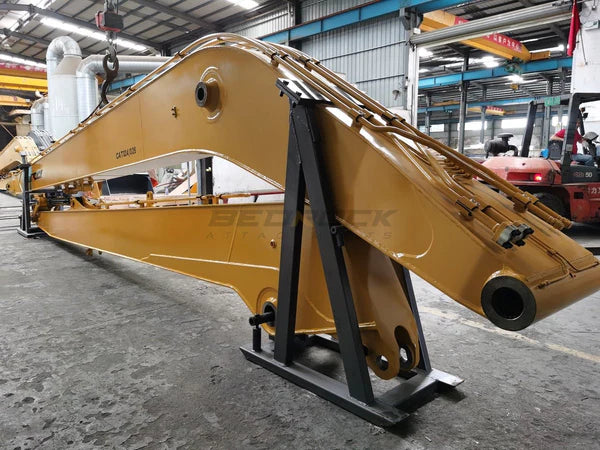

The Bedrock Attachments Long Reach Arm and Boom is engineered to enhance the capabilities of CAT 324D, 324DL, 326D2, 326D2L, and 324GC excavators, making it perfect for deep excavation, dredging, and precise material handling. With a total reach of 18 meters, this attachment offers structural durability, hydraulic efficiency, and precision engineering, ensuring reliable performance in demanding job sites. The supporting structure simplifies packing and transportation, making logistics smoother.
Key Features
- Extended Reach: 18m total reach with 10m boom and 8m stick, allowing deeper excavation.
- High-Efficiency Bucket: 0.65m³ capacity, optimized for dredging and material handling.
- Precision Engineering: Computerized stress distribution analysis ensures structural durability.
- Advanced Manufacturing: Large-scale milling equipment enhances welding precision.
- Premium Hydraulic System: Cold-rolled precision steel pipes, finished with phosphoric acid washing, ensuring smooth oil flow and reducing hydraulic circuit contamination.
- Top-Tier Welding: Robotic ultrasonic-tested welding guarantees maximum structural integrity.
- Pin Hole Accuracy: High-quality boring machine ensures parallelism, ensuring flawless pin alignment.
- Surface Treatment: Fully sandblasted finish, delivering a clean and polished look.
- Reliable Cylinders: Equipped with Bucket Cylinder, Stick Cylinder-2898112B for efficient operation.
- Robust Linkage: 315 Linkage system with 2 x 70mm Pins for improved attachment stability.
-
CE Certified: Meets strict European safety standards, ensuring reliability and efficiency.
Detailed Specifications
| Specification | Details |
|---|---|
| SKU | EL326-18-SCN |
| Total Reach | 18m (59 ft) |
| Boom Length | 10m |
| Stick Length | 8m |
| Bucket Capacity | 0.65m³ |
| Pin Count | 8 |
| Pin Size | 2 x 70mm Pins |
| Hydraulic System | Cold-rolled precision steel pipes with phosphoric acid treatment |
| Welding Method | Robotic welding with ultrasonic non-destructive testing |
| Surface Treatment | Sandblasted for smooth finish |
| Transport Support | Supporting structure included for easier packing and shipment |
| Cylinder Type | Bucket Cylinder, Stick Cylinder-2898112B |
| Linkage Type | 315 Linkage |
| Certification | CE Marked |
